HART HTPRNVNM 10-inch Universal Pole Saw Attachment

Introduction

Thank you for choosing the HART HTPRNVNM 10-inch Universal Pole Saw Attachment. This attachment is designed to connect to a compatible power head (not included) to assist with pruning and cutting limbs up to 6 inches thick, reaching up to 12 feet above the ground with the included extension shaft. This manual provides essential information for the safe and effective assembly, operation, and maintenance of your pole saw attachment. Please read it thoroughly before use and retain it for future reference.

Note: This product is an attachment only. A power head is required for operation and is sold separately. Refer to your power head's instruction manual for specific operating and safety procedures related to the power unit.

Important Safety Information

Always prioritize safety when operating power tools. Failure to follow these safety guidelines may result in serious injury or property damage.

• Read All Manuals: Before operating, read and understand this manual and the power head's instruction manual.
• Personal Protective Equipment (PPE): Always wear safety glasses or goggles, hearing protection, heavy-duty gloves, and sturdy footwear. A hard hat is recommended when working overhead.
• Work Area: Keep the work area clear of bystanders, children, and pets. Ensure a stable footing and clear path for retreat.
• Electrical Safety: If using an electric power head, ensure cords are in good condition and avoid cutting near power lines.
• Fuel Safety: If using a gas power head, handle fuel safely in a well-ventilated area away from ignition sources.
• Inspect Before Use: Before each use, inspect the pole saw attachment for loose parts, damage, or wear. Ensure the chain is properly tensioned and lubricated.
• Maintain Control: Always maintain a firm grip on the tool with both hands. Do not overreach.
• Avoid Kickback: Be aware of the chain's rotation and potential for kickback. Avoid cutting with the tip of the bar.
• Proper Cutting Technique: Plan your cuts. Do not cut branches that are under tension or could spring back.
• Storage: Store the pole saw attachment in a dry, secure place, out of reach of children.

Package Contents

Carefully unpack your HART HTPRNVNM Pole Saw Attachment and verify that all items listed below are present and undamaged. If any parts are missing or damaged, do not attempt to assemble or operate the tool. Contact customer service for assistance.

• 10-inch Pole Saw Attachment
• Extension Shaft
• Scabbard (Bar Cover)
• Bar and Chain Lubricant
• Combination Wrench
• Shoulder Harness Assembly
• Hanger Cap
• Operator's Manual (this document)

Assembly and Setup

Follow these steps to assemble your pole saw attachment. Ensure the power head is turned off and disconnected from its power source (battery removed or engine off) before assembly.

1. Attaching to a Power Head

1. Align the shaft of the pole saw attachment with the coupling on your universal power head.
2. Push the attachment shaft into the power head coupling until it clicks or locks into place.
3. Tighten any securing knobs or levers on the power head's coupling mechanism to ensure a firm connection. Refer to your power head's manual for specific instructions.

2. Assembling the Extension Shaft (Optional)

If additional reach is required, the extension shaft can be inserted between the pole saw attachment and the power head.

1. Connect the extension shaft to the power head using the same method as attaching the pole saw directly.
2. Connect the pole saw attachment to the other end of the extension shaft, ensuring it locks securely.

3. Lubrication

The pole saw features an automatic lubrication system. Before first use and periodically during operation, ensure the lubricant reservoir is filled with the provided bar and chain lubricant. This system helps keep the bar and chain well-oiled for optimal performance and longevity.

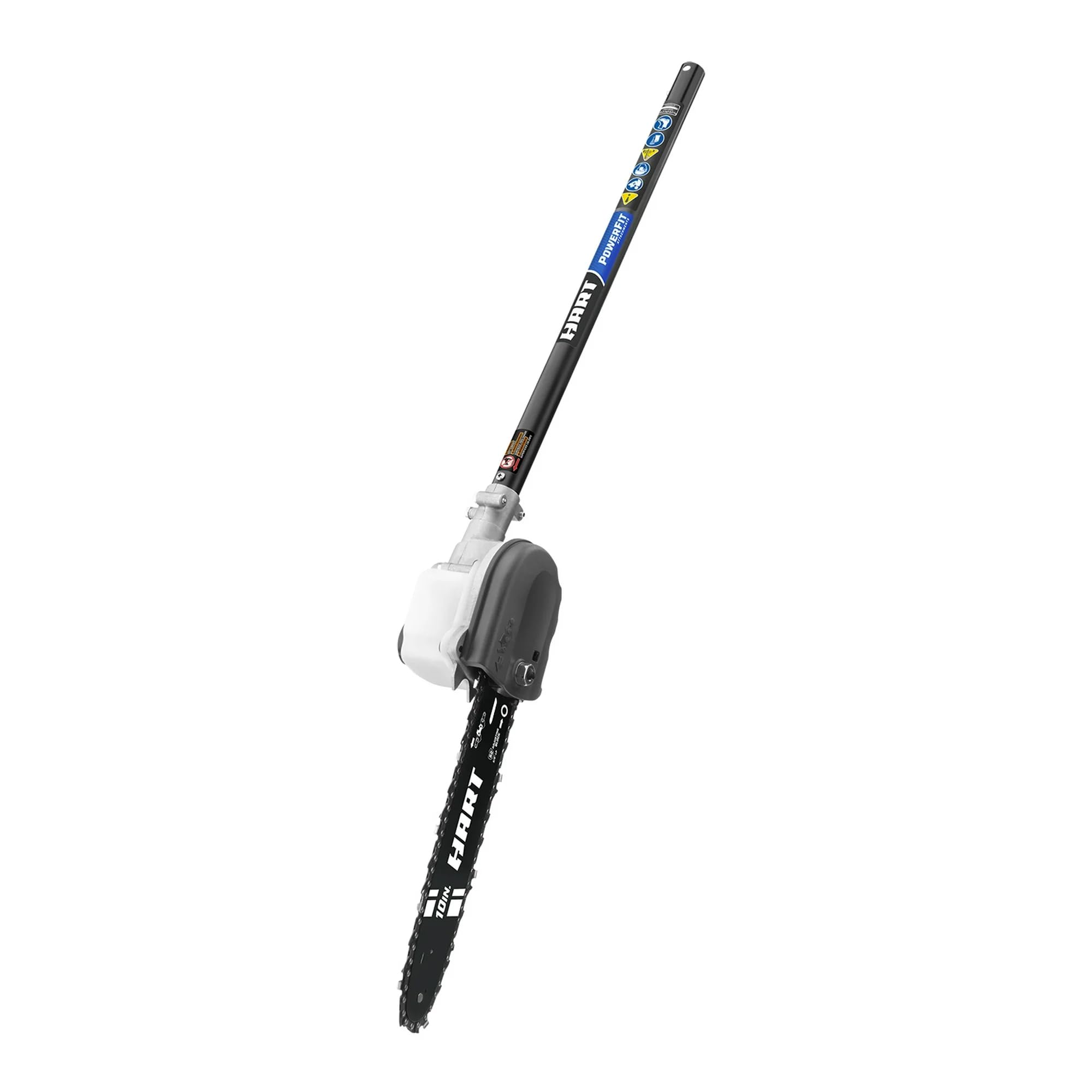

Image: The HART HTPRNVNM 10-inch Universal Pole Saw Attachment shown connected to a power head. The image displays the saw attachment, extension shaft, and the power head (not included with this product).

Operating Instructions

Always follow safety guidelines before and during operation.

1. Pre-Operation Checklist

• Ensure all connections between the attachment, extension shaft, and power head are secure.
• Check the bar and chain for proper tension and lubrication.
• Verify the work area is clear of obstacles, power lines, and bystanders.
• Wear all recommended personal protective equipment.

2. Starting the Pole Saw

Refer to your power head's instruction manual for specific starting procedures. Once the power head is running, the pole saw attachment will be ready for use.

3. Pruning Techniques

• Planning Cuts: Identify the branch to be cut. Ensure it will fall safely and not strike power lines, structures, or people.
• Three-Cut Method for Larger Limbs: For limbs over 2 inches in diameter, use the three-cut method to prevent bark stripping. First, make an undercut about 6-12 inches from the trunk, cutting about one-third of the way through the branch. Second, make a top cut further out from the undercut, allowing the branch to fall. Third, make a final clean cut close to the trunk or main branch.
• Smaller Limbs: For limbs up to 2 inches, a single cut from the top may suffice.
• Angled Trimming Head: The angled trimming head provides improved control and allows for more precise cuts, especially in tight spaces or at awkward angles.
• Maximum Cutting Capacity: This pole saw is ideal for cutting limbs up to 6 inches thick. Do not attempt to cut larger limbs.
• Maximum Reach: With the extension shaft, you can reach branches up to 12 feet above the ground. Always maintain a safe distance from the cutting area.

4. Automatic Lubrication Feature

The pole saw attachment is equipped with an automatic lubrication feature that continuously oils the bar and chain during operation. Regularly check the lubricant reservoir and refill as needed to ensure consistent lubrication. Proper lubrication is critical for chain life and cutting efficiency.

Maintenance

Regular maintenance ensures the longevity and safe operation of your pole saw attachment. Always disconnect the power head from its power source before performing any maintenance.

1. Bar and Chain Care

• Chain Tension: Check chain tension frequently. A properly tensioned chain should be snug but still able to be pulled freely around the bar by hand. Refer to your power head's manual for specific chain tensioning instructions.
• Chain Sharpening: A dull chain will not cut efficiently and can cause kickback. Sharpen the chain regularly or replace it when necessary. Consult a professional if you are unsure how to sharpen the chain.
• Bar Maintenance: Clean the guide bar groove regularly to remove sawdust and debris. Flip the guide bar periodically to ensure even wear.
• Lubricant Reservoir: Keep the bar and chain lubricant reservoir filled. Use only recommended bar and chain oil.

2. Cleaning and Storage

• After each use, clean the pole saw attachment thoroughly, removing all sawdust, sap, and debris.
• Apply the scabbard (bar cover) over the guide bar and chain when the tool is not in use to protect the chain and prevent accidental contact.
• Store the pole saw attachment in a dry, well-ventilated area, away from direct sunlight, moisture, and extreme temperatures. Keep it out of reach of children and unauthorized users.

Troubleshooting

This section addresses common issues you might encounter with your pole saw attachment. For issues related to the power head, refer to its specific manual.

Product Specifications

These specifications are for the HART HTPRNVNM 10-inch Universal Pole Saw Attachment.

Warranty and Support

For warranty information regarding your HART HTPRNVNM 10-inch Universal Pole Saw Attachment, please refer to the documentation provided with your purchase or visit the official HART website. Warranty terms typically cover defects in materials and workmanship.

If you require technical assistance, replacement parts, or have questions not covered in this manual, please contact HART customer service. Have your model number (HTPRNVNM) and proof of purchase ready when contacting support.
