Introduction
Thank you for choosing the IBELL 19 Litre OTG Oven Toaster Grill. This appliance is designed for baking, grilling, and toasting a variety of dishes with convenience and precision. Please read this instruction manual carefully before operating the appliance to ensure safe and efficient use. Keep this manual for future reference.

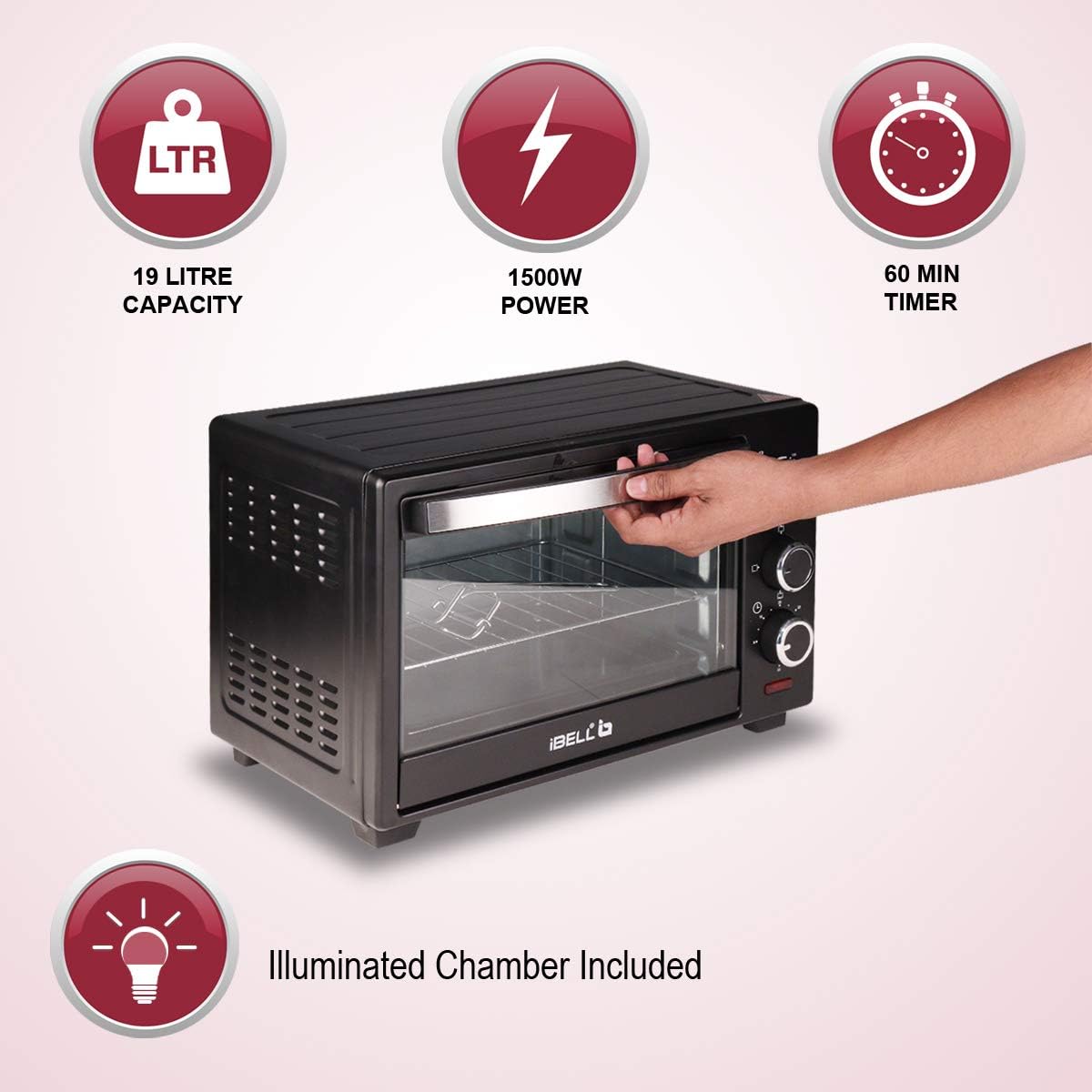

Figure 1: Front view of the IBELL 19 Litre OTG Oven Toaster Grill. This image shows the appliance with its glass door, control knobs on the right, and interior rack.
Important Safety Instructions
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause hazards or injury.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Oversized foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
- A fire may occur if the oven is covered or touching flammable material, including curtains, drapes, walls, and the like, when in operation.
- Do not place any of the following materials in the oven: paper, cardboard, plastic, or similar materials.
- Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
- Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
Product Components
Figure 2: Diagram showing the main components of the IBELL OTG. Labels include Glass Door Handle, Glass Door Clips, Bake Pan, Bake Rack, Pan Handle, Power Light, Timer, Selector Dial, and Thermostat Dial.
- Glass Door Handle: For opening and closing the oven door.
- Glass Door Clips: Secure the glass door.
- Bake Pan: Used for baking and collecting drips.
- Bake Rack: For placing food items or the bake pan.
- Pan Handle: Tool for safely removing hot bake pan or rack.
- Power Light: Indicates when the oven is operating.
- Timer Dial: Sets the cooking duration (up to 60 minutes).
- Selector Dial: Chooses heating element configuration (top, bottom, or both).
- Thermostat Dial: Adjusts the cooking temperature.
Included Components:
- 1 Electric Oven
- Baking Pan
- Handle
- User Manual
- Warranty Card
Setup
Unpacking
- Carefully remove the oven and all accessories from the packaging.
- Remove any packing materials, stickers, or protective films from the appliance.
- Check that all included components are present.
Placement
- Place the oven on a stable, flat, heat-resistant surface.
- Ensure there is adequate ventilation around the oven (at least 10-15 cm clearance on all sides).
- Do not place the oven near flammable materials, curtains, or walls.
- Ensure the power cord is not touching any hot surfaces.
Initial Cleaning
- Wipe the interior and exterior of the oven with a damp cloth.
- Wash the bake pan, bake rack, and pan handle in warm, soapy water. Rinse thoroughly and dry.
First Use (Burn-in)
- Before cooking food, operate the oven empty for approximately 15 minutes to burn off any manufacturing residues.
- Set the Thermostat Dial to maximum temperature (250°C).
- Set the Selector Dial to both top and bottom heating elements.
- Set the Timer Dial to 15 minutes.
- A slight odor or smoke may be present during this initial operation; this is normal. Ensure the area is well-ventilated.
- Once the timer rings, turn all dials to the "OFF" position and allow the oven to cool completely.
Operating Instructions
Control Dials
- Thermostat Dial: Controls the internal temperature from 100°C to 250°C.
- Selector Dial:
- Top Heating: For grilling and browning.
- Bottom Heating: For gentle baking or keeping food warm.
- Both Top & Bottom Heating: For general baking and roasting.
- Timer Dial: Sets the cooking time from 0 to 60 minutes. The oven will automatically turn off when the timer reaches zero and a bell will ring. For continuous operation, turn the dial to the "Stay On" position (if available, otherwise set to maximum time and monitor).
General Operation
- Place the bake rack or bake pan with food into the oven. Ensure adequate space around the food for even cooking.
- Close the glass door securely.
- Set the desired temperature using the Thermostat Dial.
- Select the appropriate heating mode (top, bottom, or both) using the Selector Dial.
- Set the cooking time using the Timer Dial. The power indicator light will illuminate, indicating the oven is operating.
- When the set time elapses, the oven will automatically turn off, and a bell will sound.
- Carefully open the oven door and use the pan handle to remove the hot bake pan or rack.
- Always unplug the oven from the power outlet after use and allow it to cool before cleaning.
Figure 3: The IBELL OTG in operation, showing a cake baking inside the illuminated chamber. This illustrates the oven's functionality during cooking.
Maintenance and Cleaning
General Cleaning
- Always unplug the oven and allow it to cool completely before cleaning.
- Do not immerse the oven body, cord, or plug in water or any other liquid.
- Wipe the exterior with a damp cloth and mild detergent. Do not use abrasive cleaners or scouring pads.
- Clean the interior walls with a damp cloth and mild, non-abrasive cleaner. For stubborn stains, a paste of baking soda and water can be used, then wiped clean.
- The glass door can be cleaned with a glass cleaner.
Cleaning Accessories
- The bake pan, bake rack, and pan handle can be washed in warm, soapy water. Rinse thoroughly and dry completely before storing or reusing.
- For baked-on food, soak accessories in hot soapy water before cleaning.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven does not turn on. | Not plugged in; power outlet malfunction; timer not set. | Ensure the oven is securely plugged into a working outlet. Check the circuit breaker. Set the timer dial to the desired cooking time. |
| Food is not cooking evenly. | Incorrect temperature or cooking mode; oven overloaded; food placed too close to heating elements. | Adjust temperature and selector dial settings. Avoid overcrowding the oven. Ensure proper clearance around food items. Rotate food halfway through cooking if necessary. |
| Smoke or unusual odor during operation (after first use). | Food spills or residue inside the oven; excessive grease. | Unplug the oven and allow it to cool. Clean the interior thoroughly, especially the heating elements and crumb tray, to remove any food particles or grease. |
| Timer does not advance or bell does not ring. | Timer mechanism malfunction. | If the timer is not functioning correctly, contact customer support for assistance. Do not attempt to repair it yourself. |
Specifications
- Brand: IBELL
- Model Name: IBLEO19LG
- Capacity: 19 Litres
- Wattage: 1500 Watts
- Colour: Black
- Product Dimensions (D x W x H): 25.5D x 44W x 28.5H Centimeters
- Item Weight: 5.65 Kilograms
- Control Type: Knob Control
- Special Feature: Adjustable Temperature, Timer, Auto Cut-off
- Power Source Type: Electric
- Material Type: Iron
- Country of Origin: India
Figure 4: Dimensions of the IBELL OTG, showing measurements of 25.5 cm (10 in) depth, 44 cm (17.3 in) width, and 28.5 cm (11.2 in) height.
Warranty Information
The IBELL 19 Litre OTG Oven Toaster Grill comes with a 2-year warranty. This includes a 1-year standard warranty and an additional 1-year warranty upon registration.
- Standard Warranty: 1 year from the date of purchase.
- Additional Warranty: An extra 1 year can be obtained by registering your product within 30 days from the date of purchase. Please refer to the warranty card included with your product for registration details and terms and conditions.
Please retain your purchase receipt for warranty claims. The warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized repairs, or normal wear and tear.
Customer Support
For any queries, service requests, or technical assistance regarding your IBELL OTG, please contact our customer support team:
- Manufacturer: Innovative Technologies
- Address: iBELL Fida's Building, Thottumugham P.O, Aluva, Kerala - 683105, India
- Phone: 1800 2020 260
- Email: connect@ibellstore.com
When contacting support, please have your product model number (IBLEO19LG) and purchase details ready.
