Introduction
Thank you for choosing the TIGUBFRE Queen Bed Frame. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure safe and efficient use of your new bed frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

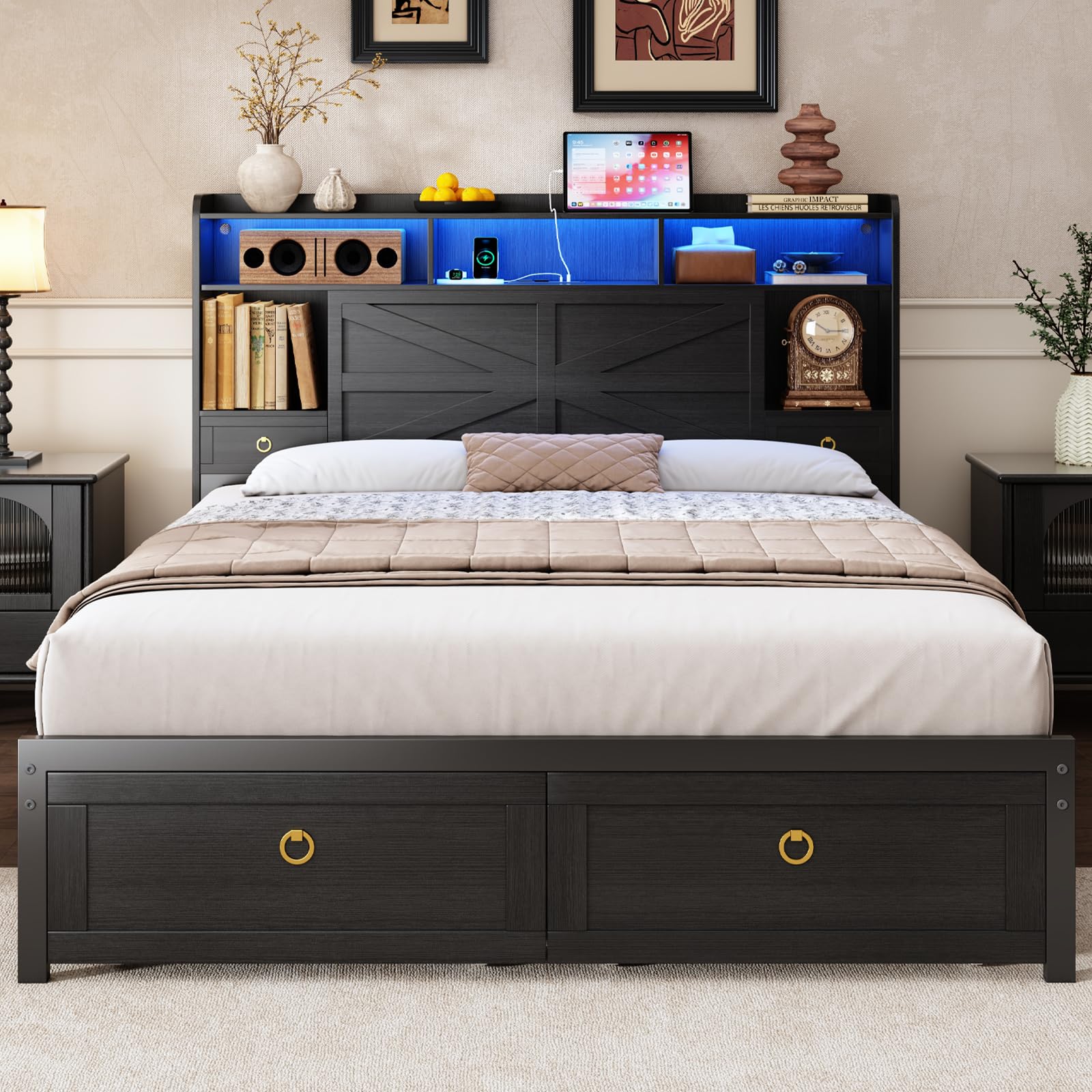

Image: Overview of the TIGUBFRE Queen Bed Frame, highlighting dimensions, weight capacity (1000 lbs), and estimated assembly time (45 minutes). It features a storage headboard, LED lighting, charging station, and under-bed drawers.
Safety Information
Important Safety Precautions:
- Do not load more than 1000 pounds onto the bed frame. Exceeding this weight limit may cause structural damage and potential injury.
- Assembly requires two people to prevent injury. Some components may be heavy or awkward to handle alone.
- Ensure all screws and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
- Keep small parts and packaging materials away from children to avoid choking hazards.
- Place the bed frame on a level surface to ensure stability and prevent wobbling.
Package Contents
Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Headboard with LED Light Strip and Charging Station
- Bed Frame Side Rails
- Metal Slats
- Support Legs
- 2 Hidden Headboard Drawers
- 2 Large Under-Bed Drawers with Pulleys
- Assembly Hardware (screws, bolts, Allen wrench)
- Instruction Manual
Setup and Assembly
Assembly is designed to be straightforward, but two people are recommended for efficiency and safety. Follow the numbered steps in your included instruction manual. The modular design and U-channel installation system simplify the process.
Key Assembly Steps:
- Unpack and Identify Parts: Lay out all components on a clean, soft surface to prevent scratches. Refer to the parts list in your manual to identify each piece.
- Assemble the Headboard: Attach the headboard sections, ensuring the LED light strip and charging station components are correctly positioned.
- Connect Side Rails: Securely attach the side rails to the headboard and footboard (if applicable) using the provided hardware.
- Install Metal Slats: Insert the metal slats into the U-channel system on the side rails. Ensure they are evenly spaced and firmly seated.
Image: Close-up view demonstrating the U-channel installation method for the metal slats, designed for quick and convenient assembly.
- Attach Support Legs: Fasten the central support legs to the bed frame for added stability.
Image: Illustration of the heavy-duty metal support legs, highlighting their role in providing solid support to the bed frame.
- Assemble and Insert Drawers: Assemble the large under-bed drawers and the hidden headboard drawers. The large drawers feature bottom pulleys for easy movement and limiting plates to secure their position. The hidden headboard drawers can also be removed to serve as open storage spaces.
Image: Detail of the under-bed drawers, showing the bottom pulleys for smooth operation and limiting plates that secure the drawer position under the bed frame.
Image: The headboard featuring two hidden drawers. These drawers can be removed to convert the compartments into open storage shelves.
- Connect LED Lights and Charging Station: Follow the instructions to connect the LED light strip and charging station to a power source.
Operating Instructions
LED Lighting System:
The integrated LED light strip on the headboard offers customizable lighting options. Use the provided remote control or a compatible app to adjust settings.
- Color Selection: Choose from various colors to match your preference.
- Brightness Adjustment: Dim or brighten the lights as needed.
- Lighting Effects: Explore different lighting modes and effects.
- Timer Function: Set a timer for the lights to automatically turn off.
- Rhythm Mode: Lights can synchronize with music or sounds.
Image: The bed frame with its LED lighting system, illustrating various control options such as RGB lighting, app control, remote control, brightness adjustment, rhythm mode, sound mode, and a timer function.
Image: A split image showing the bed frame in both daytime and nighttime settings, demonstrating the visual impact of the LED lighting when active.
Charging Station:
The headboard includes a built-in charging station for convenient power access.
- 2 AC Outlets: For standard electrical devices.
- 2 USB Ports (5V/2.4A): For charging smartphones and other USB-powered devices.
- 1 Type-C Port (5V/3A): For faster charging of compatible devices.
Image: Detailed view of the headboard's built-in charging station, showing the two AC outlets, two USB ports, and one Type-C port for various charging needs. The bottom USB port is specifically designed to power the LED light strip.
Storage Drawers:
The bed frame features multiple storage options:
- 2 Hidden Headboard Drawers: Ideal for small items, easily accessible. These can also be removed to create open shelves.
- 2 Large Under-Bed Drawers: Equipped with pulleys for smooth movement and limiting plates to keep them in place. Suitable for bedding, clothes, or other larger items.
Image: A full view of the bed frame showcasing both the two hidden drawers integrated into the headboard and the two large drawers located underneath the bed, providing ample storage solutions.
Image: This image illustrates the ample under-bed storage space, indicating a clearance of 10.35 inches, suitable for storing various items in boxes or baskets.
Product Function Introduction Video:
Video: This video provides a functional introduction to the TIGUBFRE Farmhouse Bed Frame, demonstrating its various features including the LED lights, charging station, and storage options.
Maintenance
To ensure the longevity and optimal performance of your bed frame, follow these maintenance guidelines:
- Cleaning: Wipe down wood and metal surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
- Noise Reduction: The bed frame is equipped with silent EVA pads to minimize friction noise from the support slats. If any noise occurs, check that all connections are tight and that the EVA pads are properly in place.
- Hardware Check: Periodically inspect all screws, bolts, and connections to ensure they remain tight. Re-tighten as needed to maintain stability.
- Drawer Care: Keep the drawer pulleys free of debris for smooth operation.
Troubleshooting
If you encounter any issues with your TIGUBFRE bed frame, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or noisy | Loose hardware; uneven placement; missing EVA pads. | Ensure all screws and bolts are tightened. Verify the bed is on a level surface. Check that EVA pads are correctly installed on slats. |
| LED lights not working | Power connection issue; remote control battery dead; light strip damage. | Check power connection to the light strip. Replace remote control batteries. Inspect the light strip for visible damage. |
| Charging station not working | Power connection issue; device incompatibility. | Ensure the charging station is properly plugged into a wall outlet. Test with different devices and cables. |
| Under-bed drawers not sliding smoothly | Debris in pulleys; drawer misalignment. | Clean any debris from the drawer pulleys. Ensure drawers are aligned correctly under the bed frame. |
Specifications
Detailed product specifications for the TIGUBFRE Queen Bed Frame:
| Feature | Detail |
|---|---|
| Size | Queen |
| Material | Engineered Wood, Metal |
| Product Dimensions (L x W x H) | 87.8" x 62" x 46.5" |
| Style | Farmhouse Headboard |
| Special Features | Charging Station, LED Lighting, No Box Spring Needed, Storage Drawers, USB Port |
| Included Components | Charging Station, Drawers, Headboard, LED Light Strips, Slats |
| Brand Name | TIGUBFRE |
| Model Number | GY-8009-QBlack |
| Headboard Material | Wood |
| Required Assembly | Yes (2 people recommended) |
| Color | Rustic Black |
| Furniture Finish | Imitation wood grain |
| Compatible Mattress Size | Queen Size 60" x 80" |
| Recommended Mattress Thickness | 6-10 inches (no box spring needed) |
| Maximum Weight Recommendation | 1000 Pounds |
| Under-Bed Clearance | 10.35 Inches |
| Item Weight | 79.5 Pounds |
Image: Diagram illustrating the recommended mattress thickness of 6-10 inches for optimal fit and comfort with the bed frame, indicating no box spring is needed.
Warranty and Support
TIGUBFRE is committed to providing quality products and customer satisfaction. For any questions, concerns, or assistance with your bed frame, please contact TIGUBFRE customer service. Refer to your purchase documentation for specific warranty details.
Customer Support: 24-hour after-sales service is available to assist you.
