VECELO Adjustable Rolling Stool User Manual

1. Introduction

This manual provides instructions for the safe and proper assembly, operation, and maintenance of your VECELO Adjustable Rolling Stool, model KHD-CC-RF02-BLK. Please read this manual thoroughly before use and retain it for future reference.

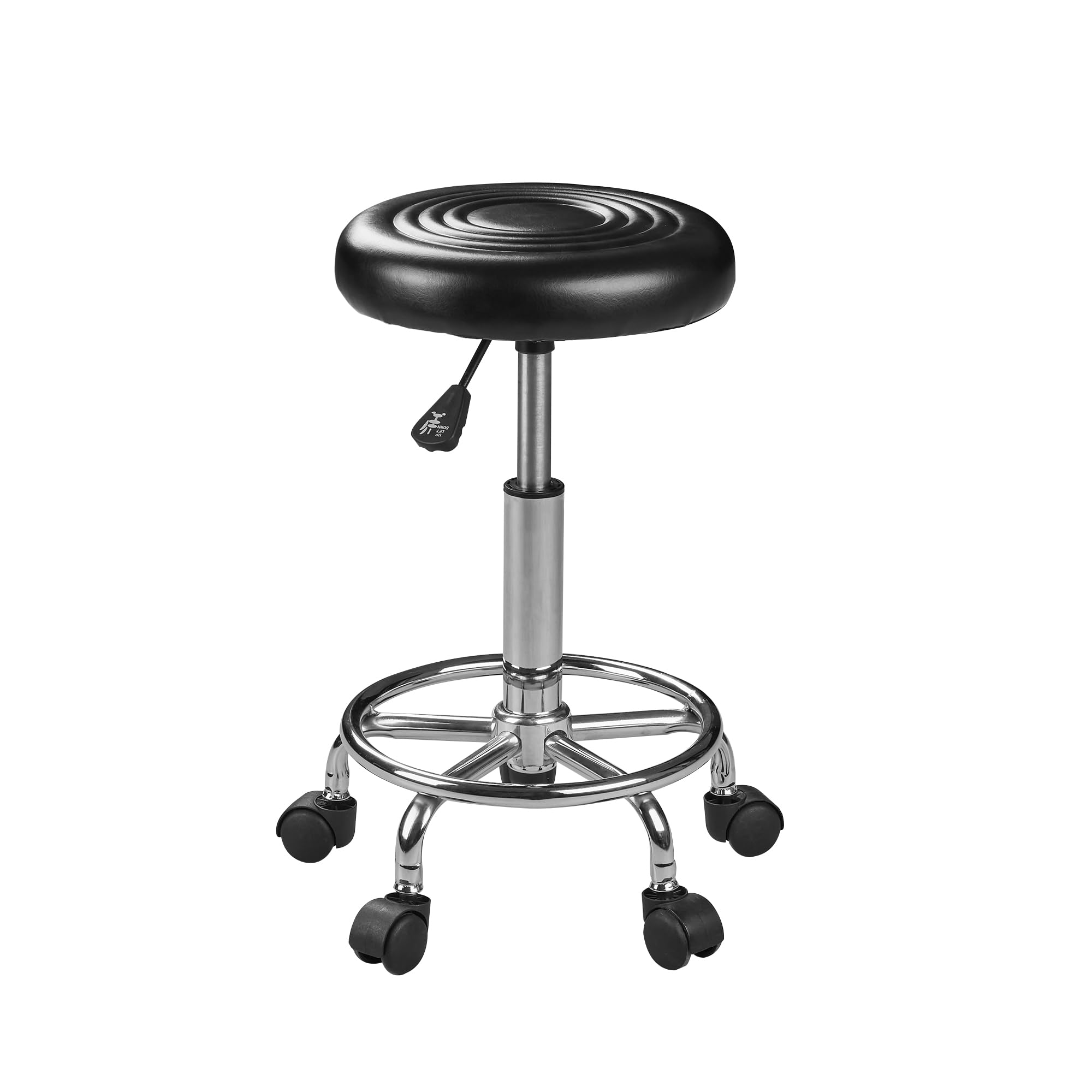

Image 1.1: VECELO Adjustable Rolling Stools in use.

2. Safety Information

• Maximum Weight Capacity: Do not exceed the maximum weight recommendation of 280 pounds (127 kg).
• Ensure all components are securely fastened before use.
• Do not stand on the stool.
• Keep hands and fingers clear of moving parts during height adjustment.
• Use the stool on a flat, stable surface to prevent tipping.

3. Package Contents

Verify that all components are present before beginning assembly:

• 1 x Stool (unassembled components)
• Assembly Hardware (screws, washers, etc.)
• Assembly Tool (if included)

4. Assembly Instructions

Assembly is required for this product. Please follow these general steps. Refer to the included diagram for specific part identification.

1. Unpack all components and lay them out on a clean, soft surface to prevent scratches.
2. Attach the casters (wheels) to the base. Ensure they click securely into place.
3. Insert the gas lift cylinder into the center hole of the base.
4. Place the footrest ring over the gas lift cylinder, ensuring it rests on the designated support.
5. Attach the seat plate to the underside of the seat cushion using the provided screws.
6. Carefully place the assembled seat onto the top of the gas lift cylinder. Press down firmly to secure.

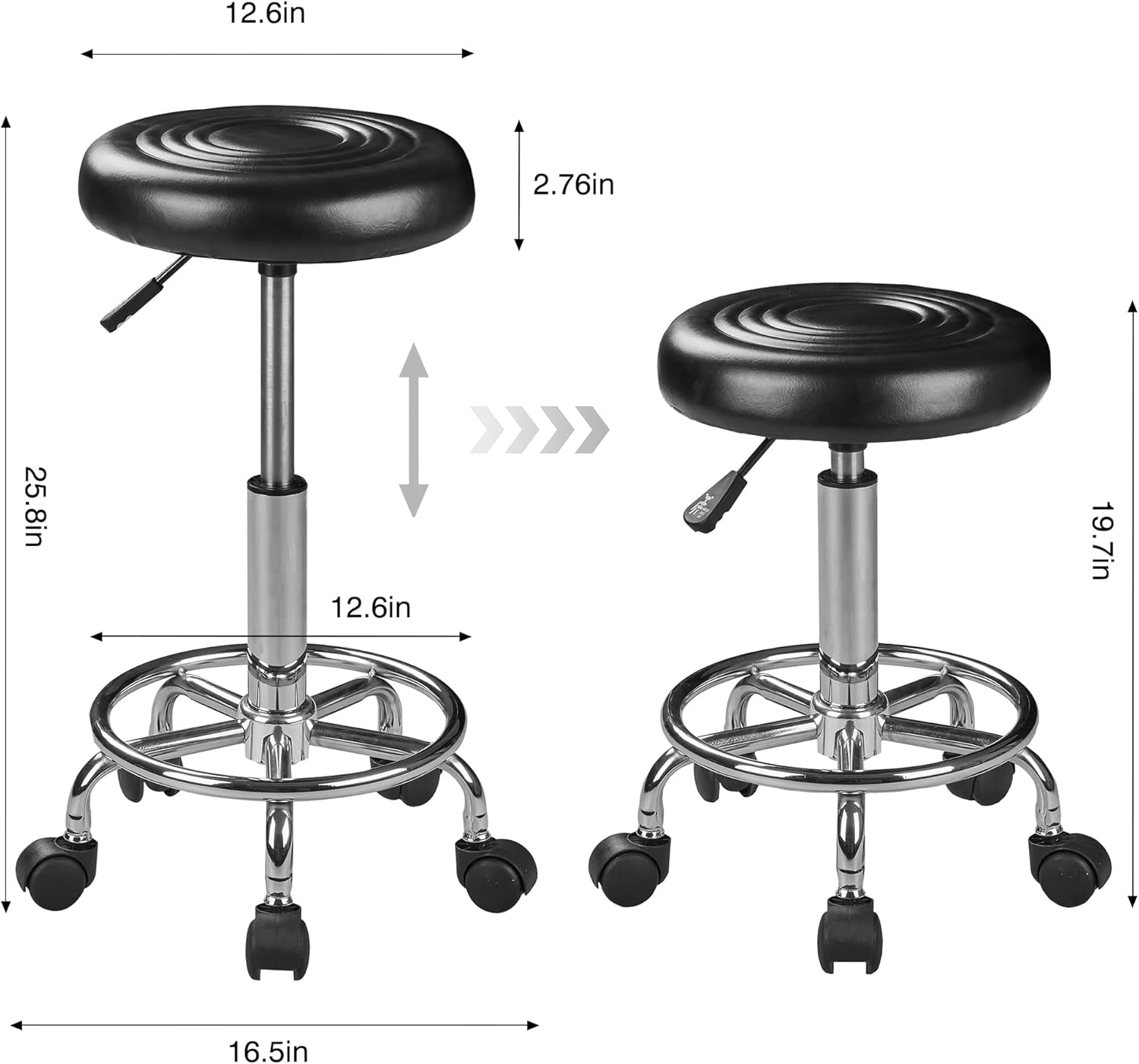

Image 4.1: Stool dimensions and height adjustment range.

Image 4.2: Side view illustrating stool components.

5. Operating Instructions

5.1. Height Adjustment

To adjust the seat height, locate the lever under the seat. While seated, pull the lever up to lower the seat. To raise the seat, stand up slightly and pull the lever up. Release the lever at the desired height to lock it in place. The smooth gas lift mechanism allows for easy and precise adjustments.

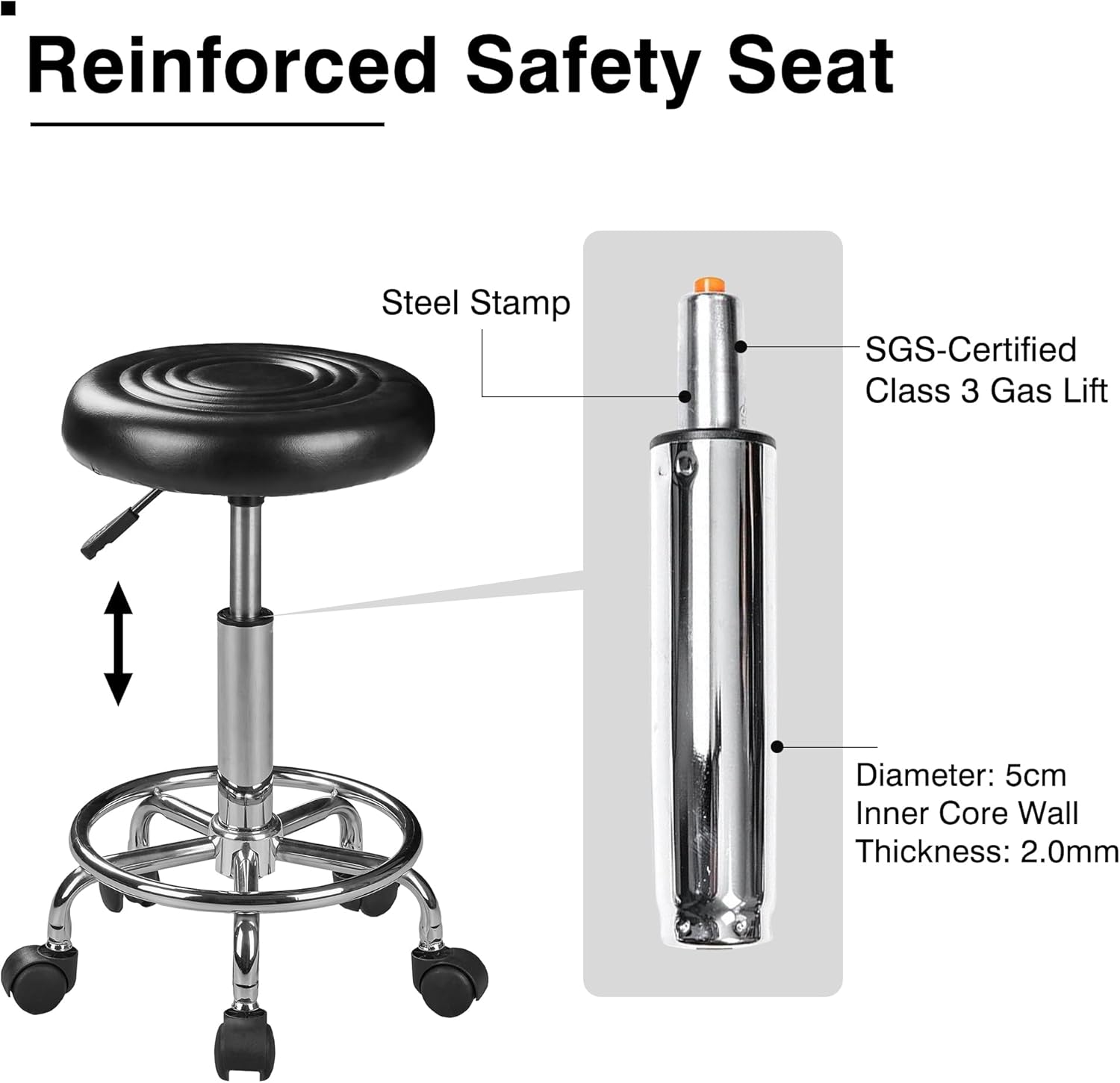

Image 5.1: Detail of the SGS-certified gas lift for height adjustment.

5.2. 360° Swivel Function

The stool features a full 360° swivel seat, allowing for easy rotation and movement without needing to reposition the entire stool. Simply turn the seat in the desired direction.

5.3. Footrest Use

The integrated footrest provides additional support and helps reduce leg fatigue during extended periods of sitting. Position your feet comfortably on the footrest ring.

6. Maintenance and Care

• Cleaning: The PU leather seat should be dry cleaned. For general cleaning, wipe with a soft, damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
• Casters: Keep the casters free of hair and debris to ensure smooth rolling.

Image 6.1: Detail of the comfortable PU leather cushion.

7. Troubleshooting

• Stool does not adjust height: Ensure the gas lift lever is fully engaged. Check if any obstruction is preventing the gas lift from moving freely.
• Stool wobbles: Verify that all screws and connections are tightened. Ensure the stool is on a level surface.
• Casters do not roll smoothly: Check for debris (hair, lint) wrapped around the caster wheels and remove them.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please contact VECELO customer service through their official website or the retailer where the product was purchased. Please have your model number (KHD-CC-RF02-BLK) and purchase details ready when contacting support.
