ASHATA Car Model 1:25 Scale 3-in-1 Wireless Charging Station User Manual

Model: ASHATA83l2oc1w5d-11

1. Introduction

Thank you for choosing the ASHATA Car Model 1:25 Scale 3-in-1 Wireless Charging Station. This innovative device combines a stylish car model design with advanced wireless charging technology, allowing you to simultaneously charge your smartphone, earphone, and smartwatch. This manual provides essential information for safe and efficient use of your new charging station.

2. Package Contents

Please check the package for the following items:

  • 1 x ASHATA Car Model Wireless Charging Station
  • 1 x USB Cable
  • 1 x User Manual (this document)
ASHATA Car Model Wireless Charging Station and USB Cable

Image: The ASHATA Car Model Wireless Charging Station shown next to its included USB cable.

3. Product Features

  • Wide Compatibility: Compatible with various smartphones (e.g., iOS 12-17 series, S20-S25 series, Note 10-20), earphones (e.g., Buds 2 Pro), and smartwatches.
  • Advanced 3-in-1 Charger: Simultaneously charges your smartphone, earphone, and smartwatch. Includes 3 additional wired charging ports for versatility.
  • Auto Rotating Convenience: Supports phone cases up to 0.6 inches thick. Features an automatic rotating mechanism for easy phone placement and viewing during charging.
  • Elegant Design: Realistic car model aesthetic seamlessly integrates into various environments like homes, offices, and lounges.
  • Enhanced Safety: Built-in protections against overcurrent, overvoltage, overheating, short circuits, and foreign object detection ensure safe and reliable charging.
  • Ambient Light: Integrated ambient lighting for enhanced aesthetics and functionality.
Diagram showing key features: 3 devices charging, auto rotate, strong magnetic adsorption, inconspicuous charging compartment, vehicle design, ambient light.

Image: Visual representation of the charging station's six main features, including multi-device charging, auto-rotation, magnetic adsorption, hidden charging, vehicle design, and ambient light.

4. Specifications

ParameterValue
Item TypeCar Model Wireless Charging Station
MaterialABS+PC
Smartphone Output5W, 7.5W, 10W, 15W
Earphone Compartment Output5W
Smartwatch Output2.5W
Connector TypeUSB 2.0
Input Voltage10 Volts
Output Current2 Amps
Output Voltage1 Volt
ColorGray
Model NumberASHATA83l2oc1w5d-11

5. Setup

  1. Unpack the Charger: Carefully remove the charging station and USB cable from its packaging.
  2. Connect Power: Connect the provided USB cable to the charging port on the ASHATA Car Model Charging Station. Plug the other end of the USB cable into a compatible USB power adapter (not included) or a powered USB port.
  3. Placement: Place the charging station on a stable, flat surface away from direct sunlight, heat sources, and liquids.
  4. Power On: Once connected to power, the ambient light may illuminate, indicating the device is ready for use.

6. Operating Instructions

6.1 Charging a Smartphone

  1. Ensure the charging station is powered on.
  2. Place your wireless-charging-compatible smartphone onto the designated charging area on the car model's roof. The phone can be placed horizontally or vertically.
  3. The charging station features an auto-rotating mechanism. You can tap the side of the car model to rotate the phone into a preferred viewing angle (e.g., for video calls or watching videos).
  4. A charging indicator on your phone will confirm that charging has begun.
Smartphone and earphone charging on the ASHATA Car Model Wireless Charging Station, with ambient light.

Image: A smartphone and wireless earphones are shown charging simultaneously on the car model charging station, highlighting the electric rotation and ambient light features.

Hand tapping the ASHATA Car Model Wireless Charging Station to rotate a smartphone.

Image: A hand demonstrates the 90-degree rotation feature of the charging platform by tapping the side of the car model, allowing for adjustable phone viewing.

6.2 Charging Earphones

  1. Locate the earphone charging compartment, typically at the rear of the car model.
  2. Place your wireless-charging-compatible earphone case into the compartment.
  3. Ensure the earphone case is properly seated for charging to begin.

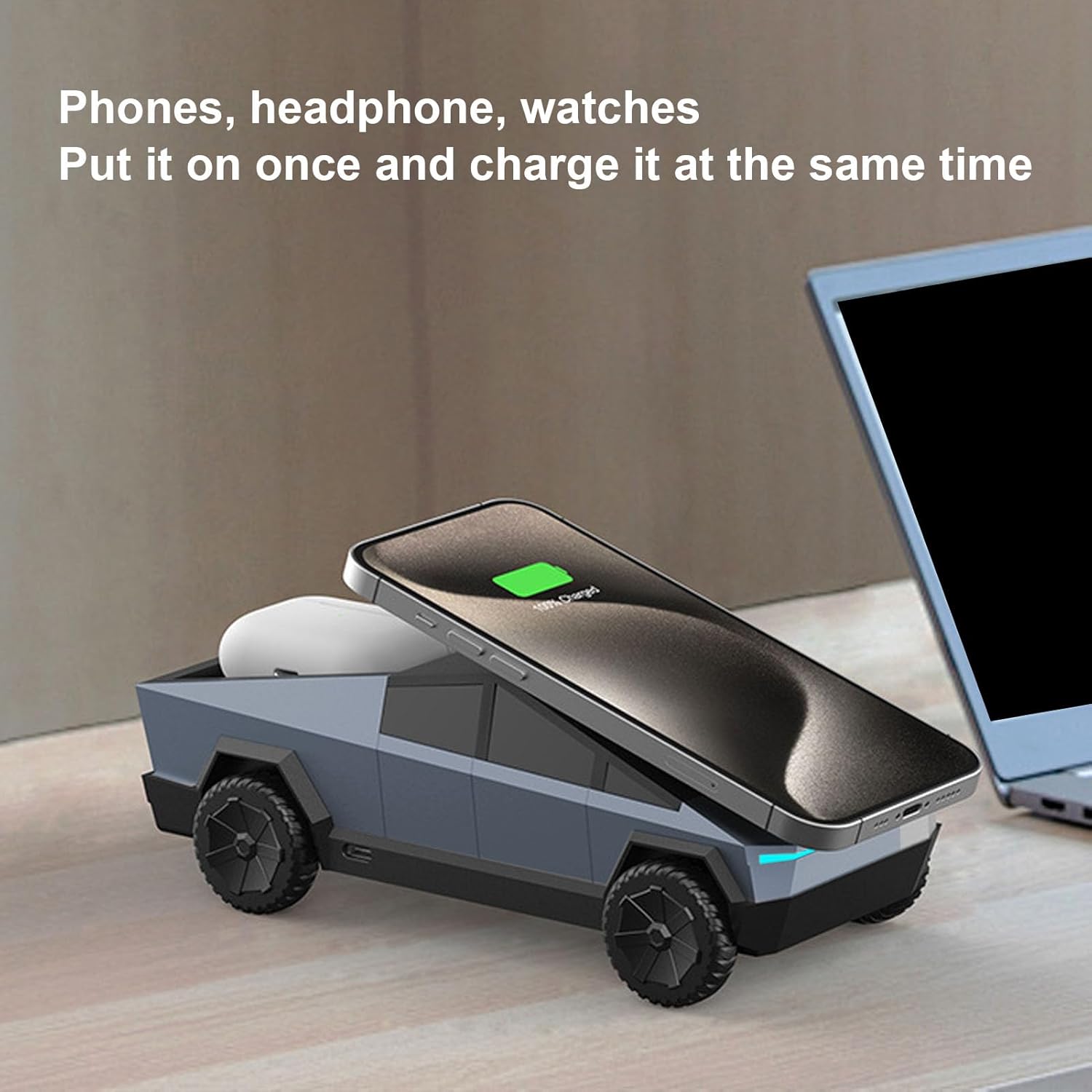

Smartphone and earphone charging on the ASHATA Car Model Wireless Charging Station in a home office setting.

Image: A smartphone and wireless earphones are shown charging on the car model station, positioned on a desk next to a laptop, illustrating simultaneous charging.

6.3 Charging a Smartwatch

  1. Identify the smartwatch charging area, usually a small magnetic pad on the side or rear of the car model.
  2. Place your smartwatch onto the magnetic charging pad. The magnetic attraction will help secure the watch in place.
  3. Confirm that your smartwatch indicates it is charging.
Smartphone, earphone, and smartwatch charging on the ASHATA Car Model Wireless Charging Station, showing magnetic attraction.

Image: The charging station is shown with a smartphone, earphone case, and smartwatch, demonstrating the strong magnetic attraction for secure placement and simultaneous charging of all three devices.

6.4 Using Wired Charging Ports

The charging station includes additional wired charging ports for devices that do not support wireless charging or for simultaneous charging of more devices. Locate these ports on the side or rear of the car model and connect your device using a compatible USB cable (not included).

7. Maintenance

  • Cleaning: Disconnect the charger from power before cleaning. Use a soft, dry cloth to wipe the surface. Do not use abrasive cleaners or solvents.
  • Storage: When not in use for extended periods, store the charging station in a cool, dry place.
  • Avoid Liquids: Keep the device away from water and other liquids to prevent damage.
  • Handle with Care: Avoid dropping or subjecting the device to strong impacts.

8. Troubleshooting

ProblemPossible CauseSolution
Device not charging wirelessly.
  • Device not properly aligned.
  • Phone case too thick (over 0.6 inches).
  • Device not wireless charging compatible.
  • Foreign object on charging pad.
  • Re-position the device on the charging pad.
  • Remove the phone case or use a thinner one.
  • Verify device supports wireless charging.
  • Remove any metal objects or cards from the charging area.
Charging is slow.
  • Using a low-power USB adapter.
  • Too many devices charging simultaneously.
  • Use a QC 3.0 or PD compatible power adapter (minimum 18W recommended).
  • Try charging fewer devices at once.
Ambient light not working.
  • Charger not powered.
  • Light feature may be toggled off (if applicable).
  • Ensure the charger is properly connected to a power source.
  • Refer to product details for ambient light control (if any).

9. Warranty and Support

This ASHATA product comes with a manufacturer warranty for 90 days from the date of purchase. Please retain your proof of purchase for warranty claims.

For technical support or warranty inquiries, please contact ASHATA customer service through your retailer or the official ASHATA website.

Note: The warranty does not cover damage caused by misuse, accident, unauthorized modification, or improper installation.
