LIFAN LF6800iE Inverter Generator Instruction Manual

1. Important Safety Information

Read and understand all safety precautions before operating the generator. Failure to follow these instructions can result in serious injury or death.

Carbon Monoxide (CO) Hazard

Generators produce carbon monoxide, a colorless, odorless, poisonous gas. Using a generator indoors can kill you in minutes. Always operate the generator outdoors, far away from windows, doors, and vents. The LIFAN LF6800iE is equipped with a CO-Minder sensor that automatically shuts down the engine if unsafe carbon monoxide levels are detected. Do not disable or bypass this safety feature.

Image: The generator highlighting its CO-Minder safety monitoring, remote start capability, and RV-ready outlet.

Fuel Safety

• Gasoline is highly flammable. Store fuel in an approved container in a well-ventilated area.
• Never refuel a hot or running engine. Allow the generator to cool before adding fuel.
• Do not overfill the fuel tank. Leave space for fuel expansion.

Electrical Safety

• Never operate the generator in wet conditions. Keep it dry.
• Ensure all electrical connections are secure and properly grounded.
• Do not overload the generator. Refer to the specifications for maximum wattage.

2. What's Included

Your LIFAN LF6800iE Inverter Generator package includes the following items:

• LIFAN LF6800iE Inverter Generator
• Remote Key Fob
• Tool Kit (Screwdriver, Spark Plug Socket Wrench)
• Oil Funnel
• 12V DC Charging Cable
• NEMA 5-20P Adapter Plug
• TT-30 Adapter Plug
• User Manual

Image: An exploded view showing the LIFAN LF6800iE Inverter Generator and all its included accessories, such as the remote key fob, oil funnel, various adapter plugs, and tools.

3. Setup and First Use

Follow these critical steps before starting your generator for the first time.

3.1 Connect Battery

The internal battery cables are disconnected for safety during shipping. You MUST connect the Red cable to the Positive (+) terminal before use.

3.2 Add Engine Oil

The unit ships DRY. You MUST add SAE 10W-40 oil (approximately 0.7L) before the first start to prevent engine damage. Use the included oil funnel. Check the dipstick to ensure the oil level is correct.

3.3 Add Fuel

Fill the fuel tank with fresh, unleaded gasoline. Do not use E85 or other ethanol-heavy fuels. Ensure the fuel cap is securely tightened after filling.

Image: An overhead view of the LIFAN LF6800iE Inverter Generator, illustrating its compact dimensions of 23.2 inches in length, 16.1 inches in width, and 22.0 inches in height.

4. Operating Instructions

This section details how to start and operate your generator.

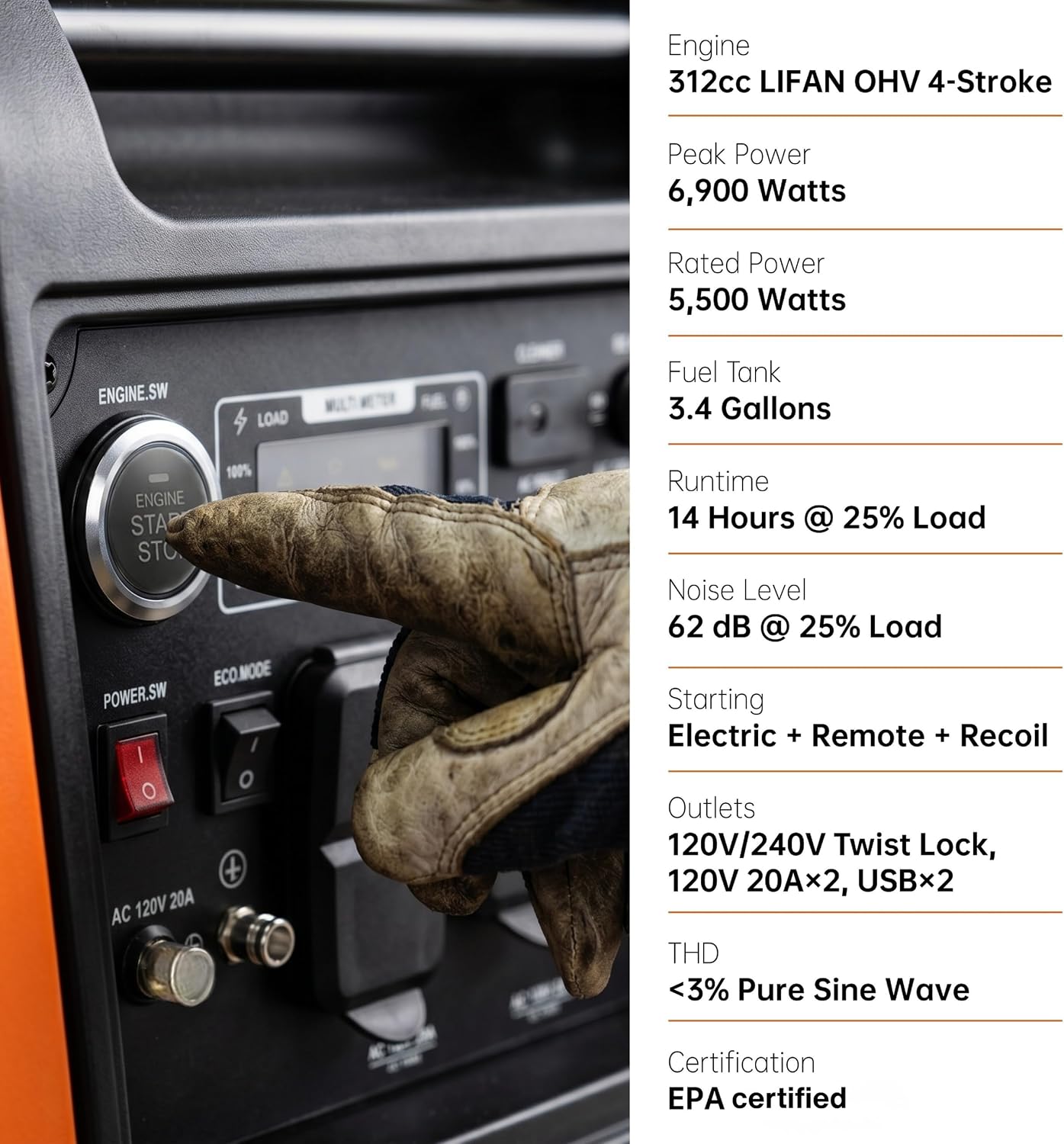

4.1 Control Panel Overview

Familiarize yourself with the control panel components:

• Engine Start/Stop Switch: 3-way switch for Key Fob, Push Button, or Recoil start.
• Multi Meter Display: Shows real-time Watts, Volts, Hz, and Fuel level.
• CO-Minder Sensor: Auto shut-off for CO safety protection.
• ECO Mode Switch: Automatically adjusts engine RPM to save fuel and reduce noise, providing up to 14 hours of runtime.
• AC 120V/240V Outlets: Includes 1x 120V/240V 23A Twist Lock Outlet (TT-30 for RV Ready) and 2x 120V 20A household outlets.
• USB + 12V DC Ports: For device charging.

Image: A detailed view of the generator's control panel, clearly labeling the engine start/stop switch, multi-meter display, CO-Minder sensor, ECO mode switch, AC outlets, and USB/DC ports.

4.2 Starting the Generator

Ensure the generator is on a level surface, outdoors, and away from any obstructions.

1. Turn the fuel cap vent to the 'ON' position.
2. Set the engine switch to 'ON'.
3. Choose your starting method:
• Electric Start: Press and hold the 'START' button on the control panel.
• Remote Start: Use the included remote key fob to start the generator from up to 50 feet away.
• Recoil Start: Pull the recoil starter handle firmly until the engine starts.
4. Once the engine is running, allow it to warm up for a few moments before connecting electrical loads.

4.3 Connecting Electrical Loads

Plug your appliances or power cords into the appropriate outlets. Do not exceed the generator's rated wattage.

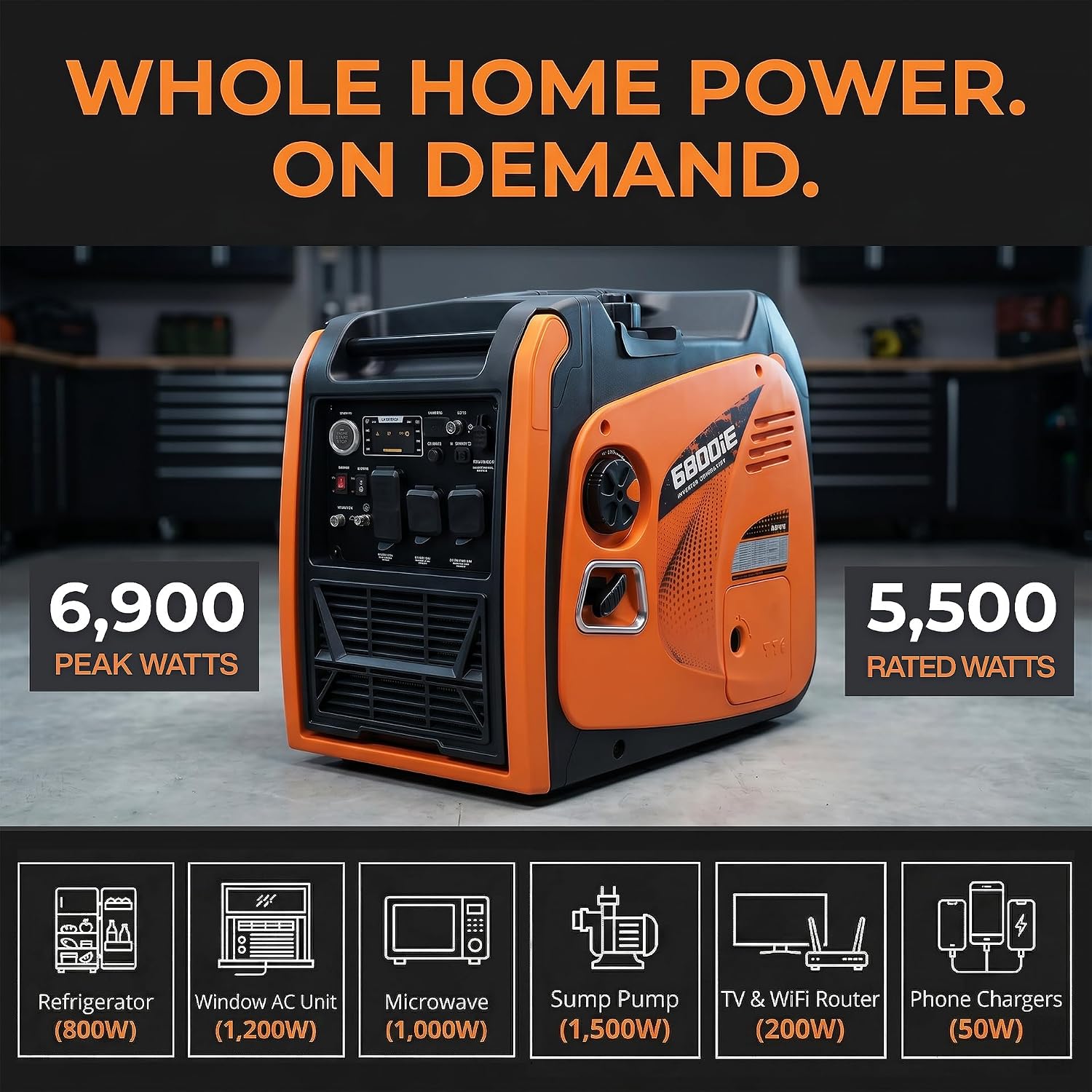

Image: The LIFAN LF6800iE Inverter Generator providing power to common household items like a refrigerator, window AC unit, microwave, sump pump, TV/WiFi router, and phone chargers, indicating its 6900 Peak Watts and 5500 Rated Watts.

5. Maintenance

Regular maintenance ensures optimal performance and extends the life of your generator. Always turn off the engine and allow it to cool before performing any maintenance.

5.1 Engine Oil

• Check oil level before each use.
• Change oil after the first 20 hours of operation, then every 100 hours or annually.

5.2 Air Filter

Inspect the air filter every 50 hours or monthly. Clean or replace if dirty.

5.3 Spark Plug

Inspect the spark plug every 100 hours or annually. Clean or replace if necessary. Use the included spark plug socket wrench.

5.4 Storage

For long-term storage, drain the fuel tank and carburetor, or add a fuel stabilizer. Store the generator in a clean, dry place.

6. Troubleshooting

If your generator experiences issues, refer to the following common problems and solutions.

Engine Will Not Start

• No Fuel: Check fuel level and add fresh gasoline.
• Low Oil: Check oil level and add SAE 10W-40 oil.
• Engine Switch OFF: Ensure the engine switch is in the 'ON' position.
• Spark Plug Issue: Inspect spark plug for fouling or damage.
• Battery Disconnected/Dead: Ensure battery cables are connected and battery is charged for electric start.

No Power Output

• Overload: Reduce connected load. The generator may have shut off due to overload.
• Circuit Breaker Tripped: Check and reset any tripped circuit breakers on the control panel.
• ECO Mode: Ensure ECO mode is not causing insufficient power for starting high-demand appliances.

Engine Shuts Down Unexpectedly

• CO-Minder Activation: Move the generator to a well-ventilated area. The CO-Minder sensor detected unsafe carbon monoxide levels.
• Low Oil: The low oil sensor may have shut down the engine. Check and add oil.
• Overload: Reduce connected load.

7. Product Specifications

8. Warranty Information

Your LIFAN LF6800iE Inverter Generator comes with a 1 Year Limited Warranty. Please refer to the warranty card included in your package for full terms and conditions. Keep your proof of purchase for warranty claims.

9. Customer Support

For technical assistance, parts, or warranty inquiries, please contact LIFAN Power customer support. Our team is committed to your satisfaction and can provide professional guidance and reliable service.

Please visit the official LIFAN Power website or refer to the contact information provided in your user manual for the most up-to-date support details.
