Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Moen Ronan Spot Resist Stainless Pulldown Kitchen Faucet, Model 87918SRS. Please read all instructions carefully before beginning installation and keep this manual for future reference.
The Moen Ronan faucet features SwivelControl™ wand technology for precise water direction and Power Clean™ technology for efficient cleaning. Its Spot Resist™ Stainless finish helps maintain a cleaner appearance by resisting fingerprints and water spots.

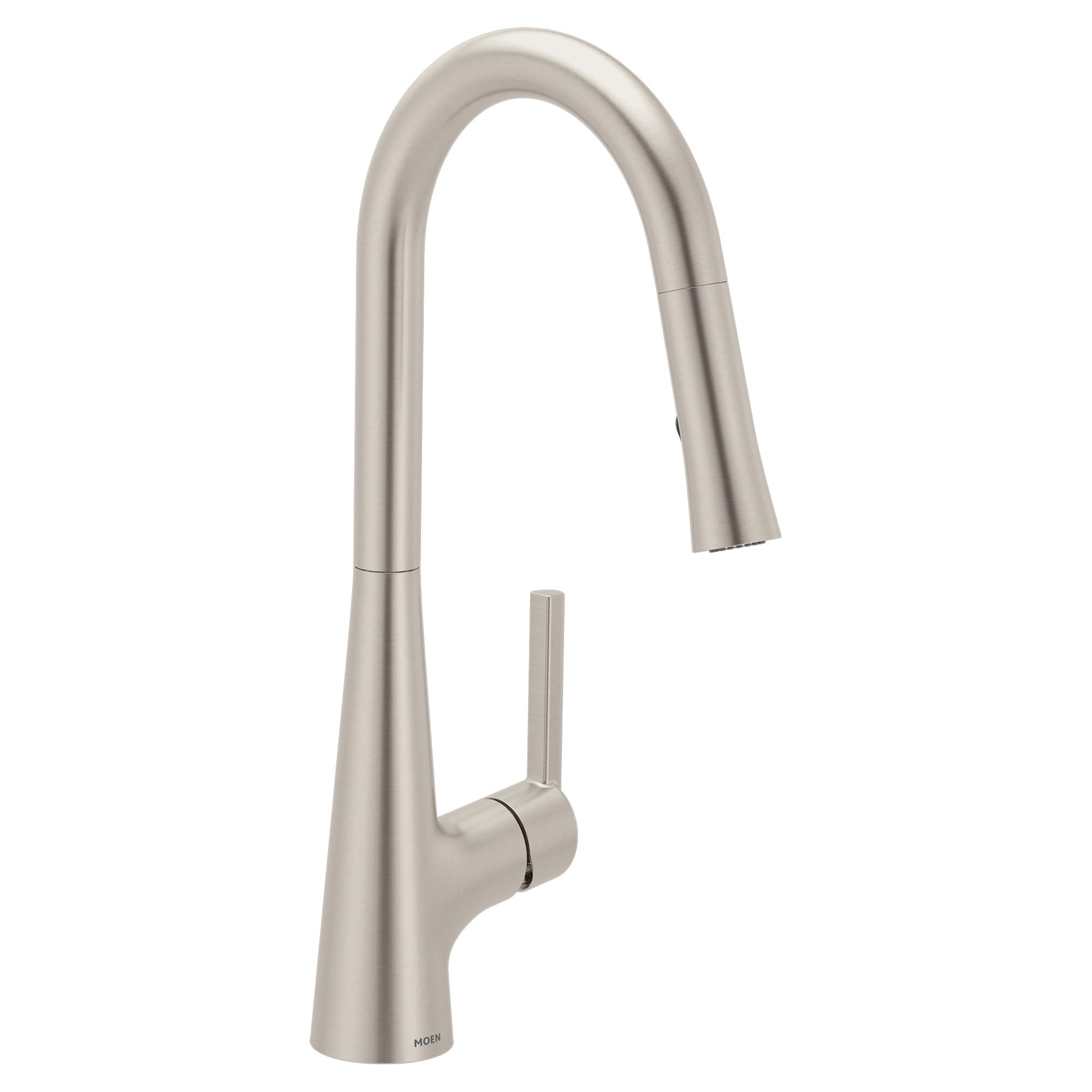

Image: Moen Ronan Pulldown Kitchen Faucet in Spot Resist Stainless finish, showcasing its high-arc design and integrated handle.
Safety Information
Always turn off the main water supply before installing or servicing the faucet. Wear appropriate personal protective equipment, such as safety glasses, during installation. Ensure all connections are secure to prevent leaks. If you are unsure about any step, consult a qualified plumber.
This product is certified to meet U.S. Water Safety Standards, including NSF/ANSI/CAN 372-2024 for Lead Free Plumbing Products and NSF/ANSI/CAN 61-2022 for Drinking Water System Components - Health Effects.
Image: Moen certification logo, indicating compliance with U.S. water safety standards for clean drinking water.
Setup and Installation
The Moen Ronan faucet is designed for flexible installation and can be mounted through either a 1-hole or 3-hole sink configuration. An escutcheon deckplate is included for 3-hole installations.
Before You Begin:
- Ensure you have all included components: faucet, deck plate (if needed), handle, and sprayer.
- Gather necessary tools (not included): adjustable wrench, screwdriver, plumber's putty or silicone sealant.
- Turn off the water supply to your kitchen sink at the shut-off valves.
Installation Steps (General Overview):
- Prepare the Sink: Clean the sink surface where the faucet will be installed. If using the deckplate for a 3-hole sink, apply plumber's putty or silicone sealant to the underside of the deckplate.
- Mount the Faucet: Insert the faucet body through the hole(s) in the sink or deckplate. Secure it from underneath the sink using the provided mounting hardware. Ensure the faucet is properly aligned.
- Connect Water Lines: Connect the hot and cold water supply lines from the faucet to your home's water supply. Use an adjustable wrench to tighten connections, but do not overtighten.
- Install Sprayer Hose: Connect the pulldown sprayer hose to the quick-connect fitting under the sink. Ensure it clicks securely into place.
- Install Weight: Attach the hose weight to the pulldown hose at the indicated position to ensure proper retraction of the sprayer.
- Test for Leaks: Slowly turn on the main water supply and check all connections for leaks. Run the faucet for a few minutes to flush out any debris.
Image: Diagram illustrating how the faucet fits both 1-hole and 3-hole sink configurations, with the deckplate used for 3-hole setups.
Image: The Moen Ronan faucet shown installed on a kitchen sink, utilizing the included deckplate for a clean finish.
Operating Instructions
Your Moen Ronan faucet is designed for ease of use with its single handle control and advanced sprayer technologies.
Water Flow and Temperature Control:
- Turn On/Off: Lift the handle to turn on the water. Push down to turn off.
- Adjust Temperature: Move the handle to the left for hot water and to the right for cold water.
- Adjust Flow: The further you lift the handle, the greater the water flow.
SwivelControl™ Wand and Power Clean™ Technology:
- Pulldown Sprayer: Grasp the sprayer head and pull it down from the faucet spout. The flexible hose allows for extended reach within the sink.
- SwivelControl™: The wand rotates 360° at the connection point, allowing you to direct the water spray precisely where needed, even into hard-to-reach corners of the sink. Once positioned, the wand stays in place for hands-free operation.
- Spray Modes: The sprayer head typically features a button or switch to toggle between a steady stream and a powerful spray (Power Clean™). Power Clean™ technology provides a concentrated spray for faster cleaning.
- Automatic Redocking: When you are finished using the pulldown sprayer and turn off the water, the wand automatically retracts and returns to its default position, maintaining a streamlined appearance.
Image: The Moen Ronan faucet with its pulldown sprayer extended, demonstrating water flow from the sprayer head.
Image: A diagram highlighting the SwivelControl™ feature, showing the sprayer wand rotating to cover the entire sink area.
Image: Close-up view of the Moen faucet sprayer head in spray mode, demonstrating the powerful water stream.
Maintenance
Proper care and maintenance will ensure the longevity and appearance of your Moen Ronan faucet.
Cleaning the Faucet:
- Spot Resist™ Stainless Finish: This finish is designed to resist fingerprints and water spots. To clean, simply wipe with a soft, damp cloth.
- Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- For stubborn spots, use a mild soap and water solution, then rinse thoroughly and dry with a soft cloth.
Image: Visual explaining the Spot Resist Stainless finish, showing how it repels fingerprints and water spots.
Image: A side-by-side comparison demonstrating the effectiveness of Spot Resist Technology, showing a clean surface versus one with visible smudges.
Aerator Maintenance:
- If water flow decreases or becomes erratic, the aerator may be clogged with debris.
- Unscrew the aerator from the tip of the sprayer head.
- Rinse the aerator screen under running water to remove any particles. For mineral deposits, soak in a solution of equal parts white vinegar and water.
- Reattach the aerator, ensuring it is securely tightened.
Troubleshooting
This section addresses common issues you might encounter with your faucet. For problems not listed here, please contact Moen customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed shut-off valves; debris in water lines. | Clean the aerator (see Maintenance); ensure shut-off valves are fully open; flush water lines. |
| Leaking from Spout | Worn out cartridge; loose connections. | Contact Moen customer support for a replacement cartridge; check and tighten all connections. |
| Sprayer Does Not Retract Fully | Hose weight improperly positioned or obstructed; debris in hose. | Adjust the hose weight position; check for obstructions under the sink; clean the hose if necessary. |
| Water Temperature Issues | Improperly connected hot/cold lines; water heater issues. | Verify hot and cold lines are connected correctly; check water heater settings. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Moen |
| Model Name | Ronan |
| Model Number | 87918SRS |
| Color | Spot Resist Stainless |
| Material | Zinc |
| Mounting Type | Deck Mount |
| Number of Handles | 1 |
| Hole Count | 1 (or 3 with included deckplate) |
| Flow Rate | 1.5 Gallons Per Minute |
| Spout Height | 17.08 Inches |
| Item Weight | 4.75 Pounds |
| Special Features | ADA Compliant, Deckplate, Pull Down Sprayer, Reflex™ system, Swivel Control |
| Certifications | NSF/ANSI/CAN 372-2024 Lead Free, NSF/ANSI/CAN 61-2022 Drinking Water System Components |
Warranty Information
The Moen Ronan Pulldown Kitchen Faucet is backed by Moen's Warranty, providing long-term peace of mind. The manufacturer warranty description states a "Lifetime" warranty. For specific details regarding coverage and terms, please refer to the official Moen warranty documentation or contact Moen customer support.
Image: Moen recognized as America's Most Trusted Faucet Brand for 10 consecutive years.
Support
For further assistance, technical support, or warranty claims, please contact Moen directly. You can typically find contact information on the official Moen website or by searching for "Moen customer support" online.
When contacting support, please have your faucet model number (87918SRS) and proof of purchase readily available.
Thank you for choosing Moen.
