SEESII 12-inch Cordless Battery Chainsaw

1. Important Safety Instructions

Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference.

• Wear Appropriate Personal Protective Equipment (PPE): Always wear safety goggles, work gloves, hearing protection, and sturdy footwear when operating the chainsaw.
• Maintain a Secure Grip: Always hold the chainsaw firmly with both hands, with your thumbs and fingers encircling the handles.
• Clear Work Area: Ensure the work area is free of obstructions, bystanders, and pets.
• Inspect Before Use: Before each use, check the chainsaw for loose parts, damage, or proper chain tension. Ensure the chain brake functions correctly.
• Avoid Kickback: Be aware of the risk of kickback. Avoid cutting with the tip of the guide bar.
• Battery Safety: Use only the specified batteries and charger. Do not expose batteries to extreme temperatures or moisture.
• Automatic Chain Brake: This chainsaw features an instant chain brake that stops the chain in under 1 second to reduce kickback risk.
• Safety Lock: The safety lock mechanism prevents accidental starting. Always engage the safety lock when not actively cutting.

2. Package Contents

Verify that all items are present and in good condition upon unpacking.

• 1 × 12-inch Chainsaw
• 2 × 4.0Ah Batteries
• 1 × Charger (UK plug)
• 1 × Work Gloves
• 1 × Safety Goggles
• 1 × Spare 12-inch Chain
• 1 × Guide Bar Cover
• 1 × Chain Oil Bottle (empty)
• 1 × Screwdriver

Figure 2.1: Complete Chainsaw Kit Contents

3. Product Overview

The SEESII 12-inch Cordless Battery Chainsaw is designed for efficient cutting of logs, branches, and firewood. It features a powerful brushless motor and a lightweight design for ease of use.

Key Features:

• 1200W Brushless Motor: Provides efficient cutting with a chain speed of up to 12 m/s (39 ft/s), reducing internal wear.
• Dual 4.0Ah Batteries: Two 4000mAh batteries offer over 50 minutes of total working time and up to 120 cuts through 4x4 inch wood.
• 12-inch Cutting Capacity: The guide bar allows cutting wood up to 12 inches in diameter under suitable conditions.
• 150ml Automatic Oiling System: Continuously lubricates the guide bar and chain, extending chain life and improving lubrication efficiency.
• Lightweight Design: Weighs 7.8 lbs with one battery installed, offering a balanced combination of power and control.
• Dual Safety Protection: Includes a chain brake for quick stops and a safety lock to prevent accidental starting.

Figure 3.1: Powerful Brushless Motor

Figure 3.2: Dual 4.0Ah Batteries

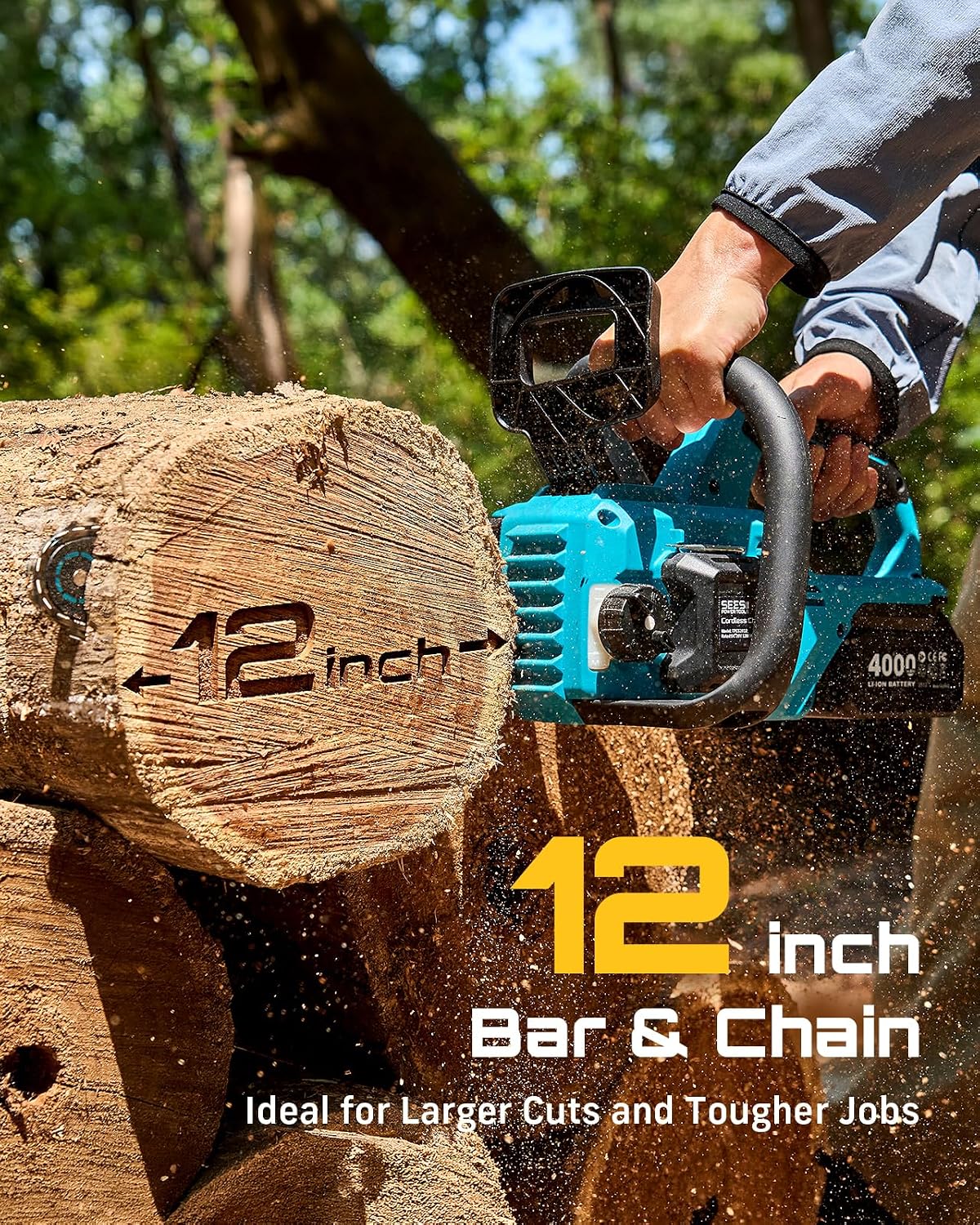

Figure 3.3: 12-inch Cutting Capacity

4. Setup

4.1 Assembly

Refer to the video below for detailed instructions on how to install the guide bar and chain.

4.2 Battery Charging

1. Insert the 4.0Ah battery into the provided charger.
2. Plug the charger into a suitable power outlet.
3. Allow the battery to charge fully before first use. Refer to the charger's indicator lights for charging status.

4.3 Oiling the Chain

The chainsaw features a 150ml automatic oiling system. Fill the oil reservoir with appropriate chain lubricant before each use.

1. Locate the oil reservoir cap on the chainsaw.
2. Unscrew the cap and carefully pour chain oil into the reservoir using the provided bottle.
3. Do not overfill. Securely replace the cap.

Figure 4.3: Automatic Oiling System

4.4 Chain Tensioning

Proper chain tension is crucial for safe and efficient operation. Adjust the chain tension with the included screwdriver.

1. Ensure the chainsaw is turned off and the battery is removed.
2. Loosen the side cover nuts slightly.
3. Use the screwdriver to turn the tensioning screw until the chain is snug against the guide bar, but can still be pulled freely by hand.
4. Retighten the side cover nuts.

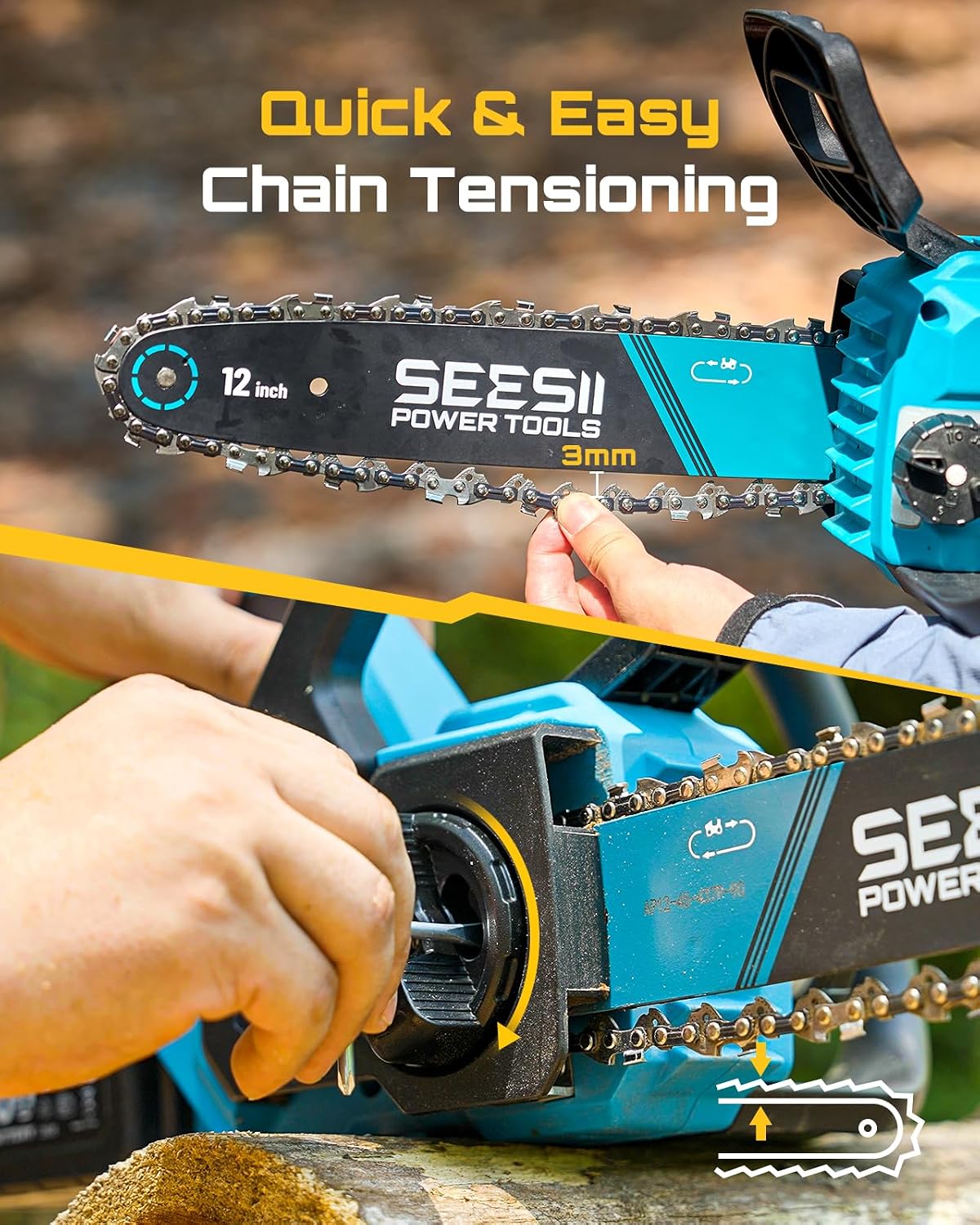

Figure 4.4: Quick & Easy Chain Tensioning

5. Operating Instructions

5.1 Starting the Chainsaw

1. Ensure the battery is fully charged and securely inserted.
2. Hold the chainsaw firmly with both hands.
3. Press the safety lock button (usually located on the handle).
4. While holding the safety lock, squeeze the trigger to start the chainsaw. Release the safety lock once the chain begins to move.

5.2 Cutting Techniques

• Always maintain a stable stance and balance.
• Allow the chain to reach full speed before engaging the wood.
• Apply light, consistent pressure. Do not force the chainsaw through the wood.
• Be aware of the wood's tension and potential for pinching the guide bar.
• For larger branches or logs, make relief cuts to prevent binding.

5.3 Safety Features in Operation

The chainsaw is equipped with a chain brake and a safety lock for user protection.

• Chain Brake: In the event of kickback or loss of control, the chain brake can be activated manually by pushing the front hand guard forward, or it may activate automatically.
• Safety Lock: Always engage the safety lock when carrying the chainsaw or when not actively cutting to prevent accidental activation.

Figure 5.3: Dual Safety Protection

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your chainsaw.

6.1 Cleaning

• After each use, remove the battery and clean the chainsaw thoroughly.
• Use a brush or compressed air to remove sawdust, chips, and debris from the motor housing, guide bar, and chain.
• Wipe down exterior surfaces with a damp cloth. Do not use harsh chemicals.

6.2 Chain Sharpening

A sharp chain is essential for efficient and safe cutting. Sharpen the chain regularly or replace it when dull. Consult a professional if you are unsure about sharpening techniques.

6.3 Automatic Oiling System

The automatic oiling system helps reduce maintenance time and extends chain life. Regularly check the oil level and refill as needed.

6.4 Storage

• Remove the battery before storing the chainsaw.
• Clean the chainsaw and apply the guide bar cover.
• Store the chainsaw in a dry, secure location, out of reach of children.

7. Troubleshooting

This section addresses common issues you might encounter with your chainsaw.

8. Specifications

Technical details for the SEESII 12-inch Cordless Battery Chainsaw.

9. Warranty and Support

The SEESII 12-inch Cordless Battery Chainsaw (Model TPCS2012) is supported by a 3-year warranty.

For warranty claims, technical assistance, or customer support, please refer to the contact information provided in your purchase documentation or visit the official Seesii website.
