EDISHINE Outdoor Wall Light with Motion Sensor (Model DHOWL01M)

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your EDISHINE Outdoor Wall Light with Motion Sensor. Please read this manual thoroughly before installation and use, and retain it for future reference.

The EDISHINE outdoor wall light features a motion sensor, transparent glass design, and a durable aluminum housing. It is IP44 waterproof, making it suitable for various outdoor environments. It uses a standard E27 bulb (not included).

Image: EDISHINE Outdoor Wall Light highlighting key features like motion sensor, E27 socket, IP44 rating, and 220-240V/50Hz power.

2. Safety Information

WARNING: Risk of electric shock. Always turn off power at the main circuit breaker before installation or servicing.

• Ensure the power supply is disconnected before installation, maintenance, or bulb replacement.
• Installation should be performed by a qualified electrician if you are unsure.
• Do not exceed the maximum wattage specified for the bulb (LED up to 15W, Incandescent up to 40W).
• This product is rated IP44 for outdoor use, protecting against splashing water and solid objects larger than 1mm. Do not immerse in water.
• Keep children away from the installation area.
• Do not modify the product in any way, as this will void the warranty and may pose safety risks.

3. Package Contents

Verify that all components are present before beginning installation:

• EDISHINE Outdoor Wall Light (1 unit)
• Mounting Hardware (Screws, Wall Plugs)
• Instruction Manual

Image: Diagram showing the wall light dimensions (19cm H, 13.4cm W, 12cm D) and included accessories: 3 plastic anchors, 4 screws, and the instruction manual.

4. Product Overview

The EDISHINE Outdoor Wall Light is designed for reliable and energy-efficient outdoor illumination. Key features include:

• Integrated Motion Sensor: Automatically detects movement to activate the light.
• Dusk-to-Dawn Sensor: Ensures the light only operates when ambient light levels are low.
• Durable Construction: Made with a robust aluminum frame and transparent tempered glass, resistant to rust and corrosion.
• Weatherproof (IP44): Protected against splashing water and dust, suitable for various weather conditions (rain, snow, wind, sun).
• E27 Socket: Compatible with standard E27 LED bulbs (up to 15W) or incandescent bulbs (up to 40W). Bulb not included.

Image: E27 socket compatible with LED, CFL, incandescent, and smart bulbs. Bulb not supplied.

Image: The wall light demonstrating IP44 weather resistance against rain, snow, wind, and sun, featuring aluminum alloy and a sealed glass screen.

5. Installation

Follow these steps for safe and proper installation:

1. Prepare the Installation Area:

   Turn off the power at the main circuit breaker. Choose a suitable location on an exterior wall, ideally between 1.5 to 2 meters (5 to 6.5 feet) from the ground for optimal motion detection.



   Image: Diagram showing a person walking past a wall light, indicating a recommended installation height of 1.5m to 2m for optimal motion sensor performance.

2. Mount the Fixture:

   Use the provided mounting hardware (screws and wall plugs) to securely attach the light fixture to the wall. Ensure the fixture is level.

3. Wire the Light:

   Connect the household electrical wires to the fixture's wires according to local electrical codes. Typically, this involves connecting live (L), neutral (N), and ground (GND) wires. Ensure all connections are secure and insulated.

4. Install the Bulb:

   Screw an E27 bulb (LED max 15W or Incandescent max 40W) into the socket. Do not overtighten.

5. Secure the Glass Shade:

   Carefully attach the transparent glass shade to the fixture, ensuring it is properly sealed to maintain the IP44 rating.

6. Restore Power:

   Once installation is complete and all connections are secure, restore power at the main circuit breaker.

6. Operating Instructions

The EDISHINE wall light features an integrated PIR motion sensor and a photocell sensor for automatic operation.

Motion Sensor Functionality:

• The light will automatically turn on when motion is detected within its range and the ambient light level is below the set threshold.
• It will turn off automatically after a set duration once no motion is detected.

Image: Illustrates the motion sensor's behavior: light off when ambient light is sufficient, light on when motion is detected or ambient light is low, and automatic turn-off after motion ceases.

Adjusting Sensor Settings:

The motion sensor has adjustable settings for detection range, light duration, and light sensitivity. These controls are typically located on the sensor unit itself, often requiring a small screwdriver for adjustment.

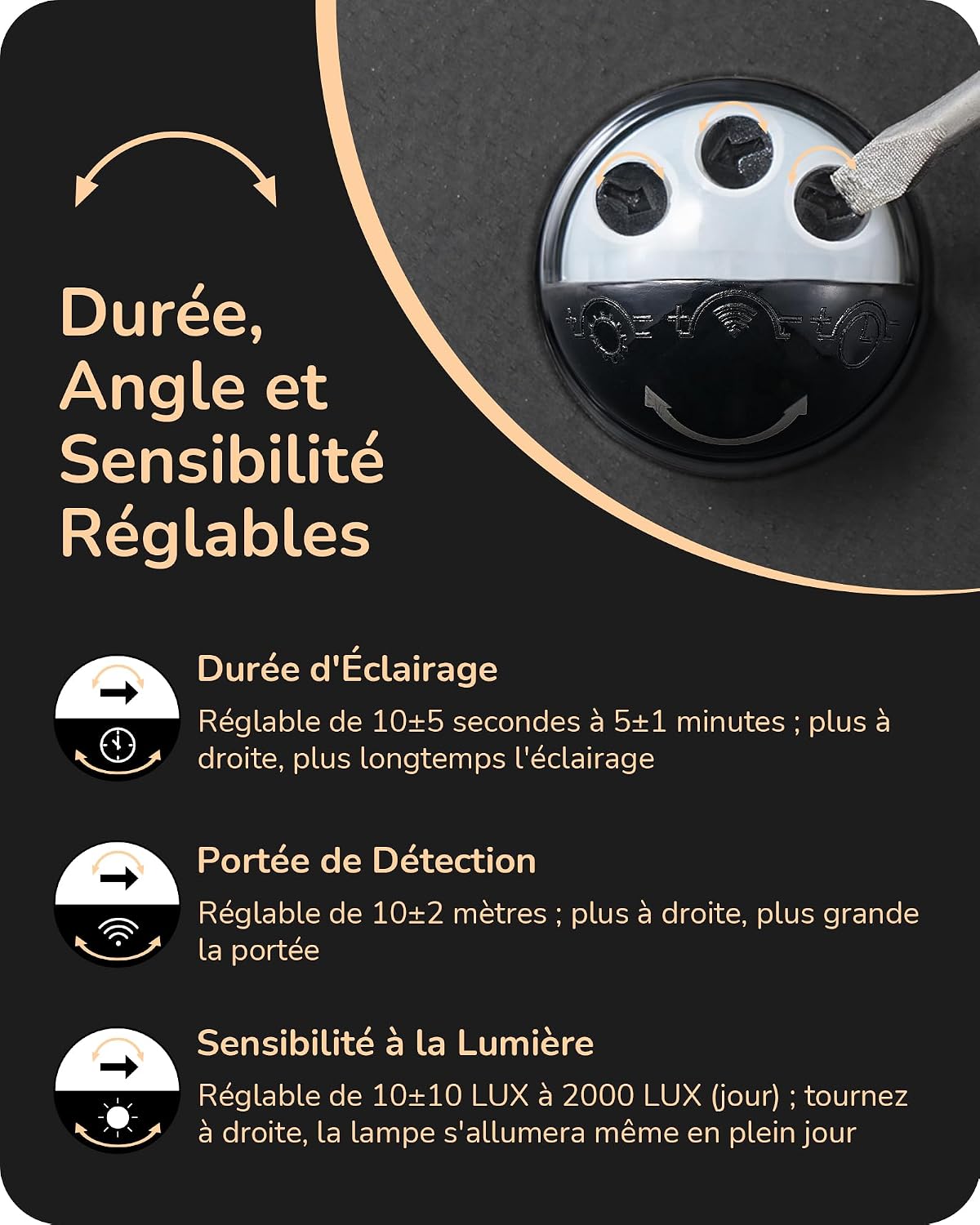

Image: Close-up of the sensor adjustment dials. From left to right: Light Duration (adjustable from 10±5 seconds to 5±1 minutes), Detection Range (adjustable to 10±2 meters), and Light Sensitivity (adjustable from 10±10 LUX to 2000 LUX for daytime operation).

• Light Duration (TIME): Adjusts how long the light stays on after motion is detected. Typically ranges from 20 to 300 seconds (approx. 10 seconds to 5 minutes). Turning the dial clockwise increases the duration.
• Detection Range (SENS): Adjusts the distance at which motion can be detected. Typically up to 10±2 meters. Turning the dial clockwise increases the detection range.
• Light Sensitivity (LUX): Adjusts the ambient light level at which the sensor becomes active.
  • Turn towards the "sun" icon (2000 LUX) for the light to activate even during daylight hours (for testing purposes).
  • Turn towards the "moon" icon (10 LUX) for the light to activate only in low light conditions (dusk/night).

Image: Diagram illustrating the PIR motion sensor's detection angle (110°) and range (10±2 meters), with a recommended installation height of 1.5-2 meters.

7. Maintenance

• Cleaning: Clean the fixture regularly with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the power is off before cleaning.
• Bulb Replacement:
  1. Turn off the power at the main circuit breaker.
  2. Carefully remove the glass shade.
  3. Unscrew the old E27 bulb and replace it with a new one (LED max 15W or Incandescent max 40W).
  4. Reattach the glass shade securely.
  5. Restore power.


  Image: A hand replacing an E27 bulb in the wall light, demonstrating the simple and quick bulb change process.

• Inspection: Periodically inspect the fixture for any signs of damage, wear, or loose connections. Address any issues promptly.

8. Troubleshooting

9. Specifications

10. Warranty and Support

EDISHINE products are manufactured to high-quality standards. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided with your purchase or visit the official EDISHINE website.

Please retain your proof of purchase for warranty claims.
