Important Safety Information
Please read and understand all safety warnings and instructions before operating the ETOOLAB W80-US Electric Pressure Washer. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Always wear appropriate personal protective equipment, including safety glasses, hearing protection, and protective footwear.
- Ensure the pressure washer is connected to a grounded outlet. Do not use with ungrounded outlets or adapters.
- Never point the spray gun at people, pets, or electrical devices. The high-pressure spray can cause severe injury.
- Keep children and bystanders away from the operating area.
- Do not operate the pressure washer if the power cord, hose, or spray gun is damaged. Contact customer support for replacement parts.
- Always disconnect the power supply before performing any maintenance or cleaning.
- Do not use flammable liquids or toxic chemicals with the pressure washer. Use only approved pressure washer detergents.
- Ensure all connections are secure before starting the unit to prevent leaks.
Product Overview and Components
The ETOOLAB W80-US Electric Pressure Washer is designed for effective cleaning of various outdoor surfaces. Familiarize yourself with its components before use.

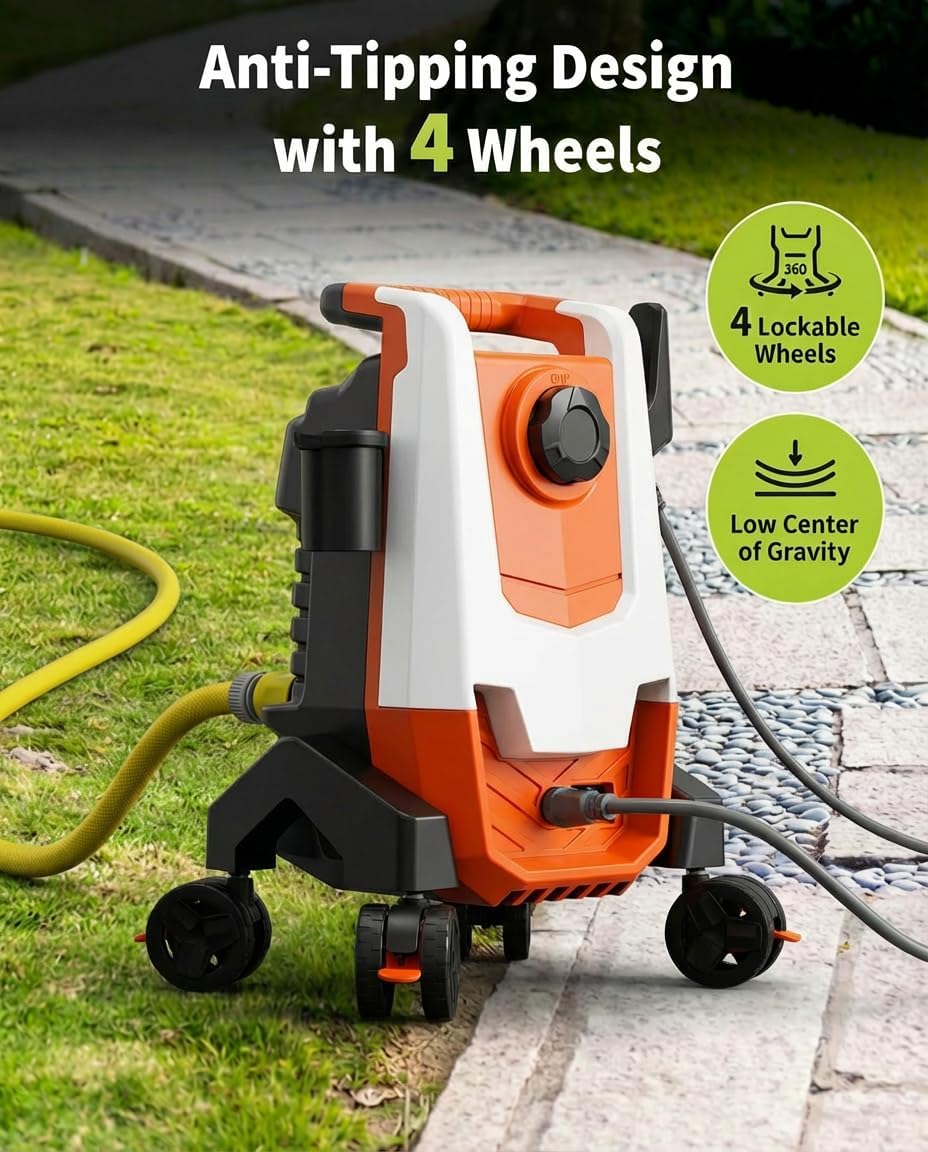

Figure 1: ETOOLAB W80-US Pressure Washer unit, showcasing its anti-tipping design with four lockable wheels and a low center of gravity for enhanced stability.
Main Components:
- Pressure Washer Unit: Main body containing the motor and pump. Features a low center of gravity and 4 lockable wheels for stability and maneuverability.
- High-Pressure Hose (23 FT): Connects the pressure washer unit to the spray gun.
- Spray Gun: Handheld device for directing the high-pressure water stream. Features a safety lock.
- Quick-Connect Nozzles (4): Interchangeable nozzles for various spray patterns and cleaning tasks.
- Foam Cannon (600mL): Attaches to the spray gun for applying detergent.
- Power Cord: Connects the unit to an electrical outlet.
- Water Inlet Connector: For connecting the garden hose to the pressure washer.
Setup Instructions
Follow these steps to assemble and prepare your pressure washer for first use.
- Unpack Components: Carefully remove all parts from the packaging. Ensure all listed components are present.
- Attach Wheels: If not pre-assembled, attach the four lockable wheels to the base of the pressure washer unit. Ensure they are securely fastened.
- Connect High-Pressure Hose: Connect one end of the 23 FT high-pressure hose to the high-pressure outlet on the pressure washer unit. Connect the other end to the inlet on the spray gun. Hand-tighten all connections securely.
- Connect Water Supply:
- From Faucet: Attach a standard garden hose (not included) to the water inlet connector on the pressure washer. Ensure the garden hose is free of kinks and has a minimum diameter of 1/2 inch. Turn on the water supply fully.
- From Bucket: The unit can draw water from a bucket. Ensure the bucket is placed above the pressure washer unit for gravity feed, or use an appropriate suction hose (not included) if drawing from a lower level.
- Connect Power: Plug the power cord into a grounded electrical outlet. Ensure the outlet meets the power requirements specified in the 'Specifications' section.
- Purge Air from System: Before turning on the power, squeeze the trigger on the spray gun to allow water to flow through the system and expel any trapped air. Continue until a steady stream of water emerges from the nozzle.
Operating Instructions
This section details how to safely and effectively operate your ETOOLAB W80-US Electric Pressure Washer.
1. Starting the Pressure Washer
- Ensure all connections are secure and the water supply is fully open.
- Ensure the power cord is plugged into a grounded outlet.
- Turn the power switch on the pressure washer unit to the "ON" position. The motor will start.
- Point the spray gun at the surface to be cleaned, maintaining a safe distance. Release the safety lock and squeeze the trigger to begin spraying.
2. Using Quick-Connect Nozzles
The pressure washer includes four quick-connect nozzles, each designed for specific cleaning tasks. Always turn off the pressure washer and release residual pressure by squeezing the trigger before changing nozzles.
Figure 2: The four quick-connect nozzles, illustrating their spray angles and recommended uses for various surfaces.
- 0° Red Nozzle (Pencil Jet): Delivers a concentrated, high-impact stream for stubborn stains and hard-to-reach areas. Use with extreme caution as it can damage surfaces.
- 15° Orange Nozzle (Narrow Fan): Provides a powerful, narrow spray for intensive cleaning of driveways and hard, durable surfaces.
- 25° Green Nozzle (Medium Fan): Offers a versatile, medium-width spray suitable for general cleaning of fences, wood decks, and painted surfaces.
- 40° White Nozzle (Wide Fan): Produces a broad, gentle spray for delicate surfaces like windows, vehicles, and light cleaning tasks.
3. Using the Foam Cannon
- Fill the 600mL foam cannon bottle with an appropriate pressure washer detergent.
- Attach the foam cannon to the end of the spray gun.
- Turn on the pressure washer and squeeze the trigger to apply foam to the desired surface.
- After applying detergent, remove the foam cannon and attach a suitable nozzle (e.g., 25° or 40°) to rinse the surface thoroughly.
4. Cleaning Techniques
Figure 3: Demonstrating the versatility of the pressure washer for cleaning vehicles, highlighting the extended reach provided by the 23 ft high-pressure hose.
- Always start with a wider spray pattern (e.g., 40°) and gradually move closer or switch to a narrower pattern if more pressure is needed.
- Maintain a consistent distance from the surface to avoid streaking or damage.
- Work in small sections, overlapping your passes to ensure even cleaning.
- For vertical surfaces, clean from bottom to top to prevent streaking, then rinse from top to bottom.
Figure 4: An individual effectively cleaning a patio surface using the ETOOLAB pressure washer, demonstrating its powerful cleaning capability.
5. Shutting Down the Pressure Washer
- Turn the power switch to the "OFF" position.
- Turn off the water supply.
- Squeeze the trigger on the spray gun to release any remaining pressure in the system.
- Disconnect the garden hose from the water inlet.
- Unplug the power cord from the electrical outlet.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your pressure washer.
- Clean Nozzles: Periodically inspect and clean the quick-connect nozzles. Use the included nozzle cleaning tool (if applicable) to clear any blockages.
- Drain Water: After each use, ensure all water is drained from the pump, hose, and spray gun to prevent freezing damage in cold weather. Run the unit for a few seconds with the water supply off and the trigger squeezed until no more water comes out.
- Inspect Hoses and Connections: Regularly check the high-pressure hose, garden hose, and all connections for wear, damage, or leaks. Replace damaged parts immediately.
- Clean Water Inlet Filter: The water inlet connector typically contains a filter to prevent debris from entering the pump. Remove and clean this filter periodically.
- Storage: Store the pressure washer in a dry, frost-free environment. Coil the high-pressure hose and power cord neatly. Utilize the on-body storage for accessories.
Troubleshooting
Refer to this section for solutions to common operational issues.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not start |
|
|
| Low or no pressure |
|
|
| Water leaks |
|
|
| Motor stops during operation (TSS) |
|
|
Specifications
Technical specifications for the ETOOLAB W80-US Electric Pressure Washer.
| Model Number | W80-US |
| Maximum Pressure | 5000 PSI (Pound per Square Inch) |
| Maximum Flow Rate | 3.0 GPM (Gallons Per Minute) |
| Power Source | AC (Alternating Current) |
| Product Dimensions (L x W x H) | 30L x 32.8W x 43.9H Centimetres |
| High-Pressure Hose Length | 23 FT |
| Foam Cannon Capacity | 600 mL |
Warranty and Support
ETOOLAB is committed to providing a positive customer experience. While specific warranty details are not provided in this manual, ETOOLAB offers professional after-sales support.
If you encounter any issues with your ETOOLAB W80-US Electric Pressure Washer or require assistance with assembly or operation, please contact ETOOLAB customer service. Our team is available to provide support and ensure your satisfaction.
For the most up-to-date warranty information and contact details, please refer to the official ETOOLAB website or the product packaging.
