Introduction
Thank you for choosing the AMOSA Electric Salt and Pepper Grinder. This 2-in-1 rechargeable grinder is designed for convenience and precision, featuring dual ceramic grinding cores and adjustable fineness settings. This manual provides essential information for safe and efficient use of your new appliance.
Image: The AMOSA Electric Grinder in use, demonstrating its intelligent electronic control technology and key features.
Setup
1. Unpacking and Initial Inspection
Carefully remove all components from the packaging. Ensure the following items are present:
- 1 x AMOSA 2-in-1 Electric Salt and Pepper Grinder
- 1 x Spice Baffle
- 1 x USB A to USB C Charging Cable
- 1 x Cleaning Brush
- 1 x User Manual
2. Charging the Grinder
Before first use, fully charge the grinder. Connect the provided USB-C charging cable to the grinder's Type-C port and a suitable USB power adapter (not included). The 4 LED indicators will show the charging status and battery level. A full charge takes approximately 2 hours and provides 1-2 months of typical use or 35 minutes of continuous grinding.
Image: Charging the AMOSA Electric Grinder via its USB-C port. Note: Adapter is not included.
3. Filling the Spice Compartments
The grinder features two separate spice compartments, each with a 100ml capacity. To fill:
- Remove the top cover by twisting it counter-clockwise.
- Identify the 'S' (Salt) and 'P' (Pepper) openings.
- When pouring coarse salt, place the spice baffle at the 'P' opening to prevent the salt from entering the pepper bin.
- When pouring pepper, press and remove the baffle and place it at the 'S' opening.
- Fill each compartment with your desired spices (e.g., sea salt, peppercorns). Do not overfill.
- Replace the top cover by twisting it clockwise until secure.
Image: Refilling the grinder using the thoughtful spice baffle to prevent mixing of spices.
4. Adjusting Grind Coarseness
The grinder is equipped with two independent ceramic grinding cores, allowing for separate coarseness adjustments for salt and pepper. To adjust:
- Locate the two adjustment knobs at the bottom of the grinder.
- Turn the knob clockwise for a finer grind and counter-clockwise for a coarser grind.
- Adjust each knob independently to achieve your desired fineness for salt and pepper.

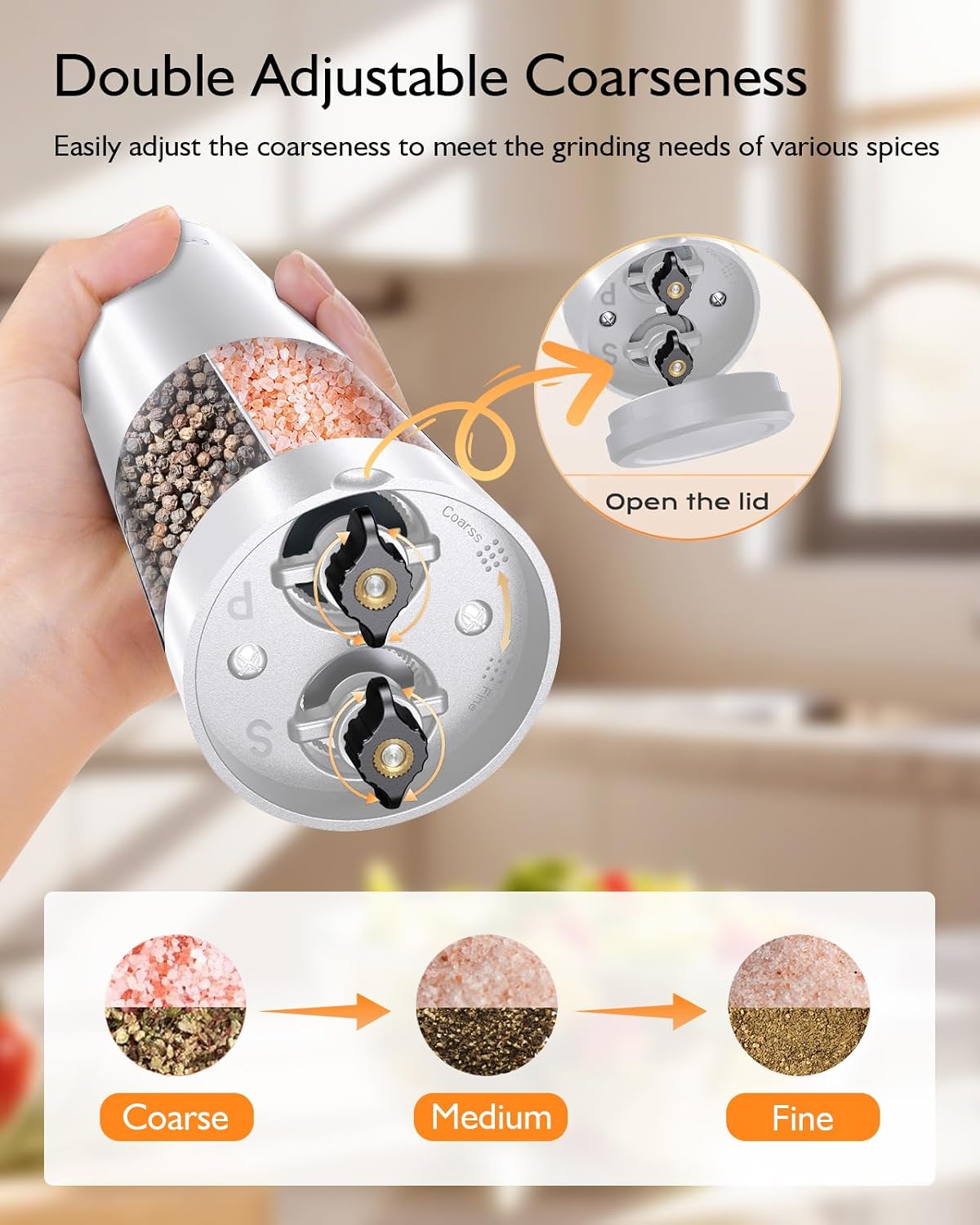

Image: Detail of the double adjustable coarseness mechanism at the base of the grinder.
Operating Instructions
The AMOSA Electric Grinder is designed for easy one-handed operation.
- Ensure the grinder is charged and filled with spices.
- Hold the grinder over your food.
- Press the 'S' button for salt or the 'P' button for pepper to activate the grinding mechanism.
- An integrated LED light will illuminate automatically during operation, providing clear visibility of the spice distribution.
- Release the button to stop grinding.
Image: Demonstrating the 2-in-1 dual bin design and one-handed operation using the 'S' and 'P' buttons.
Image: Step-by-step visual instructions on how to use the grinder.
Maintenance
Cleaning
To ensure optimal performance and hygiene, clean your grinder regularly:
- Do not immerse the grinder in water. It is not dishwasher safe.
- Use the provided cleaning brush to remove any spice residue from the grinding cores and the exterior.
- Wipe the exterior with a damp cloth. Dry thoroughly.
- Ensure no moisture enters the battery compartment or charging port.
Storage
Store the grinder in a dry place away from direct sunlight and high humidity when not in use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Grinder does not operate. | Low battery. Spice compartments empty. Buttons not pressed correctly. | Charge the grinder fully. Refill spice compartments. Ensure 'S' or 'P' button is pressed firmly. |
| Grinding is inconsistent or slow. | Spice residue build-up in grinding core. Battery low. Spices are too large or hard for the grinder. | Clean the grinding core with the brush. Recharge the grinder. Ensure only recommended spices are used. |
| LED light not working. | Grinder not operating. Faulty LED. | Ensure grinder is operating. If problem persists, contact customer support. |
| Spices are mixing between compartments. | Spice baffle not used correctly during refilling. | Ensure the spice baffle is properly positioned when refilling each compartment. |
Product Specifications
| Feature | Detail |
|---|---|
| Model Number | Y8 |
| Dimensions (L x W x H) | 5.79 x 5.79 x 21.01 cm |
| Weight | 340.19 grams |
| Material | Acrylonitrile Butadiene Styrene (ABS), Acrylic |
| Color | Classic White |
| Battery | 1 x 800 mAh Lithium-ion (included) |
| Charging Port | USB-C |
| Capacity | 2 x 100 ml (total 200 ml) |
| Grinding Mechanism | Dual Ceramic Grinding Cores |
| Operation Mode | Automatic (one-handed) |
| Dishwasher Safe | No |
| Country of Origin | China |
| Recommended Spices | Sea salt, coarse salt, Himalayan pink salt, black pepper, white pepper, green pepper, red pepper, dried spices, peppercorns, pepper blends. |
Image: Detailed diagram of the grinder's components and dimensions.
Image: Breakdown of the food-safe materials used in the grinder's construction.
Warranty Information
The AMOSA Electric Salt and Pepper Grinder comes with a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
Customer Support
For any questions, concerns, or assistance with your AMOSA Electric Salt and Pepper Grinder, please contact AMOSA customer service. We offer 7-day a week, 24-hour customer support to ensure your satisfaction. If you encounter any issues, we are committed to providing a 100% satisfactory solution.
Please refer to the contact information provided with your product packaging or visit the official AMOSA website for support details.
