OLAKIDS 6V Kids Motorcycle Instruction Manual

1. Important Safety Information

This product complies with US CPSIA and ASTM safety standards. It is made from non-toxic materials, free from BPA, PVC, Phthalates, Lead, Latex, and Formaldehyde. The design has passed stability, asphyxiation, load, and shear tests.

WARNING: To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water. Always wear a helmet and appropriate safety gear when operating the motorcycle.

The motorcycle is designed for children aged 3 years and older, with a maximum weight capacity of 30 kg (66 lbs).

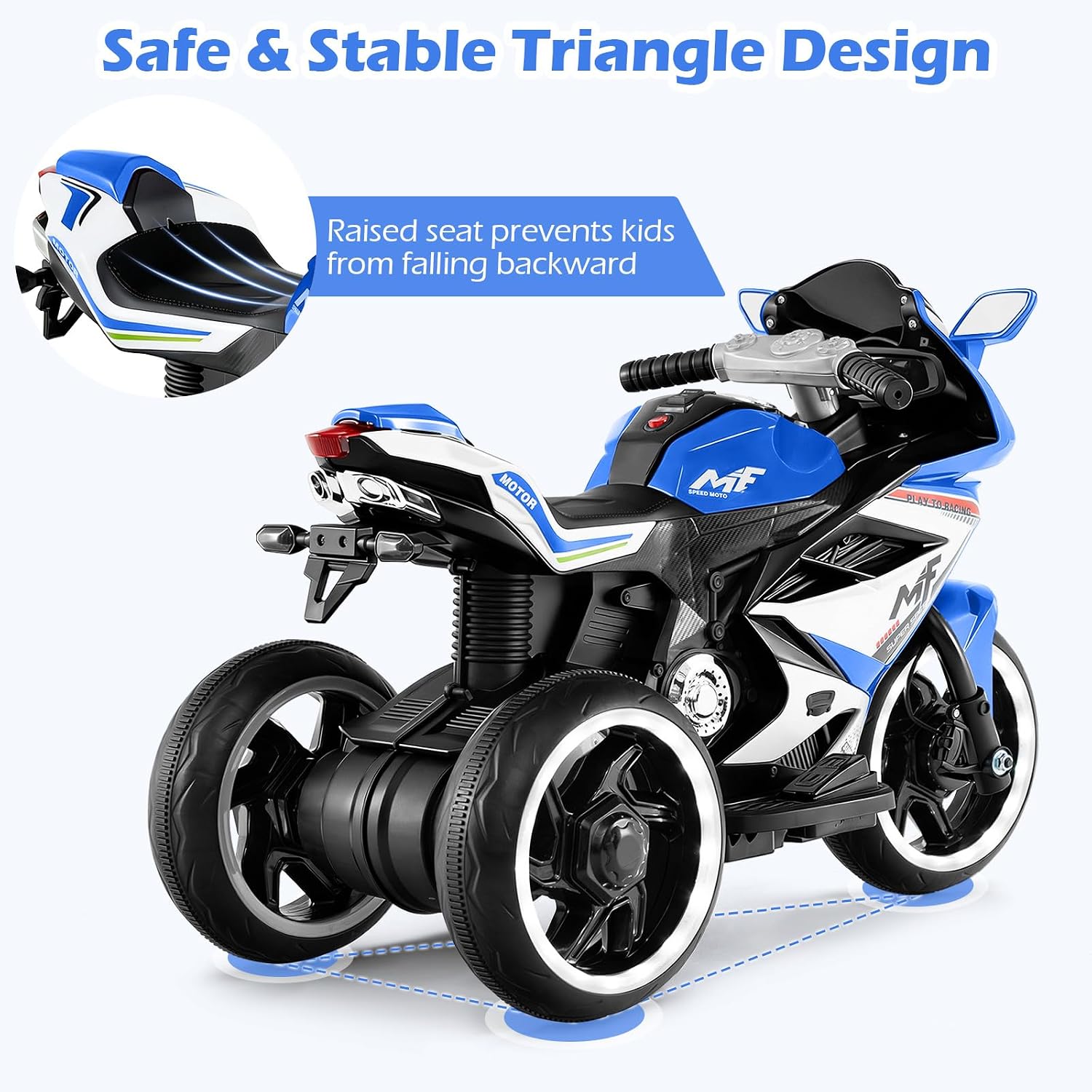

The motorcycle features a stable triangle design and a raised seat to enhance safety and prevent children from falling backward during use.

2. Setup and Assembly

The OLAKIDS 6V Kids Motorcycle requires some assembly before first use. Please follow the steps below carefully.

2.1 Initial Charging

Before first use, fully charge the battery for 8-12 hours. Ensure the motorcycle is turned off during charging.

2.2 Assembly Steps

1. Remove all components from the packaging.
2. Attach the front wheel and handlebars according to the detailed instructions in the included manual.
3. Connect the battery terminals.
4. Secure the seat.
5. Ensure all screws and fasteners are tightened securely.

For a visual guide on assembly, please refer to the installation video below:

3. Operating Instructions

The OLAKIDS 6V Kids Motorcycle is designed for easy and intuitive operation.

3.1 Starting and Stopping

1. Ensure the motorcycle is on a flat, stable surface.
2. Press the one-button start to turn on the motorcycle.
3. To move forward or backward, use the forward/reverse switch located on the control panel.
4. Press the foot pedal to accelerate. Releasing the foot pedal will bring the motorcycle to a stop.
5. To turn off the motorcycle, press the one-button start again.

The control panel features a gear switch for forward, stop, and reverse, along with a power button and foot pedal for easy operation.

3.2 Lights and Sound Features

• Headlights: The motorcycle is equipped with bright LED headlights for enhanced visibility and a realistic riding experience.
• Wheel Lights: Sparkling tire lights activate upon startup, adding to the visual appeal. Note: These lights are primarily for aesthetic effect during startup.
• Horn: Press the horn button on the control panel to activate the horn sound.
• Music & MP3/USB: The motorcycle has built-in music. You can also connect an MP3 device or USB drive via the USB port to play your child's favorite tunes and stories. Use the music/volume buttons to control playback and volume.

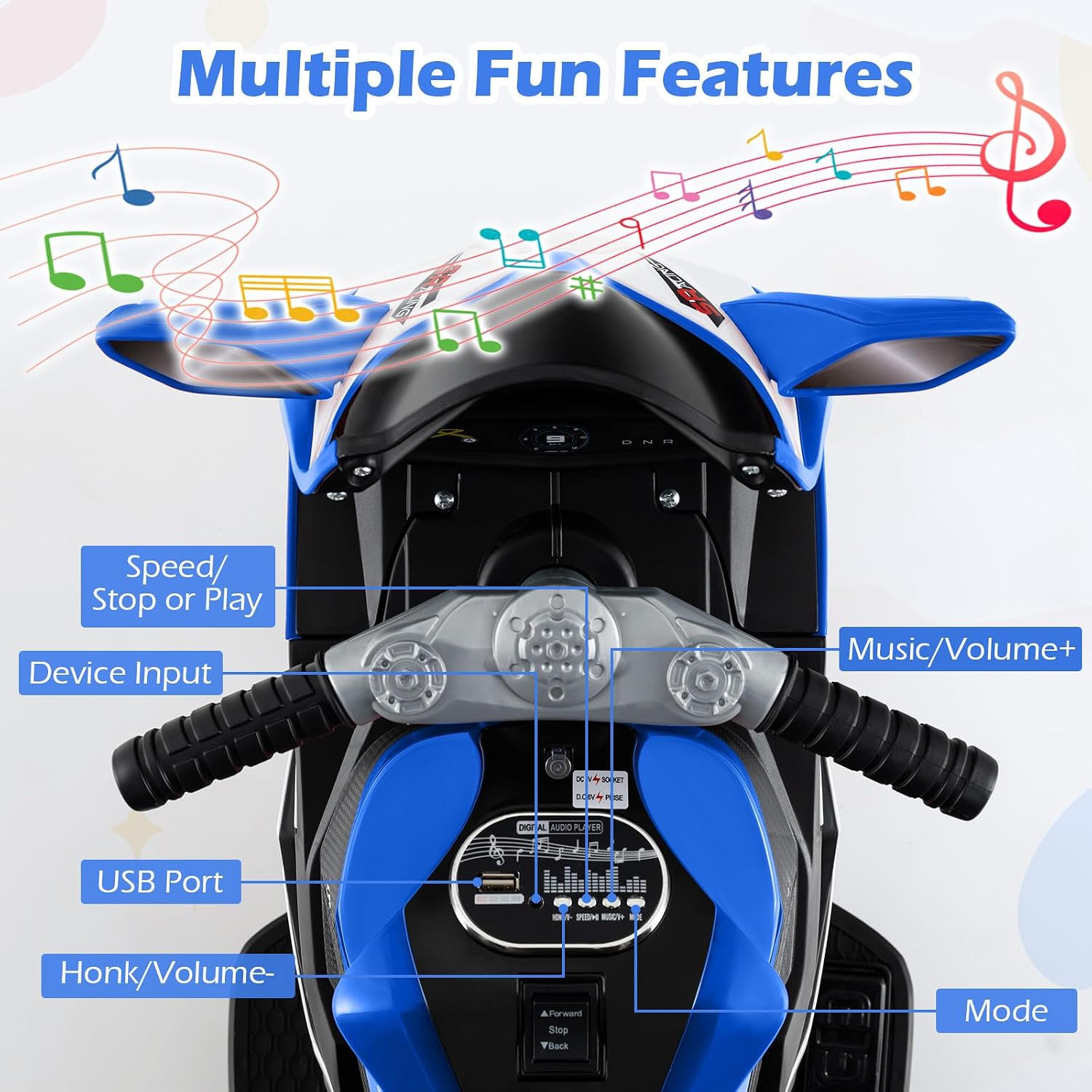

The motorcycle's control panel includes buttons for speed/play, device input, USB port, horn, and music/volume controls.

The motorcycle features a bright headlight and tire light strips that illuminate upon starting, enhancing its cool design.

3.3 Riding Environment

The durable, non-slip 3 wheels provide stable riding on various terrains, including asphalt roads, cement floors, gravel roads, and brick roads. Avoid riding on wet, uneven, or excessively steep surfaces.

The motorcycle is designed to ride smoothly on various surfaces such as asphalt, cement, gravel, and brick roads.

4. Maintenance

4.1 Charging the Battery

After each use, or when the battery indicator shows low power, charge the battery for 8-12 hours. Do not overcharge the battery, as this can reduce its lifespan. The battery provides approximately 45 minutes of play on a full charge.

4.2 Cleaning and Storage

• Wipe the motorcycle with a damp cloth to clean. Do not use harsh chemicals or abrasive cleaners.
• Store the motorcycle in a dry, cool place away from direct sunlight and moisture.
• If storing for an extended period, ensure the battery is fully charged before storage and recharge it every 3 months to maintain battery health.

5. Troubleshooting

If you encounter any issues with your OLAKIDS 6V Kids Motorcycle, please refer to the following common troubleshooting tips:

• Motorcycle does not start:
  • Ensure the battery is fully charged.
  • Check all electrical connections, especially the battery terminals, to ensure they are secure.
  • Verify the power switch is in the 'ON' position.
• Motorcycle moves slowly or loses power quickly:
  • The battery may need recharging. Charge for the recommended 8-12 hours.
  • The motorcycle may be overloaded. Ensure the rider's weight does not exceed 30 kg (66 lbs).
  • Operating on soft surfaces (e.g., thick grass) can reduce speed and battery life.
• Lights or music not working:
  • Check if the motorcycle is powered on.
  • Ensure the USB device is properly inserted and functional if using external media.
  • Verify volume settings.

If problems persist, please contact Olakids customer support for further assistance.

6. Specifications

Detailed specifications for the OLAKIDS 6V Kids Motorcycle (Model TQ10435).

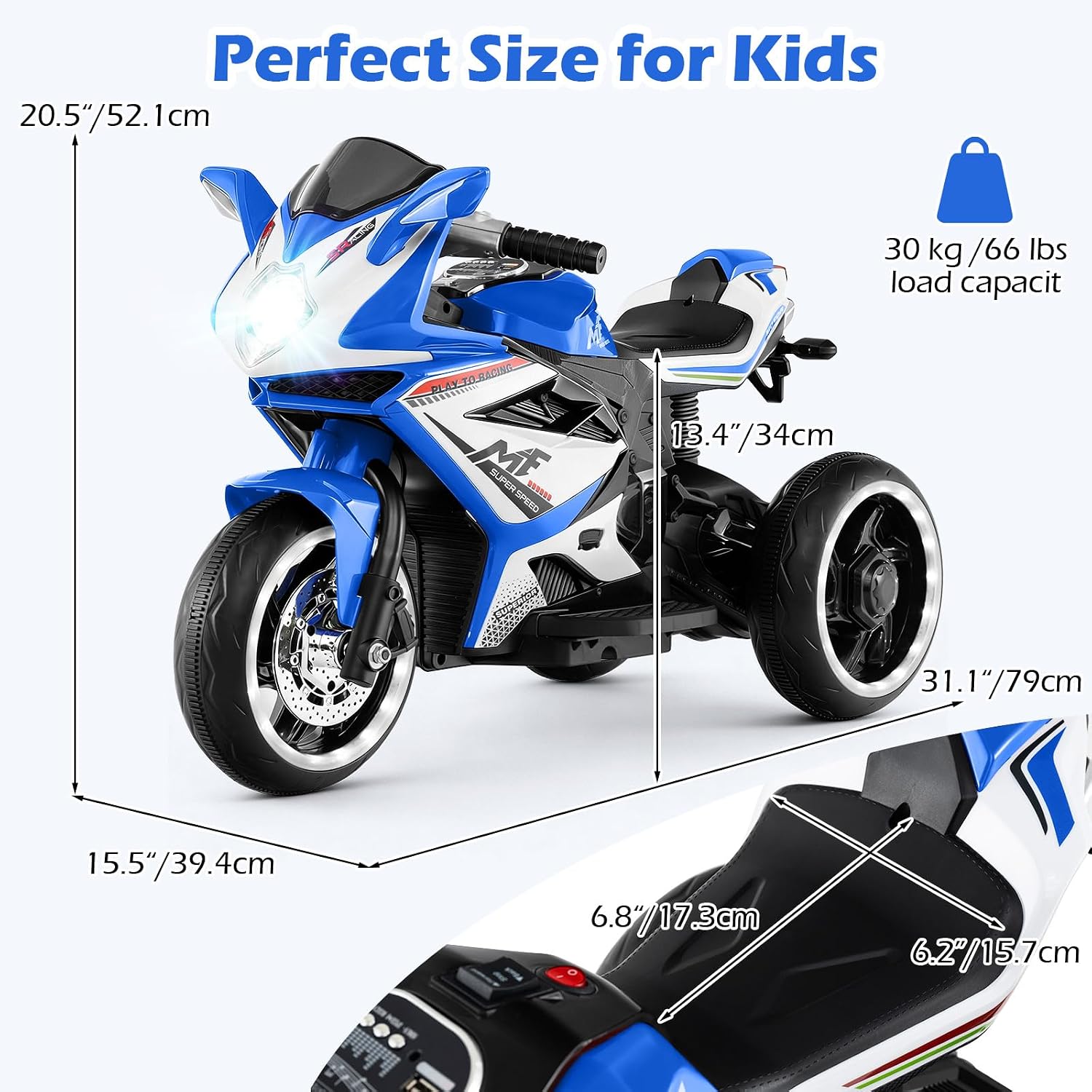

Key dimensions and load capacity of the OLAKIDS 6V Kids Motorcycle.

7. Warranty and Support

Information regarding product warranty and customer support is typically provided with your purchase documentation or can be found on the manufacturer's official website. Please refer to the packaging or the Olakids brand store for specific details.

For further assistance, please visit the Olakids Store on Amazon.
