1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Aphyni AKCF-003 18.5-inch Low Profile Ceiling Fan with LED Light. This product features a modern design, integrated LED lighting with adjustable color temperature and brightness, a reversible motor for year-round use, and convenient control via remote or app. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.
Figure 1: Aphyni AKCF-003 Low Profile Ceiling Fan with LED Light.
2. Safety Information
Always follow basic safety precautions when installing and operating electrical appliances to reduce the risk of fire, electric shock, and personal injury.
- WARNING: To avoid possible electrical shock, turn off the electricity at the main fuse box or circuit breaker panel before you begin fan installation or before servicing the fan.
- All wiring must be in accordance with national and local electrical codes. Electrical installation should be performed by a qualified licensed electrician.
- The fan must be mounted with a minimum of 7 feet (2.1 meters) clearance from the trailing edge of the blades to the floor.
- Ensure the mounting structure is strong enough to support the weight of the fan (approximately 1.98 lbs).
- Do not use the fan with a dimmer switch. Only use the provided remote control or app for speed and light adjustments.
- Do not insert objects into the path of the fan blades.
- This product is for indoor use only.
3. Package Contents
Carefully unpack your ceiling fan and ensure all items are present. If any items are missing or damaged, contact customer support.
- Aphyni AKCF-003 Ceiling Fan with LED Light
- Remote Control
- Mounting Hardware (screws, wire nuts, etc.)
- User Manual (this document)
4. Setup and Installation
The Aphyni AKCF-003 features a pre-assembled, foldable design for simplified installation. It is recommended that wire installation be performed by a professional electrician.
4.1 Pre-Installation Steps
- Turn off power at the circuit breaker.
- Ensure the mounting location is suitable and can support the fan's weight.
- Unpack the fan and components.
4.2 Mounting the Fan
- Attach the mounting bracket to the ceiling junction box using the provided screws. Ensure it is securely fastened.
- Unfold the fan blades and secure them if necessary (the design is foldable for ease).
- Connect the electrical wires from the fan to the house wiring (live, neutral, ground) using the wire nuts. Ensure connections are tight and secure.
- Carefully lift the fan and attach it to the mounting bracket, securing it in place.
Figure 2: Visual guide for mounting the fan to the ceiling.
4.3 Wire Installation Video Guide
Video 1: This video demonstrates the wire installation process for the Aphyni ceiling fan. Professional installation is recommended.
5. Operating Instructions
Your Aphyni ceiling fan can be controlled using the included remote control or a compatible smartphone app (Bluetooth required for app control).
5.1 Remote Control and App Functions
- Power On/Off: Turns the fan and light on or off.
- Fan Speed: Adjusts fan speed from 1 to 6.
- Light Brightness: Dims or brightens the LED light (5%-100%).
- Color Temperature: Changes the light color from warm white (3000K) to cool white (6500K).
- Reversible Motor: Switches between downdraft (summer) and updraft (winter) modes.
- Timer: Sets a 1-hour or 2-hour timer for automatic shutdown.
- Night Light Mode: Activates a gentle, low-brightness light setting.
- Memory Function: The fan remembers your last light and fan settings.
Figure 3: Overview of fan features including remote and app control.
5.2 Fan Speed Settings
The fan offers 6 speeds to suit your comfort needs:
- Speed 1-2: Gentle breeze, ideal for quiet environments or sleep. (Approx. 30dB)
- Speed 3-4: Daily use wind, balanced comfort. (Approx. 40dB)
- Speed 5-6: Powerful cooling wind, for maximum airflow. (Approx. 50dB)
Figure 4: Illustration of 6 wind speed settings and corresponding noise levels.
5.3 Light Adjustment
The integrated LED light provides customizable illumination:
- Brightness: Adjust from 5% (dim) to 100% (bright) to match your preference.
- Color Temperature: Choose between 3000K (warm white), 4500K (natural white), and 6500K (cool white).
- Night Light Mode: A dedicated setting for minimal light during nighttime.
Figure 5: Demonstrates adjustable color temperature (3000K-6500K) and 5%-100% dimmable brightness.
5.4 Reversible Motor Function
The reversible motor allows for year-round comfort:
- Summer Mode (Downdraft): Creates a cooling effect by pushing air downwards.
- Winter Mode (Updraft): Circulates warm air trapped near the ceiling, improving heat distribution.

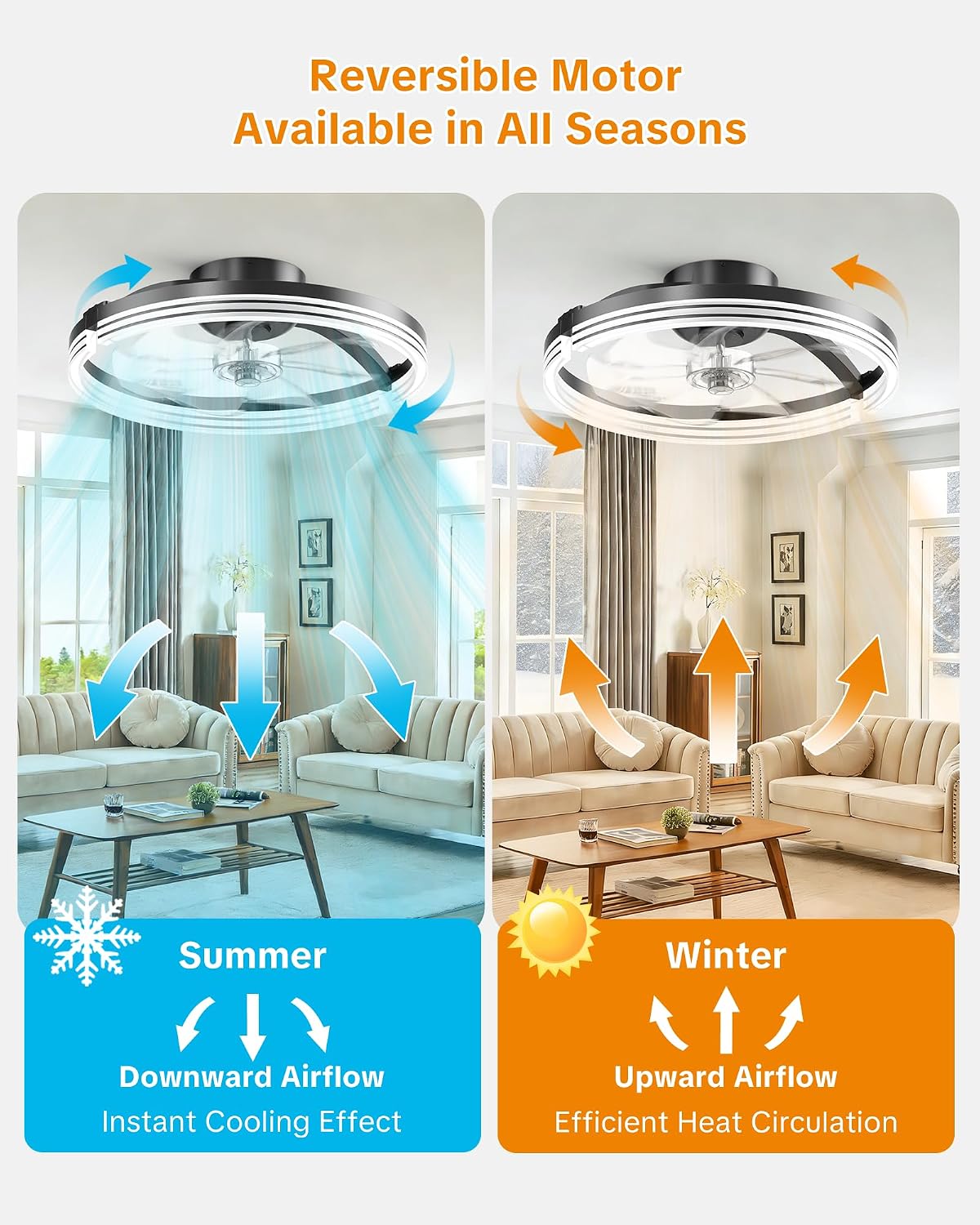

Figure 6: Illustration of reversible motor function for summer (downdraft) and winter (updraft) airflow.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your ceiling fan.
- Cleaning: Use a soft, damp cloth to clean the fan housing and blades. Do not use abrasive cleaners or solvents.
- Dusting: Regularly dust the fan blades and light fixture to prevent dust buildup, which can affect performance and light output.
- Tightening: Periodically check all screws and connections for tightness. Retighten as necessary.
- No Lubrication: The motor is permanently lubricated and does not require oiling.
Always ensure the power is turned off at the circuit breaker before performing any cleaning or maintenance.
7. Troubleshooting
If you experience issues with your Aphyni ceiling fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Loose wire connections; Remote control battery low or not paired. | Check circuit breaker and wall switch. Ensure all wire connections are secure. Replace remote battery or re-pair remote. |
| Light does not turn on | Loose wire connection to light; Remote control issue; LED driver malfunction. | Check light wiring. Ensure remote battery is good and paired. Contact support if LED driver is suspected. |
| Fan makes excessive noise | Loose mounting screws; Unbalanced blades; Obstruction in fan path. | Ensure mounting screws are tight. Check for any objects interfering with blades. |
| Remote control not working | Low battery; Not paired with fan; Obstruction between remote and receiver. | Replace remote battery. Follow pairing instructions in the remote manual. Ensure clear line of sight. |
| Light brightness or color temperature cannot be adjusted | Using a regular wall switch (not compatible with dimmers); Remote/app not functioning correctly. | Ensure you are using the provided remote or app for adjustments. Check remote battery. |
8. Specifications
Detailed technical specifications for the Aphyni AKCF-003 Ceiling Fan.
| Feature | Detail |
|---|---|
| Brand | Aphyni |
| Model Number | AKCF-003 |
| Size | 18.5 inch |
| Color | Black |
| Material | Plastic, Metal Frame |
| Power Source | AC |
| Voltage | 120 Volts |
| Wattage | 42 watts |
| Light Source | LED |
| Brightness | 3300 Lumens (Max) |
| Color Temperature | 3000K-6500K (Adjustable) |
| Dimmable | 5%-100% Stepless |
| Control Method | Remote Control, App Control (Bluetooth) |
| Fan Speeds | 6 Speeds |
| Motor Type | Reversible Pure Copper Motor |
| Noise Level | ≤30dB (low speed), ≤50dB (high speed) |
| Recommended Room Size | 8.5ft x 8.5ft (approx.) |
| Installation Height | 8-10 ft |
| Item Weight | 1.98 Pounds |
| Dimensions (L x W x H) | 19.7"L x 19.7"W x 4.3"H |
Figure 7: Detailed dimensions and recommended room size for optimal performance.
9. Warranty and Support
Aphyni provides a manufacturer's warranty for this product.
- Warranty Period: 2-year manufacturer's warranty.
- Support: For technical assistance, warranty claims, or any questions regarding your Aphyni ceiling fan, please refer to the contact information provided with your purchase documentation or visit the official Aphyni store on Amazon.
