Introduction
Thank you for choosing the Relaxdays Heavy-Duty Shelving Unit. This manual provides essential information for the safe assembly, operation, and maintenance of your new shelving unit. Please read these instructions carefully before beginning assembly and retain them for future reference.

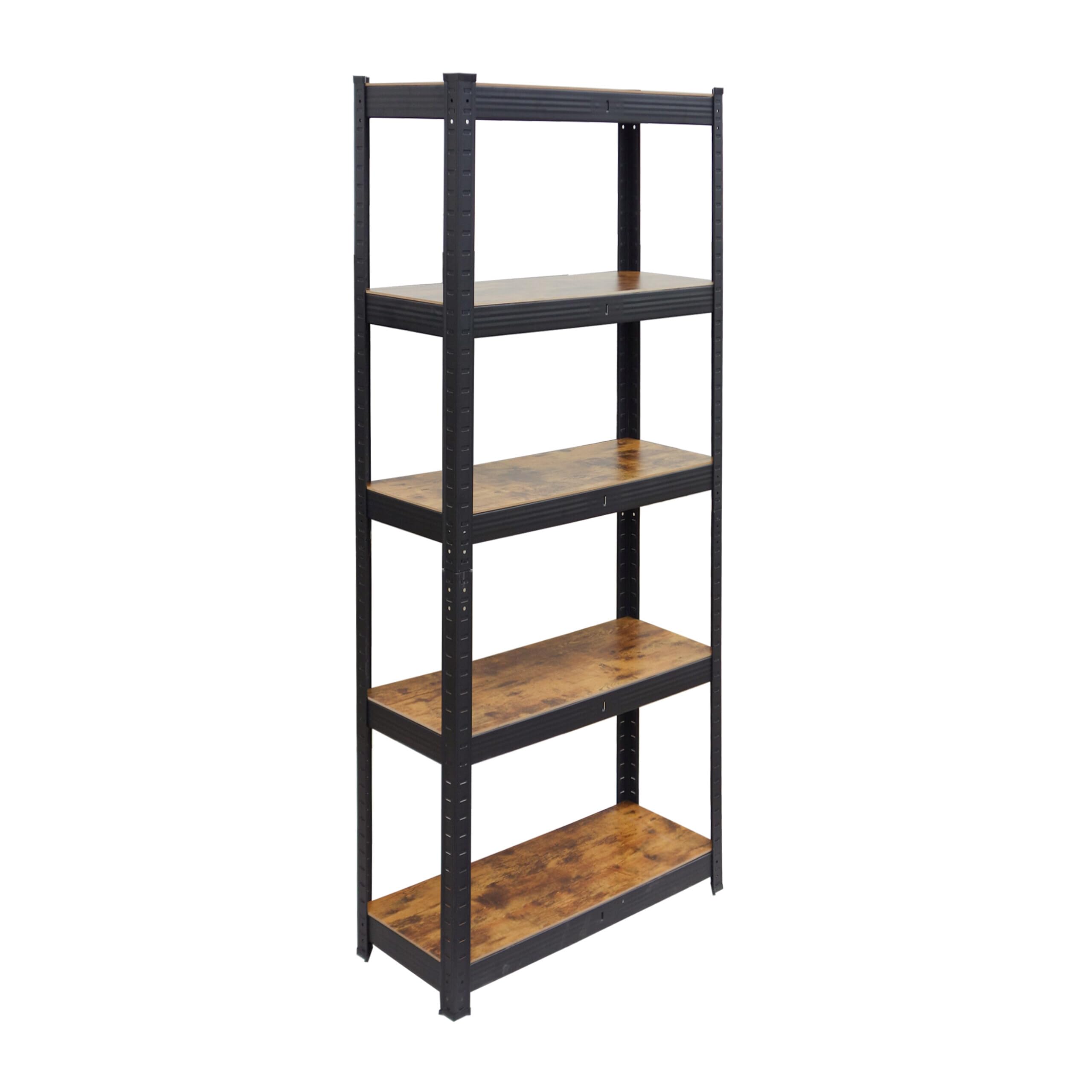

Image: The Relaxdays Heavy-Duty Shelving Unit, featuring a black steel frame and five wood-effect MDF shelves. Dimensions are 180 cm high, 75 cm wide, and 30 cm deep.
Safety Information
- Maximum Load Capacity: Each shelf has a maximum load capacity of approximately 100 kg (220 lbs). Do not exceed this limit to prevent structural damage or collapse. The total unit capacity is 500 kg (1102 lbs).
- Even Weight Distribution: Distribute weight evenly across each shelf. Avoid concentrating heavy items in one area.
- Stable Surface: Always place the shelving unit on a flat, stable, and level surface.
- Wall Anchoring: For added stability and safety, especially in areas with children or pets, consider anchoring the unit to a wall (anchoring hardware not included).
- Assembly: Assemble the unit according to the instructions. Ensure all connections are secure before loading the shelves.
- Sharp Edges: The steel components may have sharp edges. Use caution during assembly and wear protective gloves if necessary. Edge protectors are included to cover exposed corners.
- Children: Keep children away from the assembly area. Do not allow children to climb on the shelving unit.
Package Contents
Before assembly, please verify that all components are present and undamaged:
- Steel frame components (uprights, crossbars)
- 5 x MDF shelves (wood-effect finish)
- Plastic edge protectors
- Assembly instructions (this manual)
Image: An illustration detailing the main components of the shelving unit, including the steel frame and MDF shelves, along with overall dimensions (180 cm H, 75 cm W, 30 cm D) and individual shelf load capacity (100 kg).
Setup and Assembly
This shelving unit features a tool-free plug-in system for easy assembly. No screws or drilling are required.
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, flat surface to identify each piece.
- Assemble Upright Frames: Connect the shorter steel uprights to form the full height of the vertical frame. Ensure the slots align correctly for a secure fit.
- Attach Crossbars: Begin by attaching the horizontal crossbars to the upright frames at the desired shelf heights. The plug-in system allows for adjustable shelf placement. Ensure all tabs are fully inserted into the slots.
- Insert MDF Shelves: Once the frame for a shelf level is complete, carefully place an MDF shelf onto the crossbars. Ensure it sits flush and securely within the frame.
- Repeat for All Shelves: Continue attaching crossbars and inserting MDF shelves until all five shelves are in place.
- Apply Edge Protectors: Place the plastic edge protectors onto the top and bottom corners of the assembled unit to cover any sharp edges and protect your floor.
- Check Stability: Gently rock the assembled unit to ensure it is stable. Adjust any loose connections if necessary.
Image: This diagram shows the shelving unit in its full height configuration, as well as split into two smaller units, and arranged in a corner. Close-ups of the plug-in connection system and edge protectors are also displayed.

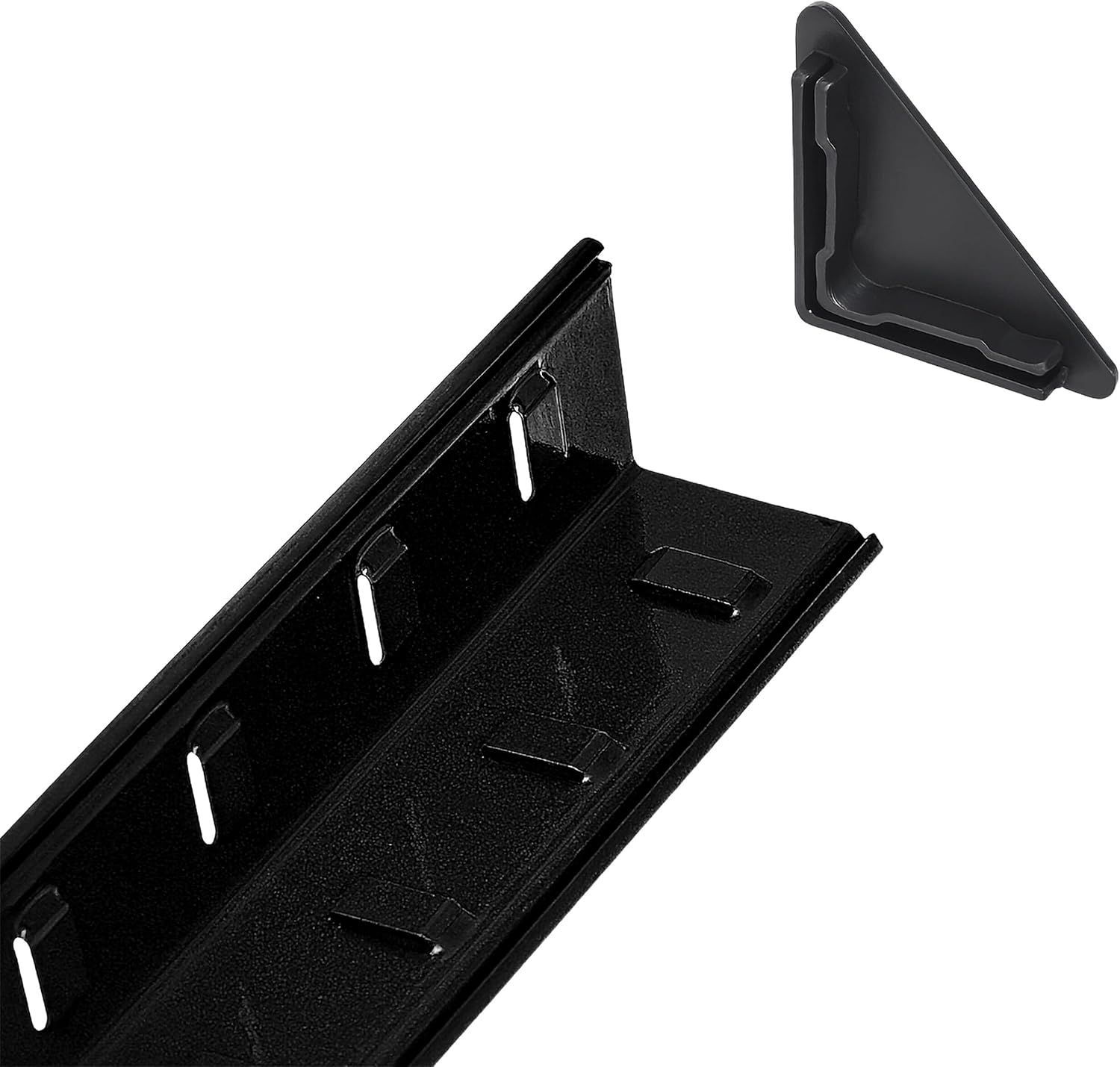

Image: A detailed view of the black steel frame, highlighting the slots for the plug-in assembly. The plastic edge protectors are shown separately and in place, designed to cover sharp corners for safety.
Operating Instructions
Your Relaxdays Heavy-Duty Shelving Unit is designed for versatile storage in various environments.
- Loading Shelves: Place items on the shelves, ensuring that the weight does not exceed 100 kg per shelf and is distributed evenly.
- Adjustable Shelf Heights: The plug-in system allows you to customize the height of each shelf to accommodate items of different sizes. To adjust, unload the shelf, carefully disassemble the crossbars for that level, reposition them, and reinsert the MDF board.
- Versatile Use: This unit is suitable for basements, garages, workshops, utility rooms, and even living spaces with an industrial aesthetic. It can store tools, boxes, books, and decorative items.
- Split Configuration: The unit can be split into two smaller, separate shelving units if desired, offering flexibility for different storage needs. Refer to the assembly diagram for guidance on this configuration.
Image: The heavy-duty shelving unit positioned in a garage, demonstrating its capacity to organize tools, storage bins, and other workshop essentials. The black frame and wood-effect shelves complement the industrial setting.
Image: The shelving unit integrated into a contemporary living room, showcasing its adaptability for home decor. It holds books, plants, and other decorative objects, blending with an industrial-chic interior design.
Maintenance
To ensure the longevity and appearance of your shelving unit, follow these simple maintenance guidelines:
- Cleaning: Wipe the steel frame with a damp cloth and mild detergent if necessary. Dry immediately to prevent rust. For the MDF shelves, use a dry or slightly damp cloth. Avoid abrasive cleaners or excessive moisture.
- Regular Inspection: Periodically check all connections to ensure they remain secure. Tighten or re-seat any loose components.
- Avoid Overloading: Adhere to the specified load capacities to prevent damage to the shelves and frame.
- Environmental Conditions: While robust, avoid prolonged exposure to extreme humidity or direct water contact, especially for the MDF shelves, to prevent warping or damage.
Troubleshooting
If you encounter any issues with your shelving unit, refer to the following common problems and solutions:
- Unit is Unstable/Wobbly:
- Ensure the unit is on a flat, level surface.
- Check that all plug-in connections are fully seated and secure.
- Verify that the weight on the shelves is evenly distributed.
- Consider anchoring the unit to a wall for enhanced stability.
- Shelves Do Not Sit Flush:
- Ensure the crossbars are correctly installed and fully engaged in the upright slots.
- Check that the MDF shelves are oriented correctly and not obstructed by any frame components.
- Difficulty Assembling Components:
- Sometimes, a rubber mallet (not included) can be used gently to tap components into place, ensuring a snug fit.
- Ensure you are aligning the tabs and slots correctly before applying force.
Specifications
| Feature | Detail |
|---|---|
| Model Name | Heavy-duty shelf Industrial Chic 500 kg |
| Model Number | 10052509_8335 |
| Product Dimensions (H x W x D) | 180 x 75 x 30 cm (70.87"H x 29.53"W x 11.81"D) |
| Number of Shelves | 5 |
| Load Capacity per Shelf | Approx. 100 kg (220 lbs) |
| Total Weight Limit | 500 kg (1102 lbs) |
| Material | 50% Steel, 40% Fibreboard (MDF), 10% Plastic |
| Color | Black frame, Brown wood-effect shelves |
| Assembly Required | Yes (Tool-free plug-in system) |
| Item Weight | 8.28 kg (18.22 lbs) |
| Installation Type | Freestanding |
Image: An illustration clearly indicating the overall height (180 cm), width (75 cm), and depth (30 cm) of the shelving unit, along with the 100 kg load capacity for each of the five shelves.
Warranty Information
Relaxdays products are manufactured to high-quality standards. For specific warranty details, please refer to the terms and conditions provided at the point of purchase or contact Relaxdays customer support. This warranty typically covers manufacturing defects under normal use.
Customer Support
If you have any questions, require assistance with assembly, or need to report a missing or damaged part, please contact Relaxdays customer support through the retailer where you purchased the product or visit the official Relaxdays website for contact information.
We are committed to providing you with a satisfactory experience with your Relaxdays product.
