1. Product Overview
The SANODESK 4-Leg L-Shaped Electric Standing Desk is designed to provide a versatile and ergonomic workspace for home offices, gaming setups, and general computer workstations. This desk features electric height adjustment, allowing users to seamlessly switch between sitting and standing positions throughout the day. Its robust 4-leg design ensures stability at all heights, and the L-shape provides ample surface area for multiple monitors and accessories.

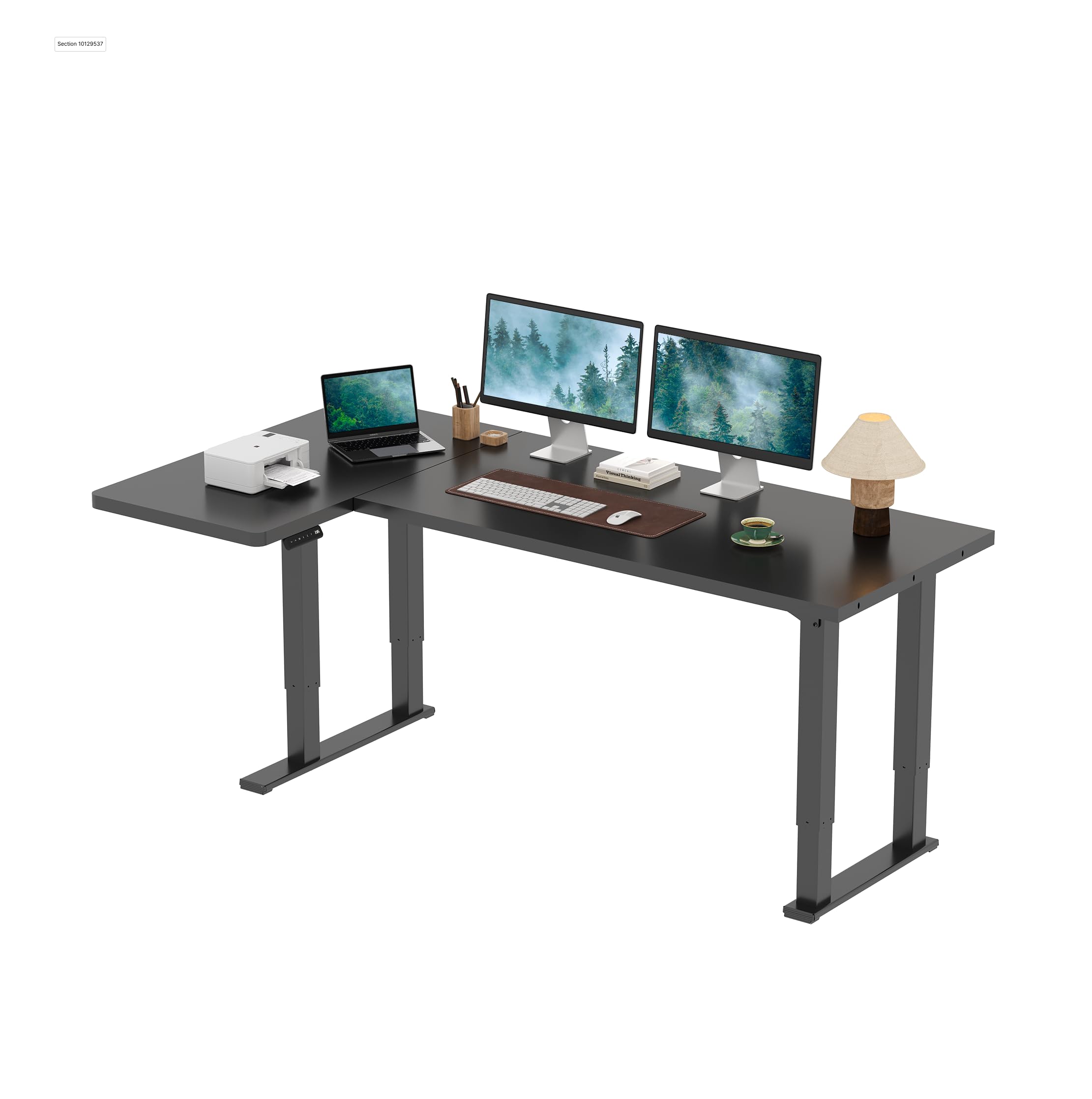

Image: The SANODESK 4-Leg L-Shaped Electric Standing Desk in a black finish, set up in a modern home office with multiple screens.
2. Key Features
- 4-Leg L-Shaped Design: Provides enhanced stability and a spacious work area.
- Electric Height Adjustment: Smooth and quiet operation for effortless transitions between sitting and standing.
- Memory Presets: Three programmable height settings for quick adjustments to preferred positions.
- Durable Construction: Engineered wood desktop with a robust carbon steel frame and legs.
- Generous Workspace: Ample surface area to accommodate multiple monitors, peripherals, and work materials.
- Whisper-Quiet Operation: Motor operates at approximately 45dB, ensuring minimal disturbance.
- Surface Durability: Desktop is scratch-proof, rust-resistant, and made from eco-friendly materials.

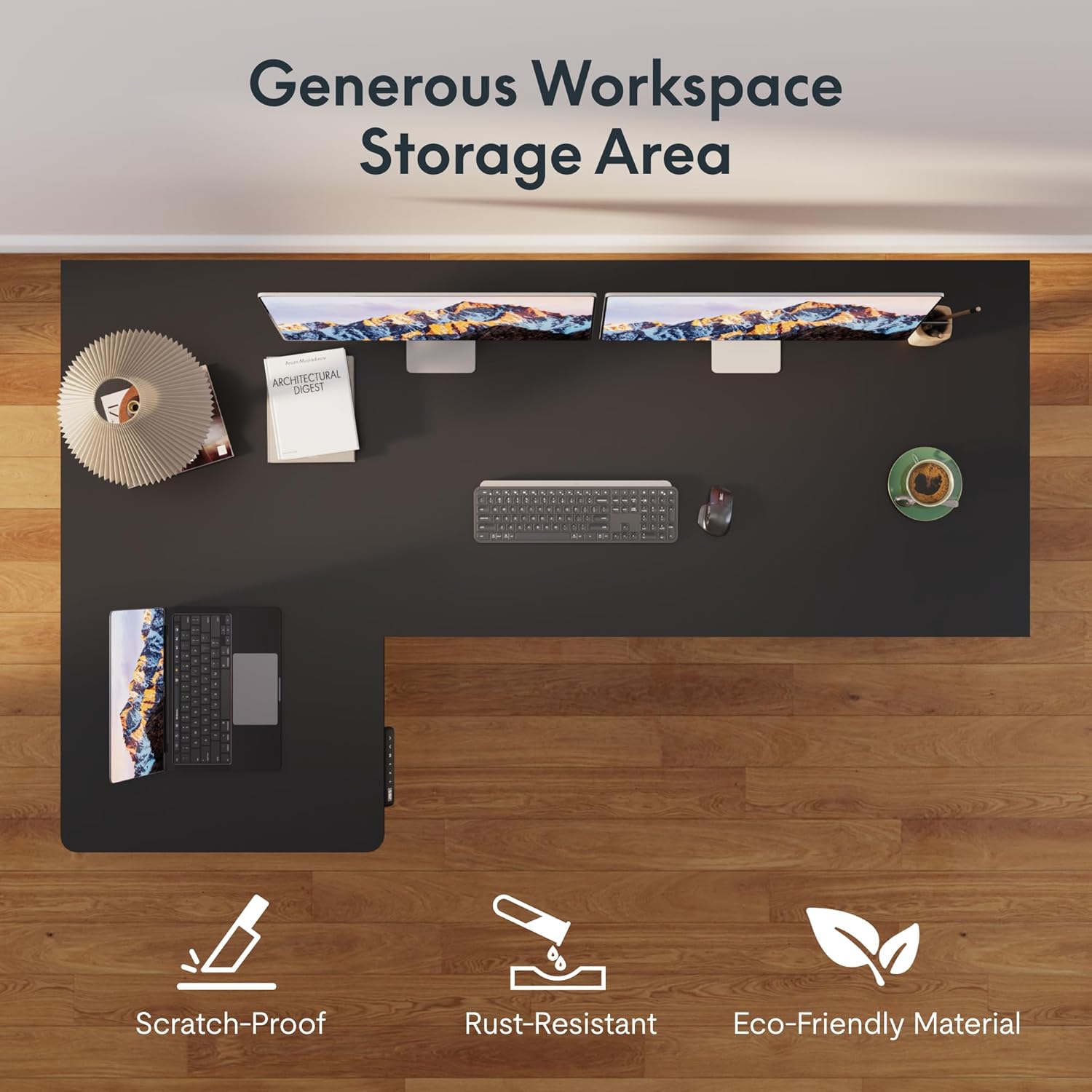

Image: An overhead view illustrating the generous workspace and material benefits of the desk.
Image: A diagram highlighting the durable 4-leg steel frame and its height adjustment capabilities.
3. Setup & Assembly
Assembly of the SANODESK 4-Leg L-Shaped Electric Standing Desk is required. Detailed instructions are included with the product. While assembly is designed to be straightforward, it is recommended to have two people for moving and assembling the desk due to its weight and size. Please note that not all assembly tools are included.
3.1 Installation Options
The L-shaped desk offers two installation options to match your workspace layout: the long side can be configured on either the right or the left.
Image: Visual representation of the two available L-shape configurations.
4. Operating Instructions
The desk features an electric height adjustment system with a control panel for easy operation.
4.1 Adjusting Desk Height
- Use the Up (▲) and Down (▼) arrow buttons on the control panel to manually raise or lower the desk to your desired height. The current height will be displayed on the digital screen.
4.2 Using Memory Presets
The desk allows you to save up to three preferred height settings for quick recall.
- Adjust the desk to your desired height using the Up/Down arrows.
- Press the "M" button. The display will flash.
- Immediately press one of the numbered preset buttons ("1", "2", or "3") to save the current height to that preset.
- To recall a saved height, simply press the corresponding numbered preset button. The desk will automatically move to the saved position.
Image: The L-shaped electric standing desk demonstrating its height adjustment range.
Image: A close-up of the control panel for height adjustment and memory presets.
5. Maintenance
To ensure the longevity and optimal performance of your SANODESK standing desk, follow these maintenance guidelines:
- Cleaning: The desk surface is easy to clean. Use a soft, damp cloth with a mild cleaner. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Regular Inspection: Periodically check all screws and connections to ensure they are tight. Retighten if necessary.
- Cable Management: Keep cables organized to prevent entanglement with the moving parts of the desk.
- Weight Distribution: Distribute weight evenly across the desk surface, especially when adjusting height, to prevent strain on the motors.
6. Troubleshooting
If you encounter any issues with your SANODESK standing desk, please refer to the following common troubleshooting tips:
- Desk Not Moving: Ensure the power cable is securely plugged into both the desk and a working power outlet. Check for any obstructions under or around the desk that might prevent movement.
- Uneven Movement: If the desk moves unevenly, check that all legs are properly assembled and that the desk is on a level surface. Recalibrate the desk if necessary (refer to the full instruction manual for calibration steps).
- Error Codes: If the display shows an error code, consult the detailed troubleshooting section in the complete instruction manual provided with your product.
- Physical Damage: In case of any physical damage, such as dents or issues with the drive mechanism, contact customer support immediately.
For more complex issues or if troubleshooting steps do not resolve the problem, please contact SANODESK customer support.
7. Specifications
Detailed specifications for the SANODESK 4-Leg L-Shaped Electric Standing Desk (Model 71x43 L-Shape):
| Feature | Detail |
|---|---|
| Brand | SANODESK |
| Model | 71x43 L-Shape |
| Color | Black |
| Shape | L-Shaped / Rectangular |
| Desk Design | Standing Desk |
| Product Dimensions (Approximate) | 70.87" (Long Side) x 43.31" (Short Side) x 28.74"-47.24" (Height) |
| Height Adjustment Range | 28.7" to 47.2" |
| Top Material Type | Engineered Wood |
| Frame Material Type | Steel |
| Lifting Mechanism | Electric |
| Special Feature | Cord Rewind |
| Assembly Required | Yes |
| Includes All Assembly Tools | No |
| GTIN / UPC | 840521529952 |
| ASIN | B0GC6LSX1X |
Image: Detailed desk dimensions for planning your space.
8. Warranty and Support
For specific warranty information regarding your SANODESK 4-Leg L-Shaped Electric Standing Desk, please refer to the documentation included with your purchase or visit the official SANODESK website. The seller for this product is SanoDesk.
If you require technical assistance, have questions about assembly, or need to report a product issue, please contact SANODESK customer support through their official channels. Be prepared to provide your product model number (71x43 L-Shape) and ASIN (B0GC6LSX1X) for faster service.
You can visit the SANODESK Store on Amazon for additional product information and support resources.
