Bellemave Triple Bunk Beds (Model FST00213-TB-AB1) - Instruction Manual

Important Safety Information

Please read and understand all instructions before assembling and using this product. Failure to follow these instructions may result in serious injury.

• Always use the guardrails on the upper bed to prevent falls.
• Assemble according to the instructions to ensure stability and prevent collapse.
• The top bunk is not suitable for children under 6 years of age.
• Ensure all connections are securely tightened before use and periodically check for looseness.
• Do not allow jumping on the bed.
• Use only mattresses that comply with the recommended dimensions and thickness for each bed level.
• Maximum weight capacity for the upper bed is 400 lbs. Maximum weight capacity for each bottom bed is 450 lbs.

Product Overview

The Bellemave Triple Bunk Bed is a versatile metal bed frame designed to accommodate three individuals, ideal for optimizing space in various settings. This unit can be configured as a triple bunk bed or separated into three individual twin-sized beds.

Key Features

• Triple Bunk Bed Configuration: Designed to efficiently house three beds in a compact footprint.
• Convertible Design: Can be separated into three individual twin-sized beds, adapting to changing needs.
• Safety Guardrails: The upper bed features full-length guardrails (11.2 inches high) to enhance user safety.
• Sturdy Metal Construction: Manufactured from durable metal for stability and long-term use.
• No Box Spring Required: Integrated metal slats provide mattress support, eliminating the need for a box spring.
• High Weight Capacity: Upper bed supports up to 400 lbs, and each bottom bed supports up to 450 lbs.

Figure 1: Bellemave Triple Bunk Bed in its assembled configuration.

Figure 2: Illustration of the bed's convertible design, allowing it to be used as a bunk bed or separate twin beds.

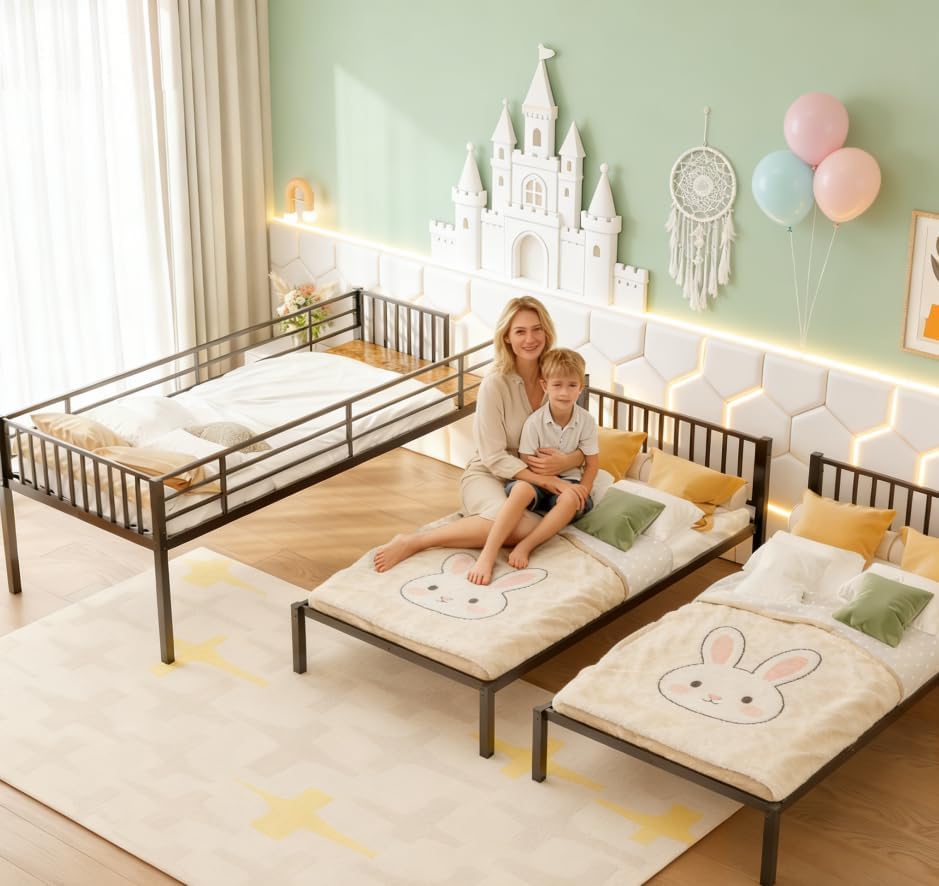

Figure 3: The bed frame disassembled into three individual twin beds.

Assembly Instructions

Some assembly is required. The bed comes with clear, step-by-step instructions, and each part is numbered for straightforward assembly. All necessary tools are included.

Before You Begin

• Clear a spacious area for assembly.
• Unpack all components and verify against the parts list in the included manual.
• It is recommended that two adults assemble this product.
• Keep children and pets away from the assembly area.

Step-by-Step Assembly Video

For detailed written instructions and diagrams, please refer to the physical instruction manual included with your product. The video above provides a visual walkthrough of the assembly process, covering steps such as:

• Connecting bed frame sections (Steps 1-2 in video).
• Attaching bed slats and support bars (Steps 3-7 in video).
• Assembling the upper bunk and connecting it to the lower frames (Steps 8-10 in video).
• Installing the ladder and side tables (Step 11-12 in video).

Figure 4: Ensure all connections are firmly secured during assembly for structural integrity.

Operating Instructions

Once assembled, your Bellemave Triple Bunk Bed is ready for use. Observe the following guidelines for optimal performance and safety:

• Ladder Use: Always use the provided ladder to access the upper bunk. Do not climb on the bed frame directly.
• Weight Distribution: Distribute weight evenly on each bed. Adhere to the maximum weight capacities for each level.
• Mattress Placement: Ensure mattresses are properly seated within the bed frame and do not extend beyond the guardrails on the upper bunk.

Maintenance

Regular maintenance will help prolong the life and safety of your bunk bed.

• Cleaning: Wipe down metal surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Check Connections: Periodically inspect all bolts and screws to ensure they remain tight. Re-tighten as necessary.
• Inspect Slats: Ensure all bed slats are securely in place and undamaged. Replace any broken or bent slats immediately.

Troubleshooting

If you encounter issues with your bunk bed, refer to the following common solutions:

• Squeaking Noises: Check all bolts and connections for tightness. Lubricate metal-on-metal contact points with a silicone-based spray if necessary.
• Instability: Ensure the bed is placed on a level surface. Verify that all frame components are correctly assembled and tightened according to the instructions.
• Missing Parts: If any parts are missing or damaged upon arrival, do not proceed with assembly. Contact customer support for assistance.

Product Specifications

Figure 5: Dimensional diagram of the Bellemave Triple Bunk Bed.

Warranty and Support

For warranty information or to request support, please refer to the documentation included with your purchase or contact Bellemave customer service directly. Ensure you have your model number (FST00213-TB-AB1) and proof of purchase available when contacting support.
