1. Introduction
Thank you for choosing the ROBAM 56H2S 36-inch Under Cabinet Range Hood. This appliance is designed to provide powerful and efficient ventilation for your kitchen, featuring advanced technologies such as a BLDC motor, AI gesture control, and an auto-clean system. This manual provides essential information for the safe installation, operation, and maintenance of your new range hood.

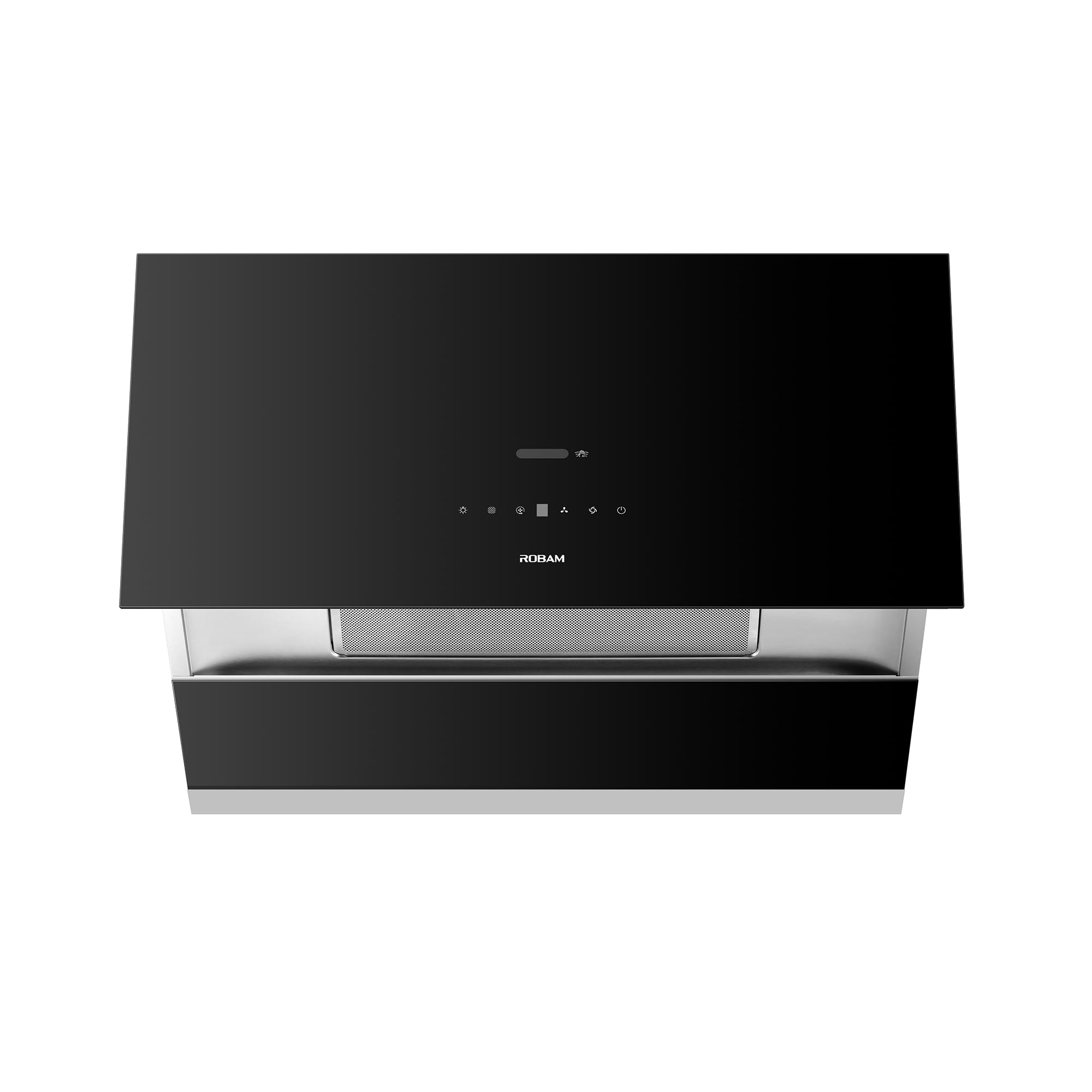

Image: The ROBAM 56H2S 36-inch Under Cabinet Range Hood.
2. Safety Information
Please read all instructions carefully before using this appliance to reduce the risk of fire, electric shock, or injury. Keep this manual for future reference.
- Electrical Safety: Ensure the power supply matches the voltage specified on the rating label. Always disconnect power before servicing or cleaning.
- Installation: Installation must be performed by a qualified technician in accordance with all local codes and standards. Ensure proper grounding.
- Ventilation: This range hood is designed for ducted or ductless (recirculating) installation. Ensure adequate ventilation for proper operation.
- Cleaning: Regularly clean grease filters and surfaces to prevent grease buildup, which can pose a fire hazard.
- Children: Keep children away from the appliance during operation and cleaning.
- Flammable Materials: Do not operate the range hood near flammable liquids or vapors.
3. What's in the Box
Carefully unpack your ROBAM Range Hood and check for the following components:
- Range Hood Unit
- Installation Hardware
- User Manual (this document)
- Warranty Manual
4. Setup & Installation
The ROBAM 56H2S range hood is designed for under-cabinet installation and can be configured for both ducted (vented to the outside) and ductless (recirculating) operation. Refer to the included installation hardware and template for precise measurements and drilling.
4.1. Mounting Options
- Under Cabinet Mounting: The unit is secured directly to the underside of your kitchen cabinet.
- Ducted/Vented Installation: Air is expelled outside through a duct system.
- Ductless/Recirculating Installation: Air is filtered and recirculated back into the kitchen (requires charcoal filters, sold separately).
4.2. Installation Steps Overview
- Preparation: Ensure the installation area is clear and the power supply is disconnected. Use the provided template to mark drilling points for mounting screws and duct openings.
- Drilling: Drill pilot holes for mounting screws and cut openings for the ductwork and power cord as indicated by the template.
- Mounting: Secure the range hood to the underside of the cabinet using the provided installation hardware. Ensure it is level and firmly attached.
- Duct Connection: Connect the ductwork to the range hood's exhaust outlet. For ductless installation, ensure charcoal filters are properly installed.
- Electrical Connection: Connect the power cord to a grounded electrical outlet.
4.3. Installation Video Guide
Video: A visual guide demonstrating the installation process for the ROBAM Under Cabinet Range Hood. This video covers key steps for mounting and setup.
5. Operating Instructions
The ROBAM 56H2S range hood offers multiple control options for convenience and efficiency.
5.1. Touch Control Panel
The front panel features intuitive touch controls for various functions:
- Power Button: Turns the unit on/off.
- Fan Speed Adjustment: Cycle through 9 fan speeds to match your cooking needs.
- Light Control: Activates the bright LED lights for illuminating your cooking surface.
- Timer Function: Set a timer for automatic shutdown.
5.2. AI Gesture Control
For hands-free operation, the range hood is equipped with AI Gesture Control:
- Wave to Turn On/Adjust Speed: Wave your hand across the sensor to turn the fan on and cycle through speed settings (low, medium, high). The lights will also activate with the fan.
- Wave to Turn Off/Set Timer: Wave your hand in the opposite direction to activate a 1-minute shutdown timer or wave a second time to immediately turn off the unit.
5.3. R-Link Smart Cooktop Sync
When paired with a compatible ROBAM cooktop, the R-Link Smart Cooktop Sync feature automatically activates the range hood and adjusts its speed based on your cooking activity, ensuring optimal ventilation without manual intervention.
5.4. Auto Wind Adjust
The range hood can automatically adjust its fan speed to optimize airflow based on detected cooking intensity, providing efficient smoke and odor removal.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your ROBAM range hood.
6.1. Wash-Free A++ Filtration System
The A++ mesh filters are designed to capture 98% of grease. These filters are easily removable and can be cleaned by hand or in a dishwasher.
- Removal: Locate the filter latches underneath the hood, push them in, and gently pull down to release the filters.
- Cleaning: Wash with warm, soapy water or place in a dishwasher. Ensure filters are completely dry before reinstallation.
- Reinstallation: Align the filters with the slots and push them up until the latches click into place.
6.2. Nano-Coated Stainless Steel Surface
The exterior of the range hood features a nano-coated stainless steel surface that repels oil and water, making it easy to wipe clean. Use a soft cloth and mild detergent for cleaning. Avoid abrasive cleaners or scouring pads.
6.3. 1.2L Oil Cup
The large 1.2L oil cup collects grease and oil. Regularly check and empty the oil cup to prevent overflow and maintain hygiene.
6.4. Cleaning Reminder
The range hood will display a cleaning reminder light after approximately 60 hours of use, indicating that it's time to clean the filters and surfaces.
7. Troubleshooting
Before contacting customer support, please refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Range hood does not turn on. | No power supply. | Check if the power cord is securely plugged in and the circuit breaker is not tripped. |
| Low suction power. | Clogged grease filters or improper ducting. | Clean or replace grease filters. Ensure ductwork is clear and properly sealed. |
| Excessive noise during operation. | Loose components or obstruction in the fan. | Check for loose screws or objects in the fan area. Ensure the unit is securely mounted. |
| Lights not working. | Faulty LED bulb or electrical connection. | Check light connections. If the bulb is replaceable, replace it. Contact support if the issue persists. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 56H2S |
| Air Flow Capacity | 1400 Cubic Feet Per Minute (CFM) |
| Motor Type | BLDC Motor (132,000 RPM) |
| Material | 304 Stainless Steel, Tempered Glass |
| Noise Level | 50 Decibels |
| Mounting Type | Under Cabinet / Convertible (Ducted / Ductless) |
| Controls Type | AI Gesture Control, Touch Control |
| Number of Speeds | 9 |
| Voltage | 120V |
| Item Weight | 60.6 Pounds |
| Product Dimensions | 35.25"D x 19.25"W x 19.88"H |
| Light Source Type | LED |
| Filter Type | Mesh (Wash-Free A++ Filtration System) |
| Special Features | AI Gesture Control, BLDC High-Speed Motor, Mega Power Suction, R-Link Smart Cooktop Sync, Wash-Free A++ Filtration System, Nano Anti-Stain Coating |
| Annual Energy Consumption | 100 Kilowatt Hours Per Year |
9. Warranty & Support
Your ROBAM 56H2S Range Hood comes with a manufacturer's warranty. Please refer to the included Warranty Manual for detailed information regarding coverage, terms, and conditions.
For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact ROBAM Customer Support:
- Website: Visit the official Robam website for support resources and contact information.
- Phone: Refer to your Warranty Manual for customer service phone numbers.
- Email: Contact support via email as provided in your documentation.
When contacting support, please have your model number (56H2S) and purchase date readily available.
