1. Product Overview
The DICTAC Twin Over Twin Bunk Bed is designed to maximize space and functionality in children's bedrooms. This L-shaped bunk bed system includes two twin-sized sleeping areas, integrated storage, LED lighting, and a charging station. It is constructed from durable metal with fabric drawers and an upholstered headboard.
Included Components:
- Bunk Bed Frame
- 8 Fabric Storage Drawers
- Charging Station (2 AC outlets, 2 USB ports)
- RGB LED Light Kit
- Assembly Tools
- Installation Manual (this document)
2. Safety Information
Read and understand all instructions before assembling and using this bunk bed. Failure to follow these instructions can result in serious injury.
- Maximum Weight Capacity: The bunk bed is designed to support a maximum weight of 450 pounds.
- Mattress Thickness: Recommended mattress thickness for the upper bunk is 4-6 inches.
- Guardrails: The upper bunk is equipped with 13-inch full-length guardrails. Ensure these are always securely in place.
- Anti-Tipping Device: An anti-tip device is included to attach the bed to the wall for enhanced stability and safety. Installation of this device is strongly recommended.
- Ladder Safety: Ensure the ladder is securely attached before use. Soft ladder pads are provided for comfort and safety during climbing.
- No Jumping: Do not allow jumping on the bed.
- Children Under 6: The upper bunk is not suitable for children under 6 years of age.
- Ventilation: Ensure adequate ventilation around the charging station to prevent overheating.
3. Product Dimensions
Refer to the diagram below for detailed product dimensions.
Figure 3.1: Product Dimension Diagram
- Overall Dimensions: 80.7"L x 77.6"W x 72.64"H
- Recommended Mattress Thickness: 4-6 inches (mattress not included)
- Under-bed Storage Space: 9.84 inches vertical clearance
4. Assembly Instructions
This bunk bed requires assembly. All necessary tools and an installation manual with step-by-step instructions are included in the packaging. Each part is clearly labeled and numbered to facilitate the assembly process.
General Assembly Tips:
- Assemble the bed in the room where it will be used to avoid moving a large, assembled unit.
- Ensure all parts are present before beginning assembly.
- Do not fully tighten all screws until the entire frame is loosely assembled.
- It is recommended to have two adults for assembly.
The product will be shipped in two separate packages (Box A + Box B), which may arrive 1-2 days apart.
5. Operating Instructions
5.1. RGB LED Lights
The integrated RGB LED lights can be controlled via a remote or a dedicated mobile application.
Figure 5.1: RGB LED Lights in Use
- Remote Control: Use the provided remote to select from 7 quick colors, adjust brightness, and cycle through basic effects.
- Mobile App Control: Download the compatible app (refer to the LED light kit manual for app details). The app allows access to over 60,000 colors, custom brightness, strobe effects, and music/sound synchronization.
- Power On/Off: Use the designated button on the remote or app to turn the lights on or off.
5.2. Charging Station
The storage headboard includes a built-in power strip for convenient charging.

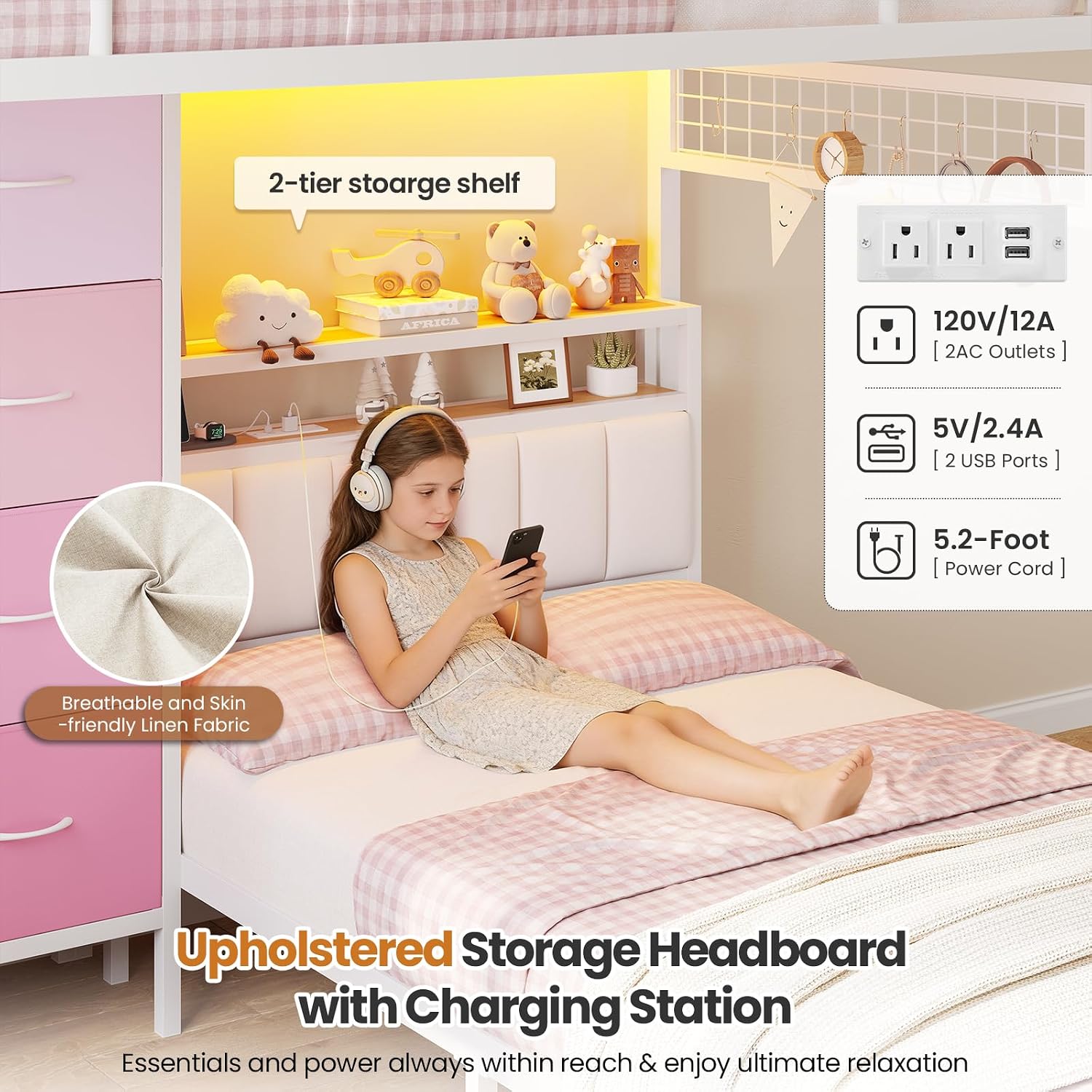

Figure 5.2: Charging Station in Headboard
- AC Outlets: Two 120V/12A AC outlets are available for powering lamps, laptops, or other devices.
- USB Ports: Two 5V/2.4A USB ports are provided for charging phones, tablets, and other USB-powered devices.
- Power Cord: The charging station is equipped with a 5.2-foot power cord. Ensure it is plugged into a grounded electrical outlet.
5.3. Storage Drawers and Shelves
The bunk bed features 8 fabric storage drawers and a 2-tier storage headboard.
Figure 5.3: Fabric Storage Drawers
- Fabric Drawers: Use the 8 large fabric drawers for storing bedding, seasonal clothing, toys, and other items.
- Headboard Shelves: The 2-tier storage headboard provides convenient space for books, water bottles, and small personal items.
- Under-bed Storage: The 9.84-inch vertical space under the bed can be utilized for additional storage bins or shoes.
5.4. DIY Metal Mesh and Clothes Rail
The bunk bed includes a DIY metal mesh panel with 6 hooks and a convenient side clothes rail.
Figure 5.4: Metal Mesh and Under-bed Storage
- Metal Mesh: Use the metal mesh panel to hang headphones, scarves, or display photos. The 6 hooks provide versatile hanging options.
- Clothes Rail: The side clothes rail is suitable for hanging clothes or scarves.
6. Maintenance
Regular maintenance helps ensure the longevity and safety of your bunk bed.
- Cleaning: Wipe the metal frame with a damp cloth and mild detergent. For fabric parts, spot clean as needed. Avoid harsh chemicals.
- Tighten Connections: Periodically check and tighten all bolts and screws to ensure the bed remains stable and secure.
- Inspect Guardrails: Regularly inspect the guardrails for any damage or loose connections.
- LED Lights: If LED lights malfunction, refer to the specific LED light kit manual for troubleshooting or contact customer support.
7. Troubleshooting
If you encounter issues with your bunk bed, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed feels wobbly or unstable | Loose connections; Anti-tip device not installed | Ensure all bolts and screws are tightened. Install the anti-tip device securely to the wall. |
| Squeaking noises | Loose connections; Metal parts rubbing | Tighten all connections. Apply a small amount of lubricant (e.g., silicone spray) to metal-on-metal contact points if necessary. |
| LED lights not working | Power issue; Remote battery dead; App connection issue | Check power connection to the LED strip. Replace remote battery. Re-pair the app with the LED controller. |
| Charging station not working | Power cord unplugged; Outlet issue | Ensure the charging station's power cord is securely plugged into a working wall outlet. Test the outlet with another device. |
| Missing parts or damaged components upon delivery | Shipping damage or packaging error | Contact DICTAC customer support immediately with your order details. |
8. Specifications
- Model Number: BBC-02
- Size: Twin Over Twin
- Material: Metal, Linen, MDF, Non-woven Fabric
- Product Dimensions: 80.7"L x 77.6"W x 72.64"H
- Weight: 117 pounds
- Maximum Weight Recommendation: 450 pounds
- Color: White+pink
- Style: Modern, L-Shaped Bunk Bed
- Special Features: 8 Storage Drawers, RGB LED Lights, Charging Station (2 AC, 2 USB), Storage Headboard, DIY Metal Mesh with Hooks, 9.84'' Under-bed Storage, Squeak Resistant, No Box Spring Needed
9. Product Video
Watch the official product video for a visual guide to the DICTAC Twin Over Twin Bunk Bed features.
Video: DICTAC Pink Bunk Bed for Girls with 8 Storage Drawers. This video provides a visual overview of the bunk bed's design, storage solutions, and integrated features like LED lights and the charging station.
10. Warranty and Support
DICTAC provides customer support for any issues you may encounter with your product.
- Damaged or Missing Parts: If your product arrives damaged, scratched, or with missing parts, please contact DICTAC customer support within 24 hours of delivery.
- General Inquiries: For any questions regarding assembly, operation, or maintenance, please reach out to our support team.
- Contact Information: Refer to the contact details provided in your purchase documentation or on the official DICTAC website.
