MERITLINE Twin Murphy Bed with Desk and Shelves Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your MERITLINE Twin Murphy Bed with Desk and Shelves. This space-saving furniture piece is designed to maximize utility in compact living areas, offering a comfortable sleeping solution and a functional workspace. Please read this manual thoroughly before beginning assembly or use to ensure safe and correct operation.

2. Safety Information

WARNING: Failure to follow these safety instructions could result in serious injury or property damage.

• Always ensure the bed is securely anchored to a wall stud using the provided hardware. Do not attempt to use the bed without proper wall anchoring.
• Keep children and pets away from the assembly area. Small parts can be a choking hazard.
• Assembly requires at least two adults. Do not attempt to assemble alone.
• Ensure all fasteners are tightened securely before use. Periodically check and re-tighten as necessary.
• Do not place excessive weight on the desk or shelves. Refer to specifications for weight limits.
• Keep hands and fingers clear of moving parts when opening or closing the bed.
• Use only the mattress size specified for this bed. An incorrect mattress size can affect the bed's operation and safety.
• Do not modify the product in any way. Modifications can compromise safety and void the warranty.

3. Package Contents

Before assembly, verify that all components listed in the packing list (usually found in the hardware box) are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.

Typical components include:

• Main cabinet panels (side panels, back panel, top panel)
• Bed frame components (slats, side rails, end rails)
• Desk panel and support brackets
• Shelf panels
• Hardware kit (screws, bolts, cam locks, wall anchoring hardware, hinges, handles, latches)
• Assembly tools (often an Allen wrench is included, but a screwdriver and drill may be required)

4. Setup & Assembly

Assembly of this Murphy bed requires careful attention to detail and adherence to the step-by-step instructions provided in the separate assembly guide included with your product. Ensure you have ample space and the necessary tools before beginning.

4.1 Tools Required (Not Included)

• Phillips Head Screwdriver
• Hammer
• Drill with appropriate drill bits for wall mounting
• Level
• Stud Finder
• Measuring Tape

4.2 Assembly Steps Overview

1. Prepare the Area: Clear a large, flat workspace. Lay out all components and hardware.
2. Assemble the Cabinet Frame: Follow the instructions to connect the side panels, top, and back panels to form the main cabinet structure.
3. Install Shelves: Secure the internal shelves into their designated positions.
4. Assemble the Bed Frame: Construct the bed frame, including the slats, according to the guide.
5. Integrate Bed Frame into Cabinet: Carefully attach the bed frame to the cabinet using the specified hinges and mechanisms. This step often requires precise alignment.
6. Install Desk Mechanism: Attach the fold-down desk and its support brackets.
7. Wall Anchoring: This is a critical safety step. Locate wall studs using a stud finder. Securely attach the Murphy bed cabinet to the wall studs using the provided anti-tip hardware. Do not skip this step.
8. Final Checks: Ensure all screws and fasteners are tight. Test the opening and closing mechanism of the bed and desk.

Image: The MERITLINE Twin Murphy Bed in its closed, upright position, showcasing the integrated desk and shelves. This is the initial configuration after assembly.

Image: A closer view of the MERITLINE Twin Murphy Bed with the desk folded up, showing the clean cabinet facade.

5. Operating Instructions

5.1 Opening the Bed

1. Clear the Area: Ensure there is sufficient clear space in front of the bed for it to fully extend. Remove any items from the desk surface.
2. Unlock Latches: Locate and disengage the safety latches or locks that secure the bed in the upright position. These are typically located on the sides or top of the bed panel.
3. Lower the Bed: Gently pull the bed panel downwards. The spring mechanism will assist in a controlled descent. Guide the bed until its legs are fully extended and resting on the floor.
4. Position Legs: Ensure the support legs are fully extended and locked into place for stability.

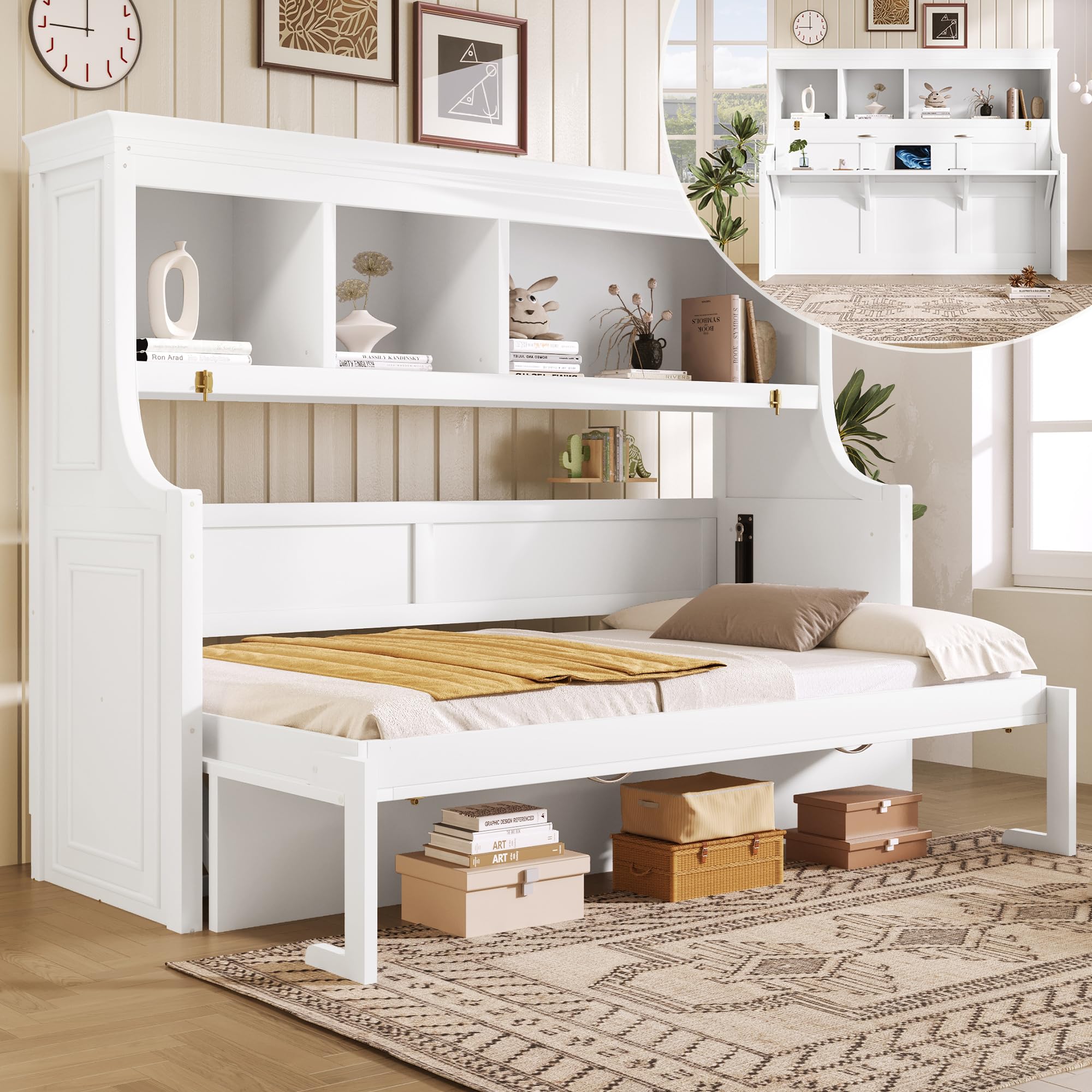

Image: The MERITLINE Twin Murphy Bed with the bed frame fully extended and ready for use. Note the support legs.

Image: A close-up view of the bed's support leg, which extends to provide stability when the bed is open.

5.2 Closing the Bed

1. Remove Bedding: Remove pillows, blankets, and any other items from the bed surface that might obstruct closing.
2. Fold Legs: Fold the support legs inwards towards the bed frame.
3. Lift the Bed: Grasp the bed frame firmly and gently lift it upwards. The spring mechanism will assist in raising the bed.
4. Secure Latches: Once the bed is in the fully upright position, engage the safety latches or locks to secure it.

Image: The MERITLINE Twin Murphy Bed with the bed partially open, showing the mattress platform and integrated shelves above.

5.3 Using the Desk and Shelves

The integrated desk folds down from the main cabinet when the bed is in the closed position. The shelves are fixed and accessible at all times.

• To use the desk: Simply pull the desk panel downwards until it rests on its support brackets. Ensure it is stable before placing items on it.
• To close the desk: Lift the desk panel upwards until it clicks securely into its upright position against the cabinet.
• Shelves: The open shelves above the desk provide storage for books, decor, or office supplies. Ensure items are stable and do not exceed the shelf weight capacity.

Image: The MERITLINE Twin Murphy Bed with the desk folded down and in use as a workspace, featuring items on the desk and shelves.

Image: A close-up view of a latch mechanism on the MERITLINE Murphy Bed, used to secure the bed or desk in position.

6. Maintenance

Regular maintenance will help prolong the life and ensure the safe operation of your Murphy bed.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Hardware Check: Periodically (e.g., every 3-6 months) inspect all screws, bolts, and fasteners. Re-tighten any that have become loose.
• Mechanism Check: Ensure the bed's opening and closing mechanism operates smoothly. If it becomes stiff or noisy, apply a small amount of silicone-based lubricant to moving parts (avoid oil-based lubricants).
• Wall Anchoring: Verify that the wall anchoring hardware remains secure.

7. Troubleshooting

8. Specifications

Image: Detailed dimension diagram of the MERITLINE Twin Murphy Bed, showing measurements in inches for various components.

• Model: B0G8ZQ9526
• Brand: MERITLINE
• Color: White
• Material: Wood (Engineered Wood)
• Style: Modern
• Item Dimensions (Closed): Approximately 78 x 44.3 x 61.9 inches (Length x Width x Height)
• Item Weight: 230 Pounds
• Bed Size: Twin
• Included Components: Desk, Storage Shelves
• Assembly Required: Yes
• UPC: 199962001214

Note: All dimensions are approximate and may vary slightly.

9. Warranty & Support

MERITLINE products are manufactured to high-quality standards. This product comes with a limited manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, missing parts, or warranty claims, please contact MERITLINE customer support through the retailer where the product was purchased or visit the official MERITLINE website for contact information.

When contacting support, please have your model number (B0G8ZQ9526) and proof of purchase readily available.
