Kingdura 8x12ft Walk-in Greenhouse User Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Kingdura 8x12ft Walk-in Greenhouse. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This greenhouse is designed to provide an optimal environment for plant growth year-round, featuring a heavy-duty aluminum frame and reinforced polycarbonate panels.

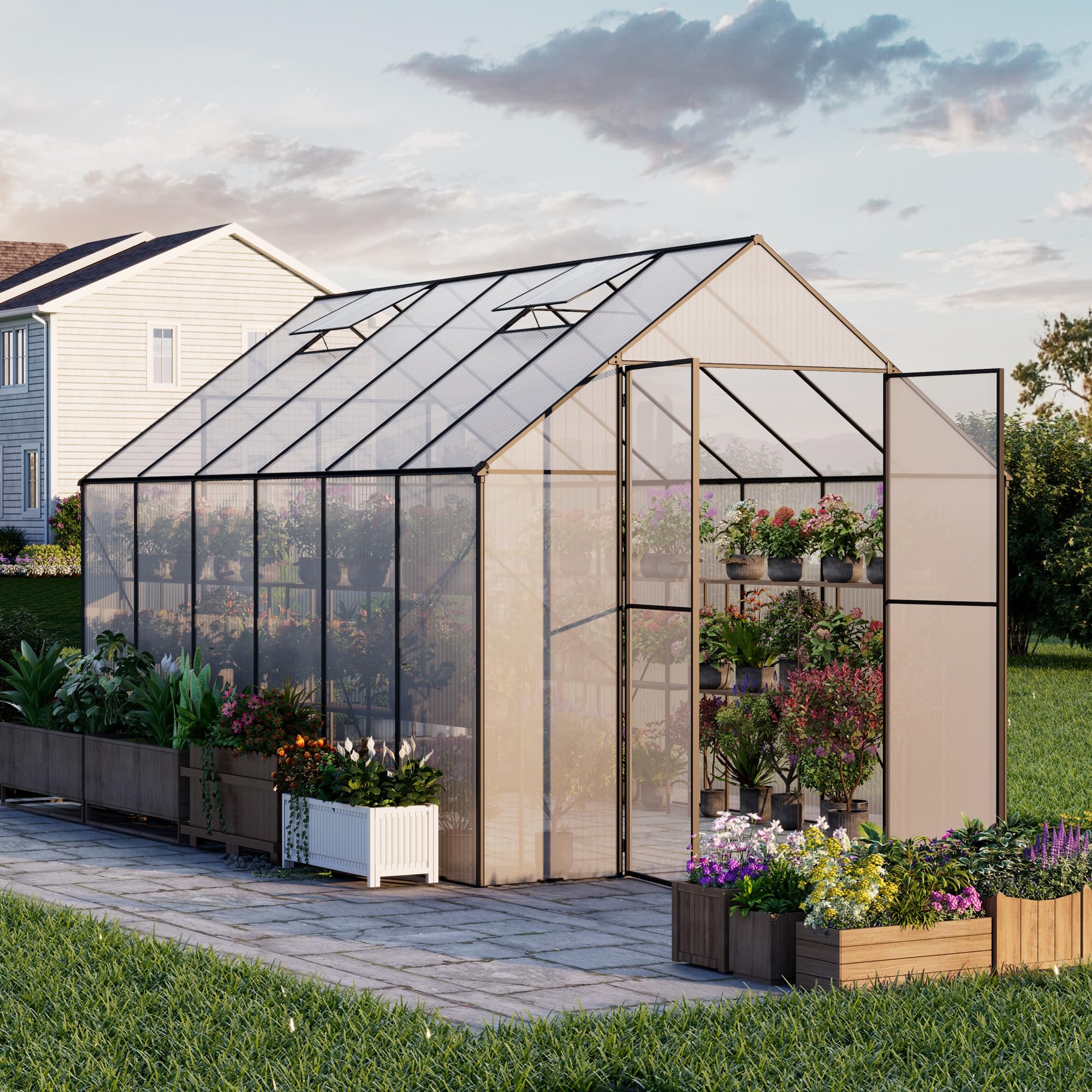

Figure 1: Exterior view of the Kingdura 8x12ft Walk-in Greenhouse.

2. Safety Information

WARNING: This greenhouse has heavy components and sharp edges. Always use appropriate safety gear when handling. Avoid prolonged exposure to UV radiation reflected by the greenhouse material.

• Always wear protective gloves and safety glasses during assembly.
• Ensure the assembly area is clear of obstructions and children.
• Two or more people are recommended for assembly due to the size and weight of components.
• Securely anchor the greenhouse to the ground to prevent wind damage.
• Do not climb on the greenhouse structure.

3. Product Features

• Reinforced Twin-Wall Polycarbonate: Features 4.6mm polycarbonate panels for high light transmission and superior heat retention. Panels are temperature adaptable, wear-resistant, lightweight, and easy to transport and disassemble.
• Sturdy Aluminum Frame: Constructed with a heavy-duty reinforced aluminum frame, designed to withstand winds up to 50 mph, snow weights of 160 pounds per square meter, and is hail-resistant.
• Smart Ventilation System: Includes adjustable skylights and sliding doors for complete control over temperature and humidity levels.
• UV Defense Technology: UV-coated panels provide over 92% light transmission and excellent insulation, shielding plants from harmful solar radiation.
• Fast and Easy Setup: Equipped with a quick installation system and slide-in panels, resulting in up to 40% quicker assembly and 35% more stability.

Figure 2: Year-round gardening solution with UV resistance, waterproofing, and ventilation.

4. Specifications

Figure 3: Detailed dimensions of the 8x12ft greenhouse.

5. Setup and Assembly

The Kingdura greenhouse features a quick-assembly design. For a visual guide, please refer to the assembly videos below. It is recommended to have at least two people for assembly.

5.1 Assembly Overview Video

5.2 Key Assembly Steps

1. Prepare the Base: Ensure a level and stable foundation for your greenhouse.
2. Assemble Door Frames: Connect door frame components using provided screws. Insert transparent panels into the door frames.
3. Construct the Base Frame: Connect the bottom beams and corner pieces to form the rectangular base. Secure with screws.
4. Install Vertical Pillars: Attach the vertical pillars to the base frame, ensuring they are securely fastened.
5. Attach Side Panels: Slide the polycarbonate side panels into the frame channels. Secure them as per the instructions.
6. Assemble Roof Structure: Connect the inclined beams and roof panels. Ensure all connections are tight for stability.
7. Install Roof Vents: Attach the adjustable roof vents to the designated roof panels.
8. Final Checks: Verify all screws are tightened and panels are securely in place.

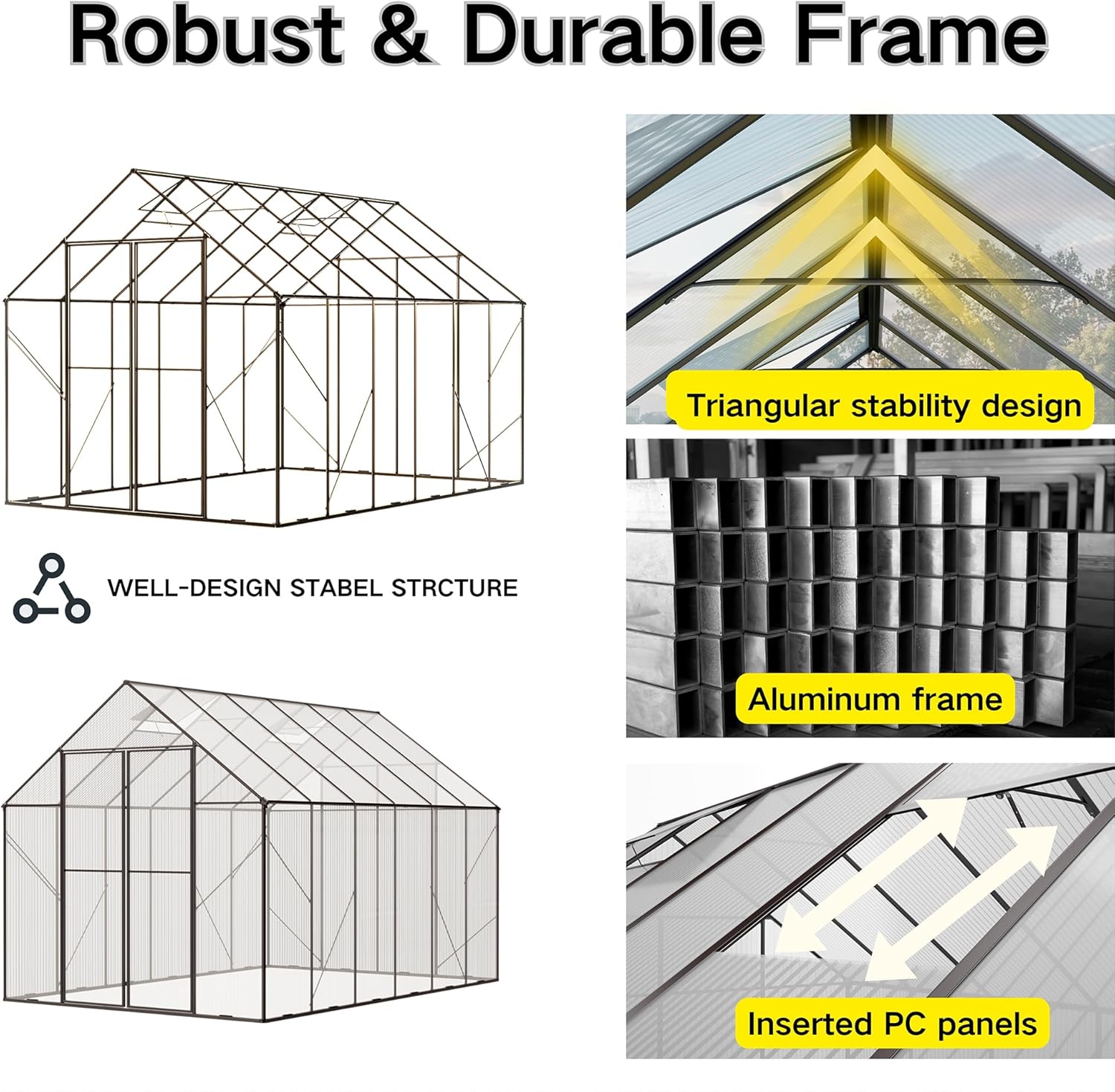

Figure 4: Illustration of the robust aluminum frame and inserted PC panels for stability.

5.3 Additional Assembly Video

6. Operating Instructions

6.1 Adjustable Roof Vents

Your Kingdura greenhouse is equipped with adjustable roof vents to control internal temperature and humidity. To adjust, simply rotate the securing buttons and set the desired angle. This allows for optimal airflow and prevents overheating during warmer periods.

Figure 5: Adjustable roof vent for controlling internal climate.

6.2 Sliding Doors

The greenhouse features lockable sliding doors for easy access and security. Slide the doors open or closed as needed for entry, exit, or additional ventilation. Ensure the doors are securely locked when not in use to protect your plants.

Figure 6: Sliding doors provide easy access to the greenhouse interior.

7. Maintenance

• Cleaning: Regularly clean the polycarbonate panels with mild soap and water to maintain light transmission. Avoid abrasive cleaners or tools that could scratch the panels.
• Frame Inspection: Periodically check the aluminum frame for any signs of damage or loose connections. Tighten screws as necessary.
• Vent and Door Mechanisms: Ensure that the adjustable roof vents and sliding door mechanisms operate smoothly. Lubricate moving parts if needed.
• Snow Removal: In areas with heavy snowfall, gently remove accumulated snow from the roof to prevent excessive weight and potential damage.

8. Troubleshooting

• Water Leaks: Check all panel seams and frame connections. Ensure all screws are tight and panels are properly seated in their channels. Apply silicone sealant if necessary.
• Poor Ventilation: Ensure roof vents and doors are fully operational and not obstructed. Consider adding additional ventilation if plants are consistently overheating.
• Panel Dislodgement: If panels become loose, re-insert them into their channels and secure them according to assembly instructions.
• Door Sticking: Clean the door tracks and lubricate with a silicone-based spray to ensure smooth operation.

9. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or contact Kingdura customer support. If you encounter any issues not covered in this manual, please reach out to the seller, Louray Outdoor, for assistance.

Seller: Louray Outdoor

9.1 Product Introduction Video
