Sekey Heavy Duty Beach Wagon (Model FW187-1) Instruction Manual

1. Introduction

Thank you for choosing the Sekey Heavy Duty Beach Wagon. This manual provides essential information for the safe and efficient use of your wagon. Designed for durability and ease of transport, this wagon is ideal for beaches, camping, and other outdoor activities, capable of carrying up to 600 lbs with its 200L capacity.

Please read this manual thoroughly before assembly and use, and retain it for future reference.

2. Safety Information

• Maximum Load Capacity: Do not exceed the maximum load capacity of 600 lbs (272 kg). Overloading can cause damage to the wagon and lead to injury.
• Proper Inflation: Ensure tires are properly inflated to the recommended pressure. Over-inflation or under-inflation can affect performance and safety. Use only the included air pump for inflation. Do not use electric air pumps.
• Children and Pets: This wagon is not designed for transporting children or pets. Always supervise children around the wagon.
• Uneven Terrain: Exercise caution when navigating uneven or sloped terrain. Ensure the load is balanced to prevent tipping.
• Storage: Store the wagon in a dry, protected area when not in use to prevent rust and material degradation.
• Assembly: Ensure all parts are correctly assembled and secured before use. Refer to the assembly instructions carefully.

3. Setup and Assembly

Your Sekey Beach Wagon comes mostly pre-assembled, requiring minimal setup. Follow these steps to prepare your wagon for use:

3.1 Unfolding the Wagon

1. Place the folded wagon on a flat, stable surface.
2. Gently pull the sides of the wagon outwards until the frame fully extends.
3. Press down firmly on the center of the wagon's base to ensure it locks into its open position.

Figure 1: The Sekey Beach Wagon shown in its compact folded state and fully unfolded, highlighting its dimensions and space-saving design.

3.2 Attaching Wheels and Handle (If Detached)

The wheels and handle are typically pre-attached. If they are detached, follow these general steps:

1. Wheels: Align each wheel with its axle and push firmly until it clicks into place. Ensure the locking pins are engaged.
2. Handle: Insert the handle into its designated slot on the wagon frame. Secure it with any provided pins or locking mechanisms.

Figure 2: Included product accessories, showing the air pump, wrench, and other components for assembly and maintenance.

3.3 Tire Inflation

The 9-inch sand-proof balloon tires are designed for optimal performance on soft surfaces. Proper inflation is crucial.

• Locate the included manual air pump.
• Attach the pump nozzle securely to the tire valve.
• Inflate each tire to the recommended pressure, typically between 0.15-0.20 BAR (2.2-2.9 PSI). Do not over-inflate.
• Important: Only use the provided manual air pump. Electric air pumps can cause over-inflation and damage the tires.

Figure 3: Detail of the 9-inch all-terrain balloon wheels, highlighting their design for sand and rough surfaces, along with key features.

4. Operating Instructions

4.1 Loading the Wagon

• Distribute weight evenly within the wagon to maintain stability.
• Place heavier items at the bottom and lighter items on top.
• Ensure no items protrude excessively, which could obstruct movement or cause imbalance.
• Do not exceed the 600 lb (272 kg) weight limit.

Figure 4: The wagon fully loaded with beach essentials, demonstrating its large capacity for various items.

4.2 Maneuvering the Wagon

• Adjustable Handle: The handle height can be adjusted to suit your comfort. Press the release button on the handle and slide it to the desired height, then ensure it locks securely.
• All-Terrain Wheels: The large, sand-proof wheels are designed to glide over sand, gravel, and grass with minimal effort.
• Swivel Front Wheels: The front wheels swivel 360 degrees, allowing for smooth and sharp turns, even when the wagon is fully loaded.

Figure 5: The wagon being easily maneuvered on a sandy beach, illustrating its effortless turning and adjustable handle features.

Figure 6: The wagon's large wheels prevent sinking in soft sand, providing a smooth experience compared to standard wagons.

4.3 Folding for Storage

To fold the wagon for compact storage:

1. Ensure the wagon is empty.
2. Pull the fabric loop in the center of the wagon's base upwards. The wagon will begin to collapse.
3. Push the sides together until the wagon is fully folded.
4. Secure the folded wagon with any integrated straps or clips to prevent it from unfolding during transport or storage.

Figure 7: The wagon's compact folded size, illustrating how it can be stored in a car trunk or small space.

5. Maintenance

• Cleaning: After use, especially in sandy or salty environments, clean the wagon with fresh water and mild soap. Rinse thoroughly and allow to air dry completely to prevent corrosion and mildew.
• Wheel Care: Regularly check tire pressure and inflate as needed using the provided manual pump. Inspect wheels for any damage or wear.
• Frame Inspection: Periodically check the carbon steel frame for any signs of damage, bending, or loose connections. The frame features a scratch-resistant and anti-rust finish for durability.
• Fabric Care: The Oxford fabric can be spot cleaned. Avoid harsh chemicals that may damage the material.
• Lubrication: Apply a silicone-based lubricant to moving parts, such as wheel axles and folding mechanisms, to ensure smooth operation.

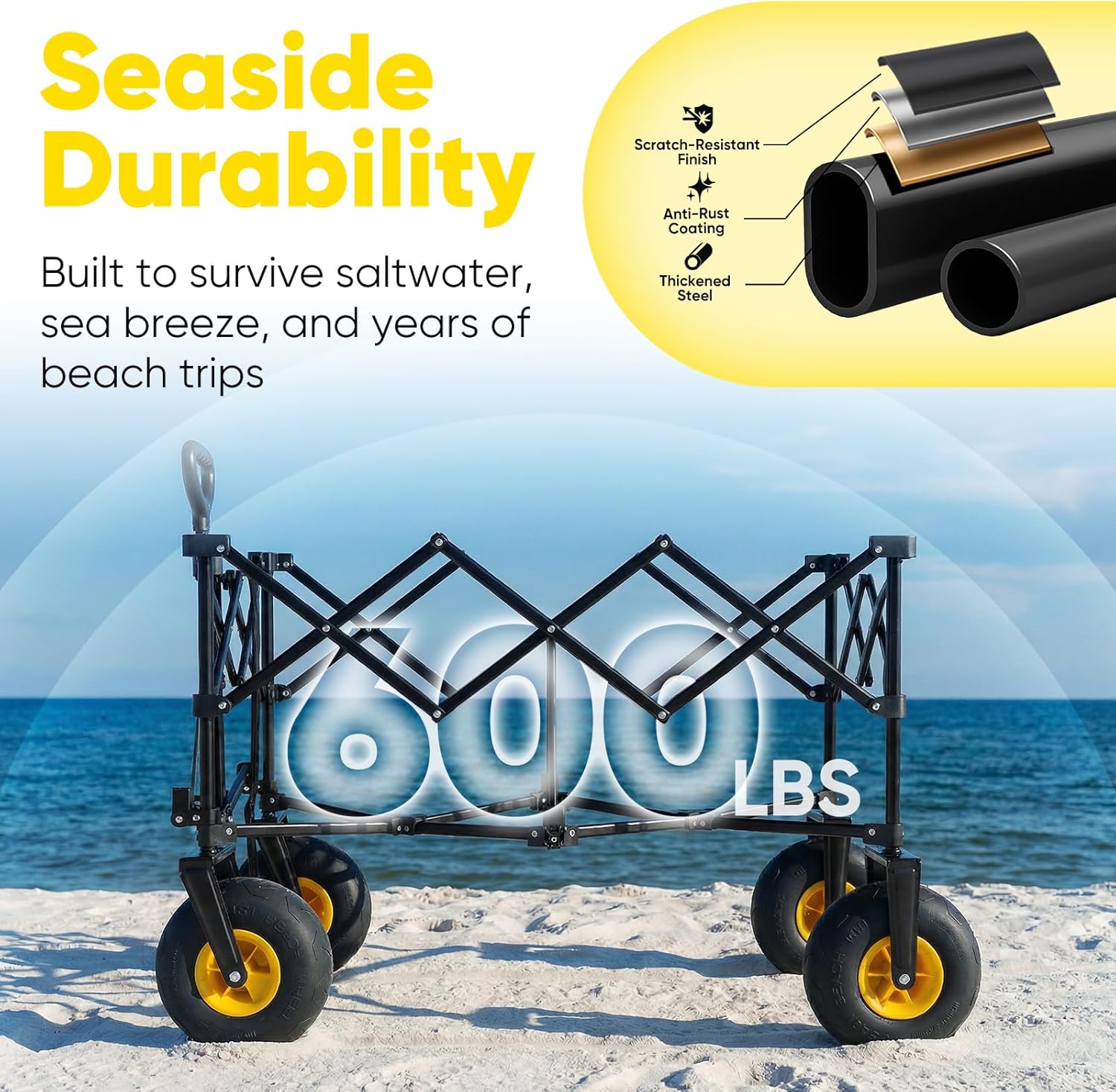

Figure 8: Illustration of the wagon's durable construction, featuring scratch-resistant finish, anti-rust coating, and thickened steel frame for seaside durability.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For warranty information, product support, or to inquire about replacement parts, please contact Sekey customer service through the retailer where you purchased the product or visit the official Sekey website.

Please have your model number (FW187-1) and purchase date available when contacting support.
