Introduction
The Pride Mobility Jazzy Carbon 27X is a lightweight, foldable power wheelchair designed for enhanced mobility and travel. Its innovative X-frame design allows for vertical folding, making it compact and easy to transport. Constructed with a durable carbon fiber frame, this power chair offers both strength and portability. It is equipped with an airline-approved lithium battery, suitable for both local and international travel. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your Jazzy Carbon 27X power chair.
Safety Information
The Jazzy Carbon 27X is an FDA Class II Medical Device. Please read and understand all safety warnings and instructions before operating this power chair. Failure to do so may result in injury or damage to the product.
- Always ensure the power chair is fully unfolded and locked into position before use.
- Do not exceed the maximum weight capacity of 275 lbs.
- Operate the power chair on stable, level surfaces. Avoid steep inclines or uneven terrain.
- Always use the lap belt provided.
- Keep hands and clothing clear of moving parts.
- Ensure the battery is properly installed and charged before operation.
- Consult a physician or qualified professional if you have any medical conditions that may affect your ability to operate this device safely.
Unpacking and Setup
Your Jazzy Carbon 27X power chair requires some assembly upon arrival. Carefully remove all components from the packaging. It is recommended to have assistance during the initial setup.
- Place the folded power chair on a flat, stable surface.
- Carefully unfold the chair until it locks into its open position. Ensure all locking mechanisms are engaged.
- Attach the joystick controller to the desired armrest (left or right) and connect the cable securely.
- Install the battery into its designated compartment. Ensure it clicks into place.
- Adjust the footrests to a comfortable position.
- Ensure the removable cushion is properly seated.
Operating Instructions
The Jazzy Carbon 27X is operated using a quick-disconnect joystick controller.
- Power On: Press the power button on the joystick controller. The battery indicator lights will illuminate.
- Speed Adjustment: Use the speed control buttons (usually '+' and '-') on the joystick to select your desired speed. The maximum speed is 3.7 mph.
- Driving: Gently push the joystick in the desired direction (forward, backward, left, or right). The chair will move in response to the joystick's movement. Release the joystick to stop; the electromagnetic brakes will engage automatically.
- Turning: Push the joystick left or right to steer. The chair has a turning radius of 35.4 inches.
- Power Off: Press the power button again to turn off the power chair when not in use.
Battery Information
The Jazzy Carbon 27X is powered by a 24V 10Ah lithium-ion battery, which is airline-compliant for travel. The battery weighs approximately 3.5 lbs and provides a range of up to 8 miles per charge.
- Charging: Use the provided 3.5A battery charger. Connect the charger to the charging port on the power chair or directly to the battery if removed. Ensure the charger is connected to a standard wall outlet.
- Charging Time: Refer to the charger's indicator lights for charging status. Do not overcharge the battery.
- Battery Care: Store the battery in a cool, dry place. Avoid extreme temperatures. If storing the power chair for an extended period, ensure the battery is fully charged and periodically recharge it to maintain its life.
- Airline Travel: Always check with your airline regarding their specific policies for transporting lithium-ion batteries before travel.
Folding and Transport

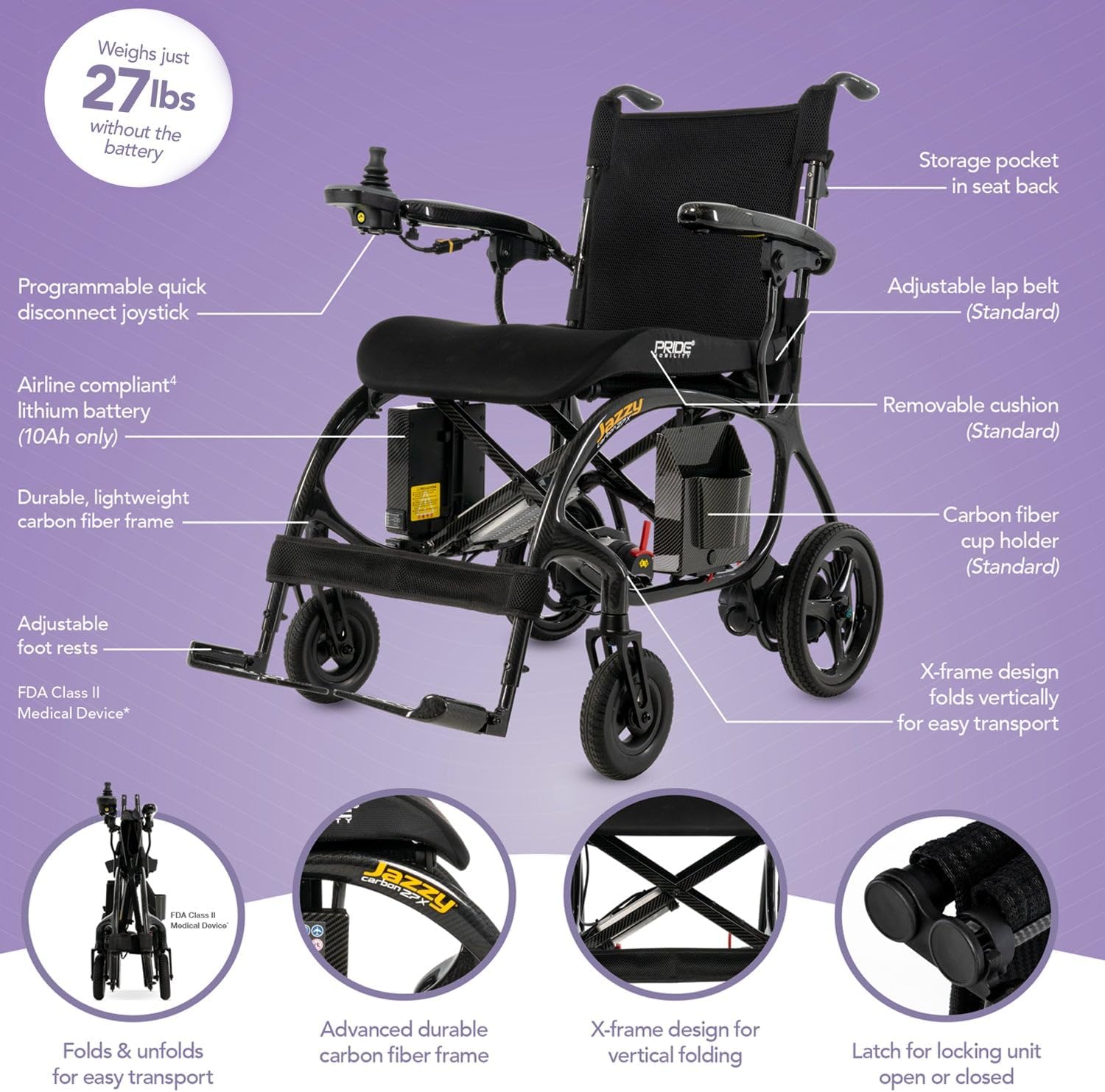

The Jazzy Carbon 27X features an innovative X-frame design that allows it to fold vertically into a compact size for easy transport and storage.
- Preparation: Ensure the power chair is turned off and the joystick is disconnected or folded away. Remove any items from the storage pocket.
- Folding Mechanism: Locate the folding release mechanism (refer to product diagrams if needed). Engage the mechanism and gently push the backrest forward while lifting the seat.
- Compact State: Continue folding until the chair collapses into its compact, vertical position. Ensure the latch for locking the unit is engaged to secure it in the folded state.
- Transport: The folded dimensions are approximately 34” L x 12” W x 30” H. The chair weighs 27.5 lbs without the battery, making it manageable for lifting and placing into a vehicle or storage area.
Maintenance
Regular maintenance ensures the longevity and safe operation of your Jazzy Carbon 27X power chair.
- Cleaning: Wipe down the frame and seat with a damp cloth. Avoid using abrasive cleaners or solvents.
- Tires: Check the solid tires regularly for wear and tear. Ensure they are free from debris.
- Connections: Periodically inspect all electrical connections and cables for any signs of damage or looseness.
- Moving Parts: Ensure all folding mechanisms and joints operate smoothly. Do not lubricate unless specified by the manufacturer.
- Battery: Follow the battery care instructions provided in the Battery Information section.
Troubleshooting
If you encounter issues with your power chair, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Power chair does not turn on. | Battery not charged or improperly installed. | Ensure battery is fully charged and correctly seated. Check all connections. |
| Chair moves slowly or intermittently. | Low battery charge; joystick connection loose. | Charge the battery. Check joystick cable connection. |
| Chair does not respond to joystick. | Joystick disconnected; power chair not turned on. | Ensure joystick is securely connected. Turn on the power chair. |
| Folding mechanism is stiff. | Debris in mechanism; lack of lubrication. | Clear any obstructions. Contact support if issue persists. Do not force. |
If these steps do not resolve the issue, please contact Pride Mobility customer support.
Specifications
Key specifications for the Pride Mobility Jazzy Carbon 27X power chair:
| Feature | Detail |
|---|---|
| Model Number | JZCRB27X |
| Weight Capacity | 275 lbs |
| Product Weight (without battery) | 27.5 lbs |
| Maximum Speed | 3.7 mph |
| Range Per Charge | Up to 8 miles |
| Turning Radius | 35.4 inches |
| Overall Dimensions (L x W x H) | 41 x 23 x 19.7 inches |
| Folded Dimensions (L x W x H) | 34” L x 12” W x 30” H |
| Seat Depth | 18 inches |
| Frame Material | Carbon Fiber |
| Battery Type | 24V 10Ah Lithium Ion (Airline-compliant) |
| Battery Weight | 3.5 lbs |
| Brake Style | Electromagnetic |
| Control Type | Joystick Controller |
| Wheel Type | Caster, Solid |
| Required Assembly | Yes |
Warranty and Support
Pride Mobility provides comprehensive warranty coverage for your Jazzy Carbon 27X power chair:
- Frame: 5-year limited warranty.
- Electronics, Drivetrain, and Battery: 13-month warranty.
- In-Home Service: 1-year in-home service for added peace of mind.
For warranty claims, technical assistance, or any questions regarding your power chair, please contact Pride Mobility customer support. Refer to the contact information provided with your product documentation or visit the official Pride Mobility website.
