CLP Rubia Ergonomic Office Chair User Manual

1. Introduction

Thank you for choosing the CLP Rubia Ergonomic Office Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new chair. Please read these instructions carefully before use and retain them for future reference.

The CLP Rubia chair is designed for comfort and support, featuring an ergonomic backrest, padded armrests, and a retractable footrest. The seat incorporates a durable pocket spring core for enhanced comfort. Key features include:

• Versatile Adjustment: The chair can recline up to 135° and be locked in position. Seat height is adjustable via a Class 4 gas lift, and the chair swivels 360°.
• Luxurious Massage Function: A 4-point massage system (two in the back, two in the lumbar area) enhances seating comfort. Intensity is adjustable, with four programs: standard, pulse, pressure, and wave.
• Integrated Heating: Provides warmth for added relaxation.
• Stable Construction: Features a chrome-finished metal frame and robust plastic wheels. The chair supports up to 150 kg and is upholstered in durable synthetic leather.

2. Important Safety Instructions

• Weight Limit: Do not exceed the maximum weight capacity of 150 kg (330 lbs).
• Assembly: Assemble the chair on a soft, clean surface to prevent damage. Keep children and pets away during assembly. Ensure all screws and bolts are securely tightened before use.
• Stability: Always use the chair on a level and stable surface. Avoid standing on the chair.
• Movement: Do not move the chair while seated, especially when reclined or with the footrest extended, to prevent tipping.
• Electrical Components: Ensure the power adapter for the massage and heating functions is connected to a suitable power outlet. Do not use if the power cord or adapter is damaged. Keep liquids away from electrical components.
• Children: This chair is not intended for use by children without adult supervision.
• Maintenance: Regularly check all connections and tighten if necessary. Do not use abrasive cleaners on the synthetic leather.

3. Package Contents

Before beginning assembly, please verify that all components are present and undamaged. If any parts are missing or damaged, contact customer support.

• Backrest
• Seat with integrated massage/heating unit and footrest mechanism
• Pair of Armrests
• Gas Lift Cylinder
• Star Base
• Set of 5 Wheels
• Footrest (retractable)
• Remote Control for massage/heating
• Power Adapter
• Assembly Hardware (screws, washers, Allen key)

Figure 3.1: Front view of the CLP Rubia Ergonomic Office Chair.

Figure 3.2: Rear view of the CLP Rubia Ergonomic Office Chair, showing the power cable for massage/heating.

4. Assembly Instructions

Assembly typically takes 20-30 minutes. Follow these steps carefully:

1. Attach Wheels to Base: Insert each of the five wheels into the openings at the end of each leg of the star base until they click securely into place.
2. Insert Gas Lift: Place the gas lift cylinder into the central hole of the star base.
3. Attach Armrests to Seat: Align the armrests with the pre-drilled holes on the sides of the seat. Secure them using the provided screws and Allen key. Do not overtighten initially.
4. Attach Backrest to Seat: Connect the backrest to the seat using the remaining screws. Ensure proper alignment.
5. Tighten All Screws: Once all components are loosely assembled, go back and securely tighten all screws.
6. Place Assembled Top onto Gas Lift: Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring the central mechanism aligns with the top of the gas lift.
7. Connect Power: Locate the power cable for the massage and heating unit, usually found on the underside or side of the seat. Connect it to the provided power adapter.

Figure 4.1: Chair dimensions for reference during assembly and placement.

5. Operating Instructions

5.1. Height Adjustment

To adjust the seat height, pull the lever located under the seat upwards while applying or releasing your body weight. The seat will move up or down. Release the lever to lock the height.

5.2. Recline Function

To recline the backrest, pull the recline lever (typically on the side, near the armrest) upwards. Lean back to your desired angle (up to 135°). Release the lever to lock the backrest in position. To return to an upright position, pull the lever again and lean forward.

5.3. Footrest Extension

To extend the footrest, pull it out from under the seat. It will slide forward and can be adjusted to your preferred length. To retract, push it back under the seat until it is fully stored.

Figure 5.1: Illustration of the chair's adjustable features including recline, footrest, and height adjustment.

5.4. Massage and Heating Functions

The chair features a 4-point massage system and a heating function, controlled by the included remote. Ensure the chair is plugged into a power outlet using the provided adapter.

• Power On/Off: Press the power button on the remote control to activate or deactivate the massage and heating functions.
• Massage Programs: Select from four massage programs: Standard, Pulse, Pressure, and Wave, using the corresponding buttons on the remote.
• Intensity Adjustment: Adjust the massage intensity to your preference using the intensity control buttons.
• Heating Function: Activate the heating function via its dedicated button on the remote.

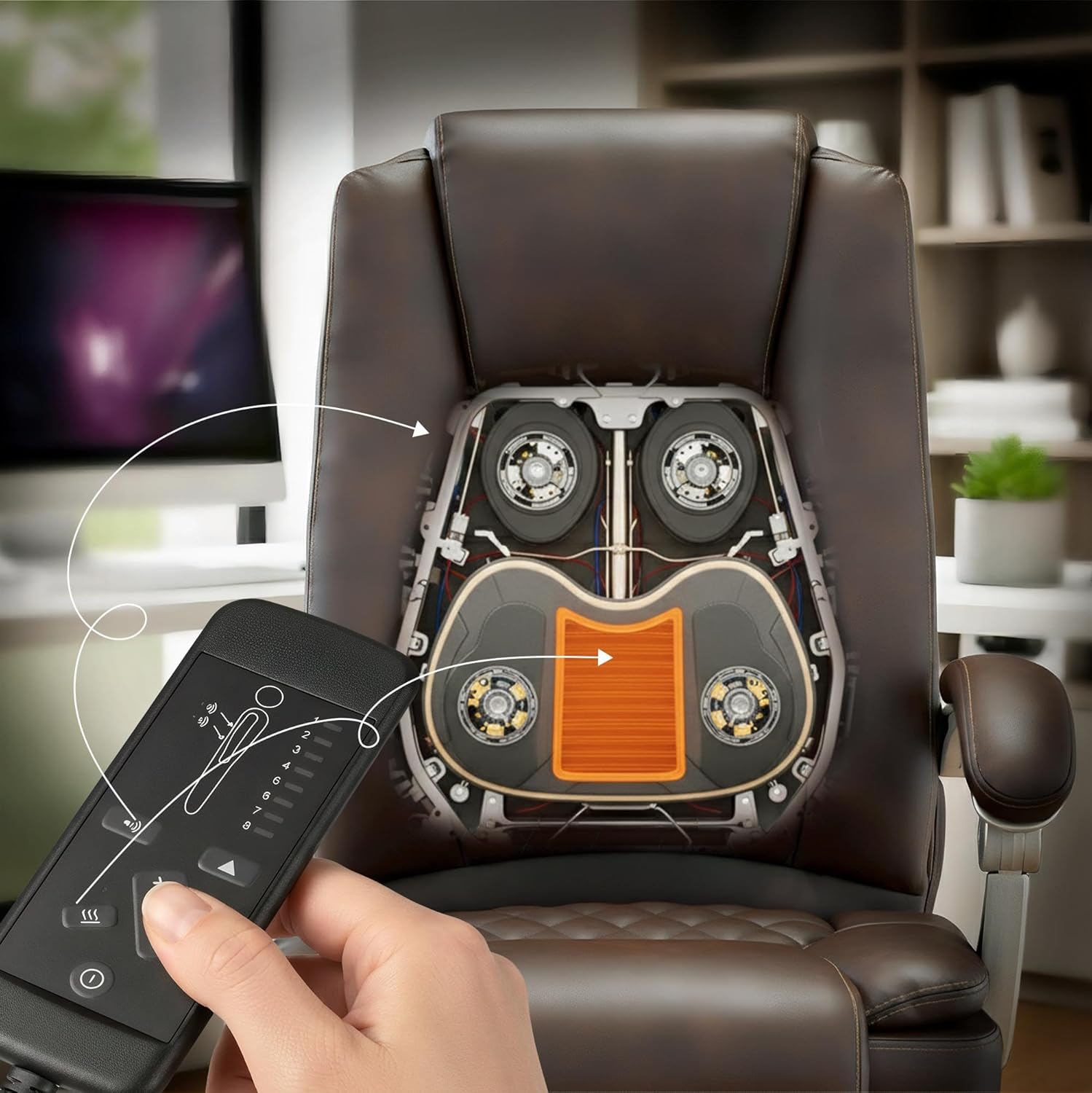

Figure 5.2: Diagram showing the internal massage and heating elements with the remote control.

Figure 5.3: User demonstrating the reclined position with the footrest extended, enjoying the chair's features.

6. Maintenance

6.1. Cleaning

• Synthetic Leather: Wipe the synthetic leather upholstery with a soft, damp cloth. For stubborn stains, use a mild soap solution and then wipe clean with a dry cloth. Avoid harsh chemicals, abrasive cleaners, or solvents, as these can damage the material.
• Base and Wheels: Clean the metal base and plastic wheels with a damp cloth. Ensure no moisture enters the gas lift mechanism.

6.2. General Care

• Screw Tightness: Periodically check all screws and bolts to ensure they remain tight. Retighten if necessary to maintain stability and prevent squeaking.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause the synthetic leather to fade or crack.
• Weight Distribution: Distribute your weight evenly on the chair to prevent undue stress on components.

7. Troubleshooting

8. Specifications

• Brand: CLP
• Model Number: 327206
• Color: Brown
• Product Dimensions (L x W x H): 70 x 67 x 110 cm (27.6 x 26.4 x 43.3 inches)
• Adjustable Height Range: 107 - 116 cm (42.1 - 45.7 inches)
• Product Weight: 20 kg (44 lbs)
• Maximum Load Capacity: 150 kg (330 lbs)
• Material: Synthetic Leather (seat), Metal (frame)
• Recline Angle: Up to 135°
• Gas Lift Class: 4
• Swivel: 360°
• Massage Points: 4 (2 back, 2 lumbar)
• Massage Programs: Standard, Pulse, Pressure, Wave
• Features: Massage, Heating, Retractable Footrest, Adjustable Height, Recline Function

9. Warranty and Support

For warranty information, please refer to the terms and conditions provided at the time of purchase or contact your retailer. Keep your proof of purchase (receipt or order confirmation) as it will be required for any warranty claims.

If you encounter any issues not covered in this manual or require further assistance, please contact CLP customer support or your authorized dealer. Provide your model number (327206) and a detailed description of the problem to facilitate a quicker resolution.
