JESLED 4FT Linkable LED Shop Light User Manual

1. Introduction

Thank you for purchasing the JESLED 4FT Linkable LED Shop Light. This manual provides essential information for the safe installation, operation, and maintenance of your new LED shop light. Please read these instructions thoroughly before use and retain them for future reference.

2. Safety Instructions

• Always disconnect power before installation, maintenance, or cleaning.
• Ensure the power supply voltage matches the product's requirements.
• Do not operate the fixture with a damaged cord or plug.
• This product is intended for indoor use only. Do not expose to water or moisture.
• Do not look directly into the LED light source when illuminated.
• Installation should be performed by a qualified electrician if you are unsure.
• Keep away from flammable materials.

3. Package Contents

Verify that all components are present before beginning installation:

• JESLED 4FT LED Shop Light Fixture (2 units)
• Power Cord with On/Off Switch (2 units)
• Screw Eye Hook (4 units)
• "V" Hook (4 units)
• Plastic Anchor (4 units)
• Screw (4 units)
• Chain (4 units)

Image: Included accessories for the JESLED LED Shop Light, including power cords, chains, hooks, anchors, and screws. Dimensions are also shown: L: 45.7 inch, W: 3.9 inch, H: 1.2 inch.

4. Specifications

5. Setup and Installation

The JESLED LED Shop Light offers two primary installation methods: hanging or flush mount.

5.1 Hanging Installation

1. Mark the desired locations for the mounting points on the ceiling or overhead structure.
2. Drill pilot holes and insert the plastic anchors if mounting into drywall.
3. Screw the screw eye hooks into the anchors or directly into a sturdy surface.
4. Attach the chains to the screw eye hooks.
5. Connect the "V" hooks to the chains and then insert the "V" hooks into the slots on top of the light fixture.
6. Adjust the chain length to achieve the desired hanging height.

5.2 Flush Mount Installation

1. Mark the desired locations for the mounting points on the ceiling.
2. Drill pilot holes and insert the plastic anchors if mounting into drywall.
3. Align the light fixture with the marked holes and secure it to the ceiling using the provided screws. Ensure the fixture is firmly attached.

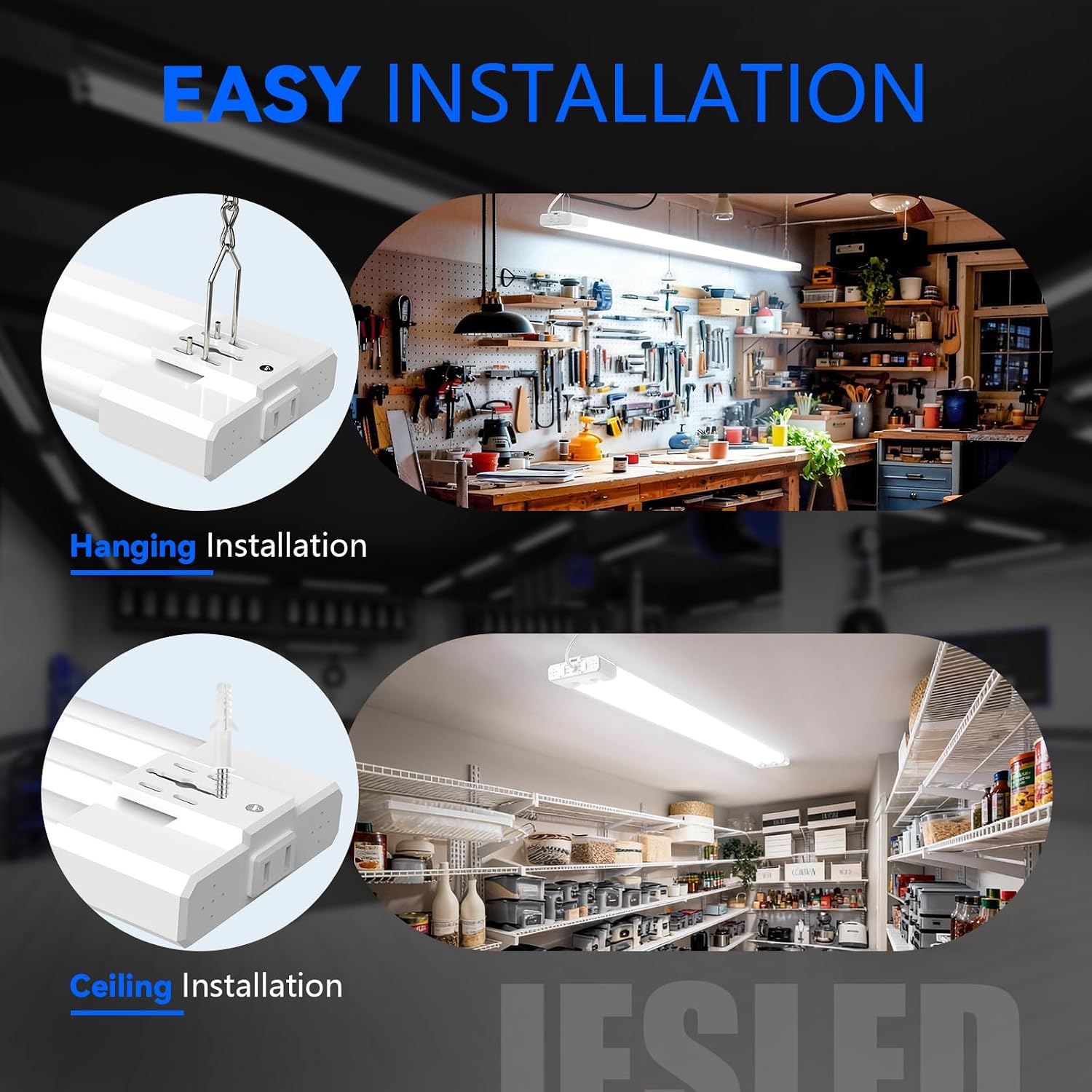

Image: Visual guide demonstrating both hanging installation using chains and flush mount installation using screws for the JESLED LED Shop Light.

5.3 Linkable Design

Multiple JESLED shop lights can be linked together to create a continuous lighting system. Up to 4 light fixtures can be connected in series using the provided linking cables. Connect the output end of one fixture to the input end of the next fixture.

Image: Illustration of the linkable design, showing multiple JESLED LED Shop Lights connected in series for extended lighting coverage. Note: Do not connect more than 4 tubes in series.

6. Operating Instructions

The JESLED LED Shop Light features adjustable power output and color temperature settings.

6.1 Power Adjustment

Locate the power switch on the fixture. This switch allows you to select between three wattage settings: 30W, 40W, and 50W. Choose the appropriate setting based on your brightness requirements and energy efficiency preferences.

Image: Diagram showing the power adjustment switch on the JESLED LED Shop Light, with options for 30W, 40W, and 50W settings, influencing lumen output and efficiency.

6.2 Color Temperature Adjustment

The fixture also includes a switch for adjusting the color temperature. You can select from three options: 4000K (Neutral White), 5000K (Daylight White), and 6500K (Cool White). Select the color temperature that best suits your environment or task.

Image: Visual representation of the adjustable color temperature settings (4000K, 5000K, 6500K) and their appearance in different environments, controlled by a switch on the fixture.

6.3 On/Off Switch

Use the integrated on/off toggle switch on the power cord to turn the light fixture on or off.

7. Maintenance

To ensure optimal performance and longevity of your JESLED LED Shop Light, follow these maintenance guidelines:

• Cleaning: Disconnect power before cleaning. Use a soft, dry cloth to wipe the fixture. Do not use abrasive cleaners or solvents, as they may damage the finish or electrical components.
• Inspection: Periodically inspect the power cord and fixture for any signs of damage. If any damage is found, discontinue use and contact customer support.
• Bulb Replacement: The LED light source is integrated and not user-replaceable.

8. Troubleshooting

If you encounter issues with your JESLED LED Shop Light, refer to the following common problems and solutions:

Image: Depiction of the JESLED LED Shop Light operating without interference to electronic signals, such as garage door remotes or radios, highlighting its EMC certification.

9. Warranty and Support

The JESLED LED Shop Light comes with a 5-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or any questions regarding your product, please contact JESLED customer service. Please have your model number (SWT80045B4120EA5) and proof of purchase available.

Manufacturer Contact Information:
Room 101, Building 1, No. 76 Dasha Road, Da Lingshan Town, DONGGUAN CITY, Guangdong Province
