LOKLNEYK I5 Corded Stick Handheld Vacuum Cleaner User Manual

1. Introduction

Thank you for choosing the LOKLNEYK I5 Corded Stick Handheld Vacuum Cleaner. This 4-in-1 versatile vacuum is designed for efficient cleaning of various surfaces in your home, offering powerful suction and a lightweight design. This manual provides essential information for safe operation, assembly, maintenance, and troubleshooting to ensure optimal performance and longevity of your appliance.

2. Important Safety Instructions

Please read all instructions carefully before using this appliance and retain them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always unplug the vacuum cleaner from the power outlet before cleaning or performing any maintenance.
• Do not use the vacuum cleaner outdoors or on wet surfaces.
• Do not allow children to operate the vacuum cleaner. Close supervision is necessary when used near children.
• Do not pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without the dust cup and filters in place.
• Inspect the power cord and plug for damage before each use. Do not use if the cord or plug is damaged.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Use only as described in this manual. Use only manufacturer's recommended attachments.

3. Package Contents

Carefully unpack your vacuum cleaner and check that all items are present and in good condition. If any items are missing or damaged, please contact customer support.

Image 3.1: The LOKLNEYK I5 Corded Stick Vacuum Cleaner shown with its main components and included accessories: the main motor unit, extension tube, floor brush, crevice tool, dusting brush, and wall mount bracket.

• Main Motor Unit
• Extension Tube
• Floor Brush
• Crevice Tool
• Dusting Brush
• Wall Mount Bracket
• Power Cord (attached to main unit)
• User Manual

4. Product Overview

The LOKLNEYK I5 is designed for versatile cleaning with its 4-in-1 functionality, allowing it to transform from a stick vacuum to a handheld unit. It features a powerful motor, multi-stage filtration, and an adjustable extension tube.

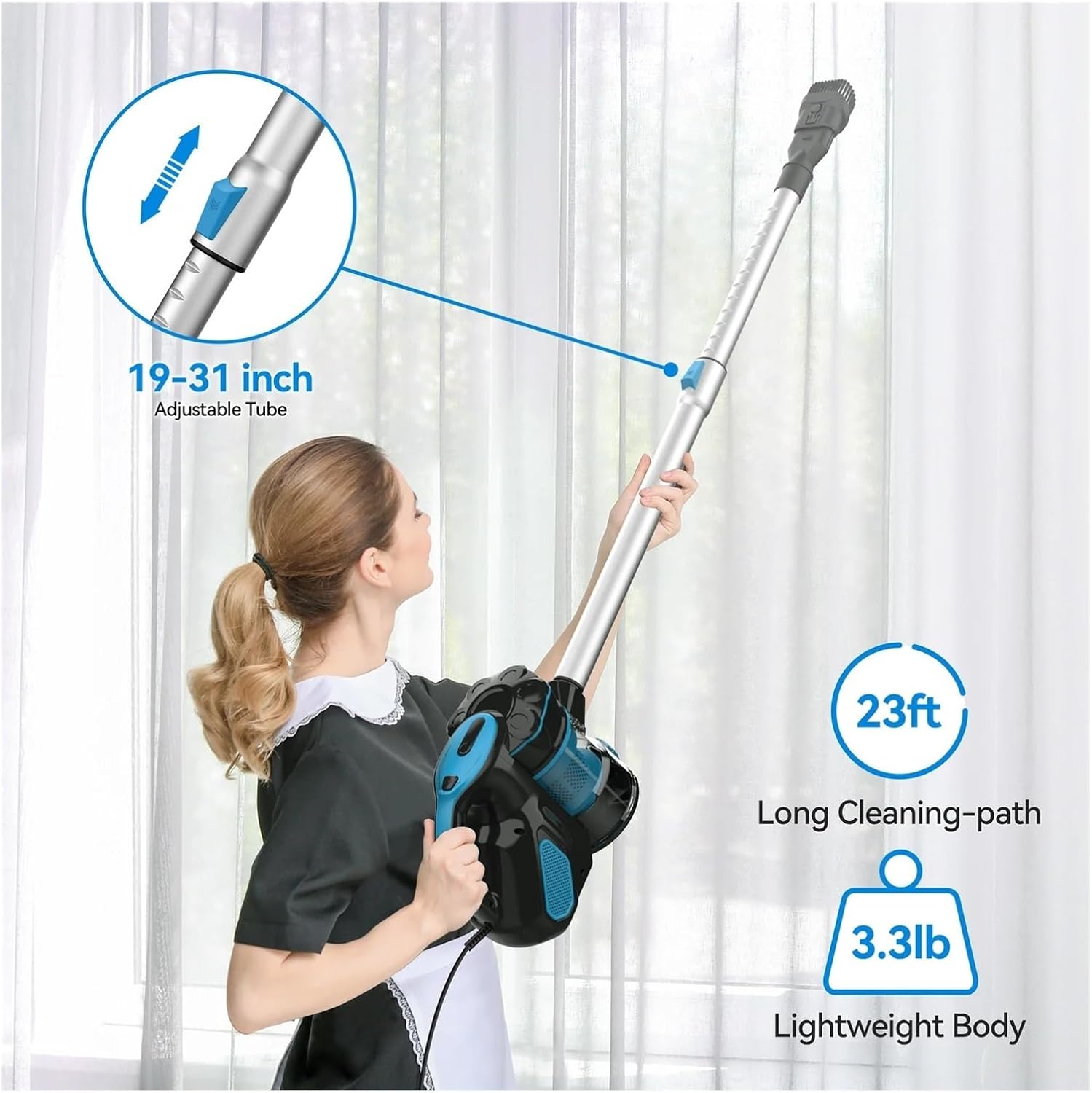

Image 4.1: A user demonstrating the LOKLNEYK I5 vacuum cleaner in stick mode, highlighting its adjustable extension tube (19-31 inches) and lightweight body (3.3 lbs / 2.6 kg) for extended reach and easy maneuverability.

Key Features:

• 4-in-1 Versatile Use: Easily converts between stick and handheld modes with various attachments for different cleaning needs.
• Powerful Suction: 600W motor delivers 18KPa cyclonic suction for effective dirt and debris removal.
• Adjustable Extension Tube: Extends from 19 to 31 inches for comfortable cleaning of high or low areas.
• Ultra-Lightweight: Weighs approximately 2.6 kg (5.7 lbs), making it easy to lift and maneuver.
• 1L Dustbin: Spacious dust cup reduces the frequency of emptying.
• 5-Stage High-Efficiency Filtration: Advanced filtration system captures fine dust and allergens.
• Hair-Resistant Design: Engineered to minimize hair tangling for consistent performance.
• Extended Power Cord: A 6-meter (22-foot) power cord provides a long cleaning path without frequent outlet changes.

Image 4.2: An exploded view illustrating the LOKLNEYK I5's 5-stage high-efficiency filtration system, including the 1st Primary Cyclone, 2nd Honeycomb Filtration, 3rd Cyclone Filtration, 4th Upgraded Filter Pad, and 5th Sponge Filter.

5. Setup and Assembly

Follow these steps to assemble your LOKLNEYK I5 vacuum cleaner.

5.1 Assembling the Stick Vacuum

1. Attach Floor Brush: Insert the extension tube into the floor brush until it clicks securely into place.
2. Connect Main Unit: Insert the main motor unit (with dustbin) onto the top of the extension tube until it clicks securely.
3. Adjust Tube Length: Press the release button on the extension tube to adjust its length to your preferred height.

5.2 Using as a Handheld Vacuum

1. Detach Extension Tube: Press the release button to detach the extension tube from the main motor unit.
2. Attach Accessories: Connect the desired accessory (crevice tool or dusting brush) directly to the main motor unit until it clicks.

5.3 Wall Mount Installation (Optional)

The included wall mount bracket allows for convenient storage. Choose a suitable location near a power outlet. Use appropriate screws and anchors (not included) to secure the bracket to the wall. Ensure the bracket is firmly attached before hanging the vacuum.

6. Operating Instructions

Your LOKLNEYK I5 vacuum cleaner is ready for use after assembly.

6.1 Powering On/Off

1. Plug In: Insert the power cord into a suitable 110V electrical outlet.
2. Turn On: Press the power button located on the main motor unit to start the vacuum.
3. Turn Off: Press the power button again to switch off the vacuum.

6.2 Cleaning Different Surfaces

Image 6.1: The LOKLNEYK I5 vacuum cleaner demonstrating its 18000PA suction power and 600W rated power by effectively cleaning various types of debris including dust, hair, scraps, pet food, and nutshells from a hard floor surface.

• Hard Floors & Carpets: Use the floor brush in stick mode for general cleaning. The multi-surface adaptation features soft bristles for delicate floors and stiff bristles for carpets.
• Corners & Crevices: Attach the crevice tool to the handheld unit to reach tight spaces, edges, and corners.
• Upholstery & Delicate Surfaces: Use the dusting brush on the handheld unit for cleaning sofas, curtains, keyboards, and other delicate items.
• High Areas: Utilize the extension tube with the dusting brush or crevice tool to clean ceilings, light fixtures, or high shelves.

7. Maintenance

Regular maintenance ensures your vacuum cleaner operates efficiently and extends its lifespan. Always unplug the vacuum before performing any maintenance.

7.1 Emptying the Dustbin

1. Locate the dustbin release button on the main motor unit.
2. Press the button to detach the dustbin.
3. Hold the dustbin over a trash can and open the bottom flap to empty the contents.
4. Close the flap and reattach the dustbin to the main unit until it clicks.

7.2 Cleaning the Filters

The LOKLNEYK I5 features a 5-stage filtration system, including a HEPA-type filter. Regular cleaning of the filters is crucial for maintaining suction power and preventing clogging.

Image 7.1: A user demonstrating the process of cleaning the filter device of the LOKLNEYK I5 vacuum cleaner under running water. It emphasizes the importance of regular cleaning to prevent clogging and ensuring the filter is completely dry before reinstallation.

1. Detach the dustbin from the main unit.
2. Remove the filter components from the dustbin. This typically involves twisting or pulling to separate the filter assembly.
3. Rinse the filters under cool, running water until the water runs clear. Do not use detergents or hot water.
4. Allow all filter components to air dry completely for at least 24 hours before reassembling. Ensure filters are completely dry before reinstalling them into the vacuum cleaner.
5. Reassemble the filters into the dustbin and reattach the dustbin to the main unit.

7.3 Cleaning the Floor Brush

• Periodically check the floor brush for tangled hair or debris.
• Use scissors or a brush to carefully remove any tangled hair or fibers from the brush roll.
• Ensure the brush roll spins freely after cleaning.

8. Troubleshooting

If you encounter any issues with your vacuum cleaner, refer to the following troubleshooting guide. If the problem persists, please contact customer support.

9. Specifications

10. Warranty and Customer Support

LOKLNEYK is committed to providing high-quality products. For warranty information, technical support, or any questions regarding your I5 vacuum cleaner, please refer to the contact information provided on the product packaging or the official LOKLNEYK website. Please have your model number (I5) and purchase details ready when contacting support.
