Introduction
Thank you for choosing the SMILOVII 21V Cordless Electric Hedge Trimmer. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before first use and keep it for future reference. Proper use and care will ensure long-lasting performance and safety.
This hedge trimmer is designed for trimming hedges, shrubs, and ornamental plants in domestic gardens. It is not intended for commercial use or for cutting branches thicker than 13mm in diameter.
Safety Information
Always prioritize safety when operating power tools. Failure to follow safety instructions can result in serious injury or property damage.
General Safety Warnings:
- Read all instructions: Familiarize yourself with the controls and proper use of the hedge trimmer.
- Wear appropriate personal protective equipment (PPE): Always wear safety glasses, gloves, and sturdy footwear. Ear protection is recommended during extended use.
- Keep bystanders away: Ensure children, pets, and other people are at a safe distance from the work area.
- Inspect the work area: Before starting, check for hidden wires, fences, or other objects that could be struck by the blade.
- Maintain a firm grip: Always hold the hedge trimmer with both hands.
- Avoid overreaching: Maintain proper footing and balance at all times.
- Do not operate in wet conditions: Avoid using the trimmer in rain or damp environments to prevent electric shock.
- Battery Safety: Use only the specified charger and batteries. Do not expose batteries to extreme temperatures or direct sunlight.
- Double Safety Start: The trimmer requires simultaneous activation of the safety switch and the trigger to start, preventing accidental operation.
- Quick Blade Stop: The blades stop within 2 seconds of releasing the trigger for enhanced safety.
Product Overview
The SMILOVII 21V Cordless Electric Hedge Trimmer is designed for efficient and comfortable hedge maintenance. Key components are illustrated below.

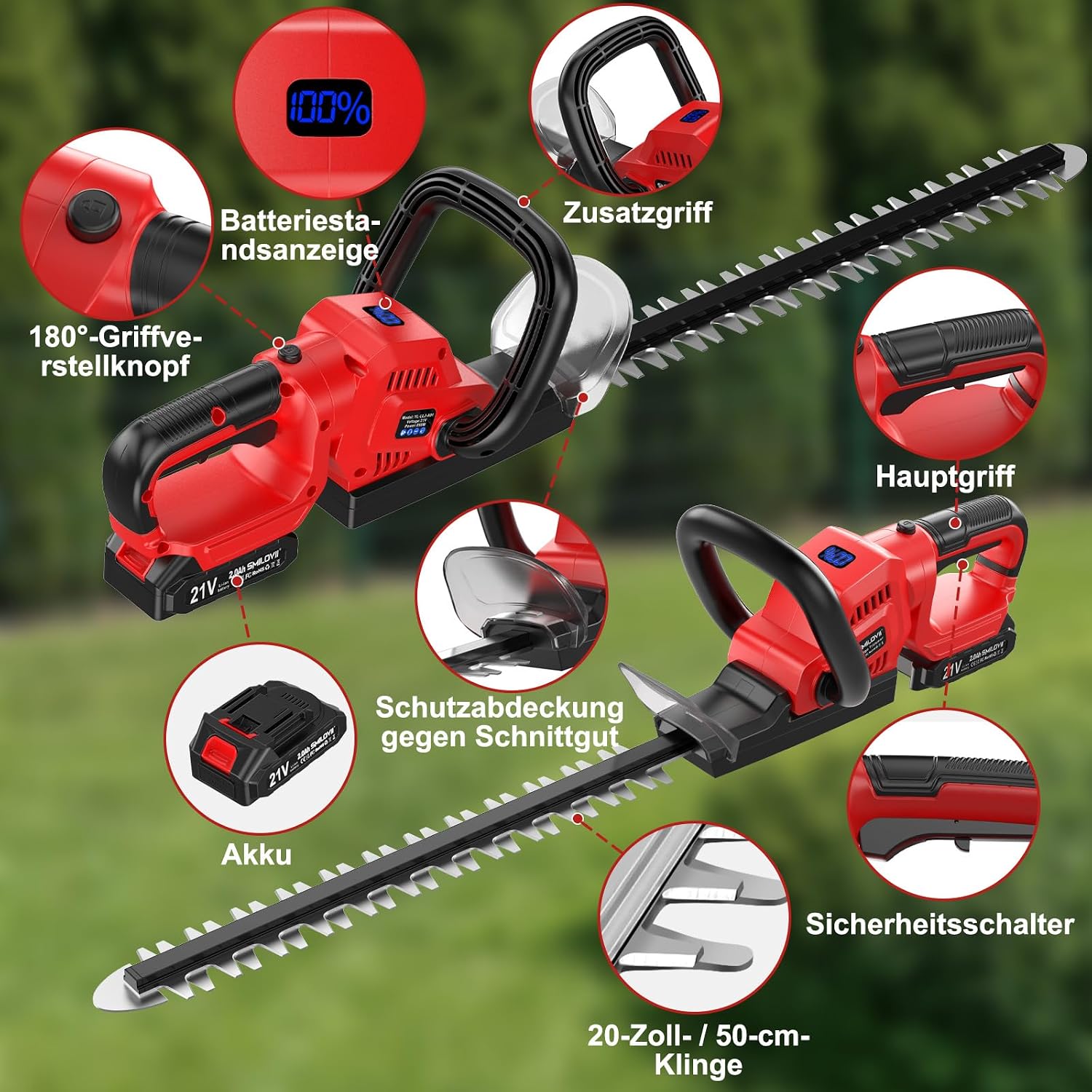

Image: Diagram showing the main components of the SMILOVII hedge trimmer, including the main handle, auxiliary handle, 180° rotating handle button, battery indicator, safety switch, power switch, blade, and blade guard.
Components:
- Double-Action Blade: 50cm manganese steel blade for efficient cutting up to 13mm diameter.
- Main Handle: Ergonomically designed for comfortable grip.
- Auxiliary Handle (D-shaped): Provides additional grip and control.
- 180° Rotating Handle Button: Allows adjustment of the handle for various cutting angles.
- Safety Switch: Must be pressed simultaneously with the power switch to operate.
- Power Switch (Trigger): Activates the motor and blade.
- Battery Compartment: Holds the 21V Li-ion battery.
- Battery Indicator (LCD): Displays real-time battery level.
- Blade Guard: Protects the user from the blade and collects cuttings.
Included Accessories:
- 2 x 2000 mAh Li-ion Batteries
- 1 x Battery Charger
- 1 x Blade Protector
- 1 x Pair of Gloves
- 1 x Pair of Safety Glasses
- 1 x User Manual (this document)
Setup
1. Charging the Battery:
- Connect the charger to a standard power outlet (100-240V, 50-60Hz).
- Insert the 21V Li-ion battery into the charger. Ensure it clicks into place.
- The charger indicator light will show the charging status. A full charge typically takes 120 minutes per battery.
- Once fully charged, remove the battery from the charger. Do not overcharge.
Image: Two 21V 2000mAh Li-ion batteries, highlighting their compact design and integrated safety features such as short-circuit, overheating, and overcharge protection. These batteries provide 20-30 minutes of runtime each.
2. Attaching the Blade Protector:
- Always ensure the battery is removed before attaching or removing the blade protector.
- Slide the blade protector over the cutting blade when the tool is not in use or during storage/transport.
3. Installing the Battery:
- Align the charged battery with the battery compartment on the hedge trimmer.
- Push the battery firmly until it clicks into place. Ensure it is securely seated.
- To remove the battery, press the release button (if present) and pull the battery out.
Operating Instructions
1. Starting the Hedge Trimmer:
- Ensure you are wearing all recommended PPE (safety glasses, gloves).
- Hold the hedge trimmer firmly with both hands.
- Press and hold the Safety Switch (usually located on the auxiliary handle).
- While holding the safety switch, press the Power Switch (Trigger) on the main handle to start the motor.
- Release the power switch to stop the trimmer. The blades will stop within 2 seconds.
Image: Illustration demonstrating the dual safety start mechanism. It shows that both the safety switch (1) and the power switch (2) must be engaged simultaneously to start the hedge trimmer, preventing accidental activation.
2. Adjusting the Handle:
- The handle can rotate 180° to provide optimal cutting angles for vertical and horizontal trimming.
- To adjust, press the 180° Rotating Handle Button and rotate the handle to the desired position. Release the button to lock it in place.
Image: Series of images demonstrating the 180° rotating handle feature. It shows the handle in horizontal, 90° right, and 90° left positions, allowing for versatile trimming angles.
3. Trimming Techniques:
- Horizontal Trimming: Hold the trimmer with the blade parallel to the ground. Move steadily along the top of the hedge.
- Vertical Trimming: Hold the trimmer with the blade perpendicular to the ground. Start from the bottom and sweep upwards, or from top to bottom, depending on comfort and hedge type.
- Cutting Capacity: The trimmer is designed for branches up to 13mm (0.5 inches) in diameter. Do not force the blade through thicker branches.
- Smooth Motion: Use a smooth, sweeping motion to achieve an even cut. Avoid jerky movements.
Image: Close-up view of the 20-inch (50cm) double-action blade actively trimming a hedge. The image highlights the 15mm (0.6 inch) tooth spacing, indicating its cutting capacity for branches.
Image: A person wearing safety glasses and gloves, operating the SMILOVII hedge trimmer to trim a large green shrub in a garden setting. This demonstrates the product in typical use.
Maintenance
Regular maintenance ensures the longevity and safe operation of your hedge trimmer. Always remove the battery before performing any maintenance.
1. Blade Cleaning and Lubrication:
- After each use, clean the blade thoroughly to remove sap, leaves, and debris. Use a stiff brush or cloth.
- Apply a light machine oil or blade lubricant along the entire length of the blade. This prevents rust and ensures smooth operation.
2. Blade Sharpening:
- Dull blades can reduce cutting efficiency and strain the motor. Sharpen the blades periodically or have them professionally sharpened.
- Ensure the original cutting angle is maintained during sharpening.
3. General Cleaning:
- Wipe down the housing of the trimmer with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Keep ventilation openings clear of debris to prevent overheating.
4. Battery Care:
- Store batteries in a cool, dry place, away from direct sunlight and extreme temperatures (-20°C to 60°C).
- For long-term storage, charge batteries to approximately 50% capacity.
5. Storage:
- Always attach the blade protector before storing the hedge trimmer.
- Store the tool in a dry, secure location out of reach of children.
Troubleshooting
Refer to this section for common issues and their solutions. If the problem persists, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Trimmer does not start. | Battery not inserted correctly or discharged. Safety switch not engaged. | Ensure battery is fully charged and properly inserted. Press both the safety switch and power switch simultaneously. |
| Reduced cutting performance. | Dull or dirty blades. Cutting branches too thick. | Clean and lubricate blades. Sharpen blades if necessary. Do not attempt to cut branches exceeding 13mm. |
| Trimmer stops during operation. | Battery discharged. Overload protection activated. | Replace with a charged battery. Reduce load on the blade; avoid forcing it through thick material. Allow motor to cool if overheated. |
| Excessive vibration. | Damaged or bent blade. Loose components. | Inspect blade for damage; replace if necessary. Check all fasteners for tightness. |
Specifications
Detailed technical specifications for the SMILOVII 21V Cordless Electric Hedge Trimmer.
| Feature | Specification |
|---|---|
| Model Number | YL-LIJ-A01 |
| Voltage | 21 V |
| Battery Type | Li-ion |
| Battery Capacity | 2000 mAh (x2 included) |
| Runtime per Battery | 20-30 minutes |
| Charger Input | 100-240V, 50-60Hz |
| Charging Time | Approx. 120 minutes per battery |
| Motor Type | Brushed |
| Rated Power | 850 W |
| No-Load Speed | 24,000 RPM |
| Blade Length | 500 mm (20 inches) |
| Effective Cutting Surface | 470 mm |
| Tooth Spacing | 15 mm (0.6 inches) |
| Max. Cutting Diameter | 13 mm (0.5 inches) |
| No-Load Stroke Rate | 3200 spm |
| Handle Rotation | 180° |
| Operating Temperature | -10°C ~ 45°C |
| Storage Temperature | -20°C ~ 60°C |
| Noise Level | 70 dB |
| Protection Class | IPX0 |
| Weight (Item) | 2.7 kg (5.95 lbs) |
| Dimensions (L x W x H) | 89 x 19 x 17.5 cm (35 x 7.5 x 6.9 inches) |
Image: An internal view of the SMILOVII hedge trimmer, showcasing its 850W high-speed motor and gear mechanism, capable of reaching up to 24,000 RPM for powerful cutting performance.
Warranty and Support
SMILOVII products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or contact your retailer.
For technical support, replacement parts, or any questions regarding your SMILOVII 21V Cordless Electric Hedge Trimmer, please contact the seller or manufacturer directly. Contact information can typically be found on the product packaging or the retailer's website.
Manufacturer: SMILOVII
ASIN: B0G6Z3G8HP
