Minetom 100FT Solar String Lights User Manual

Model: GY-S-E2631

Important Safety Instructions

Do not mount or place near gas or electric heaters, fireplaces, candles, or other similar heat sources.
Do not secure the wiring of the product with staples or nails, or place on sharp hooks or nails.
Do not let the product rest on the power cord.
Do not use this product for other than its intended use.
Do not hang objects from the cord.
Do not close doors or windows on the product or extension cords as this may damage the wire insulation.
Do not cover the product with cloth, paper, or any material not part of the product when in use.
Read and follow all instructions on the product or provided with the product.
Always ensure the solar panel is clean and free from obstructions for optimal charging.

Package Contents

Verify that all components are present in your package:

1x Minetom 100FT Solar String Lights (31+2 S14 LED Bulbs)
1x Remote Control
1x Solar Panel with integrated stake/mount
1x Ground Stake (for solar panel)
1x Mounting Clip (for solar panel)
36x Cable Ties
Rubber Plugs + Screws (for mounting)
1x User Manual (this document)

Product Overview

The Minetom 100FT Solar String Lights are designed for outdoor use, providing ambient lighting with energy-efficient LED S14 shatterproof bulbs. The system features a solar panel for charging and a remote control for convenient operation.

Diagram showing the construction of Minetom S14 LED bulbs with PVC cable jacket, removable LED strips, and upgraded lamp holder.

Image: Detailed view of the S14 LED bulb construction, highlighting the shatterproof PET material, PVC cable jacket, removable LED strips, and upgraded lamp holder.

Key Features:

Length: 100 feet with 31+2 warm white S14 LED bulbs.
Durability: Shatterproof PET bulbs and IP65 weatherproof rating for all-season outdoor use.
Charging: Dual charging options via solar panel or Type-C USB port.
Control: Remote control for adjusting brightness, light modes, and setting timers.
Energy Efficiency: LED technology significantly reduces energy consumption.

Setup and Installation

Follow these steps to install your Minetom Solar String Lights:

Unpack Components: Carefully remove all items from the packaging. Ensure the string lights are untangled.
Assemble Solar Panel:
- Attach the ground stake or mounting clip to the solar panel. The solar panel should be positioned to receive maximum direct sunlight for at least 6-8 hours daily.
- Adjust the joint bolt to angle the solar panel towards the sun.
Mounting Options for Solar Panel:
- Ground Installation: Insert the assembled stake into soft ground in a sunny location.
- Wall/Fence Installation: Use the provided screws and rubber plugs to secure the mounting clip to a wall or fence. Ensure the solar panel can be adjusted to face the sun.
Hang String Lights:
- Carefully string the lights along your desired path (e.g., patio, fence, pergola).
- Use the included cable ties to secure the string lights to supports, ensuring there is no excessive tension on the wire.
- Ensure the solar panel is connected to the string lights.
Initial Charge: Allow the solar panel to charge for a full day (6-8 hours) before first use to ensure optimal battery performance.

Charging the Lights

Your Minetom Solar String Lights offer flexible charging options:

Diagram illustrating dual charging methods for Minetom solar string lights: 8 hours of solar charging in sunny conditions or 4 hours of Type-C charging indoors, both providing over 20 hours of brightness.

Image: Dual charging options for the solar panel, showing solar charging (8 hours for 20+ hours of light) and Type-C charging (4 hours for 20+ hours of light).

Solar Charging: The solar panel will automatically charge the internal battery during daylight hours when exposed to sunlight. A full charge typically requires 6-8 hours of direct sunlight and can provide over 20 hours of illumination.
Type-C USB Charging: For cloudy days or faster charging, you can use a Type-C USB cable (not included) to charge the solar panel. A 4-hour charge via Type-C can also provide over 20 hours of illumination. The Type-C port is located on the back of the solar panel.

Note: The indicator light on the solar panel will turn red during charging and turn off when fully charged.

Operating Instructions

The string lights are controlled using the included remote. Ensure the remote has 2 AAA 1.5V batteries installed (not included).

Image of the remote control for Minetom solar string lights, showing buttons for ON/OFF, brightness levels (25%, 50%, 75%, 100%), speed control, 3 light modes (Flash, Static, Breath), and timer settings (6H, 8H).

Image: Remote control layout with buttons for power, brightness adjustment, speed control, light modes (Flash, Static, Breath), and timer functions.

Power ON/OFF: Press the ON/OFF button to turn the lights on or off.
Brightness Adjustment: Use the 25%, 50%, 75%, and 100% buttons to set the desired brightness level.
Light Modes: Select from three distinct lighting modes:
- Steady On: Lights remain continuously lit.
- Breath: Lights slowly fade in and out.
- Flash: Lights blink on and off.
Speed Control: For "Breath" and "Flash" modes, use the Speed- and Speed+ buttons to adjust the speed of the effect.
Timer Function: Set the lights to automatically turn off after a specified duration:
- Press 6H for 6 hours of operation.
- Press 8H for 8 hours of operation.
- The lights will then turn off and automatically resume the next day at the same time they were initially activated.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your string lights:

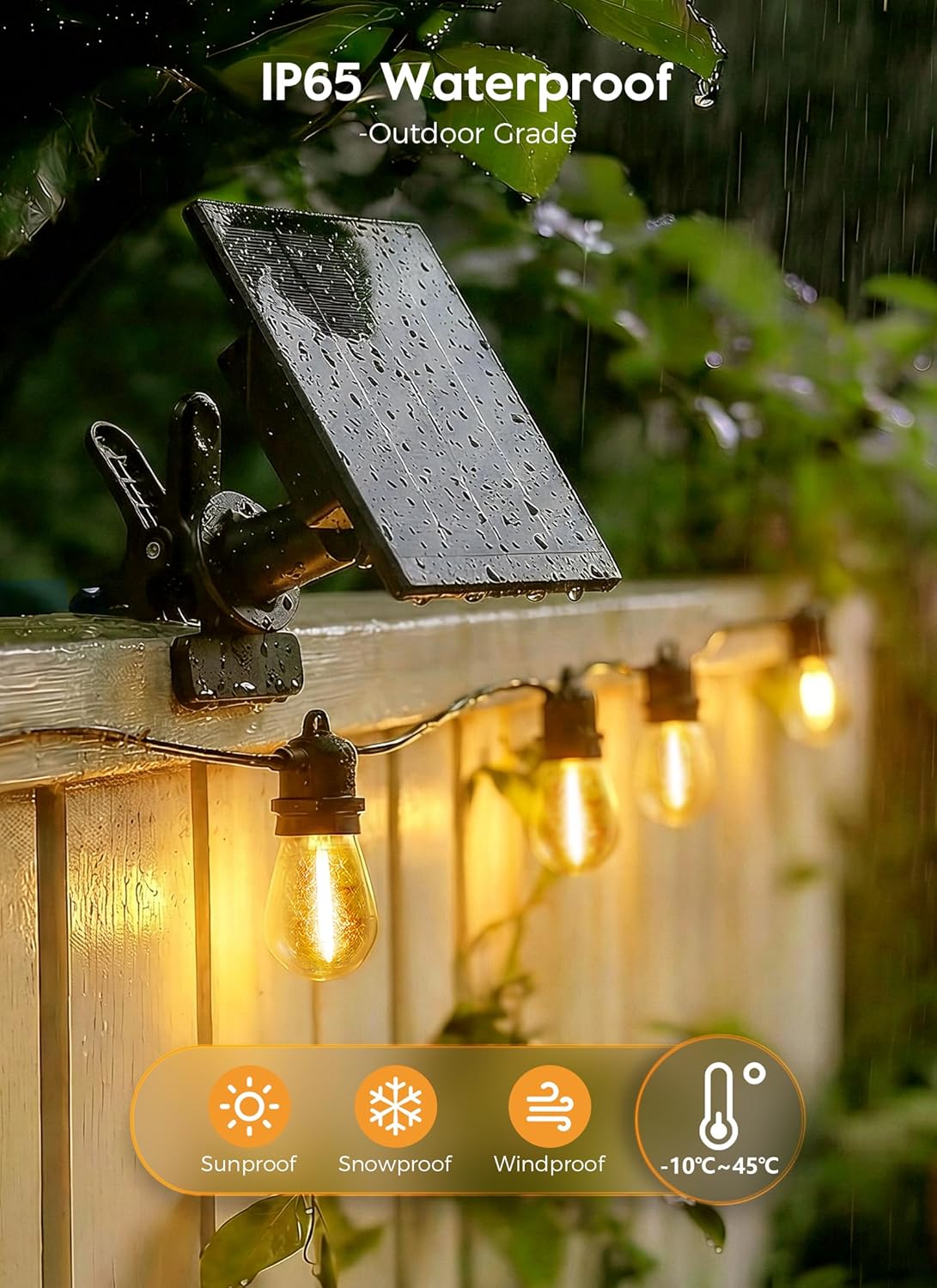

Image showing the Minetom solar panel and string lights in a rainy outdoor setting, with icons indicating sunproof, snowproof, windproof, and temperature resistance (-10°C to 45°C).

Image: Weatherproof features of the solar panel and string lights, including resistance to sun, snow, wind, and extreme temperatures.

Cleaning the Solar Panel: Regularly wipe the solar panel with a soft, damp cloth to remove dust, dirt, or debris. A clean panel ensures efficient solar charging.
Bulb Replacement: The S14 bulbs are designed to be shatterproof and long-lasting. If a bulb needs replacement, gently twist it counter-clockwise to remove and replace with a compatible S14 LED bulb.
Weather Protection: While the lights are IP65 weatherproof, extreme weather conditions (e.g., severe storms, prolonged heavy snow) may warrant temporary removal or additional protection to extend product life.
Storage: If storing the lights for an extended period, ensure the battery is fully charged, then turn off the lights and store them in a cool, dry place.

Troubleshooting

If you encounter issues with your string lights, refer to the following common problems and solutions:

Problem	Possible Cause	Solution
Lights do not turn on at dusk.	Solar panel is not switched on. Insufficient sunlight for charging. Solar panel is dirty or obstructed. Battery is low or depleted.	Ensure the power button on the back of the solar panel is pressed (ON position). Relocate the solar panel to an area with direct sunlight for 6-8 hours. Clean the solar panel surface. Charge the solar panel via Type-C USB for 4 hours.
Lights flash or flicker.	Battery is low. Remote control setting.	Recharge the solar panel. Check remote settings; ensure "Steady On" mode is selected if continuous light is desired.
Remote control not working.	Remote batteries are dead or incorrectly inserted. Obstruction between remote and receiver.	Replace remote batteries (2x AAA 1.5V). Ensure correct polarity. Ensure a clear line of sight between the remote and the solar panel's receiver.

If the above solutions do not resolve the issue, please contact customer support for assistance.

Specifications

Model Number: GY-S-E2631
Total Length: 100 feet
Bulb Type: S14 LED, Shatterproof PET
Number of Bulbs: 31 + 2 spare bulbs
Light Color: Warm White
Power Source: Solar Powered, Type-C USB rechargeable
Waterproof Rating: IP65
Operating Temperature: -10℃ to 45℃ (14°F to 113°F)
Control Method: Remote Control
Remote Batteries: 2x AAA 1.5V (not included)

Warranty and Support

Minetom provides a 30-day warranty for this product, covering manufacturing defects from the date of purchase.

For warranty claims, technical support, or any questions regarding your Minetom Solar String Lights, please contact our customer service team through the retailer's platform where you made your purchase. Please have your order number and product model (GY-S-E2631) ready for faster service.

We are committed to ensuring your satisfaction with our products.

Minetom GY-S-E2631
