1. Important Safety Instructions
Please read this manual carefully before using the appliance and keep it for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always ensure the heater is placed on a firm, level surface.
- Do not use the heater in areas where gasoline, paint, or other flammable liquids are stored.
- Keep combustible materials such as furniture, pillows, bedding, papers, clothes, and curtains at least 1 meter (3 feet) from the front of the heater and away from the sides and rear.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
- Do not cover the heater or block the air inlets/outlets.
- This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
- Always unplug the heater when not in use.
- Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner.
- The heater is equipped with an anti-tip switch that automatically turns off the unit if it is accidentally knocked over.
- This appliance is rated IP34, making it suitable for outdoor use and protected against splashing water. However, avoid direct exposure to heavy rain or submersion.
- Keep children and pets away from the heater during operation.
2. Product Overview
The BAKAJI 2000W Electric Infrared Quartz Heater is a versatile heating solution designed for both indoor and outdoor environments. It features high-efficiency quartz tubes that provide immediate and uniform heat. With its 2-in-1 design, it can be used as a freestanding unit or mounted on a wall, offering flexibility for various spaces.
Key Features:
- Adjustable Power: 650W / 1350W / 2000W
- Heating Element: 3 high-efficiency quartz tubes
- Control: Convenient pull switch
- Safety: Integrated anti-tip switch
- Protection Rating: IP34 (splash-proof)
- Material: Durable steel housing
- Adjustable Height: 1.8 m – 2.1 m (for freestanding use)
- Cable Length: 1.7 m
- Versatility: Suitable for outdoor and indoor use, 2-in-1 floor-standing or wall-mounted design.
3. Package Contents
Please check that all components are present and in good condition:
- Infrared Heater Head
- Adjustable Stand Pole (multiple sections)
- Base for Freestanding Use
- Mounting Bracket (for wall installation)
- Power Cord with Plug
- Instruction Manual
- Assembly Hardware (screws, nuts, washers)
4. Setup and Installation
The BAKAJI heater offers two installation options: freestanding or wall-mounted.
4.1 Freestanding Installation
- Assemble the base by attaching the stand pole sections securely.
- Attach the heater head to the top of the assembled stand pole. Ensure it is firmly secured and the angle can be adjusted as desired.
- Adjust the height of the stand pole between 1.8m and 2.1m using the provided adjustment mechanism.
- Place the assembled heater on a stable, level surface, ensuring it is away from any flammable materials.
Image: The heater shown in a freestanding configuration on an outdoor patio, highlighting its dual mounting capability.
4.2 Wall-Mounted Installation
If you choose to wall-mount the heater, ensure the wall material can support the weight of the unit and that there is a suitable power outlet nearby.
- Identify a suitable location on a wall, ensuring sufficient clearance from ceilings, corners, and flammable materials.
- Mark the drilling points for the wall mounting bracket.
- Drill holes and securely attach the mounting bracket to the wall using appropriate screws and wall plugs (not always included).
- Attach the heater head to the wall mounting bracket, ensuring it is securely fastened.
Image: The heater in an outdoor restaurant environment, demonstrating its suitability for commercial and weather-exposed settings.
5. Operating Instructions
Once the heater is securely installed and plugged into a suitable power outlet, you can begin operation.
- Power On: Pull the control switch once to turn on the heater at the lowest power setting (650W).
- Adjust Power:
- Pull the switch a second time for medium power (1350W).
- Pull the switch a third time for maximum power (2000W).
- Power Off: Pull the switch a fourth time to turn off the heater.
- Anti-Tip Safety: If the freestanding heater is accidentally knocked over, the integrated anti-tip switch will automatically shut off the unit for safety. Stand the heater upright to resume operation.
Image: The heater operating indoors, illustrating the three selectable power levels.
6. Maintenance and Care
Regular cleaning and proper care will ensure the longevity and efficient operation of your heater.
- Cleaning: Always unplug the heater and allow it to cool completely before cleaning. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents.
- Storage: When not in use for extended periods, store the heater in a cool, dry place, preferably in its original packaging.
- Inspection: Periodically check the power cord and plug for any signs of damage. If any damage is found, do not use the heater and contact customer support.
- No User Serviceable Parts: The heating elements (quartz tubes) are not user-replaceable. Do not attempt to open or repair the heater yourself.
7. Troubleshooting
If you encounter issues with your heater, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater does not turn on. | No power supply, power cord damaged, anti-tip switch activated, pull switch malfunction. | Check power outlet and plug. Ensure heater is upright. Pull switch multiple times. If problem persists, contact support. |
| Heater turns off unexpectedly. | Anti-tip switch activated (heater tipped over), overheating protection activated. | Ensure heater is upright on a stable surface. Check for obstructions around the heater. Unplug and allow to cool for 10-15 minutes before restarting. |
| Insufficient heat output. | Incorrect power setting, heater too far from target area. | Adjust power to a higher setting (1350W or 2000W). Reposition heater closer to the desired heating area. |
If you cannot resolve the issue using the troubleshooting guide, please contact customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Model | B0G6GJZ9P2 |
| Power Settings | 650W / 1350W / 2000W |
| Heating Element | 3 Quartz Tubes |
| Control Type | Pull Switch |
| Safety Features | Anti-tip switch |
| Protection Rating | IP34 (Splash-proof) |
| Housing Material | Steel |
| Adjustable Height (Freestanding) | 1.8 m – 2.1 m |
| Max Dimensions (Freestanding) | 2100 × 500 × 500 mm (Height × Width × Depth) |
| Cable Length | 1.7 m |
| Color | Black |
| Usage | Indoor / Outdoor |

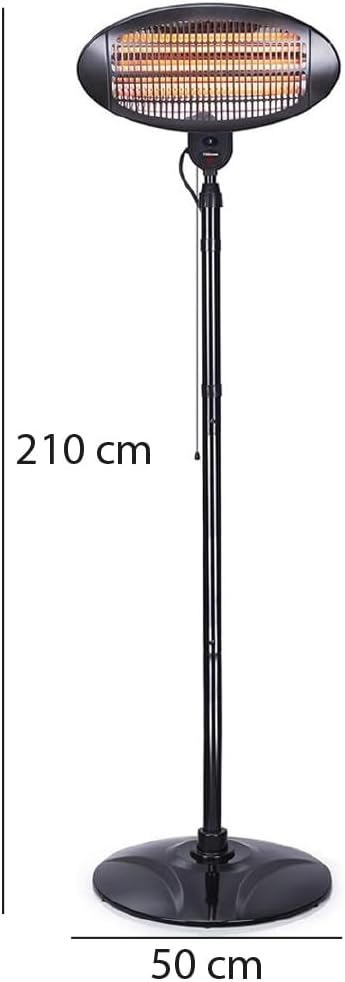

Image: Detailed dimensions of the heater, indicating a maximum height of 210 cm and a base width of 50 cm.
9. Warranty and Support
BAKAJI products are manufactured to high-quality standards. In the unlikely event of a defect in material or workmanship, please refer to your purchase documentation for warranty details. Keep your proof of purchase for any warranty claims.
For technical support, troubleshooting assistance, or to inquire about warranty service, please contact your retailer or the BAKAJI customer service department through the contact information provided at the point of purchase or on the official BAKAJI website.
10. Environmental Disposal
This symbol on the product or its packaging indicates that this product shall not be treated as household waste. Instead, it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.
