1. Product Overview
The Relaxdays 3-Drawer Lockable Filing Cabinet provides an organized and secure storage solution for your documents. Designed for both office and home use, this cabinet features three drawers with adjustable hanging file rails suitable for A4 and Letter-sized documents. Each drawer can be individually locked to ensure the confidentiality and security of your important papers. Its compact design allows for efficient use of space in various environments.
Image: The Relaxdays 3-Drawer Lockable Filing Cabinet in black, positioned next to a desk in a modern office environment.
2. Safety Information
- Always assemble the product on a clean, soft surface to prevent scratches.
- Ensure all screws and fasteners are securely tightened before use.
- Do not overload drawers; adhere to the maximum weight capacity per drawer.
- Use the included wall-mounting hardware to prevent tipping, especially in households with children or pets.
- Keep small parts out of reach of children during assembly.
3. Package Contents
Before beginning assembly, please verify that all components listed below are present and undamaged:
- 1x Filing cabinet (disassembled kit)
- 6x Keys (for drawer locks)
- Assembly instructions and mounting hardware (screws, dowels, etc.)
4. Setup and Assembly
Follow the detailed steps in the video below for a smooth assembly process. It is recommended to have a second person assist with certain steps.
Video: Assembly instructions for the DEVAISE 3-Drawer Filing Cabinet. This video demonstrates the step-by-step process of assembling a similar 3-drawer filing cabinet, including attaching hardware, constructing the frame, and installing drawers and locks.
Key Assembly Tips:
- Drawer Slides: Ensure drawer slides are correctly oriented and securely fastened.
- Lock Mechanism: Install the lock mechanism carefully, ensuring it functions smoothly before fully tightening.
- Anti-Tip Device: Securely attach the wall-mounting hardware to prevent accidental tipping.

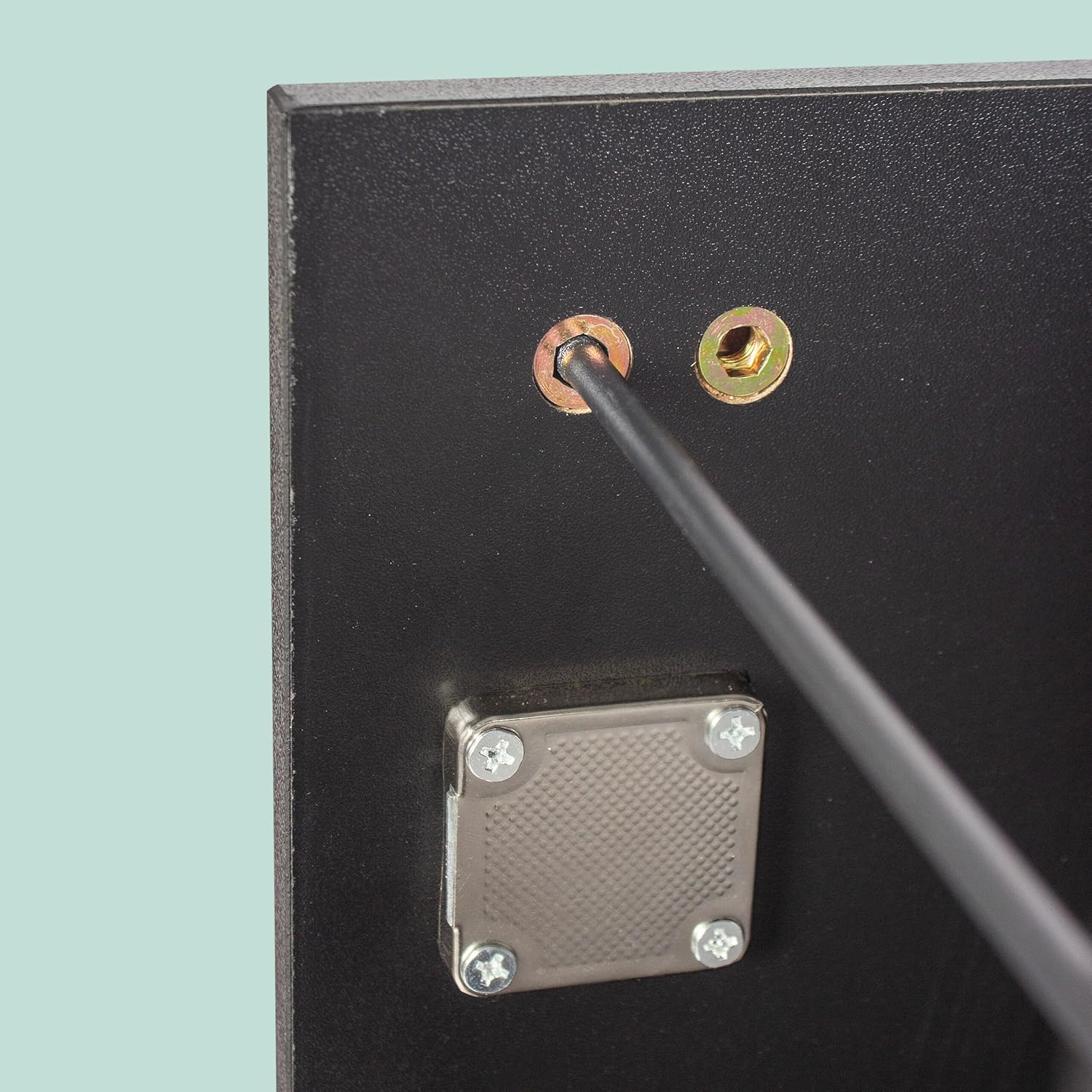

Image: A close-up view showing the installation of the anti-tip wall-mounting hardware on the rear of the filing cabinet, emphasizing safety.
5. Operating Instructions
Using the Drawers:
- To open a drawer, gently pull the handle.
- To close a drawer, push it firmly until it is fully seated.
- The drawers are designed for hanging files (A4 and Letter formats). Adjust the internal rails as needed to accommodate your documents.
Image: The filing cabinet with its top two drawers open, revealing organized hanging files in a home office setting.
Locking Mechanism:
- Each drawer is equipped with an individual lock.
- To lock a drawer, insert the key into the lock and turn it clockwise.
- To unlock, insert the key and turn it counter-clockwise.
- Ensure the drawer is fully closed before attempting to lock it.
Image: A detailed close-up of the lock and handle on one of the filing cabinet drawers, highlighting the security feature.
6. Maintenance
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
- Inspection: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten if necessary.
- Drawer Slides: If drawers become stiff, apply a small amount of silicone-based lubricant to the slides.
7. Troubleshooting
- Drawers not closing smoothly: Check for obstructions in the drawer slides. Ensure the cabinet is on a level surface. Lubricate slides if needed.
- Lock not working: Ensure the drawer is fully closed before attempting to lock. Check if the key is fully inserted and turned correctly.
- Cabinet wobbles: Verify that all assembly screws are tightened. Ensure the cabinet is placed on a flat, stable surface. Adjust leveling feet if applicable.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Relaxdays |
| Model Number | 10052212_46 |
| Color | Black |
| Dimensions (H x W x D) | Approx. 103 x 40 x 40 cm |
| Internal Drawer Dimensions (H x W x D) | Approx. 27.5 x 32 x 36.5 cm |
| Material | Wood-derived panel, MDF, steel, EVA, nylon (10% Steel, 90% Fiberboard) |
| Weight | Approx. 21.4 kg |
| Max. Load Top Shelf | Approx. 20 kg |
| Max. Load per Drawer | Approx. 10 kg |
| Special Features | Lockable drawers, adjustable hanging file rails (A4/Letter), anti-scratch foam pads, wall-mounting hardware included. |
Image: A visual representation of the filing cabinet's dimensions (103 cm height, 40 cm width, 40 cm depth) and individual drawer load capacity (10 kg).
9. Warranty and Support
For warranty information or technical support, please refer to the documentation provided with your purchase or contact Relaxdays customer service directly. Keep your proof of purchase for any warranty claims.
For further assistance, please visit the official Relaxdays store or contact their customer support channels.
