1. Safety Information
Before operating the QRONGE X1 Spark Electric Dirt Bike, please read and understand all safety instructions. Failure to follow these instructions may result in serious injury or property damage.
- Always wear appropriate safety gear: This includes a helmet, eye protection, gloves, and protective clothing.
- Check local regulations: Ensure you are aware of and comply with all local laws regarding electric dirt bike operation, age restrictions, and licensing requirements.
- Adult supervision: Teenagers should operate the bike only under direct adult supervision.
- Pre-ride inspection: Before each ride, verify that the brakes, wheels, tires, and all other components are correctly installed and in good working condition.
- Braking system: The X1 Spark is equipped with high-performance hydraulic brakes. Familiarize yourself with their responsive stopping power and control.
- Environmental factors: Be aware that factors such as road conditions, weather, rider weight, and battery level can affect performance and safety.
2. Product Overview
The QRONGE X1 Spark is an electric dirt bike designed for teens and adults, offering a powerful mid-drive motor, long-range battery, and robust suspension for various terrains.
Key Features:
- High-Performance Hydraulic Brakes: Equipped with 200x3 mm brake discs for smooth, responsive stopping power and exceptional control.
- Dual Suspension System: Features a hydraulic fork system on the front wheel and independent air spring shock absorbers on the rear for enhanced comfort and support on varied terrain.
- 60V 28.8Ah Battery: Provides a long range of up to 60 miles (in pedal assist mode, varies by conditions) with a charging time of 7-8 hours.
- 4500W Peak Mid-Drive Motor: Delivers immense power and outstanding efficiency with a maximum torque of 283 N·m and a top speed of 50 mph. IPX5 protection rating ensures stable performance.
- 3 Speed Modes: Offers adjustable speed settings: 1st gear (12.5 mph), 2nd gear (22 mph), and 3rd gear (50 mph) to suit different riding needs.
- Fat Tires Design: Features a 14x2.4'' front wheel and a 12x3'' rear wheel with all-terrain puncture-resistant tires for excellent grip and stability.
- Ergonomic Design: High-quality metal frame with a streamlined body and high-density anti-slip seats for comfort. Supports up to 350 lbs, suitable for riders 4.2' to 6.0' tall.

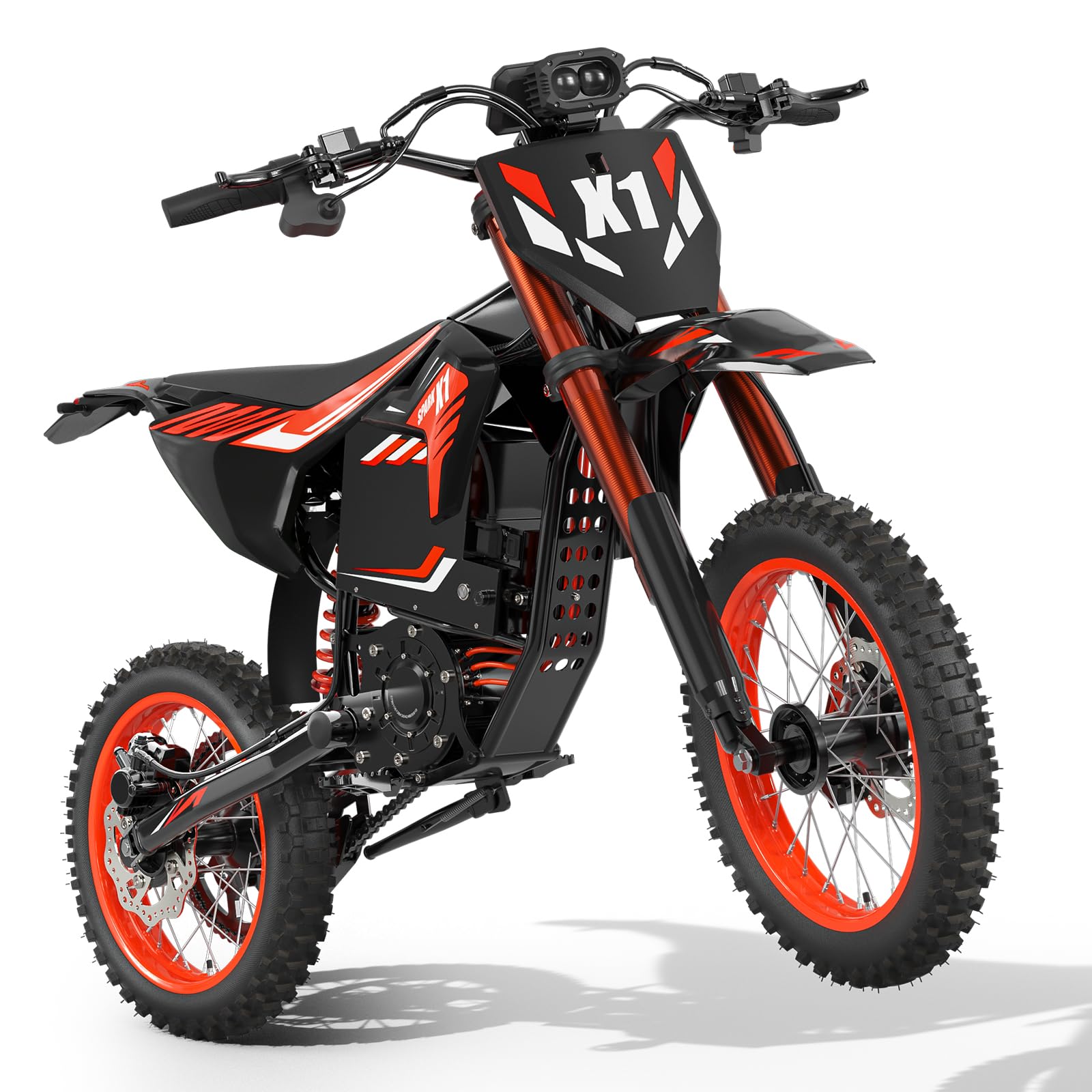

Visual Overview:
Product Video:
This video provides a general overview of the QRONGE X1 Spark Electric Dirt Bike for teens and adults, showcasing its features and capabilities.
3. Setup
The QRONGE X1 Spark Electric Dirt Bike comes 85% pre-installed. Follow these steps to complete the assembly and prepare your bike for its first ride.
Installation Video:
This video demonstrates the installation process for the QRONGE X1 Spark, covering the remaining 15% of assembly required before use.
Key Assembly Steps:
- Handlebar Installation: Loosen the screws on the handlebar clamp, position the handlebars, and tighten securely.
- Front Partition Installation: Secure the front partition (number plate) to the front fork using the provided screws.
- Front Wheel Installation: Insert the front wheel axle through the fork and wheel hub, ensuring the brake rotor aligns with the caliper. Secure the axle nuts.
- Front Brake Caliper Installation: Attach the front brake caliper to the fork, ensuring it properly engages with the brake rotor. Tighten all bolts.
- Rear Shock Installation: Ensure the rear shock absorber is correctly attached to the frame and swingarm.
- Front Fender Installation: Attach the front fender to the front fork using the designated mounting points and screws.
- Initial Charge: Connect the charger to the bike's charging port and a power outlet. Ensure the charging function is working properly (indicated by a light on the charger).
4. Operating Instructions
Familiarize yourself with the controls and operating modes of your X1 Spark for an optimal riding experience.
- Power On/Off: Use the keyed ignition to turn the bike on or off. Remove the key when not in use for security.
- Throttle Control: The bike features a half-twist throttle. Apply throttle gradually to control speed.
- Speed Modes: Select from 3 speed modes:
- 1st Gear: Approximately 12.5 mph (20 km/h) - Ideal for beginners or tight spaces.
- 2nd Gear: Approximately 22 mph (35 km/h) - Balanced speed for general riding.
- 3rd Gear: Approximately 50 mph (80 km/h) - For experienced riders on suitable terrain.
- Braking: Use the dual hydraulic brakes for effective stopping. Apply both front and rear brakes smoothly for controlled deceleration.
- Display: The large color display shows important information such as speed, battery level, and selected gear.
- Riding Conditions: Always consider rider weight, weather conditions, and road conditions as these factors significantly impact the bike's performance and range.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your QRONGE X1 Spark.
- Battery Care: Charge the 60V 28.8Ah battery for 7-8 hours for a full charge. Avoid overcharging or completely draining the battery to prolong its lifespan. Store the bike in a cool, dry place when not in use.
- Brake Inspection: Regularly check the hydraulic brakes and 200x3 mm brake discs for wear and proper function. Ensure brake fluid levels are adequate if applicable.
- Tire Pressure: Maintain correct tire pressure for optimal performance and safety. Inspect all-terrain puncture-resistant tires for damage or excessive wear.
- Suspension Check: Periodically inspect the front hydraulic fork system and rear air spring shock absorber for any leaks or damage.
- Fasteners: Ensure all bolts, nuts, and fasteners are tight before each ride.
- Cleaning: Clean the bike regularly with a damp cloth. Avoid using high-pressure water jets directly on electrical components.
6. Troubleshooting
If you encounter any issues with your QRONGE X1 Spark, refer to the following common troubleshooting tips:
- Bike not powering on: Check if the battery is charged and properly connected. Ensure the keyed ignition is turned to the 'on' position.
- Motor not engaging: Verify that the throttle is functioning correctly and that no error codes are displayed on the screen. Check for any loose electrical connections.
- Reduced range or power: This could indicate a low battery charge or a need for battery recalibration. Environmental factors (e.g., cold weather, uphill riding) can also affect performance.
- Brake issues: If brakes feel spongy or ineffective, they may need adjustment or bleeding. Consult a qualified technician if unsure.
- Unusual noises: Investigate any unusual sounds from the motor, wheels, or suspension. This may indicate a loose component or a need for lubrication.
- Contact Support: If problems persist or you are unsure about a solution, please contact QRONGE customer support for assistance.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | QRONGE |
| Model Name | X1 Spark (M-X1-Spark) |
| Bike Type | Electric Bike, Mountain Bike |
| Age Range (Description) | Teen, Adult (13+ years) |
| Motor | 4500W Peak Mid-Drive Motor |
| Max Torque | 283 N·m |
| Top Speed | 50 MPH |
| Battery | 60V 28.8Ah |
| Max Range | 60 Miles (in pedal assist mode) |
| Charging Time | 7-8 Hours |
| Speed Modes | 3 (12.5 mph, 22 mph, 50 mph) |
| Suspension Type | Dual (Front Hydraulic Fork, Rear Air Spring Shock) |
| Brake Style | Disc (Dual Hydraulic Brakes, 200x3 mm discs) |
| Front Wheel Size | 14x2.4 inches |
| Rear Wheel Size | 12x3 inches |
| Tires | All-terrain puncture-resistant |
| Frame Material | Metal |
| Overall Vehicle Weight | 124 lbs |
| Maximum Weight Recommendation | 350 lbs |
| Recommended Height Range | 4.2' to 6.0' |
| Included Components | Seat |
| IPX Rating | IPX5 (Motor) |
8. Warranty and Support
QRONGE is committed to providing high-quality products and excellent customer service.
- Warranty: The QRONGE X1 Spark comes with a limited warranty. Please refer to your purchase documentation for specific terms and conditions.
- Customer Support: For any questions, technical assistance, or warranty claims, please contact QRONGE customer support.
- Contact Information:
Phone: 833-489-0550
Hours: Monday - Friday, 9 a.m. - 6 p.m. PST - Our professional Pre-Sales & After-Sales team is always ready to assist you.
