1. Introduction
Thank you for choosing the EBL 200W Portable Solar Panel (Model ESP-200). This manual provides essential information for the safe and efficient use of your solar panel. Please read it thoroughly before operation and retain it for future reference.
The EBL 200W Portable Solar Panel is designed to provide reliable and renewable power for various applications, including RVs, camping, marine use, backyard setups, home backup, and other off-grid systems. Its high-efficiency monocrystalline silicon cells ensure optimal power conversion.
Image: The EBL 200W Portable Solar Panel in both its folded and unfolded states.
2. Safety Instructions
To ensure safe operation and prolong the lifespan of your solar panel, please observe the following safety precautions:
- Do not attempt to disassemble, modify, or repair the solar panel. Unauthorized modifications can lead to damage, electric shock, or fire.
- Keep the solar panel away from open flames, heat sources, and corrosive substances.
- Avoid dropping or subjecting the solar panel to strong impacts. This can damage the solar cells and internal components.
- Ensure all connections are secure and correct before operating. Incorrect wiring can cause damage to the panel or connected devices.
- Do not immerse the solar panel in water. While weatherproof, it is not designed for submersion.
- Handle the panel with care, especially the solar cell surface, to prevent scratches or damage.
- Keep children and pets away from the solar panel during operation.
- In case of damage or malfunction, contact EBL customer support.
3. Package Contents
Verify that all items are present in your package:
- EBL 200W Portable Solar Panel (Model ESP-200)
- User Manual (this document)
- Note: Additional cables or adapters (e.g., Y-branch cable for parallel connection, specific power station cables) may be sold separately or included with compatible power stations.
4. Product Features
- High Efficiency Monocrystalline Cells: Utilizes premium monocrystalline silicon for up to 23.5% conversion efficiency, ensuring maximum power generation.
- Durable & Weatherproof Design: Constructed with a sturdy frame and PET laminate packaging, designed to withstand outdoor elements including rain, snow, and high winds.
- Portable & Foldable: Lightweight design with integrated handles and adjustable kickstands for easy transport and setup.
- Wide Compatibility: Equipped with various connectors (Anderson, 8mm, XT60, Aviation) for broad compatibility with most solar charge controllers, portable power stations, and 12V batteries.
- Integrated Storage Pocket: Features a large zippered pocket on the back for convenient storage of cables and accessories.
- Safety Protections: Built-in overcharge, short-circuit, and reverse protection mechanisms safeguard your devices and batteries.
Image: High-efficiency monocrystalline solar panel with 23.5% conversion rate.
Image: Close-up view of panel features: monocrystalline silicon, PET laminate packaging, large pocket design, PCB backplane, hanging hole design, and bracket design.
Image: Diagram showing the layered construction with upgraded PET lamination technology, highlighting high efficiency, compatibility, quick charging, and water resistance.
5. Setup Guide
- Unfold the Solar Panel: Carefully unfold the EBL 200W Portable Solar Panel on a flat, stable surface.
- Position the Panel: Deploy the adjustable kickstands on the back of the panel. Angle the panel directly towards the sun for optimal sunlight exposure. Adjust the angle throughout the day as the sun's position changes.
- Connect to Your Device:
- Locate the output cables from the solar panel's junction box.
- Identify the appropriate connector for your portable power station, solar generator, or 12V battery. The panel typically includes various adapters such as Anderson, 8mm, XT60, and Aviation connectors.
- Connect the solar panel's output cable to the input port of your charging device. Ensure a secure connection.
- For connecting to a 12V battery directly, a solar charge controller (not included) is required to prevent overcharging. Connect the panel to the controller, and then the controller to the battery.
- Parallel Connection (Optional): If connecting two EBL 200W solar panels for increased power output, use a compatible Y-branch cable (not included). Connect the output of both panels to the Y-branch cable, then connect the Y-branch cable to your power station or charge controller.
Image: Solar panel with adjustable kickstands for optimal angling towards the sun.

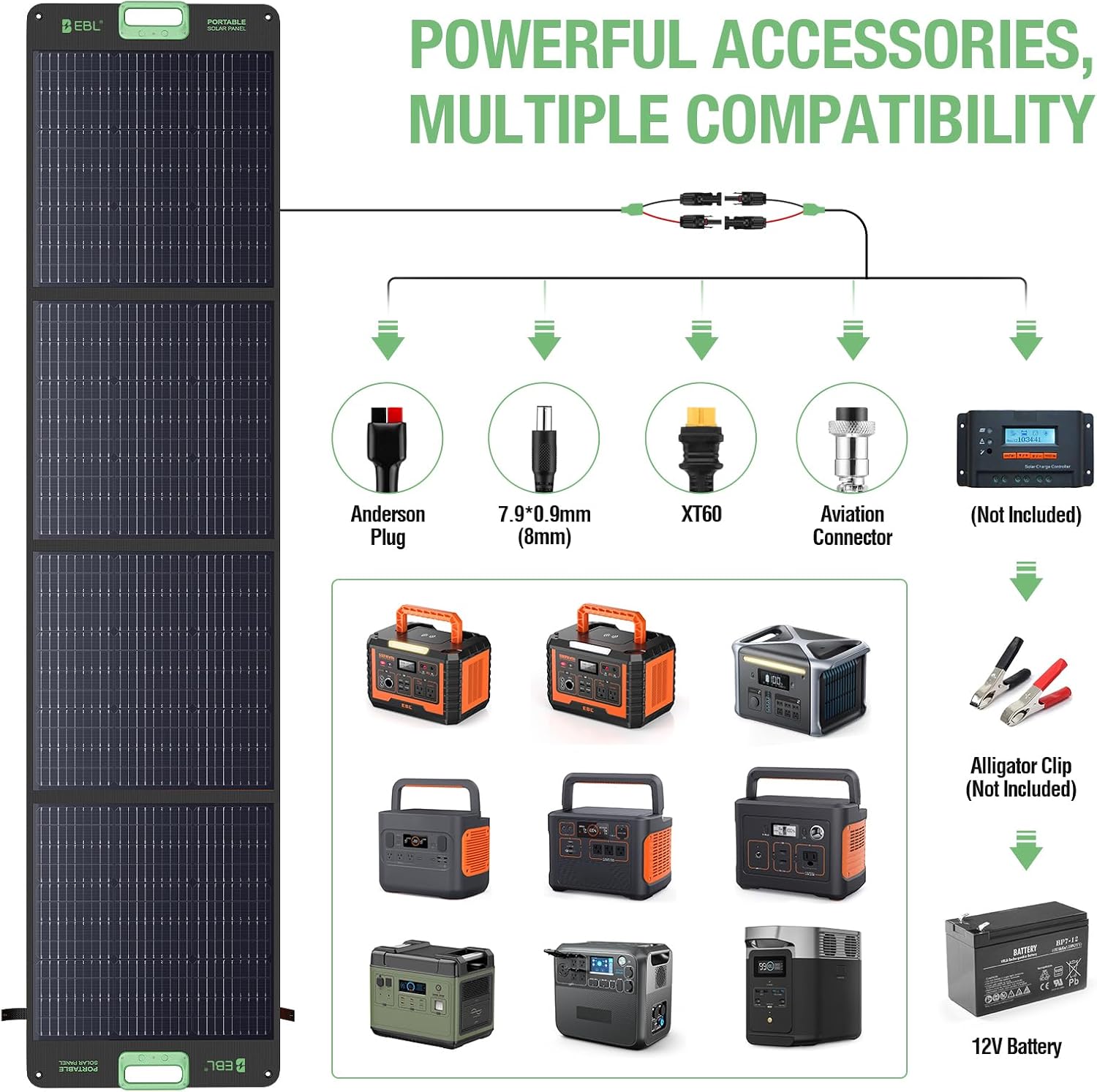

Image: Compatibility diagram showing various connectors and compatible devices.
Image: Connection diagram for two solar panels in parallel to a power station.
6. Operating Instructions
- Optimal Placement: For best performance, place the solar panel in direct sunlight, free from shadows from trees, buildings, or other obstructions. Even partial shading can significantly reduce power output.
- Angle Adjustment: Adjust the angle of the solar panel periodically to face the sun directly. A 45-degree angle is often recommended for general use, but the optimal angle varies with latitude and time of day/year.
- Monitor Charging: Observe the charging indicator on your connected power station or charge controller to confirm that power is being received from the solar panel.
- Environmental Factors: Power output can be affected by weather conditions (cloudiness, haze), temperature, and the cleanliness of the panel surface.
Image: Solar panel in an outdoor setting, connected to a power station.
Image: A user setting up the solar panel and connecting it to a power station in an outdoor environment.
Video: Demonstrates connecting the EBL 200W Portable Solar Panel to a power station via PV input and DC input, highlighting wide compatibility.
7. Maintenance
- Cleaning: Regularly clean the surface of the solar panel with a soft, damp cloth to remove dust, dirt, and debris. Avoid abrasive cleaners or harsh chemicals that could damage the panel's surface.
- Inspection: Periodically inspect the panel for any physical damage, such as cracks, scratches, or frayed cables. Ensure all connections are tight and free from corrosion.
- Storage: When not in use, fold the solar panel and store it in a dry, cool place, away from direct sunlight and extreme temperatures. Utilize the integrated storage pocket for cables.
- Avoid Obstructions: Ensure no objects are placed on the panel during storage or transport that could cause pressure or damage.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No power output / Low power output |
|
|
| Panel not charging device |
|
|
9. Specifications
| Feature | Detail |
|---|---|
| Model Number | ESP-200 |
| Maximum Power | 200 Watts |
| Cell Type | Monocrystalline Silicon |
| Efficiency | Up to 23.5% |
| Material | Aluminum, Monocrystalline Silicon, Tempered Glass, PET Laminate |
| Item Weight | 9.23 kg (approx. 20.35 lbs) |
| Folded Dimensions | 23.11" x 22.76" x 1.4" (approx.) |
| Unfolded Dimensions | 85.83" x 22.83" x 0.6" (approx.) |
| Manufacturer | Gaotu New Energy Technology (Shenzhen) Co., Ltd |
Image: Weight and dimensions of the EBL 200W Portable Solar Panel.
10. Warranty and Support
EBL products are designed and manufactured to the highest quality standards. For information regarding warranty coverage, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official EBL website.
You can also contact EBL customer support directly for assistance with any issues or questions you may have about your EBL 200W Portable Solar Panel.
EBL Official Website: www.eblofficial.com
