Vector Optics Tauron 4-16x44 FFP Rifle Scope User Manual

1. Safety Information

Always handle firearms and optics responsibly. Failure to follow safety guidelines can result in serious injury or death.

• Always ensure the firearm is unloaded and pointed in a safe direction before handling the scope or making adjustments.
• Wear appropriate eye and ear protection when using a firearm.
• Do not look directly at the sun or any intense light source through the scope, as this can cause permanent eye damage.
• Keep the scope and its accessories out of reach of children.

2. Package Contents

The Vector Optics Tauron 4-16x44 FFP Rifle Scope package typically includes the following items:

• Vector Optics Tauron 4-16x44 FFP Rifle Scope
• 34mm Scope Rings (High Profile Picatinny, 1.59 inch height)
• Flip-up Lens Caps
• Sunshade
• Lens Cleaning Pen with Brush and Felt Pad
• Chamois Cleaning Cloth
• Allen Key for installation
• Scope Leveling Kit (Aluminum)
• User Manual and Specification Card

3. Product Overview

The Vector Optics Tauron 4-16x44 First Focal Plane (FFP) Rifle Scope is designed for precision shooting, offering clear optics and robust construction for various tactical and hunting applications.

Figure 3.1: Overview of the Vector Optics Tauron 4-16x44 FFP Rifle Scope.

Key Features:

• First Focal Plane (FFP): The reticle scales with magnification, allowing for accurate rangefinding and holdovers at any power setting.
• 4-16x Magnification: Versatile zoom range for mid- to long-range engagements.
• 44mm HD Objective Lens: Fully multi-coated lenses provide excellent light transmission, clarity, and sharp images, especially in low-light conditions.
• 34mm Main Tube: Durable construction for enhanced elevation and windage adjustment range.
• Precise 1/4 MOA Adjustments: Audible and tactile clicks for accurate and repeatable adjustments.
• Zero-Stop Elevation Turret: Allows for quick return to a pre-set zero point.
• 6-Level Illumination: Adjustable reticle illumination for varying light conditions.
• IP67 Water & Fog Resistant: Ensures reliable performance in harsh weather.
• 1000G Shock-Tested: Built to withstand significant recoil and impact.

Product Video Introduction:

4. Setup

4.1 Mounting the Scope

Proper mounting is crucial for accuracy and consistent performance. Use the included 34mm high-profile Picatinny rings.

1. Ensure the firearm is unloaded and safe.
2. Attach the scope rings to your Picatinny rail, ensuring proper eye relief for your shooting position.
3. Place the scope into the bottom halves of the rings.
4. Install the top halves of the rings, tightening the screws evenly. Refer to the torque specifications provided on the rings (e.g., 65 in-lb for cross bolts, 25 in-lb for top cap screws) to prevent damage.
5. Use the included leveling kit to ensure the reticle is perfectly level with the firearm.

4.2 Initial Zeroing

After mounting, an initial zeroing process is recommended before live firing.

1. Use a bore-sighting device or visually bore-sight the scope at a short distance (e.g., 25 yards).
2. Adjust the elevation and windage turrets to align the reticle with the bore-sighted point.
3. Proceed to a shooting range for fine-tuning at your desired zero distance (e.g., 100 yards).

5. Operating Instructions

5.1 Magnification Adjustment

The scope features a 4-16x magnification range. Rotate the magnification ring, typically located near the eyepiece, to adjust the zoom level. The integrated throw lever assists in quick adjustments.

5.2 Reticle Illumination

The reticle offers 6 levels of illumination for optimal visibility in various lighting conditions. The illumination control is usually integrated with the parallax knob or a separate dial.

5.3 Parallax Adjustment

The side focus knob adjusts parallax, eliminating apparent movement between the reticle and the target. Adjust the parallax from 10 yards to infinity until the target and reticle appear sharp and in the same focal plane.

5.4 Elevation and Windage Turrets

The scope features exposed elevation and capped windage turrets with 1/4 MOA per click adjustments.

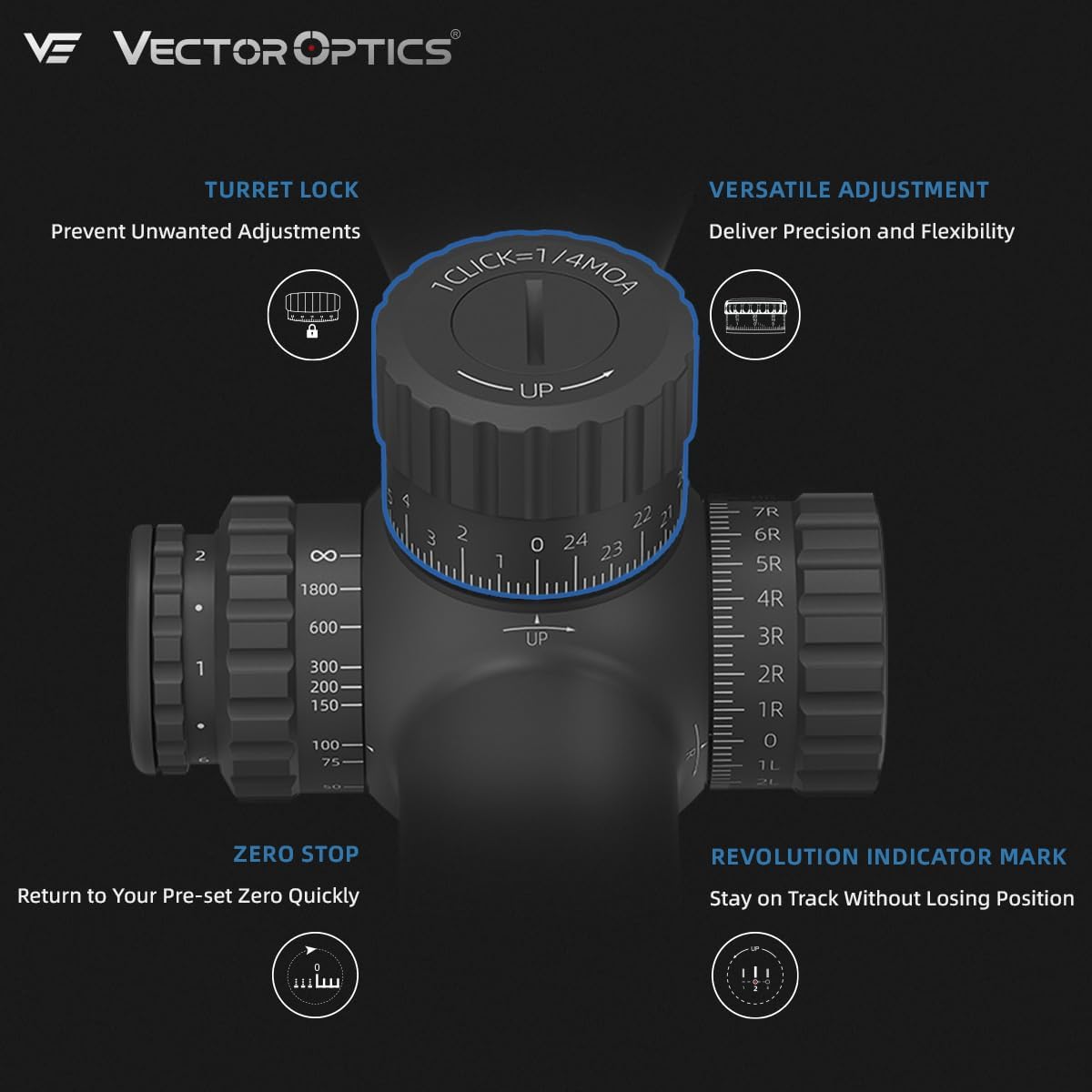

Figure 5.1: Detailed view of the elevation and windage turrets, highlighting the zero stop and revolution counter features.

• Elevation Turret: The exposed elevation turret allows for quick vertical adjustments. It includes a revolution counter to track the number of full rotations, ensuring you know your exact dial-up.
• Zero-Stop: To set the zero stop, loosen the top cap of the elevation turret, rotate the inner mechanism to your desired zero, and then re-tighten the cap. This prevents dialing below your established zero.
• Windage Turret: The windage turret is capped to prevent accidental adjustments. Remove the cap to make horizontal adjustments.

5.5 Reticle (VTA-4 MOA)

The VTA-4 MOA reticle is a First Focal Plane (FFP) design, meaning its subtensions remain accurate across all magnification settings. This allows for precise rangefinding, ballistic holdovers, and windage corrections.

Figure 5.2: Diagram illustrating the VTA-4 MOA reticle with its various markings for ranging and holdovers.

6. Maintenance

6.1 Cleaning the Lenses

To maintain optical clarity, regularly clean the objective and ocular lenses.

1. Use the brush end of the lens pen to gently remove any loose dust or debris.
2. Use the chamois cloth or the felt pad of the lens pen to wipe the lens surfaces in a circular motion.
3. For stubborn smudges, breathe lightly on the lens to create condensation before wiping. Avoid using harsh chemicals or abrasive materials.

6.2 General Care and Storage

• Keep the scope protected with the included lens caps when not in use.
• Store the scope in a cool, dry place, away from direct sunlight and extreme temperatures.
• Periodically check all mounting screws for tightness to ensure the scope remains securely mounted.

7. Troubleshooting

If you encounter issues with your scope, refer to the following common troubleshooting steps:

8. Specifications

Detailed technical specifications for the Vector Optics Tauron 4-16x44 FFP Rifle Scope:

Figure 8.1: Comprehensive specifications table for the Tauron SCFF-80 model.

9. Warranty and Support

Vector Optics offers a transferable lifetime warranty on their products, ensuring peace of mind for your investment.

For technical support, warranty claims, or any inquiries regarding your Vector Optics Tauron scope, please refer to the contact information provided in your product packaging or visit the official Vector Optics website.
