Introduction
Thank you for choosing the Redroad X18 Cordless Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before first use and keep it for future reference.
Important Safety Instructions
When using an electrical appliance, basic precautions should always be followed, including the following:
- Read all instructions before using this vacuum cleaner.
- Do not use outdoors or on wet surfaces.
- Do not allow to be used as a toy. Close attention is necessary when used by or near children.
- Use only as described in this manual. Use only manufacturer’s recommended attachments.
- Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- Do not handle plug or vacuum cleaner with wet hands.
- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Use extra care when cleaning on stairs.
- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not pick up toxic material, such as chlorine bleach, ammonia, or drain cleaner.
- Do not use without dust cup and/or filters in place.
- Turn off all controls before unplugging.
- Use only the charger supplied by the manufacturer to recharge.
- Store the appliance indoors.
Package Contents
Carefully unpack your Redroad X18 Cordless Vacuum Cleaner and check that all items are present and in good condition. If any items are missing or damaged, please contact customer support.
Image: All included accessories for the Redroad X18 Cordless Vacuum Cleaner.
- Cordless vacuum cleaner main unit (includes 1600ml dust cup) × 1
- Motorized Floor Brush × 1
- 2-in-1 Telescopic Brush × 1
- Narrow Gap Brush × 1
- Flat-Mouth Sofa Brush × 1
- Charger × 1
- HEPA Filter × 1 (pre-installed or spare)
- Removable battery × 1
- Telescopic Vacuum Tube × 1
- Stainless Filter × 1 (pre-installed or spare)
- Vacuum Cleaner Wall Mount × 1
- User Manual × 1
Product Overview
Familiarize yourself with the main components of your Redroad X18 vacuum cleaner.

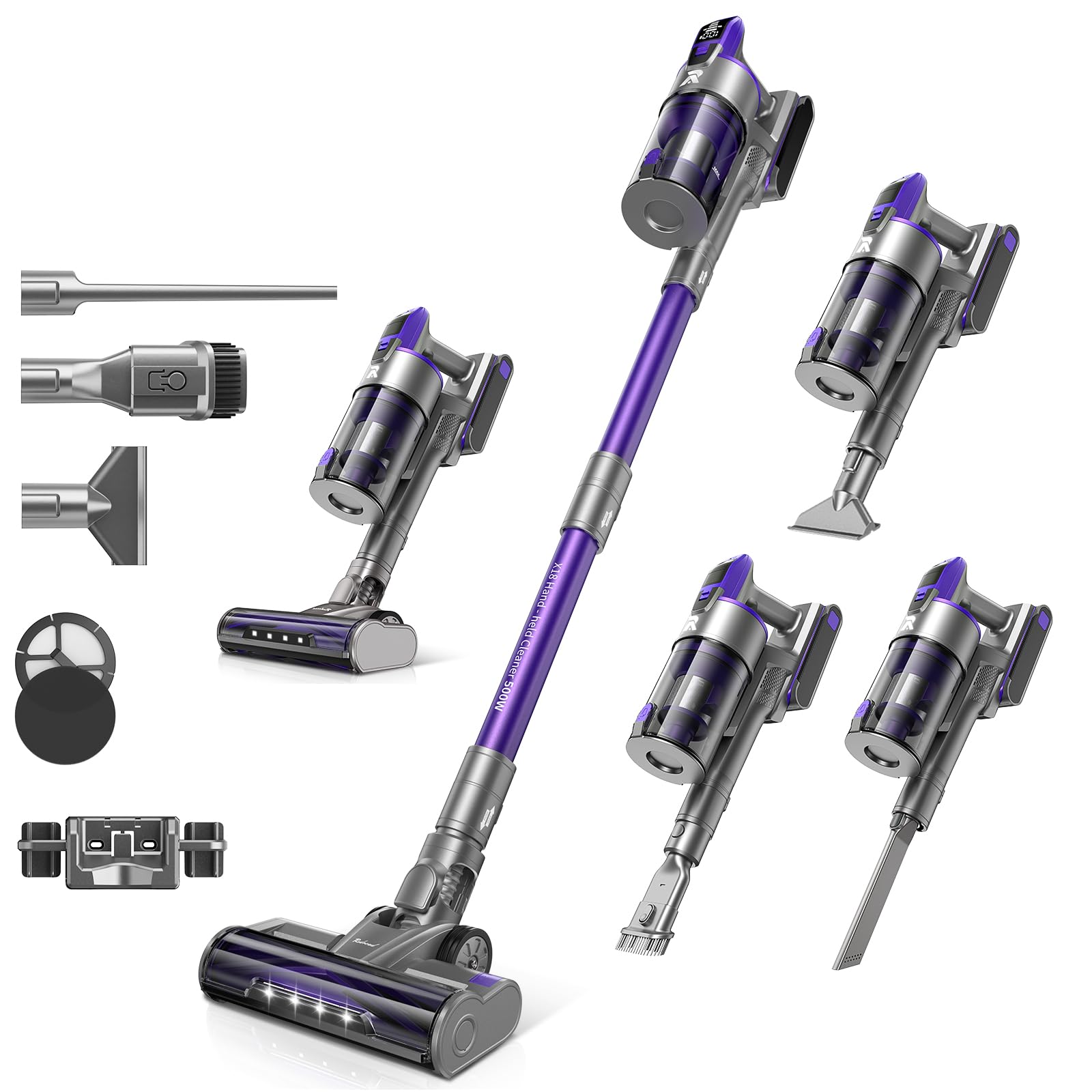

Image: The Redroad X18 Cordless Vacuum Cleaner fully assembled.
Key Components:
- Main Unit: Contains the motor, dust cup, and control panel.
- Removable Battery: Provides power for cordless operation.
- Telescopic Vacuum Tube: Connects the main unit to the floor brush or other attachments.
- Motorized Floor Brush: Features V-shaped bristles and LED lights for effective cleaning on various surfaces.
- Dust Cup: Collects dust and debris, with a 1.6L capacity and one-touch empty design.
- Filtration System: Multi-layer system including stainless steel filter, multi-cone filtration, primary filter cotton, and HEPA filter.
Setup
Assembly:
Assemble the vacuum cleaner according to your cleaning needs. The modular design allows for various configurations.
Image: The Redroad X18 vacuum cleaner shown in stick, handheld, and extended handheld configurations.
- Attach the Telescopic Tube: Insert one end of the telescopic tube into the main unit until it clicks into place.
- Attach the Floor Brush: Connect the motorized floor brush to the other end of the telescopic tube.
- Install Battery: Ensure the removable battery is fully charged, then slide it into the designated slot on the main unit until it locks.
- Attach Accessories (Optional): For handheld use, attach the 2-in-1 telescopic brush, narrow gap brush, or flat-mouth sofa brush directly to the main unit or the telescopic tube.
Charging the Battery:
Before first use, fully charge the battery. The battery can be charged while attached to the main unit or separately.
Image: The Redroad X18 vacuum cleaner mounted on its wall charger.
- Connect the charger to a power outlet.
- Plug the charger into the charging port on the main unit or directly into the removable battery.
- The charging indicator will illuminate. A full charge takes approximately 4 hours.
- Once fully charged, the indicator will change, and the vacuum is ready for use.
Operating Instructions
Powering On/Off:
Press the power button on the main unit to turn the vacuum cleaner on or off.
Adjusting Suction Modes:
The Redroad X18 features 4 adjustable suction modes to suit different cleaning tasks and surfaces.
Image: The Redroad X18 in use, demonstrating AI Micro-Dust Perception Technology and 4 suction levels.
- Press the mode selection button on the control panel to cycle through the available suction levels.
- The AI Micro-Dust Perception Technology can automatically adjust suction power based on detected dust levels, optimizing cleaning efficiency and battery life.
Using Different Attachments:
The Redroad X18 is versatile for various cleaning scenarios.
Image: The Redroad X18 used in various configurations for different cleaning tasks.
- Motorized Floor Brush: Ideal for carpets, hardwood, tile, and marble floors. The integrated LED lights illuminate dark areas.
- 2-in-1 Telescopic Brush: Suitable for cleaning upholstery, curtains, and delicate surfaces.
- Narrow Gap Brush: Perfect for reaching tight corners, crevices, and car interiors.
- Flat-Mouth Sofa Brush: Designed for cleaning sofas, mattresses, and other fabric surfaces.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.
Emptying the Dust Cup:
Empty the dust cup regularly, especially when the MAX line is reached, to maintain suction power.
Image: Demonstrating the one-touch dust cup emptying feature.
- Ensure the vacuum cleaner is turned off.
- Hold the main unit over a trash bin.
- Press the dust cup release button to open the bottom flap and empty the contents.
- Close the flap securely until it clicks.
Cleaning Filters:
The 18-layer precision filtration system includes washable filters. Clean them periodically to prevent clogging and maintain air quality.
Image: A hand washing a filter component under running water.
- Turn off the vacuum cleaner and remove the dust cup.
- Remove the stainless steel filter and the HEPA filter from the dust cup assembly.
- Rinse both filters under cool, running water until the water runs clear. Do not use detergents.
- Allow the filters to air dry completely for at least 24 hours before reassembling. Do not use a dryer or direct heat.
- Reinstall the dry filters and dust cup.
Cleaning the Roller Brush:
The anti-tangle design minimizes hair wrapping, but occasional cleaning of the roller brush is recommended.
Image: The V-shaped dual-layer roller brush designed to prevent hair tangling.
- Turn off the vacuum cleaner and detach the motorized floor brush.
- Locate the release tab or lock on the side of the brush head and open it to remove the roller brush.
- Use scissors or a brush to remove any tangled hair, threads, or debris from the roller brush.
- Wipe the brush housing with a dry cloth.
- Reinsert the roller brush and secure the release tab/lock.
Troubleshooting
If you encounter issues with your Redroad X18, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on. | Battery is not charged or not properly installed. | Ensure the battery is fully charged and correctly inserted into the main unit. |
| Low suction power. | Dust cup is full; filters are clogged; blockage in the tube or brush head. | Empty the dust cup. Clean or replace filters. Check for and remove any blockages in the telescopic tube or motorized floor brush. |
| Roller brush stops rotating. | Hair or debris tangled in the brush; brush head is blocked. | Turn off the vacuum and remove any obstructions from the roller brush. Refer to the "Cleaning the Roller Brush" section. |
| Battery runtime is shorter than expected. | Battery not fully charged; using high suction mode; battery degradation. | Ensure battery is fully charged. Use lower suction modes for longer runtime. If battery life significantly decreases, consider replacing the battery. |
| Vacuum makes unusual noise. | Blockage in airflow path; damaged component. | Check for and remove any blockages. If the noise persists, contact customer support. |
Specifications
Technical details for the Redroad X18 Cordless Vacuum Cleaner.
- Brand: Redroad
- Model Name: X18
- Suction Power: Up to 55,000Pa
- Motor: High-efficiency Brushless Motor (150,000 RPM)
- Filtration System: 18-Layer Precision Filtration with 12-cone cyclonic separation, Washable HEPA and Stainless Steel Filters
- Dust Cup Capacity: 1.6 Liters
- Battery: 8-cell High-capacity, Removable
- Runtime: Up to 70 minutes (on low mode)
- Charging Time: Approximately 4 hours
- Suction Modes: 4 levels, with AI Micro-Dust Perception Technology
- Noise Level: 72 dB
- Item Weight (Main Body): 1.77 kg (3.9 lbs)
- Power Source: Battery Powered
- Rated Wattage: 580 watts
- Recommended Surfaces: Hard Floor, Hardwood, Tile/Marble, Short Pile Carpet, Sofa
Warranty and Support
Your Redroad X18 Cordless Vacuum Cleaner comes with a comprehensive warranty and dedicated customer support.
- Warranty: This product is covered by a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use.
- Exclusions: The warranty does not cover damage caused by misuse, neglect, unauthorized modification, or normal wear and tear.
- Customer Support: For any inquiries, technical assistance, or warranty claims, please contact our official after-sales team. Refer to the contact information provided on the Redroad website or your purchase documentation.
