Introduction
This manual provides essential instructions for the safe assembly, operation, and maintenance of your MERITLINE Queen Farmhouse Murphy Bed with LED. Please read all instructions carefully before beginning assembly or use. Retain this manual for future reference.
Safety Information
- Always assemble and use the bed according to the provided instructions.
- Keep the bed folded up when not in use to prevent entrapment.
- Do not allow children to play on or around the bed.
- This bed is intended for adult use only and may not be suitable for children or infants.
- Ensure the bed is securely mounted to wall studs as instructed to prevent tipping.
- Do not exceed the maximum weight capacity of 500 lbs (226.8 kg).
Setup and Assembly
Assembly of the MERITLINE Queen Farmhouse Murphy Bed is required. An installation instruction manual with clear illustrations is shipped with the product. For optimal safety and ease, two people are recommended to complete the installation, which typically takes approximately 1 hour.
Key Assembly Steps and Tips:
- Wall Mounting: It is crucial to mount the Murphy bed securely to wall studs. This ensures stability and prevents the unit from tipping.
- Piston Installation: When installing the pistons, allow the bed frame to lay back into the cabinet box. This position provides the correct geometry for bolting the pistons into place.
- Hardware: Carefully check all included hardware against the parts list in your separate assembly manual. If any screws seem too short or are difficult to tighten, consider using higher quality replacements or wood glue for added reinforcement, especially in critical structural areas.
- Pre-drilled Holes: Verify that all pre-drilled holes are clear and fully open before attempting to insert screws or dowels. You may need to clear any obstructions.
Image: Dimensional diagram of the Murphy bed, illustrating overall length, width, and height in the unfolded position.
Image: Front view of the Murphy bed unfolded, displaying the bed frame and wooden slats.
Operating Instructions
The MERITLINE Queen Farmhouse Murphy Bed is designed for flexible living spaces, transforming from a compact cabinet to a comfortable queen-size bed with simple movements.
Folding and Unfolding the Bed:
- To Unfold: Ensure the area in front of the cabinet is clear of obstructions. Release any latches or locking mechanisms securing the bed in its vertical position. Gently pull the bed frame downwards. The hydraulic pistons will assist in a smooth, controlled descent until the bed is fully extended and the support legs are in place.
- To Fold: Remove all bedding and pillows from the bed. Lift the bed frame upwards, guiding it back into the cabinet. The pistons will assist in lifting the bed. Once vertical, secure the bed with the locking mechanisms to prevent accidental unfolding.
Using the LED Lights:
The integrated LED lights provide both ambiance and functionality. Locate the switch or sensor for the LED lights, typically positioned on the top or side of the cabinet. Activate the lights to create a cozy atmosphere or use them as a night light for safe movement in the dark.
Image: The Murphy bed unfolded in a bedroom setting, showcasing the LED lighting feature.

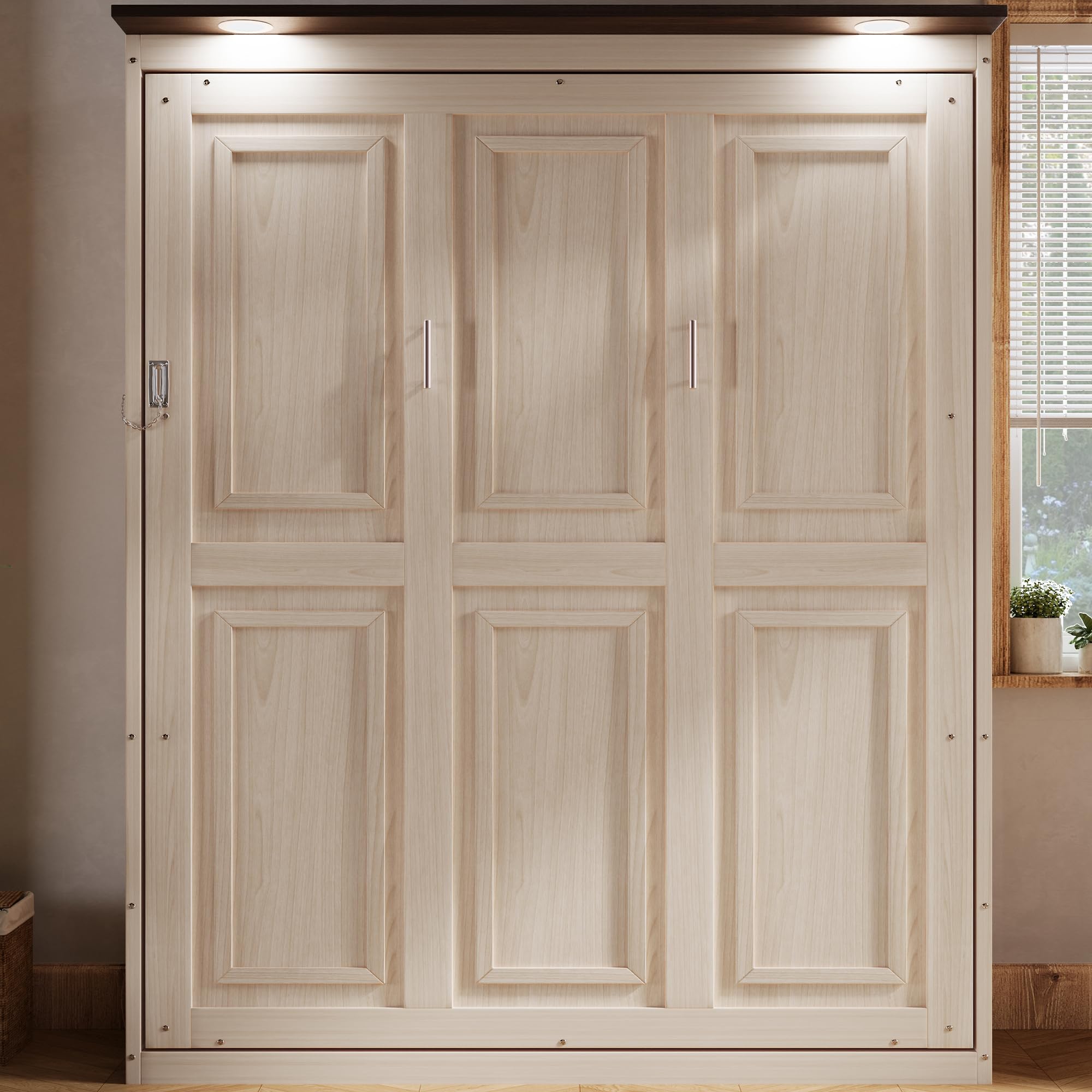

Image: Front view of the Murphy bed in its folded cabinet configuration, blending into the room decor.
Maintenance
Proper care and maintenance will ensure the longevity and continued functionality of your Murphy bed.
- Cleaning: Wipe down wood surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
- Hardware Check: Periodically inspect all screws, bolts, and connections to ensure they are tight. Re-tighten as necessary.
- Piston Functionality: If the bed becomes difficult to fold or unfold, check the hydraulic pistons for any signs of wear or damage. Do not attempt to repair damaged pistons yourself; contact customer support.
- LED Lights: If LED lights stop working, check the power connection. If the issue persists, contact customer support.
Troubleshooting
If you encounter issues with your Murphy bed, refer to the following common problems and solutions:
| Problem | Possible Cause / Solution |
|---|---|
| Bed is unstable or wobbly when unfolded. | Ensure the bed is securely mounted to wall studs. Check all assembly hardware for tightness. Verify support legs are fully extended and locked. |
| Difficulty folding or unfolding the bed. | Check for any obstructions. Ensure pistons were installed correctly (refer to assembly manual). If pistons are damaged, contact customer support. |
| LED lights are not working. | Verify the power connection is secure. Check the light switch/sensor. If the issue persists, contact customer support. |
| Visible gaps or misaligned panels. | Review assembly instructions to ensure all panels are correctly aligned and secured. Minor adjustments may be possible. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | N7090002234A |
| Brand | MERITLINE |
| Size | Queen |
| Style | Farmhouse |
| Color | Beige |
| Frame Material | Pine Wood + MDF |
| Special Features | LED, Vertical Murphy Bed |
| Overall Product Dimensions (L x W x H) | 88"L x 64"W x 87.5"H (unfolded) |
| Recommended Mattress Thickness | 8-10 inches |
| Weight Capacity | 500 lbs (226.8 kg) |
| Assembly Required | Yes |
| Included Components | Slat |
Warranty and Support
Your MERITLINE Queen Farmhouse Murphy Bed comes with a 12-month limited warranty from the date of purchase. This warranty covers manufacturing defects under normal use.
If you encounter any problems with your item, require assistance with assembly, or have questions regarding its operation or maintenance, please do not hesitate to contact MERITLINE customer service. We aim to reply to all inquiries within 24 hours.
For customer support, please refer to the contact information provided in your product packaging or visit the official MERITLINE store page on Amazon: MERITLINE Store
