Ironton 5-Drawer Rolling Cabinet User Manual

Introduction

Thank you for choosing the Ironton 5-Drawer Rolling Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new tool storage solution. Please read these instructions thoroughly before use and retain them for future reference. Proper understanding and adherence to these guidelines will ensure optimal performance and longevity of your cabinet.

Safety Information

Always observe basic safety precautions when using this product to reduce the risk of injury or damage. This cabinet is designed for tool storage and organization. Do not use it for purposes other than its intended use.

• Weight Capacity: Do not exceed the maximum weight capacity of 75 lbs per drawer or the overall cabinet capacity of 375 lbs. Overloading can cause instability and damage.
• Stability: Always close all drawers before moving the cabinet to prevent tipping. Avoid opening more than one drawer at a time, especially when drawers are heavily loaded.
• Placement: Position the cabinet on a level, stable surface. Ensure casters are locked when the cabinet is stationary to prevent unintended movement.
• Children and Pets: Keep children and pets away from the cabinet, especially during assembly and when drawers are open.
• Maintenance: Regularly inspect the cabinet for loose parts, damage, or wear. Do not use if damaged.

Package Contents

Verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, contact Ironton customer support.

• 1 x Ironton 5-Drawer Rolling Cabinet
• 4 x Heavy-Duty Swivel Casters (3in. x 1.8in.)
• 1 x Side Handle
• Drawer Liners (pre-installed or included separately)
• Assembly Hardware (bolts, washers, nuts for casters and handle)
• Keys for locking mechanism

Assembly and Setup

Assembly of the Ironton 5-Drawer Rolling Cabinet is straightforward and typically involves attaching the casters and the side handle.

1. Prepare the Cabinet: Carefully unbox the cabinet. It is recommended to lay the cabinet on its back on a soft, protective surface to avoid scratching the finish during caster installation.
2. Attach Casters: Locate the mounting holes on the bottom corners of the cabinet. Align each caster with the holes and secure them using the provided bolts, washers, and nuts. Ensure all casters are tightened securely.
3. Attach Side Handle: Locate the mounting holes on one side of the cabinet. Align the side handle and secure it with the provided hardware.
4. Upright the Cabinet: With assistance, carefully return the cabinet to an upright position.
5. Lock Casters: Engage the locking mechanism on the two swivel casters to prevent the cabinet from rolling during initial loading.

Image: A detailed view of the four 3-inch by 1.8-inch heavy-duty swivel casters, designed for smooth and easy movement of the cabinet.

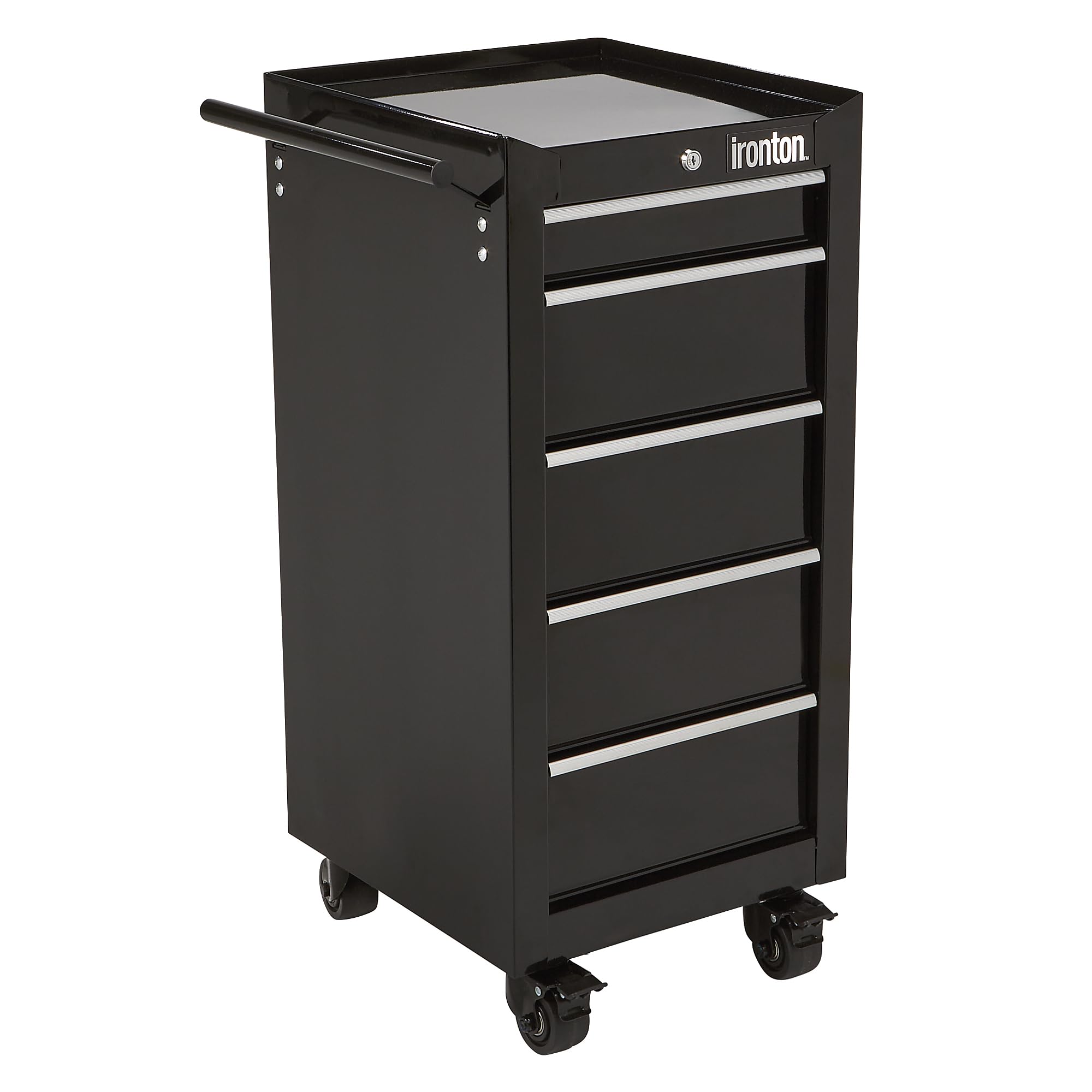

Image: A front view of the Ironton 5-Drawer Rolling Cabinet, showcasing its five drawers and the side handle for maneuverability.

Operation

The Ironton 5-Drawer Rolling Cabinet is designed for efficient and secure storage of your tools.

• Drawer Operation: Each drawer features smooth ball-bearing slides with a soft-close mechanism. To open, gently pull the drawer handle. To close, push the drawer until the soft-close mechanism engages, preventing slamming.
• Loading Drawers: Distribute weight evenly within each drawer. Do not exceed the 75-lb capacity per drawer. The included drawer liners help prevent tools from shifting and protect the drawer's interior.
• Mobility: To move the cabinet, unlock the swivel casters. Use the side handle to guide the cabinet to your desired location. Once in position, lock the swivel casters to secure the cabinet.
• Locking Mechanism: Use the provided keys to lock the top drawer, which secures all drawers simultaneously. Ensure the top drawer is fully closed before attempting to lock.

Image: A close-up view of the soft-close ball-bearing drawer slides, which ensure smooth operation and reduce wear.

Image: The cabinet with all five drawers partially open, illustrating their reliable strength and capacity to hold up to 75 lbs each.

Image: An open drawer revealing the protective liner, which helps keep tools securely in place and minimizes shifting.

Maintenance

Regular maintenance will help preserve the appearance and functionality of your Ironton Rolling Cabinet.

• Cleaning: Wipe down the exterior with a soft, damp cloth. For stubborn dirt, a mild soap solution can be used. Avoid abrasive cleaners or solvents that could damage the powder-coat finish.
• Drawer Slides: Periodically check the ball-bearing drawer slides for smooth operation. If they become stiff, a light application of silicone lubricant can be applied.
• Casters: Inspect casters regularly for debris accumulation or damage. Clean as needed and ensure they roll freely and lock securely.
• Hardware: Periodically check all bolts and fasteners for tightness and re-tighten if necessary.

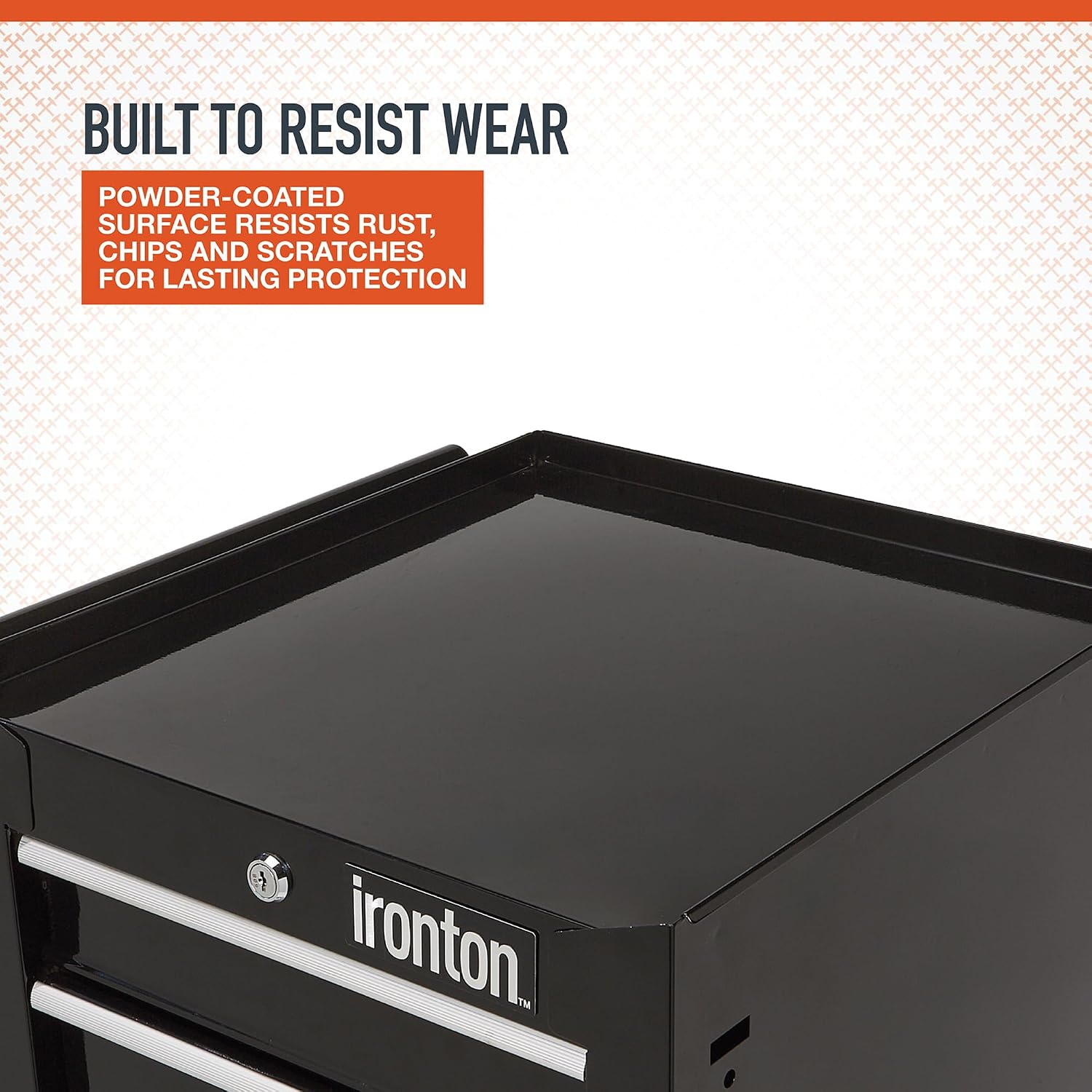

Image: This image shows the powder-coated surface of the cabinet, which resists rust, chips, and scratches for lasting protection.

Troubleshooting

Here are solutions to common issues you might encounter:

• Drawers are stiff or difficult to open/close: Check for obstructions inside the drawer or along the slides. Ensure the cabinet is on a level surface. Apply a silicone lubricant to the drawer slides if needed.
• Cabinet is wobbly: Ensure the cabinet is on a level surface. Check that all caster bolts are securely tightened.
• Cabinet does not roll smoothly: Check casters for debris (e.g., string, hair) wrapped around the wheels. Ensure caster locks are disengaged.
• Locking mechanism is not working: Ensure the top drawer is fully closed before attempting to lock. Check if the key turns freely. Do not force the lock.

Specifications

Image: This image illustrates the overall dimensions of the Ironton 5-Drawer Rolling Cabinet, measuring 16.77 inches wide, 37.4 inches high, and 18 inches deep.

Warranty and Support

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact Ironton customer service directly. Keep your purchase receipt as proof of purchase.

Manufacturer: Ironton
