FOHERE GPM-890 Popcorn Machine 4L User Manual

Introduction

Thank you for purchasing the FOHERE GPM-890 Popcorn Machine. This manual provides important information regarding the safe operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before operating this appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

Product Overview

The FOHERE GPM-890 Popcorn Machine is designed for convenient and efficient popcorn preparation. It features a 4-liter capacity and incorporates several user-friendly elements.

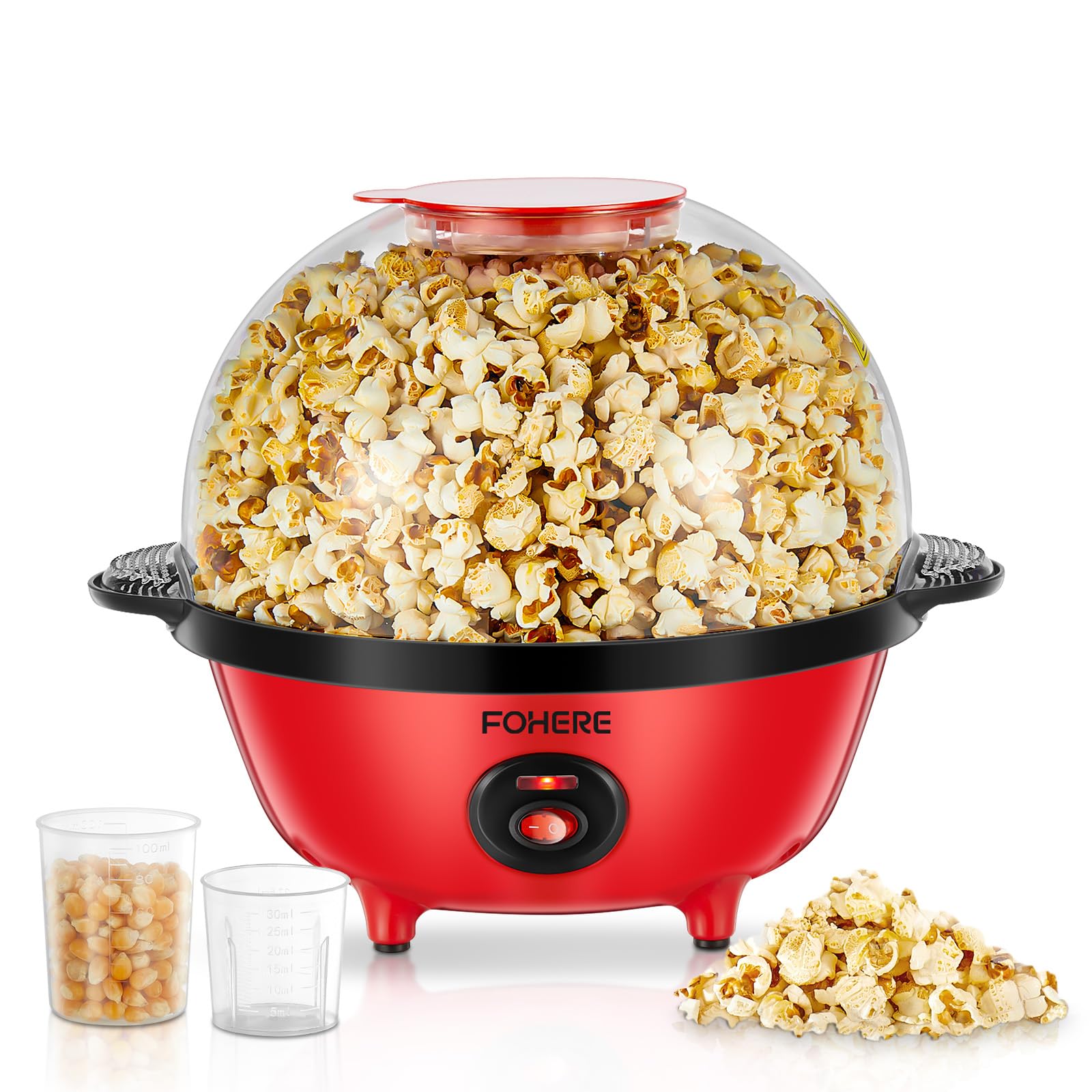

Figure 1: FOHERE GPM-890 Popcorn Machine. This image shows the complete popcorn machine with its red base, clear top cover, and the internal stirring mechanism visible.

Components:

• Main Unit: The primary body of the popcorn machine, housing the heating element and motor.
• Clear Top Cover: A transparent lid that allows you to observe the popping process and contains the popcorn.
• Non-stick Popping Plate: The surface where corn kernels are heated and popped, designed for easy cleaning.
• Built-in Mixing System: An internal stirring arm that ensures even heating and popping of kernels.
• Cool Touch Handle: For safe handling of the machine, even during operation.
• Corn Kernel Measuring Cup: For precise measurement of popcorn kernels.
• Oil/Butter Measuring Cup: For measuring oil and melting butter.

Setup and First Use

1. Unpack the popcorn machine and all its components.
2. Remove any packaging materials, stickers, or labels.
3. Wipe the non-stick popping plate and the clear top cover with a damp cloth. Ensure all parts are completely dry before use.
4. Place the popcorn machine on a stable, flat, heat-resistant surface, away from water sources.
5. Ensure the power cord is not tangled and is positioned safely to avoid tripping hazards.

Operating Instructions

Follow these steps to make delicious popcorn:

1. Prepare Ingredients: Use the provided measuring cup to add the desired amount of popcorn kernels (up to 110 grams) to the non-stick popping plate.
2. Add Oil (Optional): If desired, add a small amount of cooking oil (e.g., vegetable oil, coconut oil) to the popping plate. Use the oil measuring cup for guidance. The built-in mixing system will distribute the oil evenly.
3. Place Cover: Securely place the clear top cover onto the main unit.
4. Plug In and Turn On: Plug the power cord into a standard electrical outlet. Turn on the machine using the power switch (if available, otherwise it starts heating immediately).
5. Popping Process: The Quick-Heat Technology will rapidly heat the kernels. The built-in mixing system will continuously stir the kernels for optimal popping. Popcorn will begin to pop within a few minutes.
6. Collect Popcorn: Once popping slows down significantly (typically after 2-3 minutes), turn off the machine and unplug it. Carefully remove the clear top cover using the Cool Touch Handle.
7. Serve: Transfer the freshly popped popcorn to a serving bowl. You can add melted butter (melted in the oil/butter measuring cup on top of the cover during popping, if designed for that, otherwise melt separately) and seasoning as desired.
8. Cool Down: Allow the machine to cool completely before cleaning or storing.

Note: Do not operate the machine empty or for extended periods without kernels. Do not add sugar or other ingredients that could burn or damage the non-stick coating during popping.

Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the life of your popcorn machine.

1. Unplug and Cool: Always unplug the machine from the power outlet and allow it to cool completely before cleaning.
2. Clean Popping Plate: Wipe the non-stick popping plate with a soft, damp cloth. For stubborn residue, use a small amount of mild dish soap. Do not use abrasive cleaners or scouring pads, as these can damage the non-stick coating.
3. Clean Top Cover: Wash the clear top cover and measuring cups in warm, soapy water. Rinse thoroughly and dry completely.
4. Clean Exterior: Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water or any other liquid.
5. Storage: Store the clean and dry popcorn machine in a cool, dry place.

Caution: Never use harsh chemicals, steel wool, or abrasive cleaners, as they may damage the appliance's surfaces.

Troubleshooting

If you encounter issues with your popcorn machine, refer to the following common problems and solutions:

• Machine does not turn on:
  • Ensure the power cord is securely plugged into a working electrical outlet.
  • Check if the power switch (if present) is in the "ON" position.
  • Verify that the outlet is functional by plugging in another appliance.
• Popcorn does not pop or pops poorly:
  • Ensure you are using fresh popcorn kernels. Old or dry kernels may not pop effectively.
  • Do not overfill the popping plate; adhere to the recommended kernel amount (up to 110 grams).
  • Ensure the machine has preheated sufficiently (if applicable, though Quick-Heat is fast).
• Popcorn burns:
  • Do not leave the machine unattended during operation.
  • Turn off the machine immediately once popping slows down significantly.
  • Ensure the built-in mixing system is functioning correctly to prevent kernels from sitting in one spot.
• Excessive unpopped kernels:
  • Use fresh, high-quality popcorn kernels.
  • Ensure the correct amount of oil (if used) is added to aid heat transfer.
  • Verify the mixing system is working to ensure even distribution of kernels.

If the problem persists after trying these solutions, please contact customer support.

Specifications

Warranty and Support

FOHERE products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official FOHERE website.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact FOHERE customer service. Contact details can typically be found on the product packaging or the official brand website.

Online Resources: For additional product information and support, you may visit the FOHERE Brand Store on Amazon.
