Introduction
Thank you for choosing the AECOJOY 14' x 12' Wall-Mounted Hard Top Gazebo. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new outdoor structure. Please read these instructions thoroughly before beginning assembly and retain them for future reference.

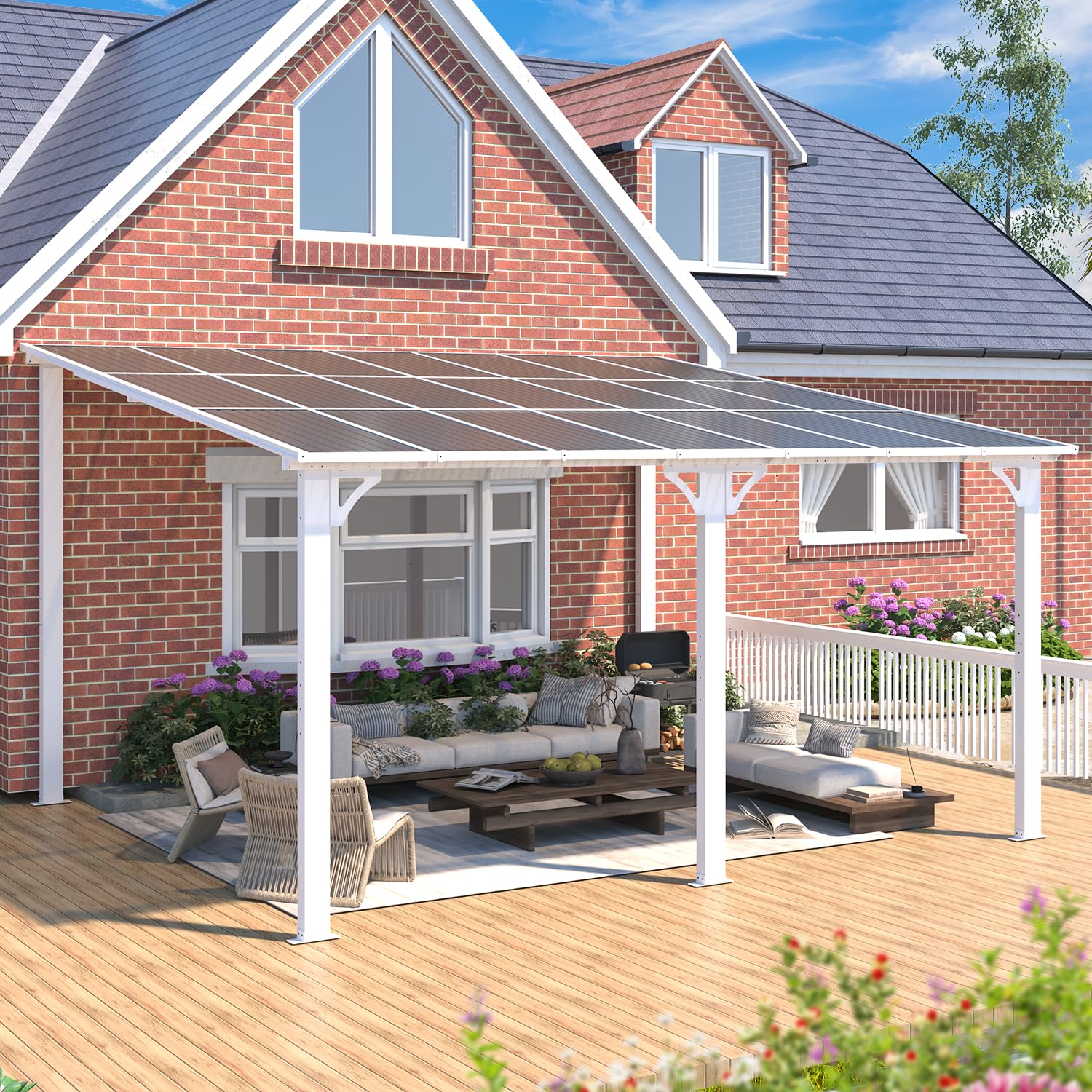

Image: The AECOJOY 14' x 12' Wall-Mounted Hard Top Gazebo providing shade over a patio seating area.
Safety Information
Important Safety Precautions:
- Always ensure the gazebo is securely fixed to the ground and properly stabilized before use.
- Do not attempt to install or use the product in high winds or heavy snow conditions without proper precautions.
- Consult the provided manual or contact our professional team for any safety-related concerns.
- Keep children and pets away from the assembly area.
- Wear appropriate safety gear, such as gloves and eye protection, during assembly.
Package Contents
Your AECOJOY Gazebo is shipped in multiple packages. Please ensure all packages have arrived before beginning assembly. Carefully unpack all components and verify against the parts list provided in your detailed manual. If any parts are missing or damaged, please contact customer support immediately.
Typical components include:
- Aluminum and Metal Frame Components
- Sun Panels (Roof Panels)
- Mounting Brackets and Hardware
- Fasteners (screws, bolts, washers)
- Instruction Manual
Setup and Installation
The AECOJOY Gazebo is designed for wall-mounted installation. While assembly is straightforward, it is recommended that two people perform the installation for safety and ease. Refer to the detailed assembly guide included in your package for step-by-step instructions and diagrams.
Pre-Installation Steps:
- Site Selection: Choose a flat, stable surface adjacent to a sturdy wall capable of supporting the gazebo's weight and anchoring.
- Clear Area: Ensure the installation area is clear of obstructions.
- Tool Preparation: Gather all necessary tools as specified in your manual (e.g., drill, level, measuring tape, wrenches).
- Part Identification: Lay out and identify all parts according to the provided parts list.
Assembly Overview:
- Frame Assembly: Connect the main frame components, including posts and beams, using the provided hardware.
- Wall Mounting: Securely attach the gazebo's wall-side frame to your chosen wall structure. The design includes multiple keyholes and stable frame legs with pre-drilled holes for secure mounting. Ensure proper anchoring for your specific wall material (e.g., wood, concrete).
- Roof Panel Installation: Install the sun panels onto the roof frame. These panels are designed for anti-UV, windproof, and rain protection.
- Ground Anchoring: Secure the base of the gazebo posts to the ground using appropriate anchors to ensure stability against wind.
Image: Detailed dimensions of the 14' x 12' hardtop gazebo, illustrating length, width, and height.
Image: Illustration of the triangular structure and multiple keyholes designed to enhance gazebo stability.
Image: Close-up of a stable frame leg, highlighting pre-drilled holes for easy and secure attachment to the ground or wall studs.
Operating Instructions
Your AECOJOY Gazebo is designed to provide a comfortable outdoor living space, offering protection from sun and various weather conditions.
- Sun Protection: The heavily tinted roof panels block harmful UV rays, providing UPF 50++ protection and reducing heat underneath.
- Weather Resistance: The inclined design and meticulous detailing ensure water resistance. The hard top is engineered to withstand approximately 7 inches of heavy snow (6 lbs/sq.ft) and winds up to 70 mph when securely installed.
- Drainage: The roof design facilitates smooth drainage of rainwater.
Image: Visual representation of the gazebo's performance in summer (UV protection) and winter (snow load capacity).
Image: Infographic highlighting key features such as anti-UV, fire resistance, waterproofing, smooth drainage, wind resistance, and heavy-duty frame construction.
Maintenance
Regular maintenance will extend the life and appearance of your gazebo.
- Cleaning: Clean the frame and roof panels periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish or panels.
- Inspection: Annually inspect all bolts, screws, and connections to ensure they are tight and secure. Tighten any loose fasteners.
- Snow Removal: While the roof is designed for snow load, it is advisable to remove excessive snow accumulation to prevent potential damage, especially during prolonged heavy snowfall.
- Drainage Check: Ensure the roof's drainage paths are clear of debris to prevent water pooling.
Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Water Leakage | Improperly installed roof panels; damaged seals; debris in drainage. | Ensure roof panels are correctly seated and seals are intact. Clear any debris from drainage channels. |
| Gazebo feels unstable | Insufficient anchoring; loose fasteners; improper wall attachment. | Verify all ground anchors are secure. Tighten all frame fasteners. Ensure wall attachment points are robust and correctly installed. |
| Missing Parts | Shipping error; overlooked during unpacking. | Double-check all packaging. Contact AECOJOY customer support with the specific part number from the manual. |
| Difficulty during assembly | Unclear instructions; complex step. | Refer to the detailed manual and diagrams. Consider seeking assistance from another person. Contact customer support for remote assistance. |
Specifications
| Feature | Detail |
|---|---|
| Brand | AECOJOY |
| Model Number | 16413WH |
| Product Dimensions (L x W x H) | 168"L x 144"W x 96"H (14' x 12' x 8') |
| Floor Area | 168 Square Feet |
| Item Weight | 221 Pounds |
| Frame Material | Metal & Aluminum |
| Roof Material | Sun Panels (Polycarbonate) |
| Water Resistance Level | Waterproof |
| Ultraviolet Light Protection | UPF 50++ |
| Snow Capacity | 6 lbs/sq.ft (approx. 7" of heavy snow) |
| Wind Resistance | Up to 70 mph (when securely fixed) |
| Assembly Required | Yes |
Warranty and Support
AECOJOY stands behind its products. We offer a one-year warranty on this item, covering maintenance and replacements for the product itself. Our professional technical team is available 24/7 to address any concerns related to installation, usage, or other product-related inquiries.
For assistance, please refer to the contact information provided in your product packaging or visit the AECOJOY store on Amazon. You can also reach out through the Amazon messaging system for prompt support.
