AECOJOY 16' x 8' Hard Top Lean-to Gazebo Instruction Manual

1. Introduction

This manual provides essential information for the safe and correct assembly, operation, and maintenance of your AECOJOY 16' x 8' Hard Top Lean-to Gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

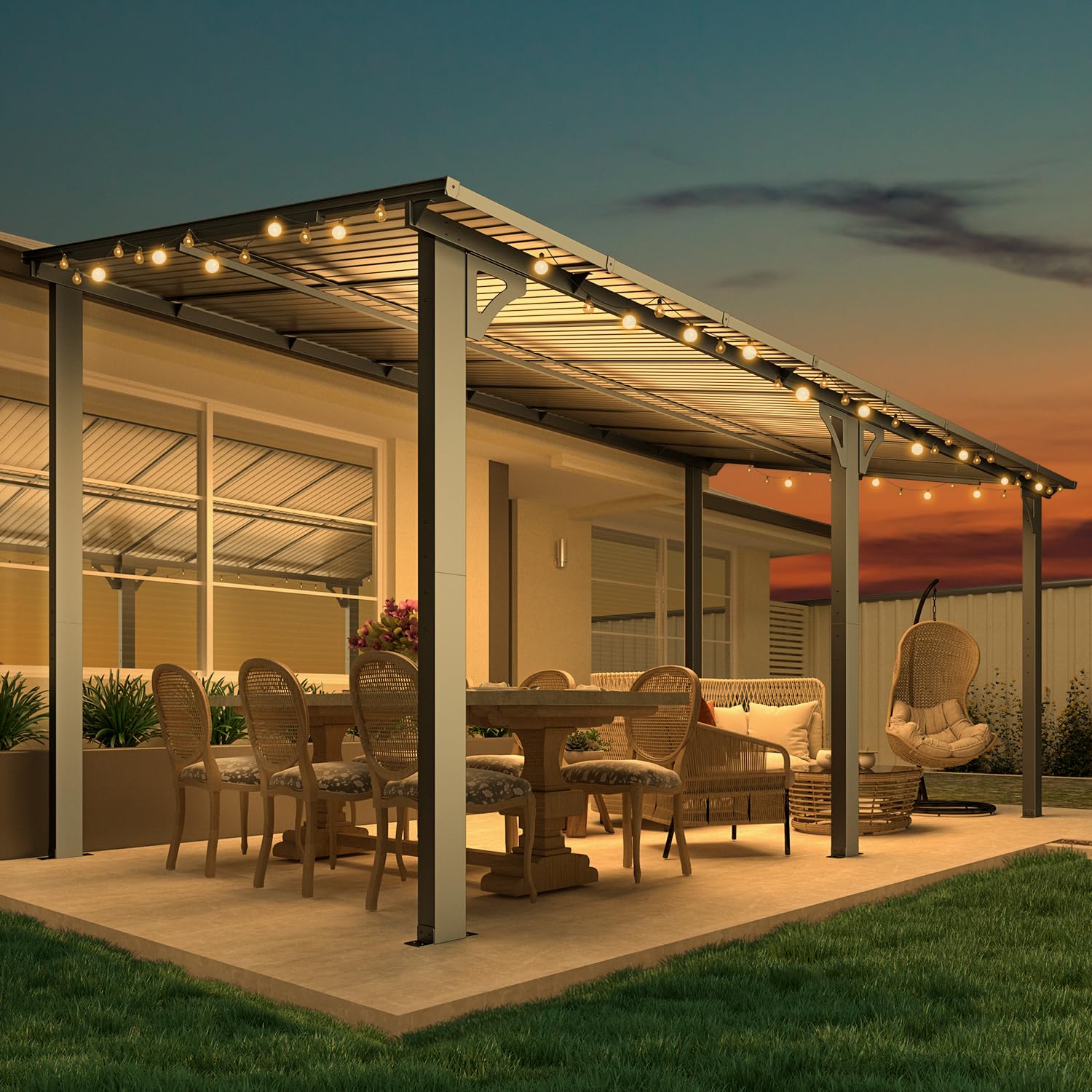

Figure 1: AECOJOY 16' x 8' Hard Top Lean-to Gazebo in a patio setting.

Safety Warnings

• Always secure the gazebo to a stable foundation before use.
• Do not attempt to install or use the product in high winds or heavy snow conditions without proper precautions.
• Ensure all components are correctly installed and tightened according to the assembly instructions to prevent instability.
• Regularly inspect the gazebo for any signs of wear or damage, especially after severe weather.

2. Setup and Installation

The AECOJOY gazebo is designed for wall-mounted installation. Follow the detailed instructions and diagrams provided in the separate assembly guide. For visual assistance, step-by-step video tutorials are available from the manufacturer.

Key Installation Steps:

1. Unpacking: The product typically arrives in multiple packages. Ensure all packages are received before starting assembly.
2. Component Identification: Refer to the parts list in your assembly guide to identify all components.
3. Frame Assembly: Construct the main frame, paying close attention to the triangular structures and multiple keyholes designed for enhanced stability.
4. Wall Mounting: The gazebo is designed to attach to a wall. All necessary accessories for wall attachment are provided. Securely fix the gazebo to a suitable wall structure.
5. Ground Stabilization: The base of each post features pre-drilled holes for attachment to any type of floor. Securely anchor the gazebo to the ground as instructed to withstand winds up to 70 mph.
6. Roof Panel Installation: Install the sun panels onto the roof frame.

Figure 2: Stable frame leg with pre-drilled holes for secure mounting to floor and wall studs.

Figure 3: Triangular structure and multiple keyholes contribute to gazebo stability.

Figure 4: Gazebo dimensions for planning installation space.

3. Operating Features

The AECOJOY Hard Top Lean-to Gazebo is designed to provide a protected outdoor space with several key features:

• Weather Resistance: The hard top roof is engineered to withstand approximately 7 inches of heavy snow (6 lbs/sq.ft) and wind speeds of around 70 mph when properly installed.
• Waterproof Design: An inclined roof design with meticulous detailing ensures complete water resistance, directing rainwater away efficiently.
• UV Protection: The awning roof provides comprehensive protection against harmful UV rays, with a UPF 50++ rating.
• Durable Materials: Constructed with a metal and aluminum frame and sun panels for longevity.

Figure 5: Gazebo performance in summer (UV protection) and winter (snow capacity).

Figure 6: Roof panel features including anti-UV, waterproof, and windproof capabilities.

4. Maintenance

To ensure the longevity and optimal performance of your AECOJOY gazebo, regular maintenance is recommended:

• Regular Cleaning: Clean the roof panels and frame periodically with mild soap and water. Avoid abrasive cleaners or tools that could scratch the surfaces.
• Fastener Inspection: Periodically check all bolts, screws, and anchors to ensure they remain tight and secure. Re-tighten as necessary.
• Drainage Check: Ensure the roof's inclined design allows for proper water runoff and that no debris is obstructing the drainage path.
• Seasonal Inspection: Before and after periods of heavy weather (e.g., strong winds, snow), inspect the entire structure for any signs of damage or instability.

5. Troubleshooting

If you encounter any issues during assembly, operation, or with the product's performance, consider the following:

• Review Assembly Steps: Double-check that all parts have been assembled correctly and that all fasteners are securely tightened according to the instruction manual.
• Check for Missing Parts: If parts are missing or damaged upon arrival, contact customer support immediately.
• Stability Concerns: Ensure the gazebo is properly anchored to both the wall and the ground as specified in the installation section. Inadequate anchoring can lead to instability.
• Water Leakage: Verify that roof panels are correctly seated and sealed, and that the inclined design is not obstructed.

For further assistance, please refer to the Warranty and Support section for contact information.

6. Specifications

7. Warranty and Support

AECOJOY stands behind its products and offers comprehensive support for your gazebo.

• Warranty: The product includes a one-year warranty from the date of purchase.
• Returns: A 30-day easy return policy is available for this product.
• Customer Support: A professional team is available 24/7 to address any concerns related to installation, usage, or other product-related inquiries. Please refer to your purchase documentation or the AECOJOY website for specific contact details.
