Introduction
Welcome to your new AECOJOY 14' x 8' Hard Top Lean-to Gazebo. This manual provides essential information for safe assembly, proper use, and effective maintenance of your gazebo. Please read all instructions carefully before beginning assembly or use. Retain this manual for future reference.

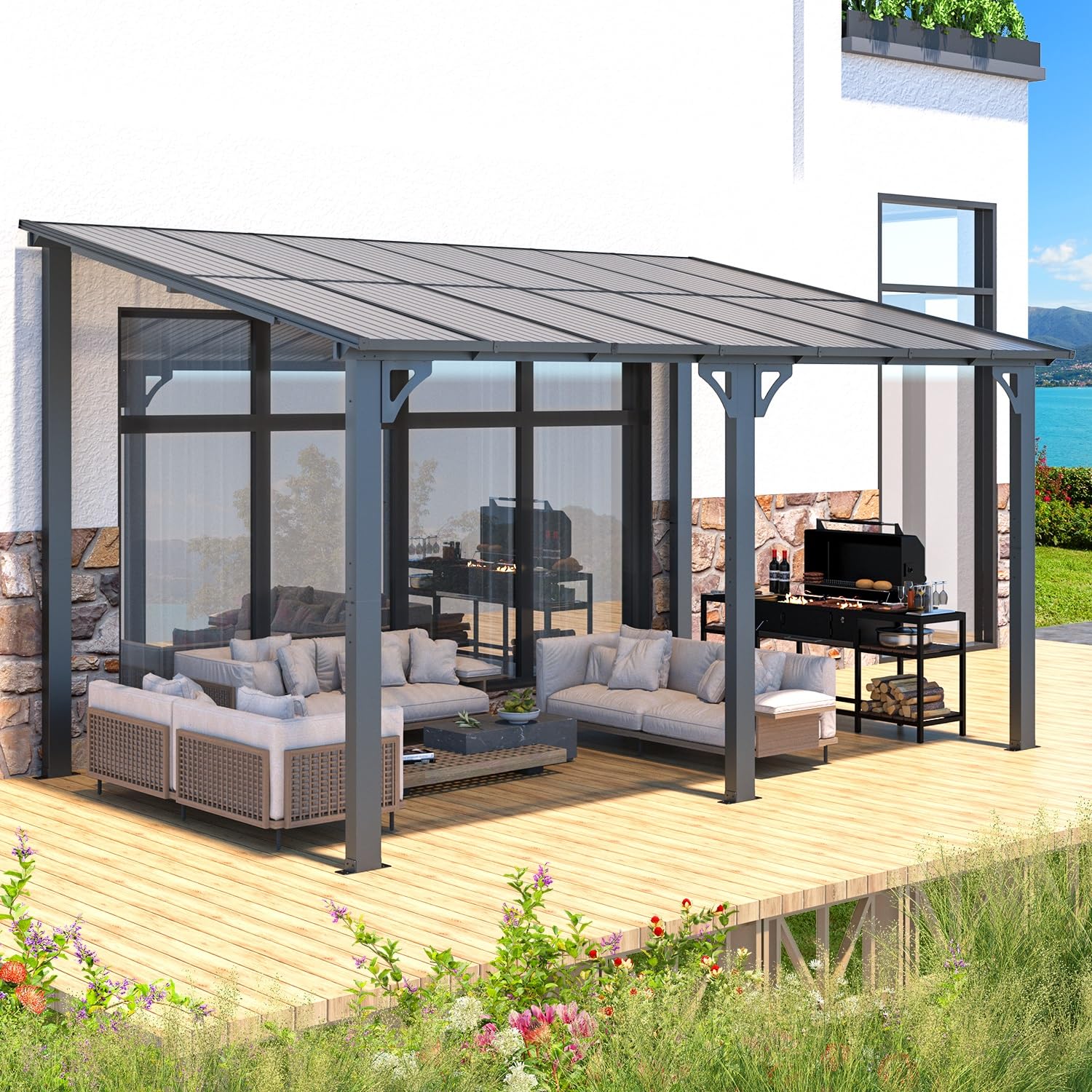

Image: The AECOJOY 14' x 8' Hard Top Lean-to Gazebo providing shade on a patio.
Safety Information
Your safety is paramount. Please adhere to the following guidelines:
- Always ensure the gazebo is securely fixed to the ground and properly stabilized before use. Consult the provided manual or contact our support team for any installation or usage-related safety concerns.
- This gazebo is designed for wall-mounting. Do not attempt to use it as a freestanding structure without proper additional anchoring, as this may compromise stability.
- Regularly inspect all connections, bolts, and anchors for tightness and signs of wear. Tighten as necessary.
- Do not hang heavy objects from the gazebo frame.
- In extreme weather conditions (e.g., severe storms, heavy winds exceeding 70 mph, or excessive snow accumulation), it is advisable to take precautions to protect the structure and ensure safety.
Product Features
The AECOJOY Hard Top Lean-to Gazebo offers a range of features designed for durability and comfort:
- Effortless Installation: Comes with an easy-to-follow guide, detailed manuals, and step-by-step video tutorials for a trouble-free setup. Remote assistance from our technical team is available.
- 7" Snow Capacity: The hard top roof is rigorously tested to withstand 6 lbs/sq.ft, equivalent to approximately 7 inches of heavy snow.
- Enhanced Stability: Designed to attach securely to a wall (all accessories provided). When properly fixed and stabilized, it can confidently withstand winds of around 70 mph.
- Waterproof Performance: An inclined design and meticulous detailing ensure complete water resistance.
- Comprehensive Protection: The awning roof covers 112 Sq.Ft., providing protection against harmful UV rays (UPF 50+, 99% UV block) and rainwater.
Image: Visual representation of the gazebo's performance in summer (UV protection) and winter (snow load capacity).
Image: Detailed view of the roof panels and frame, illustrating key protective features.
Setup and Installation
The AECOJOY gazebo is designed for straightforward assembly. For optimal results and safety, we recommend two people for installation.
Before You Begin
- Unpack all components and verify against the parts list provided in your packaging. Contact customer support immediately if any parts are missing or damaged.
- Select a suitable, level location for your gazebo. Remember, this model is designed to be mounted against a sturdy wall.
- Gather necessary tools (e.g., drill, wrench, ladder, measuring tape).
Assembly Steps (General Overview)
- Frame Assembly: Begin by assembling the main frame structure according to the detailed instructions. Ensure all bolts are finger-tight initially.
- Wall Attachment: Securely attach the taller side of the gazebo frame to a sturdy wall using the provided wall-mounting accessories. Ensure the wall can support the structure's weight and wind loads.
- Leg Installation: Install the support legs, ensuring they are plumb and level.
- Roof Panel Installation: Carefully install the sun panels onto the roof frame. Ensure proper overlap and sealing for water resistance.
- Ground Anchoring: Securely anchor all base plates of the gazebo legs to the ground (e.g., concrete patio, deck) using appropriate anchors for your surface type. This is crucial for stability.
- Final Tightening: Once the entire structure is assembled and anchored, go back and securely tighten all bolts and connections.
Image: Dimensional diagram of the AECOJOY 14' x 8' Hard Top Lean-to Gazebo.
Image: Detail of stable frame leg and wall studs for secure mounting.
Image: Detail of triangular structure and keyholes for enhanced stability.
Operating Instructions
Your AECOJOY gazebo is designed to enhance your outdoor living space by providing shade and protection from various weather elements.
- UV Protection: The heavily tinted roof panels are engineered to block UPF 50+ and 99% of harmful UV rays, creating a comfortable and safe shaded area for relaxation or activities.
- Water Resistance: The inclined roof design facilitates efficient water runoff, ensuring that the area beneath the gazebo remains dry during rainfall.
- Snow Load Capacity: The robust hard top roof is built to withstand significant snow loads, specifically up to 6 lbs per square foot, which is equivalent to approximately 7 inches of heavy snow.
- Wind Resistance: When correctly installed and securely anchored to both the wall and the ground, your gazebo is capable of withstanding wind speeds of up to 70 mph.
Image: The gazebo providing a comfortable outdoor space with ambient lighting.
Maintenance
Proper maintenance will extend the life and appearance of your AECOJOY gazebo.
- Regular Inspection: Periodically check all structural components, bolts, and ground anchors. Tighten any loose fasteners to maintain stability.
- Cleaning: Clean the roof panels and metal frame with a soft cloth, mild soap, and water. Rinse thoroughly with clean water. Avoid using abrasive cleaners, scrub brushes, or harsh chemicals, as these can damage the finish or panels.
- Snow Removal: While the gazebo has a snow load capacity, it is recommended to gently remove excessive snow accumulation from the roof to prevent undue stress on the structure, especially during prolonged heavy snowfall.
- Damage Check: Inspect for any signs of wear, corrosion, or damage to the frame, roof panels, or mounting hardware. Address any issues promptly to prevent further deterioration.
Troubleshooting
Refer to the table below for common issues and their solutions.
| Issue | Possible Cause | Solution |
|---|---|---|
| Gazebo feels unstable or sways | Improper anchoring to ground or wall; loose connections. | Ensure all base plates are securely anchored to the ground and the wall. Verify all bolts and screws are tightened according to instructions. |
| Water leakage from roof | Roof panels not correctly installed or sealed; damaged panels. | Review roof panel installation steps to ensure correct overlap and sealing. Check panels for cracks or gaps and contact support for replacements if needed. |
| Missing or damaged parts upon delivery | Shipping error; manufacturing defect. | Contact AECOJOY customer support immediately with your purchase details and a list of affected parts for replacement. |
| Difficulty during assembly | Unclear instructions; misaligned parts; incorrect orientation. | Carefully re-read the detailed manual and watch any available assembly video tutorials. Ensure parts are oriented correctly. If issues persist, contact technical support. |
Specifications
Key technical specifications for your AECOJOY 14' x 8' Hard Top Lean-to Gazebo:
| Feature | Detail |
|---|---|
| Brand | AECOJOY |
| Model | 14' x 8' Hard Top Lean-to Gazebo |
| Product Dimensions (L x W x H) | 168" x 96" x 96" |
| Item Weight | 154 Pounds |
| Frame Material | Metal & Aluminum |
| Roof Material | Sun Panels |
| Water Resistance Level | Waterproof |
| UV Protection | UPF 50+, 99% UV block |
| Assembly Required | Yes |
| Snow Load Capacity | 6 lbs/sq.ft (approx. 7" thick snow) |
| Wind Resistance | Up to 70 mph (when properly anchored) |
| Color | Dark Grey |
Warranty and Support
AECOJOY is committed to providing high-quality products and excellent customer service. We stand behind our gazebo with a comprehensive support system.
- Warranty: This AECOJOY gazebo comes with a one-year warranty from the date of purchase, covering manufacturing defects.
- Technical Support: Our professional technical team is available 24/7 to address any concerns related to installation, usage, maintenance, or replacement parts.
- Contact Us: For assistance, please visit the AECOJOY Store or refer to the contact information provided in your product packaging.
