WEIZE 20 Inch Kids Bike User Manual

Model: 20 Inch

1. Introduction

Thank you for choosing the WEIZE 20 Inch Kids Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new bicycle. Please read all instructions carefully before use and retain this manual for future reference.

2. Safety Information

2.1 General Safety Guidelines

  • Always wear a helmet when riding.
  • Ensure all bolts and quick releases are securely tightened before each ride.
  • Check tire pressure regularly.
  • Ride in well-lit areas and obey all traffic laws.
  • Adult supervision is recommended, especially for younger riders.

2.2 Braking System

The WEIZE Kids Bike features a dual braking system: a handbrake and a foot brake. This design allows children to brake smoothly and effectively.

To use the foot brake, pedal backward. To use the handbrake, squeeze the lever on the handlebar.

Image showing the steel front hand brake on the WEIZE Kids Bike.

Figure 1: Illustration of the steel front hand brake mechanism and lever.

Image showing the pedal backwards brake and fully enclosed chain guard on the WEIZE Kids Bike.

Figure 2: Illustration of the pedal backwards brake mechanism and the fully enclosed chain guard for safety.

2.3 Chain Guard

The fully enclosed chain guard prevents clothing, such as pant legs and skirts, from getting caught in the chain, enhancing rider safety.

3. Package Contents

Your WEIZE Kids Bike package includes the following components:

  • WEIZE Kids Bike (85% pre-assembled)
  • Training Wheels (may be included depending on model/size)
  • Front and Rear Fenders
  • Bicycle Bell
  • Anti-slip Pedals
  • Reflectors
  • Instruction Manual
  • Basic Assembly Tools (e.g., hexagonal wrench, screwdriver)
Image showing a child riding the WEIZE Kids Bike, with callouts for front and rear fender, high carbon steel frame, bicycle bell, anti-slip pedals, and reflector.

Figure 3: Key features and included components of the WEIZE Kids Bike.

4. Assembly and Setup

The WEIZE Kids Bike is 85% pre-assembled. Follow these steps for final assembly. An online assembly video is also available for guidance.

Diagram showing the assembly points for the WEIZE Kids Bike: install bicycle handlebar, install front wheel brake, install front wheel, install bicycle basket, install pedals (left and right), install seat cushion.

Figure 4: Visual guide for the main assembly steps.

  1. Install the Bicycle Handlebar: Securely attach the handlebar to the fork stem.
  2. Install the Front Wheel: Attach the front wheel to the fork. Ensure it is centered and securely fastened.
  3. Install the Front Wheel Brake: Connect and adjust the front brake mechanism. Use the provided hexagonal wrench to lock the brake lever, adjust the front brake line, and tighten with a screwdriver.
  4. Install the Pedals: Note that pedals are specific to left (L) and right (R). Thread them carefully to avoid cross-threading. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise.
  5. Install the Seat Cushion: Insert the seat post into the frame and tighten the cushion buckle securely.
  6. Install Training Wheels (if applicable): For models that include training wheels, attach them as per instructions. These can be removed once the rider gains proficiency.
  7. Final Checks: Before the first ride, double-check all connections, brakes, and tire pressure.

4.1 Assembly Video Guide

For a visual step-by-step assembly guide, please refer to the official installation video:

Video 1: WEIZE Kids Bike Installation Video. This video provides a comprehensive guide to assembling your WEIZE Kids Bike.

5. Operation

5.1 Adjusting Seat Height

The seat height can be adjusted without tools to accommodate children of different ages and heights. Simply open the quick-release lever, adjust the seat to the desired height, and close the lever securely.

Image showing the adjustable saddle and tool-free adjustable seat post on the WEIZE Kids Bike.

Figure 5: The adjustable saddle allows for tool-free height adjustments.

5.2 Riding the Bike

Ensure the rider is comfortable and can reach the ground with their toes while seated. Practice braking in a safe, open area before riding in public.

5.3 Suitable Riding Conditions

The WEIZE Kids Bike is designed for various road conditions, including city roads, trails, and grasslands.

Image showing two children riding WEIZE Kids Bikes on a paved road, with insets showing city road, trail, and grassland environments.

Figure 6: The WEIZE Kids Bike is suitable for various terrains.

5.4 Product Display Video

Watch a short video showcasing the features of the WEIZE Kids Bike:

Video 2: WEIZE Kids Bike Display Video. This video highlights various aspects and features of the bike.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your WEIZE Kids Bike.

  • Cleaning: Clean the bike regularly with a damp cloth and mild soap. Avoid high-pressure washing directly on bearings and electrical components.
  • Lubrication: Periodically lubricate the chain with bicycle-specific chain lubricant.
  • Tire Pressure: Check tire pressure before each ride. Refer to the tire sidewall for recommended PSI.
  • Brake Check: Ensure brakes are responsive and not excessively worn. Adjust brake cables as needed.
  • Bolt Tightness: Regularly check and tighten all bolts and fasteners, especially on the handlebars, seat post, and wheels.
  • Storage: Store the bike in a dry place, away from direct sunlight and extreme temperatures.

7. Troubleshooting

This section addresses common issues you might encounter with your WEIZE Kids Bike.

7.1 Brakes Not Responsive

  • Check brake cable tension. Adjust if too loose.
  • Ensure brake pads are making full contact with the wheel rim.
  • Inspect brake pads for wear; replace if necessary.

7.2 Pedals Are Stiff or Noisy

  • Check if pedals are securely tightened.
  • Lubricate the pedal bearings if accessible, or the chain.
  • Ensure the chain guard is not rubbing against the chain or crank.

7.3 Wobbly Wheels

  • Check if wheel quick releases or axle nuts are securely tightened.
  • Inspect for bent wheel rims or loose spokes. Professional repair may be needed.

8. Specifications

Feature Detail
Bike Type Kids Bike
Brand WEIZE
Model 20 Inch
Wheel Size 20 inches
Frame Material Carbon Steel
Number of Speeds 1
Brake Style Caliper (Handbrake) and Foot Brake
Special Feature Adjustable Seat
Minimum User Height 46 inches
Included Components Training Wheel (standard for 16-inch, may be included for 20-inch)

9. Sizing Guide

Choosing the correct bike size is crucial for safety and comfort. Refer to the table and diagram below to determine the appropriate size for the rider.

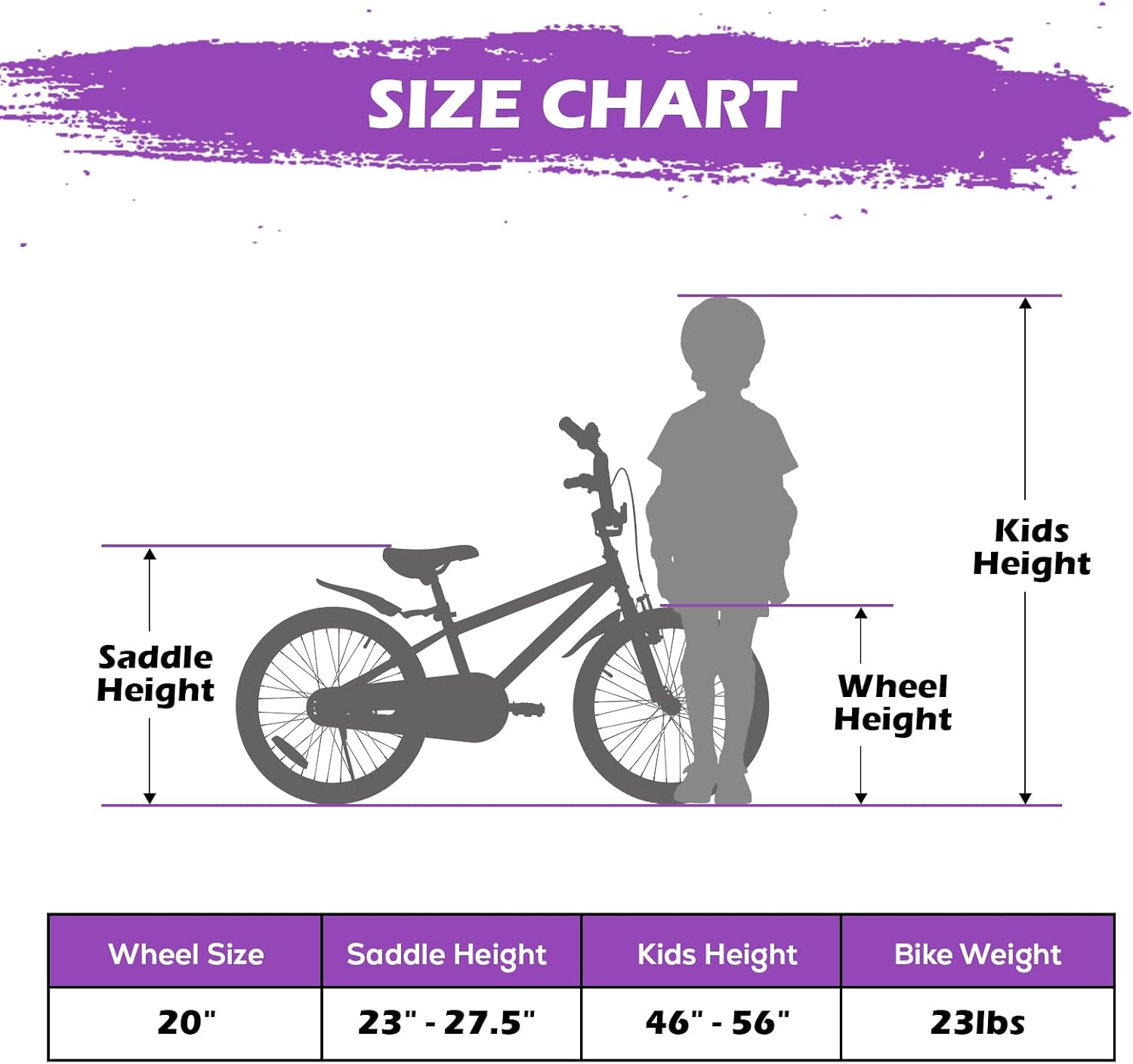

Size chart for WEIZE Kids Bikes, showing wheel size, saddle height, kids height, and bike weight for 16 inch and 20 inch models.

Figure 7: WEIZE Kids Bike Size Chart.

Wheel Size Recommended Age Recommended Height Saddle Height Range Approx. Bike Weight
16 Inch 4-6 Years Old 43-49 inches 20-23.6 inches 21 lbs
20 Inch 6-12 Years Old 46-56 inches 23-27.5 inches 23 lbs

The 20 Inch model is suitable for children aged 6-12 years old with a height range of 46-56 inches.

Detailed dimensions diagram of the WEIZE 20 Inch Kids Bike, showing measurements for handlebar width, seat height, wheel diameter, and overall length.

Figure 8: Detailed dimensions of the 20 Inch WEIZE Kids Bike.

10. Warranty and Support

WEIZE products are manufactured to high-quality standards. For warranty information, technical support, or replacement parts, please contact WEIZE customer service through the retailer where the product was purchased or visit the official WEIZE website.

Please have your model number (20 Inch) and purchase date available when contacting support.
