1. Introduction and Overview
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new IFB 12 Kg 5 Star AI Powered Deepclean® Technology Fully Automatic Top Load Washing Machine, model TL121RB2SID. Please read these instructions carefully before using the appliance and keep them for future reference.

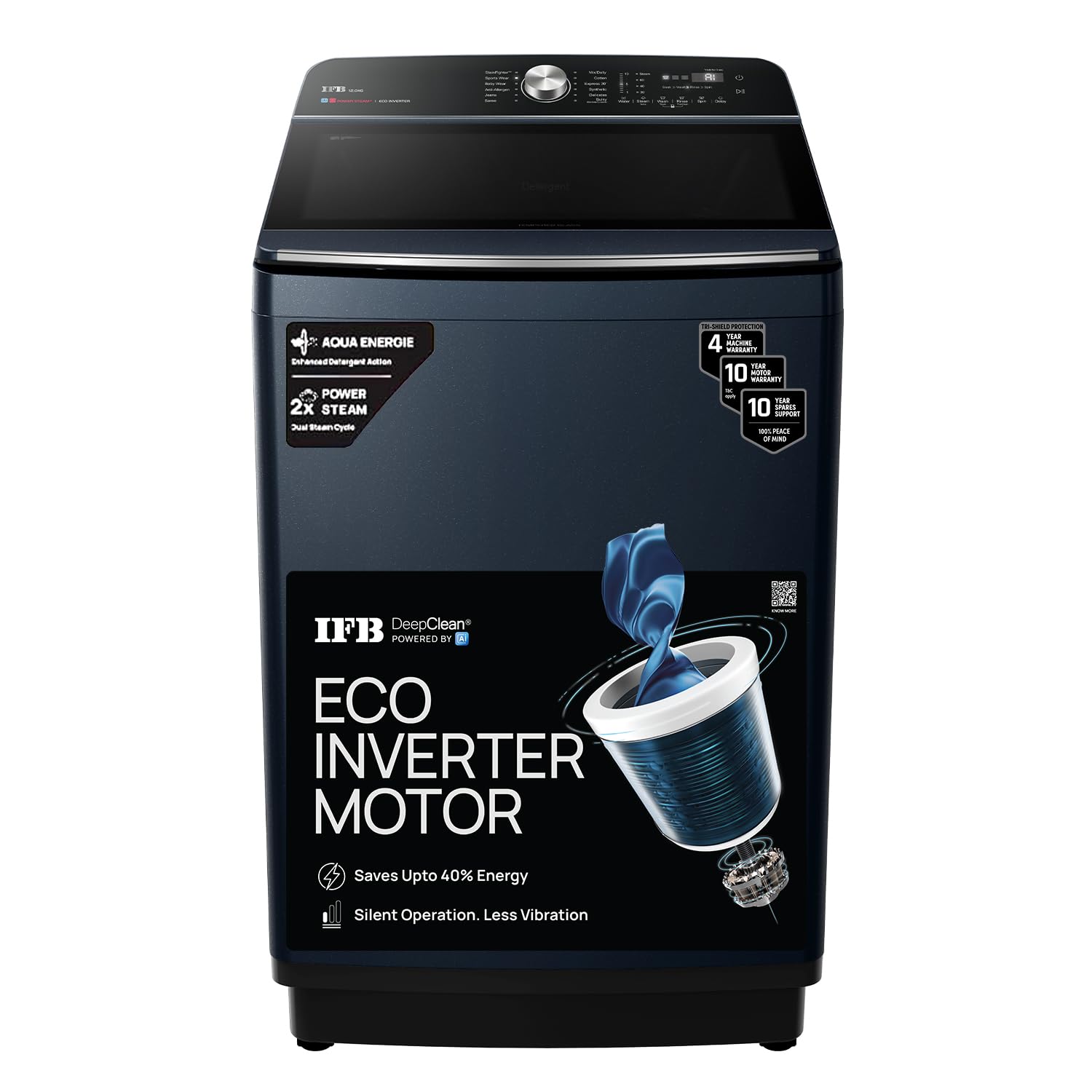

Figure 1: IFB 12 Kg Top Load Washing Machine (Model TL121RB2SID) with key dimensions and energy efficiency rating.
2. Key Features
- AI Powered Deepclean® Technology: Utilizes neural network-based algorithms to automatically detect fabric type and load weight, optimizing water levels, wash actions, and cycle duration for effective cleaning and fabric care.
- Eco Inverter Motor: Ensures quiet operation, lower energy consumption, reduced vibration, and long-lasting performance.
- 5 Star Energy Rating: Certified for high energy efficiency, consuming only 0.0065 kWh/kg per cycle.
- 720 RPM High Spin Speed: Effectively removes water from clothes, significantly reducing drying time.
- 12+1 Wash Programs: Includes specialized programs such as Mix/Daily, Cotton, Express 30’, Synthetic, Delicates, StainFighter, Bulky, Anti-Allergen, Tub Clean, Jeans, Baby Wear, Sports Wear, and Saree.
- Triadic Pulsator & Rust-Proof Stainless Steel Drum: The Triadic Pulsator combines scrubbing, punching, and mechanical motion for tough stain removal, while the stainless steel drum ensures durability and hygienic cleaning.
- Aqua Energie: Softens hard water to improve detergent dissolution, enhance cleaning, and protect fabric colors.
- ActivMix: Premixes detergent with water for faster soaking and improved wash quality, preventing detergent residue.
- PowerSteam Technology with Inbuilt Heater: Produces steam up to 60°C to eliminate 99.9% of germs, bacteria, and allergens, and helps remove 44 different types of stains.
- Vibra Shield Side Panels: Designed to reduce vibrations for a quieter wash experience.
- Soft Close Door: Ensures quiet and gentle closing, preventing slams.
- In-built Wheels: Provides ease of mobility for positioning the machine.
- Auto Tub Clean: Automatically cleans the inner tub to prevent odor, residue, and mold buildup.
- Large Lint Filter: Effectively traps lint, hair, and debris.
3. Setup and Installation
3.1 Unpacking and Included Components
Carefully unpack your washing machine. Ensure all components are present and undamaged. The package includes:
- 1 Washing Machine
- 1 Inlet Pipe (1.5 meters)
- 1 Drain Hose (2 meters)
- User Manual (this document)
Figure 2: Included components in the IFB Washing Machine package.
3.2 Placement and Leveling
Place the washing machine on a firm, level surface. Adjust the leveling feet to ensure the machine is stable and does not wobble. Proper leveling is crucial for quiet operation and efficient performance.
3.3 Water and Drain Connections
Connect the inlet pipe to a cold water tap and the designated inlet on the machine. Ensure connections are tight to prevent leaks. Position the drain hose securely into a drain or sink, ensuring it is not kinked or blocked. The machine is designed to operate efficiently even with low water pressure.
Figure 3: Low Water Pressure Fill feature in action.
3.4 Power Connection
Plug the power cord into a grounded 240V electrical outlet. Avoid using extension cords.
For professional installation assistance, please contact IFB customer service.
4. Operating Instructions
4.1 Control Panel Overview
The washing machine features an intuitive control panel with a central knob for program selection and touch buttons for additional functions. The AI indicator illuminates when the AI Deepclean® technology is active.
Figure 4: Detailed view of the control panel.
4.2 Loading Laundry
Open the soft-close lid and load your clothes into the stainless steel drum. Avoid overloading the machine to ensure optimal washing performance and prevent damage.
Figure 5: Soft Close Door mechanism.
4.3 Adding Detergent and Softener (ActivMix)
Pull out the detergent drawer. Add the recommended amount of detergent to the detergent compartment and softener to the softener compartment. The ActivMix feature will premix the detergent with water before it reaches your clothes, ensuring better dissolution and preventing residue.
Figure 6: ActivMix system for optimal detergent dissolution.
4.4 Selecting a Wash Program (AI Powered Deepclean® Technology)
Turn the program selection knob to choose one of the 12+1 wash programs. The AI Powered Deepclean® Technology will automatically detect the load and fabric type, then optimize the water level, wash motion, and cycle time for a personalized wash experience. This ensures gentle yet thorough cleaning while saving water, detergent, and electricity.
- Mix/Daily: For everyday mixed loads.
- Cotton: Ideal for cotton garments.
- Express 30’: Quick wash for lightly soiled items.
- Synthetic: For synthetic fabrics.
- Delicates: Gentle wash for delicate items.
- StainFighter: Specifically designed to tackle tough stains.
- Bulky: For large items like blankets or quilts.
- Anti-Allergen: Removes 99.99% of allergens and bacteria.
- Tub Clean: For cleaning the washing machine drum.
- Jeans: Optimized for denim.
- Baby Wear: Ensures 99.99% germ removal for baby clothes.
- Sports Wear: Protects stretch and colors of sportswear.
- Saree: Gentle, zari-safe wash for sarees.
Figure 7: AI Powered Deepclean® Technology process.
Figure 8: Benefits of IFB Deepclean® Technology on fabric care.
4.5 Specialized Wash Functions
- Warm Soak: This feature allows you to warm soak your clothes, helping to loosen dirt and open up fabric pores for more effective cleaning.
- Power Steam®: Uses a dual steam cycle to reduce creases and wrinkles, ensuring clothes are germ-free and ready to wear. This feature can be easily added to your wash cycle.
- StainFighter: A special program that easily washes out stubborn stains and treats up to 44 different types of stains. For best results, use this program within 48 hours of clothes getting stained.
- Aqua Energie: This patented technology treats hard water by deactivating calcium ions and energizing the water. This restores the cleaning power of detergents, leading to deeper cleaning, brighter colors, and longer-lasting fabrics.
- Triadic Pulsator: The unique Triadic Pulsator combines three powerful wash actions – scrubbing, swirling, and punching – to ensure thorough dirt removal without damaging fabrics.
Figure 9: Inbuilt Heater for Warm Soak and Power Steam.
Figure 10: Power Steam® for hygienic and wrinkle-free clothes.
Figure 11: Aqua Energie hard water treatment.
Figure 12: Triadic Pulsator for an all-round wash experience.
4.6 Starting a Wash Cycle
After loading laundry, adding detergent, and selecting your desired program and options, press the Start/Pause button to begin the wash cycle.
5. Maintenance
5.1 Auto Tub Clean
The Auto Tub Clean feature automatically cleans the inner tub during the rinse cycle. This prevents odor, residue, and mold buildup, ensuring a hygienic wash environment. It is recommended to run a dedicated Tub Clean cycle periodically, especially after washing heavily soiled items.
Figure 13: Auto Tub Clean for hygienic drum care.
5.2 Cleaning the Large Lint Filter
The machine is equipped with a large lint filter to trap lint, hair, and debris. Regularly clean the lint filter to maintain optimal drainage and prevent lint from redepositing on clothes. Refer to the filter's location in the drum and gently remove, clean under running water, and reinsert.
Figure 14: Extra Large Lint Tower Filter for residue-free clothes.
5.3 Exterior Cleaning
Wipe the exterior of the machine with a soft, damp cloth. Avoid abrasive cleaners or solvents.
6. Troubleshooting
If you encounter any issues with your washing machine, please refer to the following basic troubleshooting steps. For more detailed solutions or persistent problems, contact IFB customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged, door not closed properly, power outage. | Check power connection, ensure door is securely closed, check household circuit breaker. |
| Water not filling | Water tap closed, inlet hose kinked, water supply issue. | Open water tap, straighten inlet hose, check household water supply. |
| Excessive vibration/noise | Machine not level, transport bolts not removed, uneven load. | Adjust leveling feet, ensure transport bolts are removed (if applicable), redistribute laundry evenly. |
| Detergent residue on clothes | Too much detergent, detergent not dissolving properly (hard water). | Reduce detergent amount, ensure ActivMix is functioning, Aqua Energie should help with hard water. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Name | TL121RB2SID |
| Brand | IFB |
| Capacity | 12 Kilograms |
| Access Location | Top Load |
| Operation Mode | Fully Automatic |
| Special Features | Auto-Load Sensing, Eco Inverter, Inbuilt Heater, Power Steam®, Powered by AI |
| Spin Speed | 720 RPM |
| Drum Material | Stainless Steel |
| Product Dimensions (D x W x H) | 64D x 62W x 103H Centimeters |
| Item Weight | 46000 Grams |
| Voltage | 240 Volts |
| Energy Rating | 5 Star (0.0065 kWh/kg per cycle) |
| Manufacturer | IFB Industries Ltd. |
8. Warranty and Support
Your IFB washing machine comes with comprehensive warranty coverage and dedicated support:
- 4-Year Comprehensive Warranty on the product.
- 10-Year Warranty on the motor.
- 10-Year Spare Part Support.
Warranty can be availed with your Amazon invoice. For any queries, installation requests, or after-sales support, please contact IFB customer service. IFB offers 24x7 support and a year-round exchange program for peace of mind.
Figure 15: IFB Warranty and Support details.
9. Product Video Overview
Watch this official product video for a visual guide to the key features and benefits of your IFB Deepclean® Top Load Washing Machine.
Video 1: IFB DeepClean Top Load Washing Machine Features Overview. This video introduces the AI-powered DeepClean technology, Vibra Shield side panels, ActivMix detergent premixing, Warm Soak, Power Steam for germ-free and wrinkle-reduced clothes, Aqua Energie for hard water treatment, StainFighter for tough stains, Triadic Pulsator for superior wash, Soft Close Door, Ease of Mobility, Auto Tub Clean, Large Lint Filter, and warranty details.
