1. Introduction and Overview
The PowMr POW-SunSmart 6.5KP-1 is a 6500W split-phase hybrid solar inverter designed for efficient energy management. It features a built-in 140A MPPT controller and supports both single-phase (120V) and split-phase (120V/240V) pure sine wave output. This inverter is compatible with various battery types including AGM, Gel, Lead-acid, Lithium-ion, and LiFePO4, and can also operate without batteries. It supports parallel operation for up to 6 units, allowing for a maximum combined output of 39kW.
Key features include multiple charging modes (PV only, mains first, PV first, mains + PV) and output modes (mains bypass, inverter output) to ensure an uninterrupted power supply. The inverter also incorporates comprehensive 360° protection against short circuits, over-current, over/under voltage, overload, backfill, and over-temperature.
2. What's in the Box
Upon unboxing your PowMr POW-SunSmart 6.5KP-1 Solar Inverter, you should find the following items:
- 1 x 6500W Solar Inverter
- User Manual
- Warranty Card
- Set of Screws and Accessories
- Pair of Battery Terminals
- Parallel Communication Cable
Please inspect all items for any damage or missing parts immediately after opening the package.
Video: Unboxing of PowMr Sunsmart 6.5KP Solar Inverter. This video demonstrates the contents of the inverter package, including the inverter unit, user manual, warranty card, screw accessories, battery terminals, and parallel communication cable.
3. Setup and Installation
Proper installation is crucial for the safe and efficient operation of your PowMr solar inverter. Ensure the installation environment is dry, temperature-appropriate, and well-ventilated. Maintain a minimum gap of 20cm on both sides of the inverter and 50cm at the top and bottom to ensure adequate air circulation and heat dissipation.
Mounting the Inverter
The inverter should be securely mounted to a wall or a sturdy mounting panel. Use appropriate M5 screws for fixation. For optimal performance and safety, ensure the mounting surface can support the inverter's weight (approximately 41.6 pounds).
Video: POW-LVM3K-24V-H Installation and Wiring Guide. This video provides a comprehensive guide to installing and wiring a PowMr LVM series inverter, including mounting procedures and safety considerations.
Wiring Connections
Before starting any wiring, prepare cables and circuit breakers that meet the specified requirements. The cable AWG and circuit breaker specifications are determined by the maximum current the cable needs to bear. Refer to the instruction manual for detailed matching wire AWG and circuit breaker specifications.
- Battery Connection: Use 2AWG wires for connecting the battery. Ensure positive terminals are matched with positive and negative with negative.
- AC Input/Output: Use 10AWG wires for AC input and output. For AC input, ensure a grounding connection is made.
- PV Input: Use 12AWG wires for PV input.
- Grounding: Properly ground the inverter using an 11AWG wire connected to the grounding port on the unit. Keep the grounding point as close as possible to the inverter for maximum effectiveness.
Video: Wiring Guide for 6500W Inverter. This video details the wiring process for the 6500W inverter, including battery, AC, and PV connections.

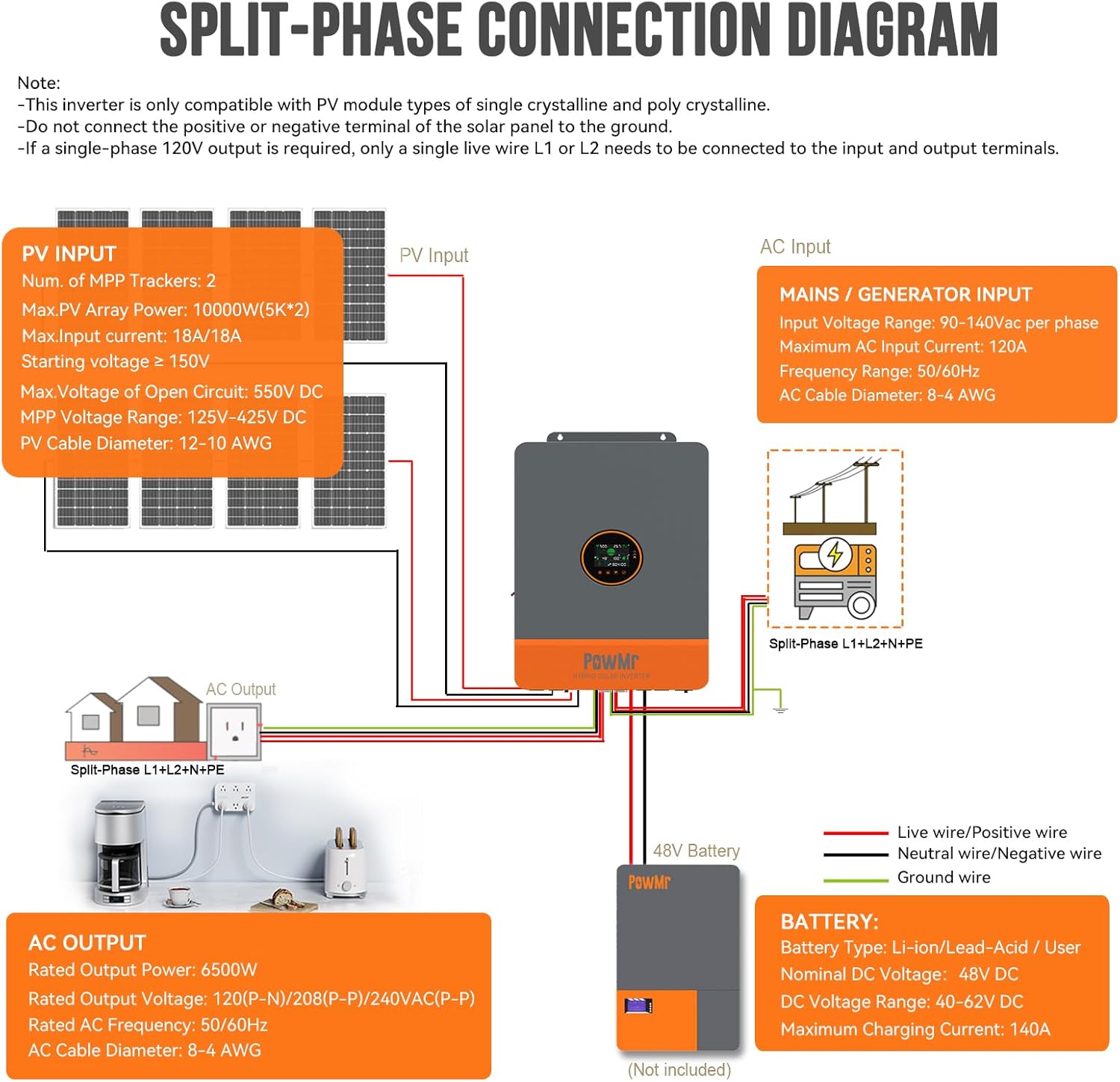

Image: Split-Phase Connection Diagram. This diagram illustrates the wiring for split-phase output, showing connections for PV input, AC input/generator, AC output, and 48V battery.
Image: 6.5KP Split-Phase Parallel Solar Inverter. This image highlights the inverter's capabilities, including pure sine wave output, dual MPPT, and support for various battery types.
4. Operating Modes and Settings
The PowMr POW-SunSmart 6.5KP-1 offers flexible operating modes to optimize energy usage based on your specific needs. These modes can be configured via the LCD display.
Output Source Priority Modes
These settings determine the sequence in which the inverter allocates solar energy, grid power, and battery power to the load.
- AC1ST (Grid Priority Mode): Grid power takes the highest priority. If grid power is unavailable, the system switches to solar power and battery power. Suitable for areas with unstable grid power, serving as a backup UPS.
- BT1ST (Inverter Output Mode): Prioritizes the use of battery and solar power to supply the load. If solar energy is insufficient or unavailable, the system switches to grid power. Suitable for regions with stable grid power supply.
- PV1ST (Solar Priority Mode): Solar power and battery power take precedence. If solar energy is insufficient or unavailable, the inverter switches to bypass mode to supply the load from the grid. This mode aims to maximize solar energy utilization.
Video: Energy configuration capabilities of the SP5K Solar inverter. This video explains the output source priority, charging source priority, and time-of-use charging/discharging functions of the inverter.
Image: 4 Load Output Modes. This graphic illustrates the different load output priority settings: Solar First, Mains First, Inverter First, and Hybrid Output.
Charging Source Priority Modes
These modes define the order in which the inverter charges the battery with solar energy and grid power.
- Hybrid Priority: Inverter prioritizes charging the battery with solar energy. If solar power is insufficient, grid power is used simultaneously. Suitable for regions with unstable solar energy supply.
- AC1ST (Grid Power Priority): Grid power takes precedence for battery charging. If grid power is absent, the inverter switches to solar power for battery charging. Suitable for areas with relatively unstable grid power supply.
- PV1ST (Solar Priority): Prioritizes using solar power for battery charging. If solar energy is unavailable, grid power is utilized. Better suited for regions with stable grid power and high electricity rates.
- ONLYPV (Solar Power Charging Only): Exclusively relies on solar power to charge the battery, regardless of grid power availability. Ideal for regions with abundant daylight hours.
Image: 4 Charging Modes. This graphic illustrates the different battery charging priority settings: Solar First, Mains First, Hybrid Charging, and Only Solar.
Time-of-Use Charging and Discharging Strategy
The inverter offers flexibility to set specific time periods for battery charging and discharging. This allows you to align your energy usage with local electricity consumption patterns and pricing policies, ensuring efficient utilization of your battery resources.
- Charging Periods: Three configurable charging periods (Settings 40-45).
- Discharging Periods: Three configurable discharging periods (Settings 47-52).
Image: Peak-Valley Electricity Tariff Sectional Charging Discharge Function. This graphic explains how to set charging and discharging periods based on peak and valley electricity tariffs.
5. Technical Specifications
| Specification | Value |
|---|---|
| Rated Output Power | 6500W (13000W Surge) |
| Rated Output Voltage | 120/240Vac (split phase/single phase) |
| Max. PV Input Power | 10KW (5000W*2) |
| Max. PV Input Voltage | 550Vdc |
| Max. PV Input Current | 18A |
| PV Starting Voltage | > 150V |
| Battery Voltage | 48V |
| Max. Charging Current (PV+AC) | 140A |
| Switch Time | 10ms |
| Communication | CAN, USB, RS485 |
| Item Weight | 41.6 pounds |
| Package Dimensions | 23.23 x 16.54 x 5.51 inches |
Image: Solar Panel Specifications. This graphic provides detailed specifications for the PV array, including maximum power, open circuit voltage, MPPT voltage range, and current ratings for two PV arrays.
6. Safety and Protection
The PowMr POW-SunSmart 6.5KP-1 inverter is equipped with comprehensive safety features to protect both the device and your electrical system. These include:
- Short Circuit Protection
- Over-Current Protection
- Over-Under Voltage Protection
- Overload Protection
- Backfill Protection
- Over-Temperature Protection
- Over Charge Protection
Always ensure proper grounding and adhere to all wiring guidelines to maximize safety and prevent potential hazards.
Image: 360 Degree Protection. This graphic visually represents the extensive protection features integrated into the PowMr inverter.
7. Troubleshooting
If you encounter any issues with your PowMr POW-SunSmart 6.5KP-1 Solar Inverter, please refer to the following general troubleshooting steps. For detailed error codes and specific solutions, consult the comprehensive user manual provided with your product.
- No Power/Display: Check all power connections, battery breaker, and inverter's ON/OFF switch. Ensure sufficient battery voltage.
- No AC Output: Verify that the AC output breaker is closed and there are no overload conditions. Check the inverter's display for any fault indicators.
- No Battery Charging: Confirm PV input connections and ensure sufficient sunlight. Check charging mode settings and battery health.
- Fault Indicator On: Note the specific fault code displayed on the LCD screen and refer to the user manual's troubleshooting section for corresponding solutions.
- Overload Warning: Reduce the connected load. The inverter may temporarily shut down to protect itself.
Always disconnect all power sources before attempting any inspection or maintenance to avoid electric shock.
8. Warranty and Support
Your PowMr POW-SunSmart 6.5KP-1 Solar Inverter comes with a manufacturer's warranty. Please refer to the warranty card included in your product package for specific terms, conditions, and duration of coverage. Keep your purchase receipt as proof of purchase for warranty claims.
Customer Support
For technical assistance, troubleshooting beyond the scope of this manual, or warranty inquiries, please contact PowMr customer support through the following channels:
- Online: Visit the official PowMr website for support resources, FAQs, and contact forms.
- Email/Phone: Refer to your warranty card or the user manual for specific contact information.
When contacting support, please have your product model number (POW-SunSmart 6.5KP-1) and purchase details readily available.
