Greenvelly Folding Bed 31-inch Instruction Manual

Introduction

Thank you for choosing the Greenvelly Folding Bed. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new folding bed. Designed for convenience and comfort, this 75" x 31" rollaway bed features a durable metal frame and a 5-inch memory foam mattress, making it ideal for guests, home offices, schools, or temporary sleeping arrangements. Please read these instructions carefully before use and retain them for future reference.

Important Safety Information

Always follow assembly instructions precisely. Ensure all stabilizer bars are correctly inserted and locked into place for optimal stability and user safety. Do not use the bed if any parts are damaged, missing, or improperly assembled. Regularly inspect the frame and mattress for wear and tear. Keep children away from the folding mechanism during setup and storage. Maximum load capacity is 450 lbs. Do not exceed this weight limit.

Package Contents

Before beginning assembly, verify that all components are present and undamaged. The package should contain:

• Folding Bed Frame (pre-assembled)
• 5-Inch Memory Foam Mattress
• Stabilizer Bars (4 pieces)
• Dust Cover (for storage)
• Instruction Manual

Setup Instructions

The Greenvelly Folding Bed is designed for quick and easy setup. Follow these steps to prepare your bed for use:

1. Unpack the Bed: Carefully remove the folding bed from its packaging. It will arrive in a compact, folded state, often secured with a strap and covered by a dust cover.
2. Position the Bed: Place the folded bed in the desired location. Ensure there is enough clear space to fully unfold it. The bed is equipped with lockable wheels for easy maneuverability.
3. Release the Securing Strap: Locate the securing strap that holds the folded mattress sections together. Unlatch and remove this strap.
4. Unfold the Frame: Gently pull the two halves of the bed frame apart. The frame will begin to unfold.
5. Extend and Lock the Legs: As the frame unfolds, extend the support legs on both sides. Ensure the latches on the legs click into place, securing them in the open position. This provides stability to the bed frame.
6. Insert Stabilizer Bars: For enhanced stability, insert the four provided stabilizer bars into their designated slots on the frame. These bars help prevent abnormal noise and ensure a firm structure.
7. Position the Mattress: The 5-inch memory foam mattress is designed to fit perfectly on the frame. It may have been compressed for shipping; allow up to 24-48 hours for it to fully expand. The mattress is secured to the frame with Velcro straps to prevent movement.

Image: The Greenvelly Folding Bed fully unfolded and ready for use.

Operating Instructions

Using your Greenvelly Folding Bed is straightforward:

Unfolding for Use:

1. Ensure the bed is on a flat, stable surface.
2. Release the top securing strap.
3. Gently pull the two mattress sections apart until the frame is fully extended.
4. Lock all four support legs into their upright position.
5. Insert the four stabilizer bars for maximum stability.

Folding for Storage:

1. Remove any bedding from the mattress.
2. Remove the four stabilizer bars.
3. Unlock the support legs and fold them inwards.
4. Push the two mattress sections together, allowing the frame to fold into its compact position.
5. Secure the folded bed with the provided strap to prevent it from opening during storage or transport.
6. Utilize the lockable wheels to easily move the folded bed to your desired storage location.

Image: The Greenvelly Folding Bed in its compact, folded position, ready for storage or transport.

Maintenance

To ensure the longevity and optimal performance of your Greenvelly Folding Bed, follow these maintenance guidelines:

• Frame Care: Wipe the metal frame with a damp cloth to remove dust and dirt. Avoid using harsh chemicals that could damage the corrosion and rust-preventive coating.
• Mattress Care: The 5-inch memory foam mattress is not washable. Spot clean any spills with a mild detergent and damp cloth. Allow to air dry completely. Use a mattress protector to keep it clean and extend its life.
• Storage: When not in use, store the folded bed in a dry, cool place. Use the provided dust cover to protect the mattress and frame from dust and moisture.
• Regular Inspection: Periodically check all bolts, screws, and latches to ensure they are tight and secure. Tighten as necessary. Inspect the wheels for smooth operation.

Troubleshooting

If you encounter any issues with your Greenvelly Folding Bed, refer to the following common problems and solutions:

• Bed feels unstable/wobbly:
  • Ensure all four support legs are fully extended and their latches are securely engaged.
  • Verify that all four stabilizer bars are correctly inserted into the frame.
  • Check that the bed is placed on a flat, even surface.
• Mattress not fully expanding:
  • Allow 24-48 hours for the memory foam mattress to fully decompress after unpacking. Ensure it is laid flat in a well-ventilated room.
• Difficulty folding/unfolding:
  • Ensure the securing strap is fully released before unfolding.
  • Make sure the support legs are unlocked before attempting to fold the frame.
  • Check for any obstructions in the folding mechanism.
• Wheels not locking:
  • Ensure the locking mechanism on each wheel is fully engaged. Apply firm pressure to the lock lever.

Specifications

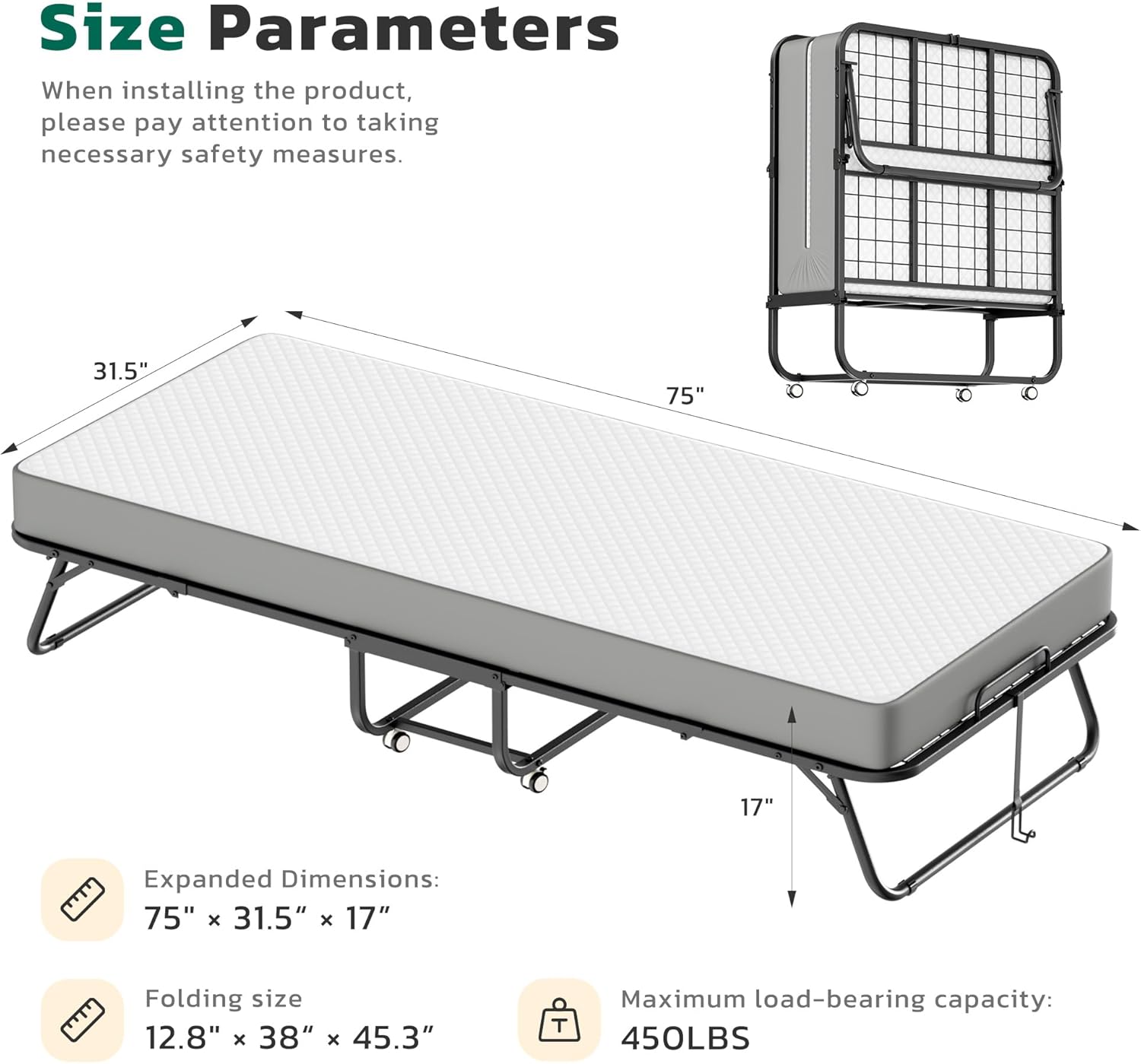

Image: Visual representation of the Greenvelly Folding Bed's dimensions and load capacity.

• Brand: Greenvelly
• Model: 31''
• Expanded Dimensions: 75"L x 31"W x 17"H
• Folding Size: Approximately 12.8"W x 38"L x 45.3"H
• Mattress Thickness: 5 inches
• Mattress Type: Memory Foam (multi-layered sandwich design with breathable mesh fabric and support foam)
• Frame Material: Metal (powder coated, corrosion and rust-resistant)
• Special Features: Foldable, Lockable Rollers, 4 Stabilizer Bars, Mattress Anti-Slip Bars
• Maximum Load Capacity: 450 lbs
• Color: Grey White
• Age Range: Adult

Image: Detailed breakdown of the 5-inch memory foam mattress layers, including breathable mesh fabric and support foam.

Warranty and Support

Greenvelly is committed to providing high-quality folding beds and continuous product improvement. For any product-related questions, assistance with usage, or support, please contact Greenvelly customer service. Your satisfaction is our greatest encouragement.

For further assistance, please refer to the contact information provided with your purchase or visit the official Greenvelly website.
