Introduction
Thank you for choosing the Arno X-FORCE FLEX 9.60 Cordless Vacuum Cleaner. This versatile and powerful appliance is designed to provide efficient cleaning for various surfaces in your home. To ensure safe and optimal performance, please read this manual thoroughly before using the product and keep it for future reference.
Product Overview and Key Features
The Arno X-FORCE FLEX 9.60 is a lightweight, high-performance cordless vacuum cleaner equipped with advanced features for a superior cleaning experience.
- Lightweight Design: Weighing only 1.1kg as a handheld unit and 2.2kg in total, it offers effortless maneuverability.
- Powerful Suction: Features a 250W motor for strong suction, combined with Cyclone technology and 99.9% filtration for effective dirt capture.
- Cordless Freedom: Enjoy unrestricted movement without the hassle of cords.
- Long-lasting Battery: Removable 18.5V Lithium-ion battery provides up to 45 minutes of autonomy and recharges in just 3 hours.
- Flexible Tube Technology: An exclusive flexible tube allows easy access to hard-to-reach areas under furniture without bending.
- Automatic Suction Adjustment: Optimizes cleaning for different floor types with 3 suction levels.
- Large Dustbin: A 450ml dustbin with easy and hygienic emptying, avoiding direct contact with dirt.
- Versatile Accessories: Includes 8 accessories: a hard floor brush, sofa and upholstery brush, animal turbo brush, 2 thick brushes, crevice tool, charging base, and an extra filter.
- LED Lighting: The main brush features LED lights for improved visibility in dark areas.
The Arno X-FORCE FLEX 9.60 can be configured for various cleaning tasks, including handheld, stick, and with its flexible tube for reaching under furniture.

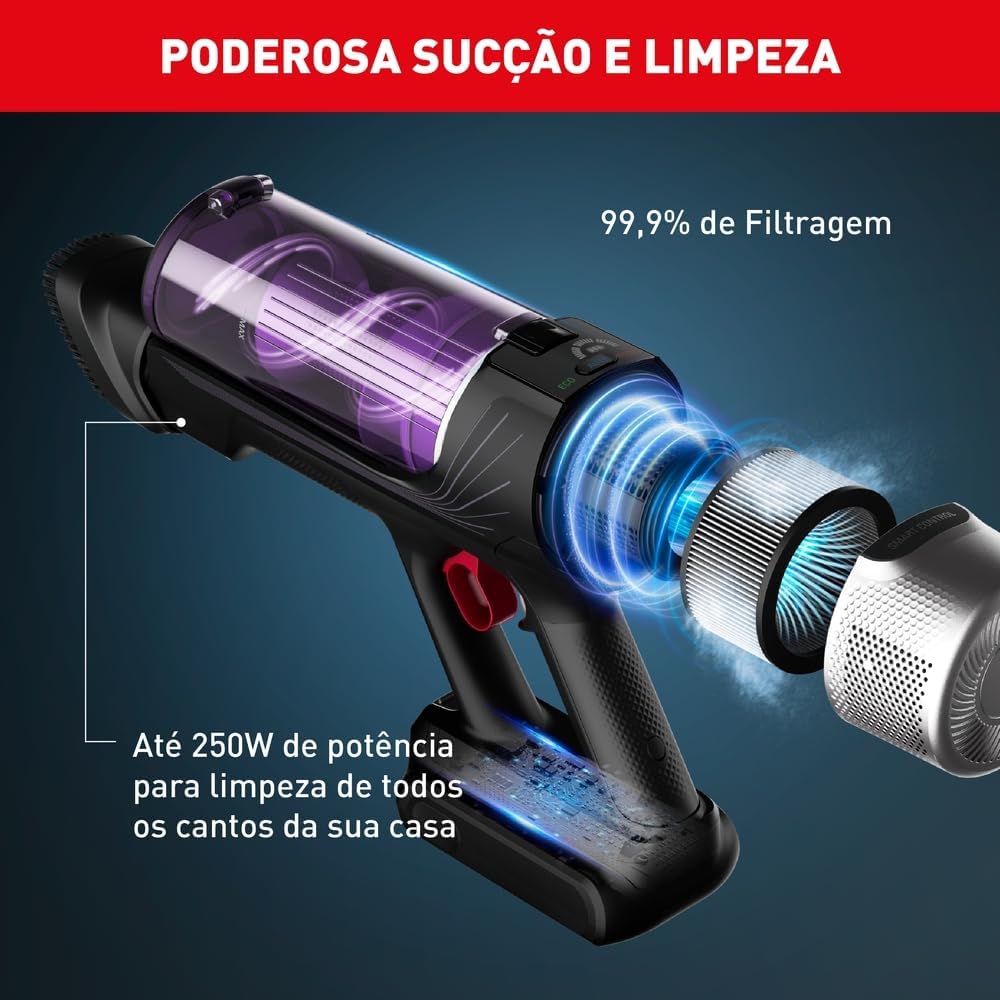

Internal diagram illustrating the powerful 250W suction and 99.9% filtration system for effective dirt and dust capture.
The vacuum automatically adjusts suction power based on the floor type, optimizing cleaning efficiency.
The flexible tube allows for easy and ergonomic cleaning under furniture and in tight spaces.
The exclusive hard floor brush effectively removes various types of solid dirt, including large debris, and features LED lights for enhanced visibility.
The animal turbo brush is ideal for homes with pets, efficiently removing pet hair from upholstery and beds.
Setup
Before first use, ensure all components are present and undamaged. The vacuum cleaner is designed for easy assembly.
- Unpack: Carefully remove all parts from the packaging.
- Assemble the Main Unit: Connect the main motor unit to the extension tube. Ensure it clicks securely into place.
- Attach the Cleaning Head: Connect the desired cleaning head (e.g., hard floor brush) to the end of the extension tube. Press firmly until it locks.
- Install Battery: Insert the removable Lithium-ion battery into the designated slot on the main unit.
- Charge Battery: For optimal performance, fully charge the battery before the first use. Connect the charging base to a power outlet and place the vacuum cleaner on it. The charging indicator will show the charging status.
Operating Instructions
The Arno X-FORCE FLEX 9.60 offers intuitive controls and multiple cleaning modes.
- Power On/Off: Press the power button located on the handle to turn the vacuum cleaner on or off.
- Select Suction Mode: The vacuum features 3 suction levels: Eco, Auto, and Boost. Use the control display to select the appropriate mode for your cleaning task.
- Eco Mode: For light cleaning and extended battery life.
- Auto Mode: Automatically adjusts suction power based on the floor type for optimized cleaning.
- Boost Mode: Provides maximum suction for stubborn dirt and deep cleaning.
- Using Accessories: Detach the extension tube and main cleaning head to use the vacuum in handheld mode with specialized accessories like the crevice tool, sofa brush, or animal turbo brush.
- Flexible Tube: To activate the flexible tube, press the release button on the tube joint and bend it to reach under low furniture.
The smart control display provides real-time information on battery level, filter status, and allows selection of power modes.
Product Overview Video
Watch this video for a comprehensive overview of the Arno X-FORCE FLEX 9.60's features and versatility.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your vacuum cleaner.
- Emptying the Dustbin: The 450ml dustbin should be emptied regularly, especially when the 'Clean Filter' alert appears on the display. Press the release button to detach the dustbin and empty its contents into a trash bin.
- Cleaning Filters: The vacuum includes a washable HEPA filter and an extra filter. Remove the filters from the dustbin and tap them to remove loose dust. If heavily soiled, wash them under running water. Ensure filters are completely dry before reinserting them.
- Cleaning the Hard Floor Brush: Periodically check the hard floor brush for tangled hair or debris. Follow the steps in the video below to remove and clean the brush roll.
- Cleaning Accessories: Wipe down all accessories with a damp cloth as needed.
How to Clean the Hard Floor Brush
This video demonstrates the correct procedure for disassembling and cleaning the hard floor brush roll to remove tangled hair and debris.
Troubleshooting
If you encounter any issues with your Arno X-FORCE FLEX 9.60, please refer to the following common problems and solutions:
- Vacuum not turning on: Ensure the battery is fully charged and correctly inserted. Check if the power button is pressed firmly.
- Reduced suction power: Check if the dustbin is full and needs emptying. Inspect filters for blockages and clean them if necessary. Ensure there are no obstructions in the cleaning head or extension tube.
- Brush roll not spinning: Check for tangled hair or debris around the brush roll and clean it as shown in the maintenance section. Ensure the brush head is properly attached.
- Short battery life: Ensure the battery is fully charged. Operating in Boost mode will consume battery faster than Eco or Auto modes. Battery performance may decrease over time with prolonged use.
If the problem persists after following these steps, please contact Arno customer support.
Specifications
| Feature | Specification |
|---|---|
| Brand | Arno |
| Model Name | X-FORCE FLEX 9.60 PISO DURO |
| Model Number | 9.60 Piso Duro |
| Special Features | Hard floor brush, Flexible tube, Automatic suction adjustment, Smart control display, LED lights |
| Filter Type | HEPA Filter |
| Recommended Surface | Hard Floor |
| Power Source | Battery Powered |
| Capacity | 450 ml |
| Recommended Uses | Car, Pet Hair, Sofa, Ceiling |
| Noise Level | 86 Decibels |
| Number of Speeds/Power Levels | 3 |
| Portable | Yes |
| Item Weight | 2.2 Kilograms |
| Item Dimensions (L x W x H) | 23.4 x 24.8 x 112 Centimeters |
| Control Method | Button |
| Voltage | 110 Volts, 220 Volts (Bivolt) |
| Power | 250 Watts |
| Charging Time | 3 Hours |
| Battery Type | Lithium-ion |
| Battery Duration/Run Time | 45 Minutes |
| Included Components | 01 cordless vacuum cleaner (with filter) + 01 charging base, 01 hard floor brush + 01 sofa and upholstery brush, 01 animal turbo brush + 01 crevice tool, 01 instruction manual + 01 warranty certificate, 02 thick brushes + 01 extra filter |
Warranty and Support
The Arno X-FORCE FLEX 9.60 Cordless Vacuum Cleaner comes with a 1-year warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims.
For technical assistance, spare parts, or any questions not covered in this manual, please contact Arno customer support through their official website or the contact information provided in your warranty certificate.
