ABBREE AR-805S Mini Dual Band Ham Radio Antenna

1. Introduction

Thank you for choosing the ABBREE AR-805S Mini Dual Band Ham Radio Antenna. This compact antenna is designed to enhance the communication range and signal stability of your compatible two-way radios. Its small size makes it highly portable, ideal for various applications where a discreet yet effective antenna is required. This manual provides essential information for proper setup, operation, and maintenance of your AR-805S antenna.

Image: The ABBREE AR-805S Mini Antenna shown connected to a Baofeng radio, illustrating its compact size and design features.

2. Key Features

• Dual Band Operation: Supports both VHF (144MHz) and UHF (430MHz) frequencies.
• High Gain: Designed to provide enhanced signal reception and transmission, improving communication distance and clarity.
• Compact Size: With a length of approximately 1.96 inches (5 cm), this mini antenna offers excellent portability and discretion.
• SMA-Female Connector: Ensures broad compatibility with a wide range of ham radios and walkie-talkies.
• Durable Construction: Features internal copper parts for reliable performance and longevity.

Image: Visual representation of the antenna's high gain capabilities, emphasizing signal stability and strong signal performance across various environments.

3. Compatible Devices

The ABBREE AR-805S antenna features an SMA-Female connector, making it compatible with numerous ham radios and walkie-talkies. Below is a list of commonly compatible models:

Baofeng Radios:

• UV-5R Series (UV-5R, UV-5R Mini, 5RM, UV-5RH, UV-5RH PRO)
• BF-F8HP PRO
• AR-152
• K5 PLUS
• BF-888S
• GM-15 PRO
• UV-21R
• GM21
• UV-K5
• TD-H8
• TD-H3
• DM32
• UV32
• UV-5G PLUS

Quansheng Radios:

• UV-K5
• UV-K5 8
• UV-K6
• TK11
• UV-88
• RT-860
• TD-H8
• TD-H3

Note: This list is not exhaustive. The antenna is generally compatible with any radio featuring an SMA-Female antenna port.

Image: A display of various Baofeng radio models equipped with the AR-805S antenna, illustrating its versatile compatibility.

4. Setup Instructions

Installing the ABBREE AR-805S antenna is a straightforward process. Follow these steps to ensure a secure and effective connection:

1. Unpack the Antenna: Carefully remove the AR-805S antenna from its packaging.
2. Identify the Connector: Locate the SMA-Female connector on the base of the antenna and the corresponding SMA-Male port on your radio.
3. Attach the Antenna: Align the antenna's connector with the radio's port. Gently screw the antenna onto the radio in a clockwise direction until it is finger-tight. Do not overtighten, as this can damage the connectors.
4. Use Rubber Gasket (If Needed): If you observe a slight gap between the antenna and the radio's body after tightening, use the provided rubber gasket. Place the gasket over the radio's antenna port before screwing on the antenna. This helps to seal the connection and prevent moisture ingress.
5. Verify Connection: Ensure the antenna is securely attached before operating your radio. A loose connection can result in poor performance or damage to the radio's antenna port.

Image: Detailed view of the SMA-Female connector on the antenna and its connection point on a radio.

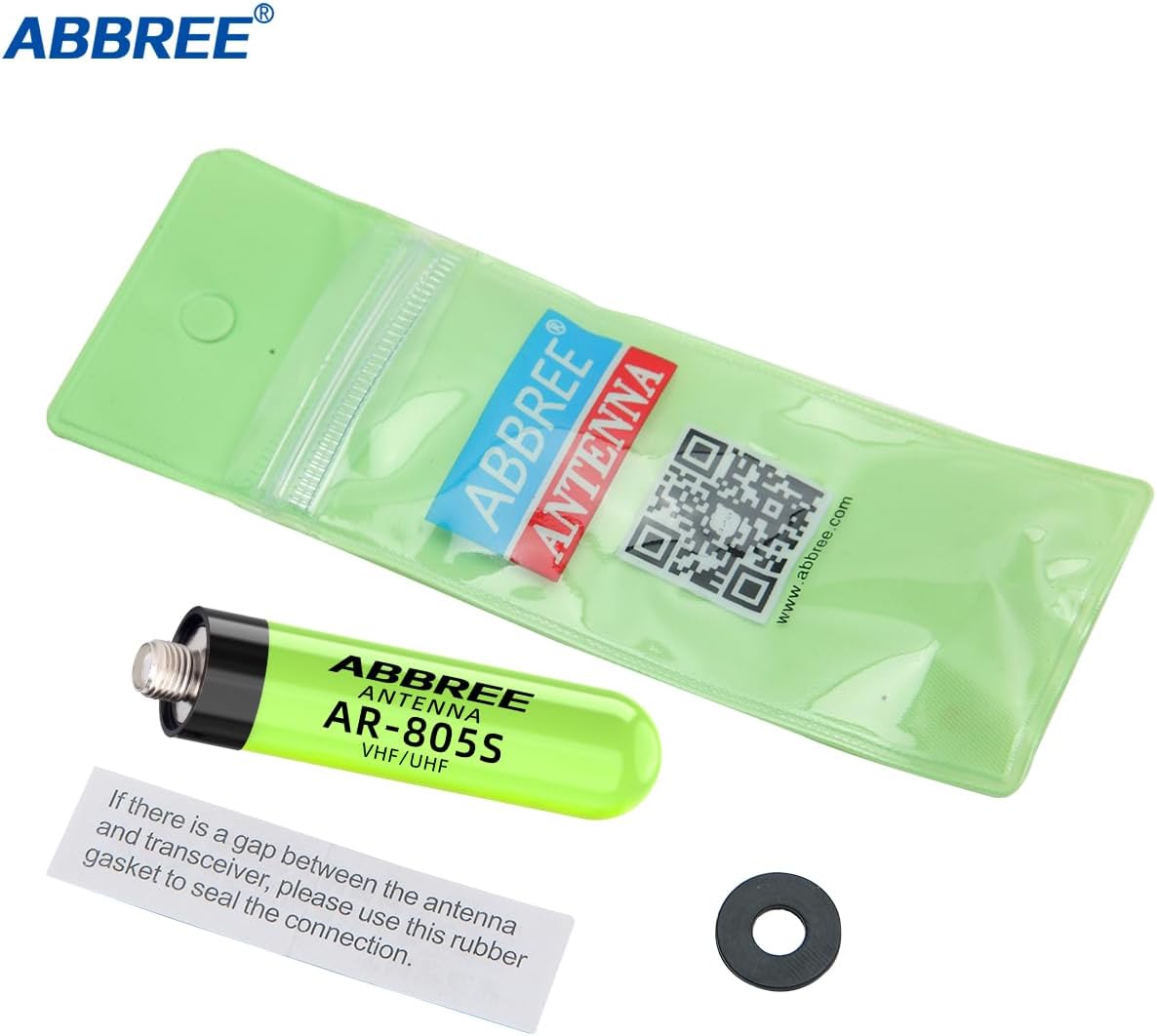

Image: The antenna packaging showing the included rubber gasket and instructions for its use to ensure a snug fit.

5. Maintenance

To ensure the longevity and optimal performance of your ABBREE AR-805S antenna, follow these simple maintenance guidelines:

• Cleaning: Wipe the antenna with a soft, dry cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive cleaners.
• Connection Check: Periodically check the antenna's connection to your radio to ensure it remains tight. A loose connection can degrade performance.
• Storage: When not in use for extended periods, store the antenna in a cool, dry place away from direct sunlight and extreme temperatures.
• Avoid Physical Stress: While durable, avoid bending, dropping, or subjecting the antenna to excessive physical force, which could damage its internal components or connector.

6. Troubleshooting

If you experience issues with your ABBREE AR-805S antenna, consider the following troubleshooting steps:

• Poor Signal Reception/Transmission:
  • Ensure the antenna is securely screwed onto the radio.
  • Verify that your radio is set to the correct frequency band (VHF/UHF) for the communication you are attempting.
  • Check for environmental obstructions (e.g., buildings, dense foliage) that might be blocking the signal.
  • Test with another known-good antenna if available, to rule out radio issues.
• Antenna Feels Loose:
  • Tighten the antenna gently. If a gap persists, ensure the rubber gasket is properly seated.
  • Inspect the SMA-Female connector on the antenna and the SMA-Male port on the radio for any visible damage.

7. Technical Specifications

8. Warranty & Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact ABBREE customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.

Manufacturer: ABBREE

Model Number: AR-805S
