pTron AerFlo X1 Cordless Tyre Inflator User Manual

Introduction

Thank you for choosing the pTron AerFlo X1 Cordless Tyre Inflator. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read it thoroughly before use and retain it for future reference.

Image: The pTron AerFlo X1 Cordless Tyre Inflator, featuring its digital display and control buttons, ready for use.

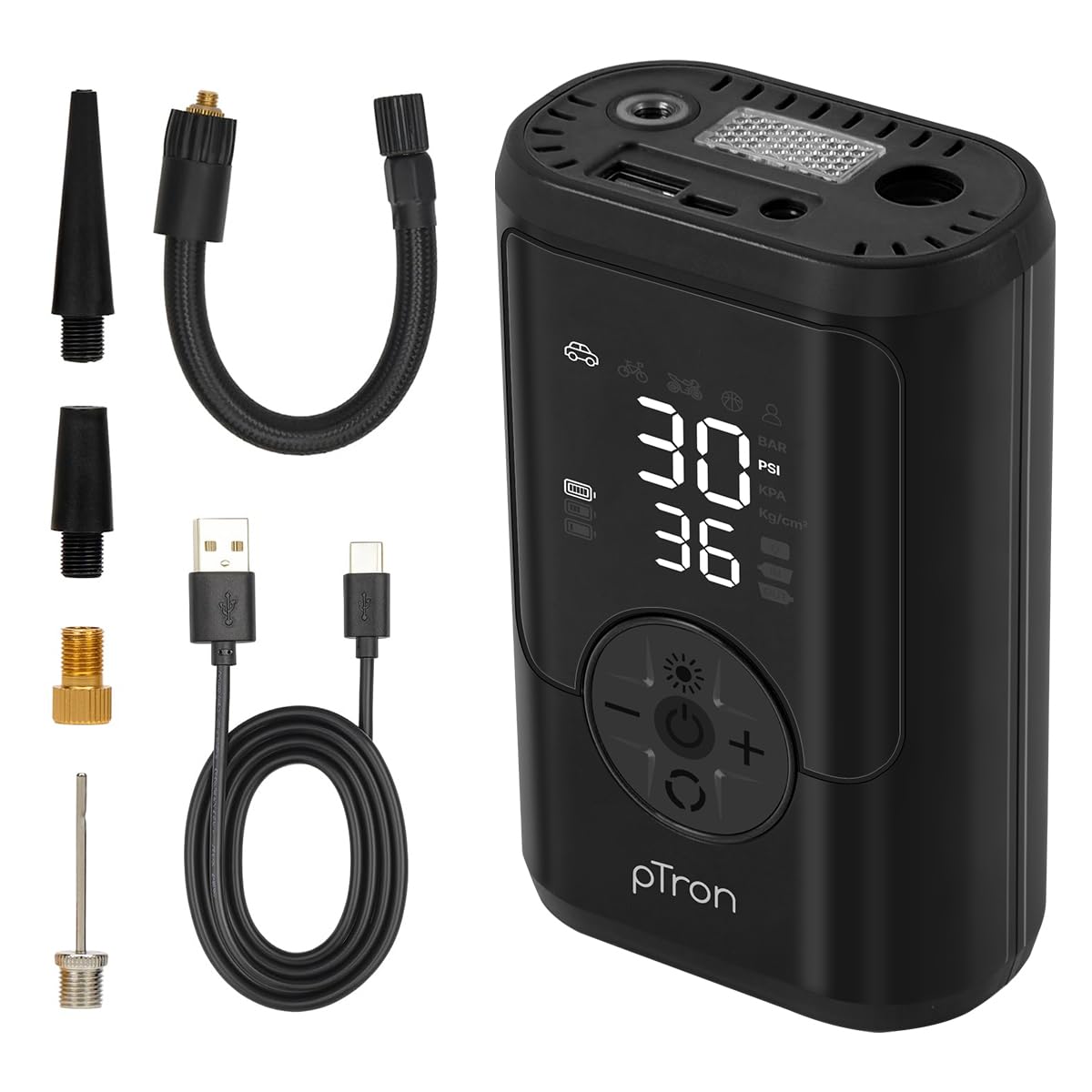

Package Contents

Ensure all items are present in the package:

• Main Unit (pTron AerFlo X1 Tyre Inflator)
• 3 x Nozzles (various types for different inflation needs)
• 1 x Air Tube
• 1 x French Valve adapter
• 1 x Type-C Charging Cable
• 1 x User Guide Card

Product Overview

The pTron AerFlo X1 is a versatile cordless tyre inflator designed for convenience and efficiency. It features a powerful motor, a high-capacity battery, and multiple functions.

Key Features:

• High Airflow: 25 Liters per Minute (LPM) for fast inflation.
• Maximum Pressure: Up to 150 PSI.
• Battery: Built-in 5000mAh (dual 2500mAh) Lithium-Ion battery.
• Multi-functional: Tyre inflator, LED flashlight, and 5W USB-A power bank.
• Preset Modes: Optimized settings for cars, motorcycles, bicycles, and balls.
• Digital Display: Large LED screen shows real-time pressure and preset values.
• Auto Shutoff: Automatically stops inflation when the preset pressure is reached.
• Charging: Fast Type-C charging.
• Pressure Units: Supports PSI, KPA, BAR, KG/CM².

Image: The pTron AerFlo X1 highlighting its integrated LED flashlight and 5W USB-A power bank functionality.

Image: The pTron AerFlo X1 demonstrating its versatility for inflating car, motorcycle, bicycle tires, and sports balls.

Setup

Initial Charging:

Before first use, fully charge the device for 3-4 hours using the provided Type-C charging cable and a compatible USB power adapter (not included). The battery indicator on the display will show charging status.

Image: An internal diagram of the pTron AerFlo X1, illustrating its dual 2500mAh rechargeable batteries and Type-C charging capability.

Connecting the Air Tube:

1. Screw one end of the air tube securely into the inflator's air outlet port.
2. Select the appropriate nozzle for your item (e.g., Schrader valve for cars/bikes, Presta valve with adapter for bicycles, needle for balls).
3. Attach the selected nozzle to the other end of the air tube.

Operating Instructions

Inflation Process:

1. Power On: Press and hold the power button to turn on the AerFlo X1. The LED display will illuminate.
2. Connect to Item: Remove the valve cap from the item you wish to inflate and securely connect the air tube with the appropriate nozzle.
3. Select Mode/Set Pressure:
   • Press the 'M' button to cycle through preset modes (Car, Motorcycle, Bicycle, Ball). Each mode has a default pressure value.
   • Alternatively, use the '+' and '-' buttons to manually set your desired pressure (PSI, KPA, BAR, KG/CM²). Press the unit button to change pressure units.
4. Start Inflation: Press the inflation button (usually indicated by a play/start icon) to begin inflation. The real-time pressure will be displayed.
5. Auto Shutoff: The inflator will automatically stop once the preset pressure is reached.
6. Disconnect: Quickly disconnect the air tube from the item to minimize air loss. Replace the valve cap.
7. Power Off: Press and hold the power button to turn off the device.

Image: A visual guide demonstrating the four key steps for tire inflation: connecting the hose, powering on, selecting the mode, and initiating inflation with auto shut-off.

Image: The pTron AerFlo X1 in action, inflating a car tire, with a visual emphasis on its precision inflation and automatic cut-off feature.

Using the LED Flashlight:

Press the flashlight button (usually indicated by a light bulb icon) to turn on the LED flashlight. Press again to cycle through modes (e.g., steady light, SOS emergency light) or turn off.

Using as a Power Bank:

Connect your device to the USB-A output port on the inflator using a compatible USB cable to charge it. The inflator provides 5W power output.

Maintenance

• Cleaning: Wipe the device with a soft, dry cloth. Do not use harsh chemicals or immerse in water.
• Storage: Store the inflator in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: If not in use for extended periods, recharge the battery once a month to maintain its health and prolong lifespan.
• Overheating Prevention: To prevent motor overheating and extend device lifespan, turn off the tyre inflator for 3 minutes after every 10 minutes of continuous use.

Troubleshooting

Specifications

Image: The pTron AerFlo X1 fitting easily into a car's glove compartment, showcasing its compact and travel-ready design.

Warranty and Support

Warranty Information:

The pTron AerFlo X1 comes with a 1 Year Manufacturer Warranty from the date of purchase, covering manufacturing defects only. Please retain your purchase receipt for warranty claims.

Customer Support:

For any queries, technical assistance, or warranty claims, please contact pTron customer support:

• Email: Support@ptron.in
• Phone: 040-67138888

Manufacturer Contact Information: Building A1, Red Box Creative Park, No. 3 Huancheng South Road, Bantian Street, Longgang District, Shenzhen City, China 518116.

Importer Contact Information: PALRED ELECTRONICS PVT. LTD., SY.NO. 56, 1ST FLOOR, GUNDLAPOCHAMPALLY VILLAGE, TECH PARK MTP, TSIIC-IALA NACHARAM, HYDERABAD - 500076, TELANGANA, INDIA.

Important Safety Information

• Do not use the inflator for purposes other than its intended use.
• Keep out of reach of children.
• Do not operate in wet conditions or immerse in water.
• Avoid prolonged continuous operation to prevent overheating. Follow the 10-minute use, 3-minute rest rule.
• Do not disassemble or attempt to repair the device yourself. Contact customer support for service.
• Ensure the correct pressure is set for the item being inflated to avoid over-inflation and potential damage or injury.
• This device is not suitable for large vehicles like buses, tractors, trucks, or off-road vehicles.
