1. Introduction
This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your FLEXISPOT Truffle Power Recliner. This electric zero-wall hugger recliner is upholstered in genuine top-grain leather and features an adjustable headrest, massage and heat functions, and convenient USB charging ports. Please read this manual thoroughly before use.
2. Safety Information
- Ensure all power connections are secure and correctly plugged into a grounded outlet.
- Keep children and pets away from the recliner's moving parts during operation.
- Do not place hands or feet near the reclining mechanism to prevent injury.
- Avoid spilling liquids on the control panel or electrical components.
- Do not attempt to disassemble or repair the recliner yourself. Contact customer support for assistance.
- Maximum weight capacity: 300 lbs. Do not exceed this limit.
3. Package Contents
Your FLEXISPOT Truffle Power Recliner is shipped in two manageable boxes. Please verify that all components are present before assembly:
- Recliner Base
- Recliner Backrest
- Power Adapter and Cable
- Remote Control for Massage/Heat
- Removable Cup Holders (2)
- Instruction Manual (this document)
4. Setup & Assembly
Assembly of your recliner is quick and straightforward, typically taking only minutes.
- Carefully unpack all components from the two boxes.
- Align the backrest with the base and slide it firmly into place until it clicks securely.
- Connect all necessary cables (power, control) as indicated in the diagrams.
- Insert the removable cup holders into the designated slots on the armrests.
- Plug the power adapter into a wall outlet.
Figure 4.1: Recliner assembly diagram, showing how the backrest connects to the base.
5. Operating Instructions
5.1 Power Recline Function
The recliner features an effortless power recline mechanism. Use the buttons located on the side panel to smoothly adjust the recline angle from 90° (upright) to 135° (fully reclined). The zero-wall design allows the recliner to fully recline with only 1.2 inches of wall clearance, saving space.
Figure 5.1: User demonstrating the power recline function.
Figure 5.2: Zero-wall design allowing full recline with minimal wall clearance.
Video 5.1: Demonstration of the recliner's zero-wall recline and overall functionality.
5.2 Adjustable Headrest
The recliner features a 3-level adjustable headrest. Manually adjust the headrest to your preferred angle for optimal neck and shoulder support while reading, watching TV, or resting.
Figure 5.3: Adjusting the 3-level headrest.
5.3 Massage & Heat Functions

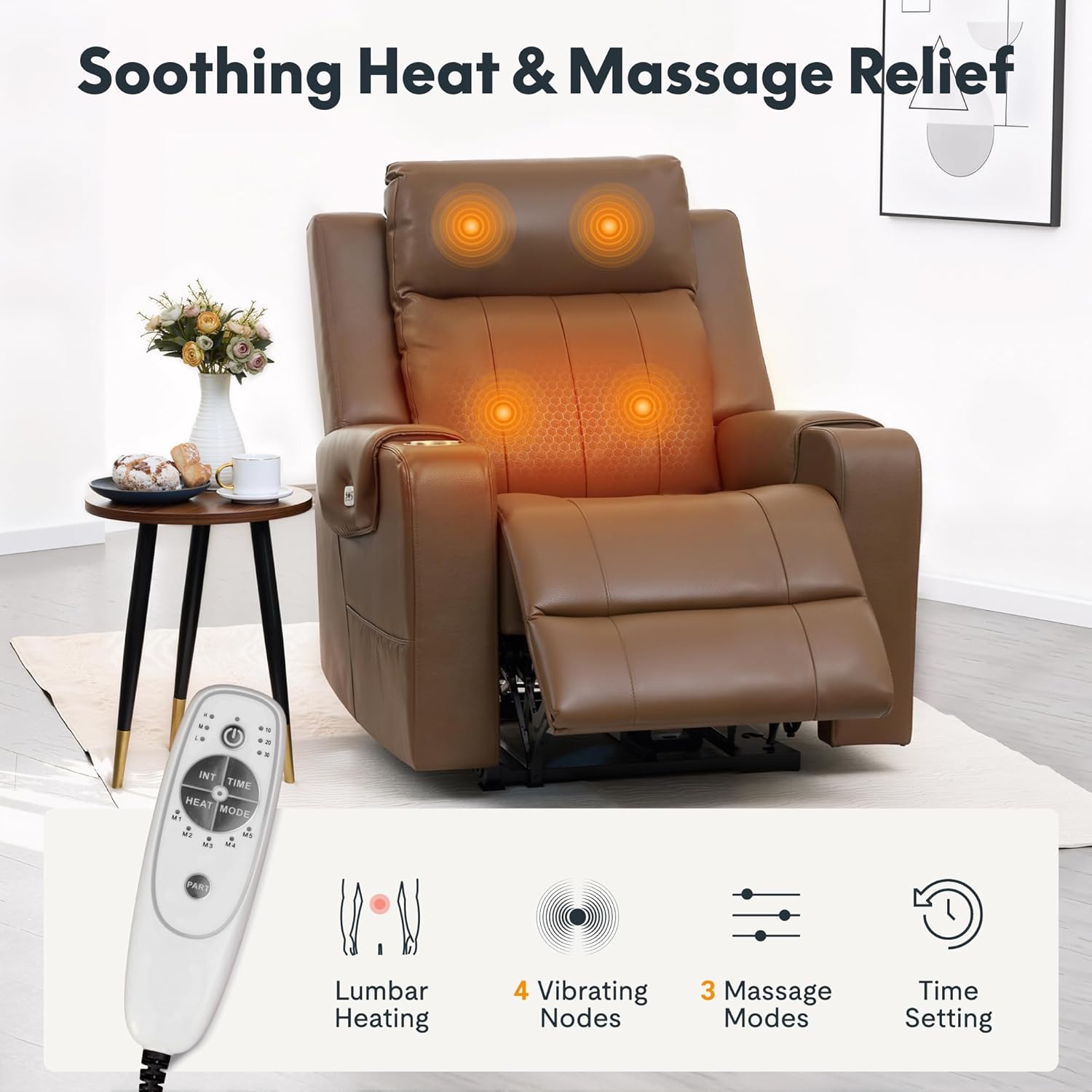

Utilize the included remote control to activate the 4-point vibration massage and gentle lumbar heat. The massage targets your back, and the heat helps to relieve tension. The remote allows you to select different massage modes, intensity levels, and set a timer for your session.
Figure 5.4: Remote control for massage and heat functions.
5.4 USB Charging Ports
The recliner is equipped with built-in USB-A and Type-C charging ports on the side panel, allowing you to conveniently charge your phones and tablets while relaxing.
Figure 5.5: Integrated USB-A and Type-C charging ports.
5.5 Cup Holders & Storage Pockets
The recliner includes dual removable cup holders for your beverages and side storage pockets to keep remotes, books, or other essentials within easy reach.
Figure 5.6: Removable cup holders and side storage pockets.
6. Maintenance & Care
To ensure the longevity and appearance of your genuine leather recliner, follow these care instructions:
- Cleaning: Wipe the leather surfaces with a damp cloth to remove dust and light spills. For tougher stains, use a mild leather cleaner specifically designed for genuine leather. Avoid harsh chemicals or abrasive cleaners.
- Protection: Keep the recliner away from direct sunlight and heat sources to prevent fading and drying of the leather.
- Spills: Blot spills immediately with a clean, dry cloth. Do not rub.
- Mechanism: Periodically check and tighten any loose screws on the reclining mechanism. Do not lubricate the mechanism unless specified by the manufacturer.
7. Troubleshooting
If you encounter any issues with your recliner, please refer to the following common solutions:
- Recliner not operating: Ensure the power adapter is securely plugged into both the recliner and a working wall outlet. Check for any loose cable connections.
- Massage/Heat not activating: Verify the remote control batteries (if applicable) and ensure the remote is properly connected (if wired). Check the power connection to the recliner.
- Unusual noises during recline: Ensure no objects are obstructing the reclining mechanism. If noises persist, contact customer support.
- Uneven recline: Check that the recliner is placed on a flat, stable surface.
If the problem persists after attempting these solutions, please contact FLEXISPOT customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | FLEXISPOT |
| Model Number | 8405215022 |
| Color | Latte |
| Material | Genuine Leather |
| Product Dimensions (D x W x H) | 38.6"D x 36.2"W x 40.9"H |
| Seat Depth | 20.1 inches |
| Reclining Position Count | 2 (Upright to 135° Recline) |
| Maximum Weight Recommendation | 300 Pounds |
| Additional Features | Adjustable Headrest, Massage and Heat, Wall Hugger, USB-A & Type-C Charging Ports |
| Frame Material Type | Wood, Metal |
| Required Assembly | Yes |
Figure 8.1: Product dimensions overview.
9. Warranty and Support
FLEXISPOT is committed to providing high-quality products. Your purchase is covered by a 30-day return/exchange policy from the date of receipt.
For any questions, technical support, or warranty claims, please contact FLEXISPOT customer service:
- Email: contact@flexispot.com
- Phone: +1(855)585-5618
You can also find more information and support by visiting the official FLEXISPOT online store or your Amazon account's order history to contact the seller directly.
Video 9.1: An official video showcasing the comfort and features of the Flexispot Recliner.
