JETO H88 4K Mini Body Camera User Manual

1. Product Overview

The JETO H88 4K Mini Body Camera is a compact, wearable action camera designed for hands-free recording. It features 4K resolution, a 150° wide-angle lens, and WiFi connectivity for live viewing and file management via a mobile application. The camera is built for various activities, including extreme sports, travel, and daily vlogging, and comes with a waterproof case for underwater use.

Front view of the JETO H88 4K Mini Body Camera.

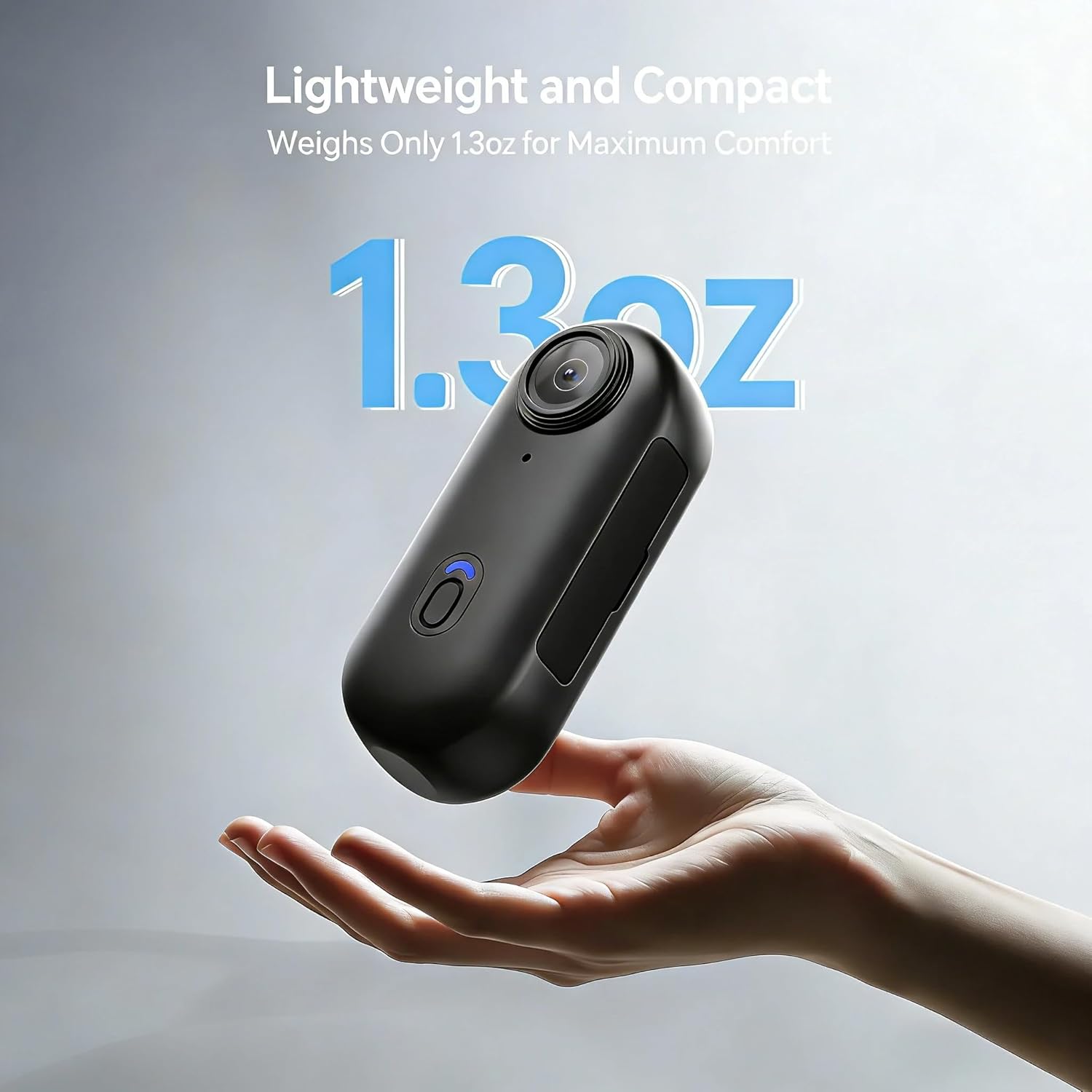

The JETO H88 4K Mini Body Camera is lightweight and compact, weighing only 1.3 ounces.

2. What's in the Box

Your JETO H88 4K Mini Body Camera package includes the following items:

• H88 Thumb Camera X1
• Magnet Pendant X1
• Spring Back Clip X1
• Waterproof Case X1
• Camera Frame X1

The camera comes with various accessories for versatile mounting and use.

3. Setup

3.1 Charging the Camera

Before first use, fully charge the camera using the provided USB-C cable. Connect the cable to the camera's USB-C port and a power source. The indicator light will show charging status.

3.2 Inserting the Micro SD Card

The camera requires a Micro SD card (up to 128GB, included with 128GB model) for storing footage. Locate the SD card slot on the side of the camera and gently insert the card until it clicks into place. Ensure the camera is powered off before inserting or removing the SD card.

3.3 Powering On/Off

To power on the camera, press and hold the power button until the indicator light illuminates. To power off, press and hold the power button again until the indicator light turns off.

One-click recording for easy use, indicating the power/record button.

3.4 Connecting to the Mobile App (WiFi)

The JETO H88 camera can connect to a mobile app via WiFi for live preview, playback, and file management.

1. Power on the camera.
2. Enable WiFi on the camera by pressing the WiFi button (if available, or it may activate automatically). The WiFi indicator light will flash.
3. On your smartphone, go to WiFi settings and connect to the camera's WiFi network (e.g., 'H88_XXXXXX'). The default password is usually '12345678'.
4. Open the dedicated mobile app (refer to the quick start guide for app name) and select 'Connect Camera'.
5. You should now see a live preview from the camera and be able to control its functions.

4. Operating Instructions

4.1 Recording Video

With the camera powered on, press the record button once to start recording. The indicator light will change to indicate recording is in progress. Press the button again to stop recording.

4.2 Taking Photos

While in standby mode, a quick press of the record button may take a photo. Refer to the quick start guide for specific photo mode activation.

4.3 Using the Waterproof Case

For underwater activities or protection in wet conditions, place the camera inside the provided waterproof case. Ensure the case is properly sealed before submersion. The camera can be used up to 30 meters deep with the case.

4.4 Mounting Options

The JETO H88 offers versatile mounting options:

• Magnetic Clip-On: Use the magnetic pendant or spring back clip for easy attachment to clothing or metal surfaces.
• Helmet/Bike Mount: Utilize the included mounts to attach the camera securely to helmets or bicycle handlebars.
• Adhesive Mounts: For fixed surfaces, use the adhesive mounts provided.

The camera offers versatile wearing options, including a back clip and magnetic neck strap.

The camera can be mounted on a helmet for hands-free recording during activities like skiing.

Mount the camera on bicycle handlebars to capture cycling adventures.

Capture first-person perspective footage during motorcycle rides.

5. File Transfer and Management

5.1 Transferring Files to Phone/Computer

You can transfer recorded videos and images to your smartphone or computer using the provided cables or via the WiFi app.

• Via Cable: Connect the camera to your computer using the provided USB-C cable. The camera will appear as a removable drive, allowing you to access and copy files. For smartphones, use a Lighting to Type-C or Type-C to Type-C cable.
• Via WiFi App: Connect the camera to the mobile app via WiFi. You can then preview, play back, and download files directly to your smartphone.

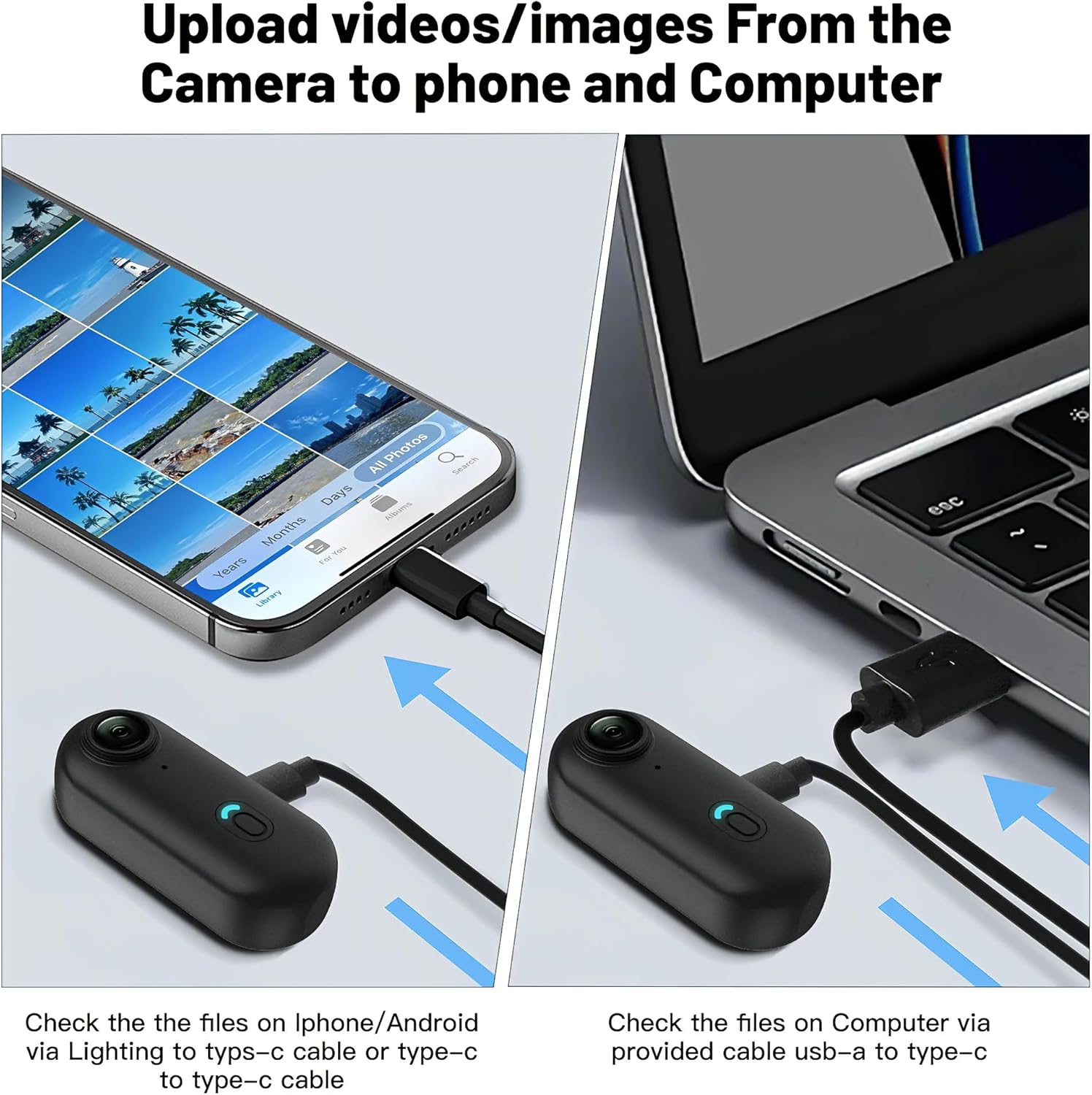

Connect the camera to your phone or computer to check and transfer files.

Upload videos and images from the camera to your phone or computer.

6. Maintenance

To ensure the longevity and optimal performance of your JETO H88 camera, follow these maintenance guidelines:

• Keep the camera and accessories clean and dry.
• Avoid exposing the camera to extreme temperatures or direct sunlight for extended periods.
• Clean the lens with a soft, lint-free cloth. Do not use abrasive materials.
• Ensure the waterproof case is free of debris and properly sealed before use in water.
• Store the camera in a cool, dry place when not in use.

7. Troubleshooting

7.1 Camera Not Powering On

• Ensure the battery is charged. Connect the camera to a power source and allow it to charge for at least 30 minutes.
• Press and hold the power button for several seconds to ensure it's not a brief press.

7.2 Recording Issues (No Video/Audio)

• Check if a Micro SD card is properly inserted and has sufficient free space.
• Ensure the SD card is formatted correctly (FAT32 or exFAT, depending on card size).
• Verify that the camera is in video recording mode.

7.3 WiFi Connection Problems

• Ensure the camera's WiFi is enabled and the indicator light is active.
• Double-check the WiFi password (default is '12345678').
• Move closer to the camera to ensure a strong signal (recommended within 32ft/10m).
• Restart both the camera and your smartphone.

Use the mobile app for live preview and playback, recommended within 32ft (10m) for optimal connection.

8. Specifications

9. Warranty and Support

JETO products come with a standard manufacturer's warranty. For detailed warranty information, product support, or technical assistance, please refer to the warranty card included in your package or visit the official JETO website. You can also contact customer service through the retailer where the product was purchased.
