Feit Electric LED Motion Sensor Flood Light User Manual

Model: S9DFL/5CCT/MM

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Feit Electric LED Motion Sensor Flood Light. Please read this manual thoroughly before installation and retain it for future reference. This dual-head security light offers up to 2000 lumens of illumination, adjustable color temperatures, and motion-sensing capabilities for enhanced outdoor security and convenience.

Product Overview

Diagram showing the Feit Electric LED Motion Sensor Flood Light with adjustable heads, integrated LED lighting, and control features.
Figure 1: Product Features Diagram. This image illustrates the adjustable heads, integrated LED lighting, and various control features of the flood light, including adjustable brightness, motion detection range, and timer settings.

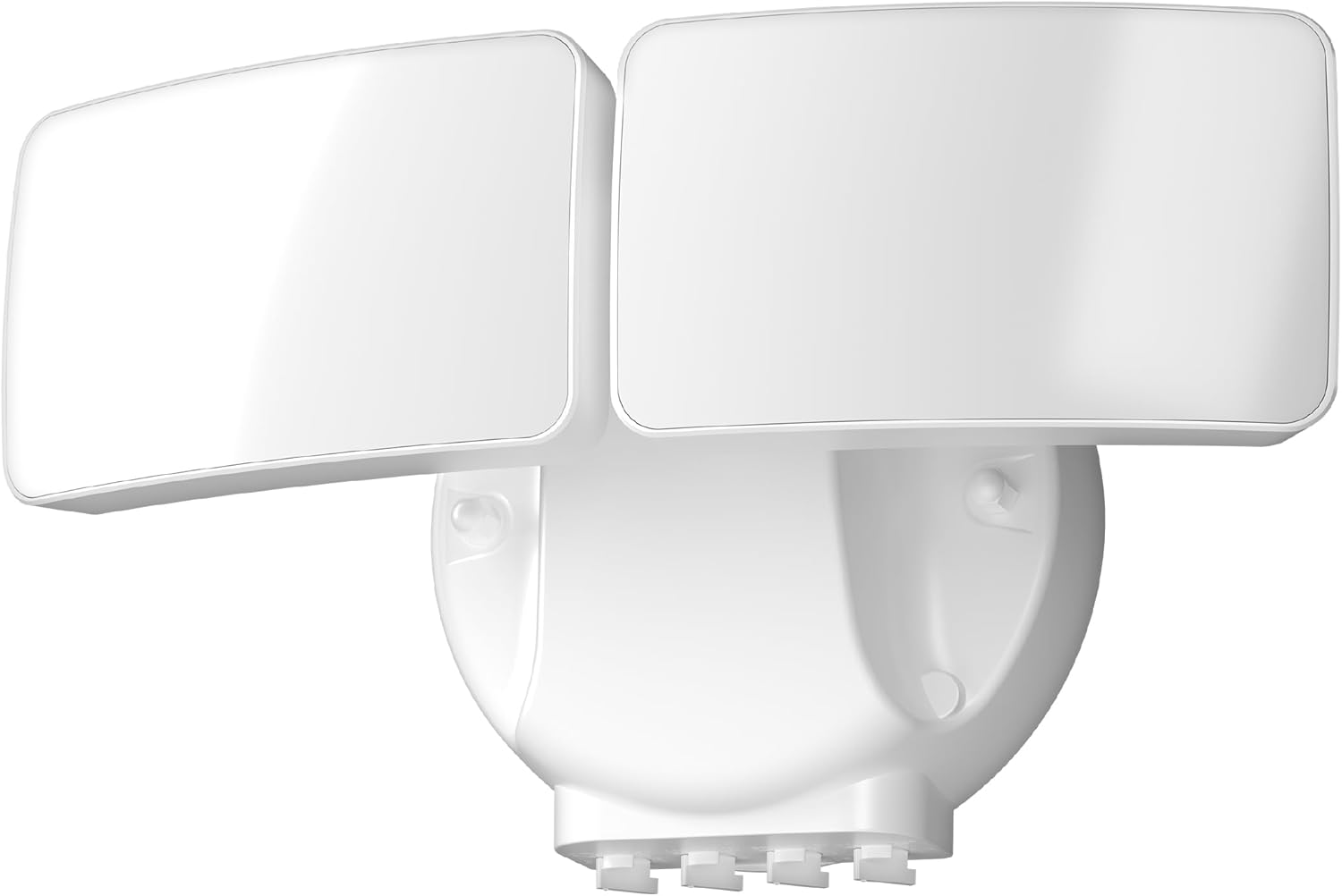

Front view of the Feit Electric LED Motion Sensor Flood Light.
Figure 2: Front View of the Flood Light. A clear view of the dual-head design and the central mounting base.

Key Features:

  • Adjustable Heads: Direct light precisely where needed.
  • Integrated LED Lighting: Energy-efficient and maintenance-free, with no bulbs to replace.
  • Motion Activated: Senses motion up to 50 feet away with a 180-degree detection angle.
  • Dusk-to-Dawn Functionality: Automatically turns on at night and off during the day.
  • Adjustable Brightness: Lumen Select Dial allows adjustment from 10% to 100% (200-2000 lumens).
  • 5CCT Selectable Color Temperature: Choose from 2700K (Soft White), 3000K (Bright White), 4000K (Cool White), 5000K (Daylight), or 6500K (Daylight Deluxe).
  • Weatherproof Design: Wet rated for outdoor use, with UV-protected housing and shatter-resistant lens.
  • Quick Connect Installation: Simplifies the setup process.

Setup and Installation

This flood light is designed for hardwired installation on walls or under eaves. Mounting hardware is included.

Installation Steps:

  1. Safety First: Ensure power to the installation area is turned off at the circuit breaker before beginning.
  2. Mounting: Use the provided Quick Connect system and mounting hardware to securely attach the fixture to a wall or eave. Ensure the fixture is level and stable.
  3. Wiring: Connect the electrical wires according to local electrical codes. This fixture is designed for 120V corded electric power.
  4. Adjust Heads: Once mounted, adjust the two light heads to cover the desired area.
Feit Electric flood light mounted under an eave during rain.
Figure 3: Eave Mounting Example. The image shows the flood light securely mounted under an eave, demonstrating its wet-rated capability during rainfall.
Close-up of the Feit Electric flood light mounted on a wall.
Figure 4: Wall Mounting Example. A detailed view of the flood light installed on a wall, highlighting its compact design.

Operating Instructions

The Feit Electric LED Motion Sensor Flood Light features intuitive dials for customizing its performance.

Control dials for Lumen Select, Color Temperature, Motion Range, and Timer settings.
Figure 5: Control Dials. This image displays the four adjustment dials for color temperature, brightness, motion detection range, and timer settings.
Diagram showing the adjustable movement of the flood light heads.
Figure 6: Adjustable Light Heads. Illustrates the ability to pivot and tilt the light heads for optimal coverage.

Control Settings:

  • Color Temperature (CCT) Dial: Select your preferred white light shade: 2700K (Soft White), 3000K (Bright White), 4000K (Cool White), 5000K (Daylight), or 6500K (Daylight Deluxe).
    Image showing different color temperatures from 2700K to 6500K.
    Figure 7: Adjustable White Color Temperatures. Demonstrates the range of white light options from warm to cool.
    Image showing a house with dusk-to-dawn lighting activated at night and off during the day.
    Figure 8: Dusk-to-Dawn Operation. Illustrates the automatic activation of the light at dusk and deactivation at dawn.
  • Lumen Select (Brightness) Dial: Adjust the light output from 10% (200 lumens) to 100% (2000 lumens).
    Comparison of 200 lumens vs 2000 lumens output from the flood light.
    Figure 9: Lumen Output Comparison. Shows the visual difference between 200 lumens and 2000 lumens.
  • Motion Detection Range Dial: Set the motion sensor detection distance to 15ft, 30ft, 40ft, or 50ft.
    Diagram showing motion detection ranges from 15ft to 50ft.
    Figure 10: Motion Detection Range. Illustrates the selectable detection distances for the motion sensor.
  • Timer Settings Dial: Choose how long the light stays on after motion is detected: Test, 1 minute, 5 minutes, 10 minutes, or High/Low mode.
  • Dusk-to-Dawn Function: The integrated sensor automatically turns the light on at night and off during the day. This function can be overridden by the motion sensor settings.

Maintenance

The Feit Electric LED Motion Sensor Flood Light is designed for minimal maintenance.

  • Cleaning: Periodically wipe the fixture with a soft, damp cloth to remove dirt and debris. Do not use abrasive cleaners or solvents.
  • LED Longevity: The integrated LED lighting is designed for long-term use and does not require bulb replacement.
  • Weather Resistance: The fixture's weather-resistant and UV-protected housing, along with its shatter-resistant lens, ensures durability in various outdoor conditions.

Troubleshooting

If you experience issues with your flood light, refer to the following common solutions:

ProblemPossible CauseSolution
Light does not turn on.No power, faulty wiring, or sensor issue.Check circuit breaker. Verify wiring connections. Ensure sensor is not obstructed. Adjust dusk-to-dawn settings.
Light stays on continuously.Continuous motion detection or incorrect timer setting.Reduce motion sensor sensitivity/range. Adjust timer setting to a shorter duration. Ensure no constant heat sources are triggering the sensor.
Light turns on during the day.Dusk-to-dawn sensor obstructed or faulty.Ensure the dusk-to-dawn sensor is not covered or in a shaded area.
Motion sensor range is too short/long.Incorrect motion detection range setting.Adjust the Motion Detection Range dial to the desired distance.

Specifications

FeatureSpecification
Model NumberS9DFL/5CCT/MM/WH
Light OutputUp to 2000 Lumens (Adjustable 200-2000)
Wattage26 Watts
Voltage120 Volts
Color Temperature5CCT Selectable (2700K, 3000K, 4000K, 5000K, 6500K)
Motion Sensor RangeUp to 50 feet
Motion Detection Angle180 Degrees
Indoor/Outdoor UsageOutdoor
Mounting TypeWall Mount, Eave Mount
MaterialPolycarbonate, Aluminum (Shade)
Water Resistance LevelWet Rated
Dimensions (L x W x H)7.8" x 4" x 5.1"
Weight1 Pound
Light SourceIntegrated LED
Power SourceCorded Electric (Hardwired)

Warranty

This Feit Electric LED Motion Sensor Flood Light is covered by a 3-year manufacturer's limited warranty. For details regarding warranty claims, please refer to the official Feit Electric warranty policy or contact customer support.

Support

For 24/7 customer support, visit the Feit Electric help center:

Feit Electric Help Center

Image showing customer support information with a QR code and the Feit Electric logo.
Figure 11: Customer Support Information. This image provides details on how to access 24/7 customer support via the Feit Electric website.
