UIRWAY 4-in-1 Deluxe Swimming Pool Cleaning Kit User Manual

Introduction

Thank you for choosing the UIRWAY 4-in-1 Deluxe Swimming Pool Cleaning Kit. This kit provides essential tools for maintaining a clean and healthy swimming pool. It includes a triangular pool vacuum head, a detachable brush, a deep leaf skimmer net, and an adjustable aluminum pole. This manual provides instructions for proper assembly, operation, and maintenance of your cleaning kit.

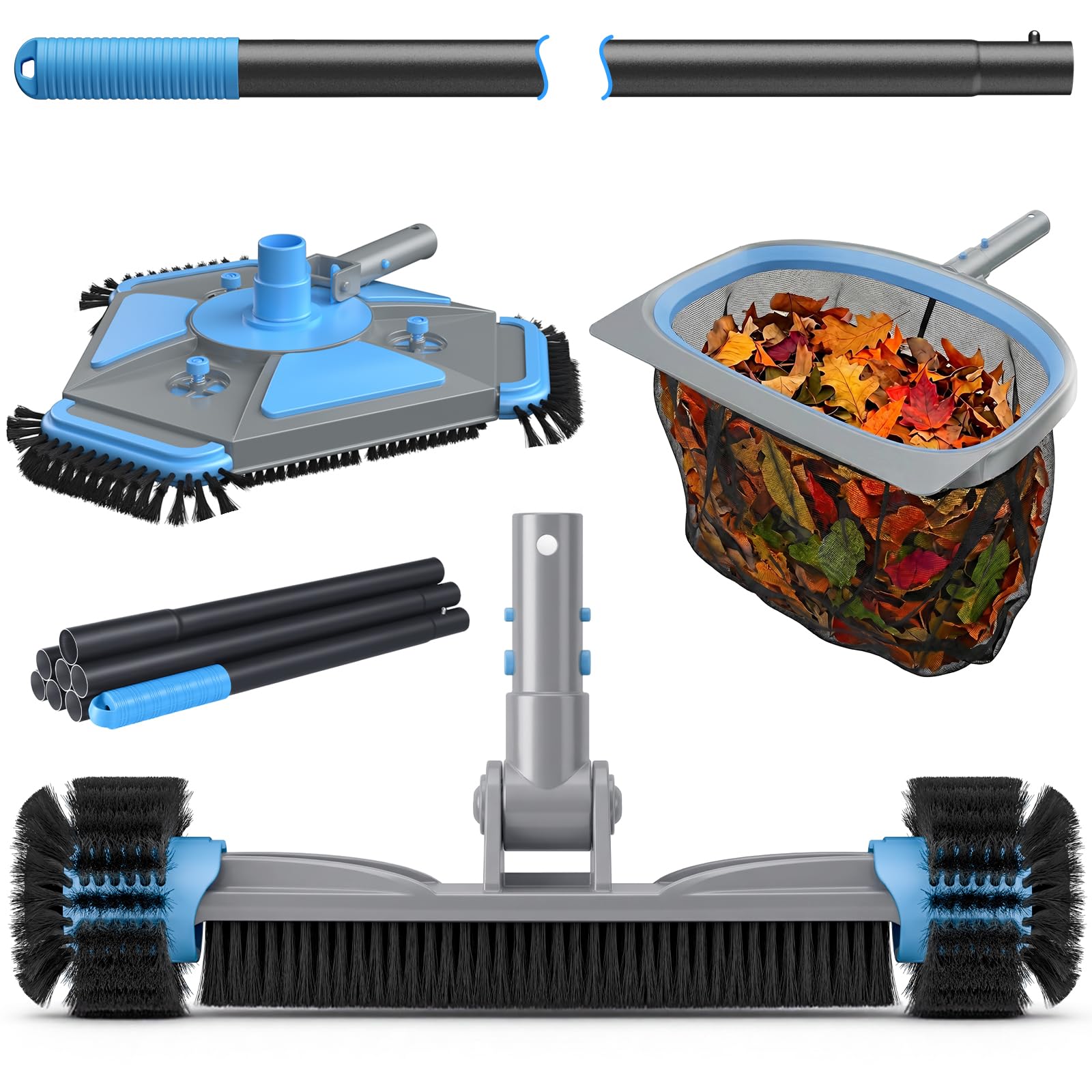

Image: The complete UIRWAY 4-in-1 Deluxe Swimming Pool Cleaning Kit, featuring the vacuum head, brush, skimmer net, and adjustable pole.

Safety Information

• Always ensure the pool pump is turned off before connecting or disconnecting the vacuum head.
• Keep all components clean and free from damage. Do not use damaged equipment.
• Store the kit in a safe, dry place away from direct sunlight and extreme temperatures when not in use.
• This product is intended for pool cleaning only. Do not use for other purposes.

Components Included

The UIRWAY 4-in-1 Deluxe Swimming Pool Cleaning Kit includes the following items:

• Triangular Pool Vacuum Head: Designed for efficient debris collection from pool floors and corners.
• Detachable Brush: Features 7 rows of nylon bristles and 180° adjustability for scrubbing pool walls and steps.
• Deep Leaf Skimmer Net: A reinforced net with high-density polyester mesh for removing floating debris.
• Adjustable Aluminum Pole: Extends from 2ft to 11ft, compatible with all included attachments.

Image: Detailed diagram illustrating the dimensions of the brush, adjustable pole, skimmer net, and vacuum head components.

Setup Instructions

Follow these steps to assemble your UIRWAY pool cleaning kit:

1. Assemble the Pole: Connect the sections of the adjustable aluminum pole to achieve the desired length. Ensure connections are secure.
2. Attach the Brush: Align the brush head with the end of the pole and snap it into place. The brush features a 180° adjustable rotary button for different cleaning angles.
3. Attach the Skimmer Net: Align the skimmer net handle with the end of the pole and secure it.
4. Attach the Vacuum Head: For vacuuming, attach the triangular vacuum head to the pole. Then, connect your pool vacuum hose (not included) to the vacuum head's inlet.
5. Prepare for Vacuuming (Important): Before turning on your pool pump, submerge the vacuum head and hose completely in the pool water to remove all air from the hose. This creates a proper sealed vacuum, ensuring strong and consistent suction.

Image: Step-by-step visual guide for attaching the vacuum head components to the pole and hose.

Setup Video Guide

Operating Instructions

Using the Pool Vacuum Head

The triangular vacuum head is designed for effective cleaning of pool floors. It requires a pool pump of at least 0.75 HP for optimal performance (pump and hoses are not included and must be purchased separately). The weighted, sealed body ensures close contact with pool surfaces, and the triangular shape allows access to corners and tight spaces. Side brushes assist in dislodging debris.

Image: The triangular vacuum head in action, effectively cleaning debris from the pool floor.

Image: Close-up view of the vacuum head's underside, highlighting the detachable side brushes and three automatic relief valves for consistent suction.

Using the Deep Leaf Skimmer Net

The skimmer net is used to remove floating leaves and other debris from the pool surface. Its reinforced plastic frame resists breakage, and the high-density polyester mesh efficiently traps debris while allowing water to drain quickly. The wide, inclined front lip facilitates scooping.

Image: The deep leaf skimmer net efficiently collecting a large amount of leaves from the pool surface.

Using the Detachable Brush

The 17.8-inch brush head features 7 rows of reinforced nylon bristles for scrubbing stubborn stains from pool walls and floors. The 180° adjustable rotary button allows for easy maneuvering to clean flat surfaces, corners, and steps without damaging pool liners.

Image: The 180° adjustable brush cleaning a pool wall, demonstrating its flexibility for various angles.

Operation Video Guide

Maintenance

• Cleaning Components: After each use, rinse all components (vacuum head, brush, skimmer net, pole) thoroughly with fresh water to remove chlorine, chemicals, and debris.
• Inspecting for Damage: Regularly inspect the skimmer net for tears, and the brush bristles and vacuum head for wear or damage. Replace components as needed.
• Storage: Store the disassembled or assembled kit in a cool, dry, and shaded area to prolong its lifespan. Avoid leaving components exposed to direct sunlight for extended periods.

Troubleshooting

Problem: Vacuum head has weak or no suction.

Possible Causes & Solutions:

• Air in the hose: Ensure the entire vacuum hose is submerged and all air is purged before connecting to the skimmer or dedicated vacuum line.
• Insufficient pump power: The vacuum head requires a pool pump of at least 0.75 HP. Verify your pump meets this requirement.
• Hose or connection leaks: Check all hose connections for tightness and inspect the hose for any cracks or holes that could be breaking the vacuum seal.
• Debris blockage: Check the vacuum head and hose for any large debris that might be obstructing the flow.
• Filter system issues: Ensure your pool's filter is clean and operating correctly, as a clogged filter can reduce suction.

Problem: Skimmer net is not effectively catching small debris.

Possible Causes & Solutions:

• Net damage: Inspect the high-density mesh for any tears or holes.
• Debris type: Very fine particles may pass through the mesh. For such particles, use the vacuum head with your pool's filtration system.

Specifications

Warranty and Support

For warranty information, technical support, or any questions regarding your UIRWAY 4-in-1 Deluxe Swimming Pool Cleaning Kit, please contact UIRWAY Innovation Direct. Contact details can typically be found on the product packaging or the official UIRWAY website.

Please retain your purchase receipt as proof of purchase for any warranty claims.
